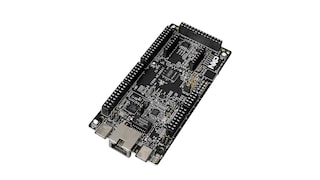

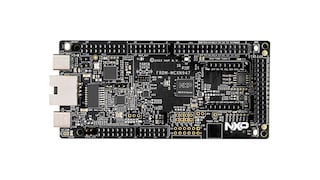

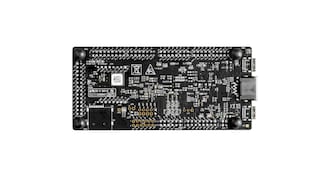

FRDM-MCXN947 are compact and scalable development boards for rapid prototyping of MCX N94 and N54 MCUs. They offer industry standard headers for easy access to the MCU’s I/Os, integrated open-standard serial interfaces, external flash memory and an on-board MCU-Link debugger. Additional tools like our Expansion Board Hub for add-on boards and the Application Code Hub for software examples are available through the MCUXpresso Developer Experience.

Design Files

Software

Product Details

Block Diagram

FRDM-MCXN947 Block Diagram

Get diagram PDF

Supported Devices

Processors and Microcontrollers

MCX N Series Microcontrollers

MCX-N94X-N54X: MCX N94x/54x Highly Integrated Multicore MCUs with On-Chip Accelerators, Intelligent Peripherals and Advanced Security

Sensors

Accelerometers

FXLS8971CF: ±2g/±4g/±8g/±16g, Low Power 12-Bit Digital Accelerometer
FXLS8961AF: ±2g/±4g/±8g/±16g, Low Power 12-Bit Digital Accelerometer

Analog and Mixed Signal

Analog Front-End

NAFEx3388: Highly Configurable 8/4 Channel 24/16 bits ±25 V Universal Input Analog Front-End with Excitation Sources

Features

Microcontroller

MCX-N947 Dual Arm^® Cortex^® -M33 cores @150MHz each with optimized performance efficiency, Up to 2MB dual-bank flash with optional full ECC RAM, External flash
Accelerators:
- Neural Processing Unit, PowerQuad, Smart DMA, etc.

Memory Expansion

*DNP Micro SD card socket

Connectivity

Ethernet Phy and connector
HS USB Type-C connectors
SPI/I²C/UART connector (PMOD/mikroBUS, DNP)
WIFI connector (PMOD/mikroBUS, DNP)
CAN-FD transceiver

Debug

On-board MCU-Link debugger with CMSIS-DAP
JTAG/SWD connector

Sensor

P3T1755 I3C/I²C Temp Sensor, Touch Pad

Expansion Options

Arduino® Header (with FRDM expansion rows)
FRDM Header
FlexIO/LCD Header
SmartDMA/Camera Header
Pmod™ *DNP
mikroBUS™

User Interface

RGB user LED, plus Reset, ISP, Wakeup buttons

Hardware

Evaluation Board

3-Phase PMSM Motor Control FRDM Expansion Board

FRDM Expansion board for Low-Voltage, 3-Phase Permanent Magnet Motor Control.

FRDM-MC-LVPMSM

Evaluation Board

3-Axis IoT Accelerometer FRDM Expansion Board

FRDM Expansion board for FXLS8974CF 3-Axis IoT accelerometer.

FRDM-XXXX-A8974

Evaluation Board

3.5” TFT LCD Module

The LCD-PAR-S035 is a 3.5” 480x320 IPS TFT LCD module with wide viewing angle and 5-point capacitive touch functionality.

LCD-PAR-S035

Buy Options

Click to expand

FRDM-MCXN947
Active
FRDM Development Board for MCX N94 and N54 MCUs.

Kit Contains:

- FRDM-MCXN947
- Quick Start Guide
- USB Cable Type-C

$25.00 USD
For a quantity of 1
- Availability: In Stock
- Inventory: 59
- Shipping: Normally ships 1-2 business days

ADD TO CART
