FRDM Development Board for MCX A355, A356, A365 and A366 MCUs

FRDM-MCXA366
Active

Roll over image to zoom in

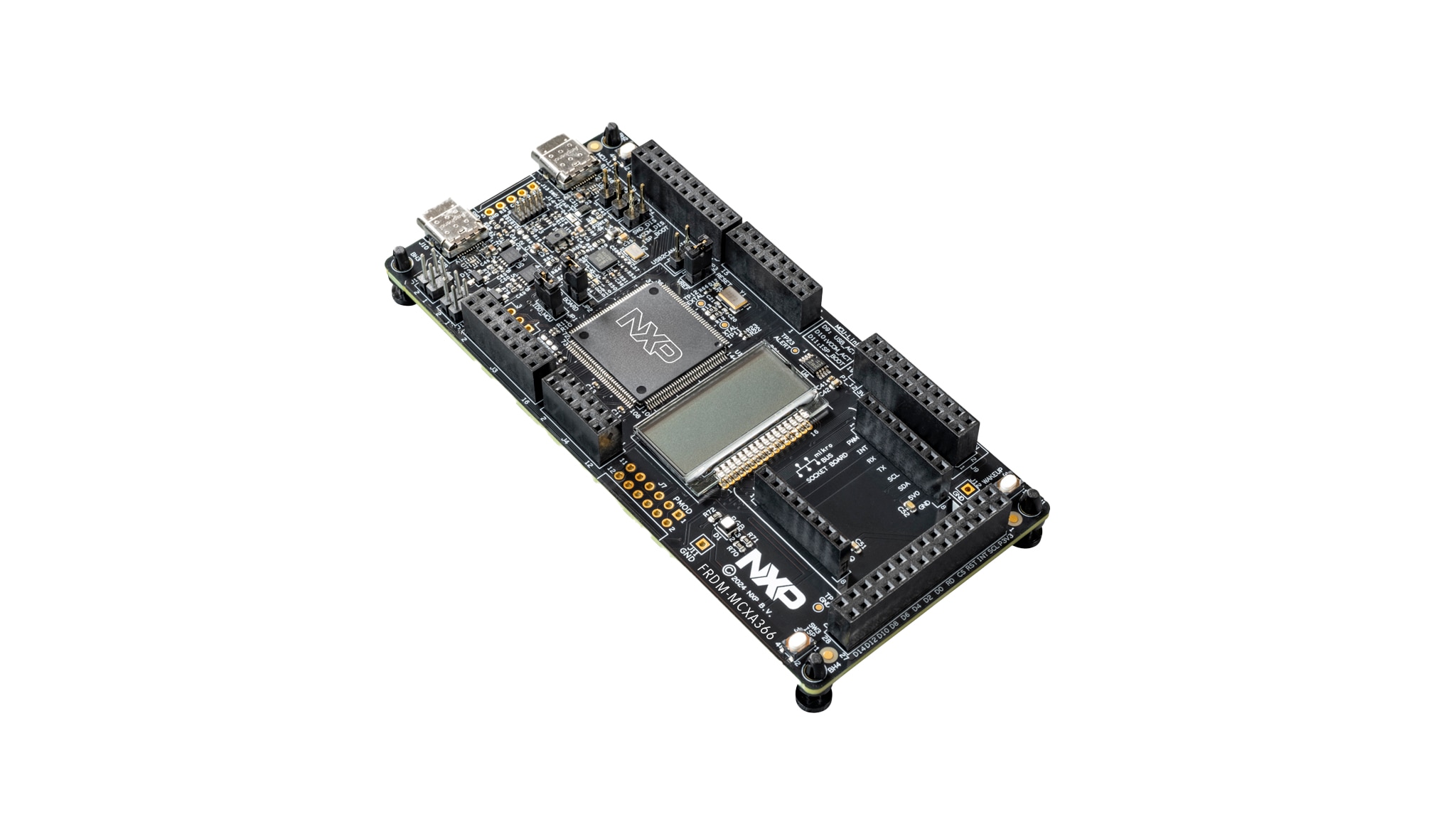

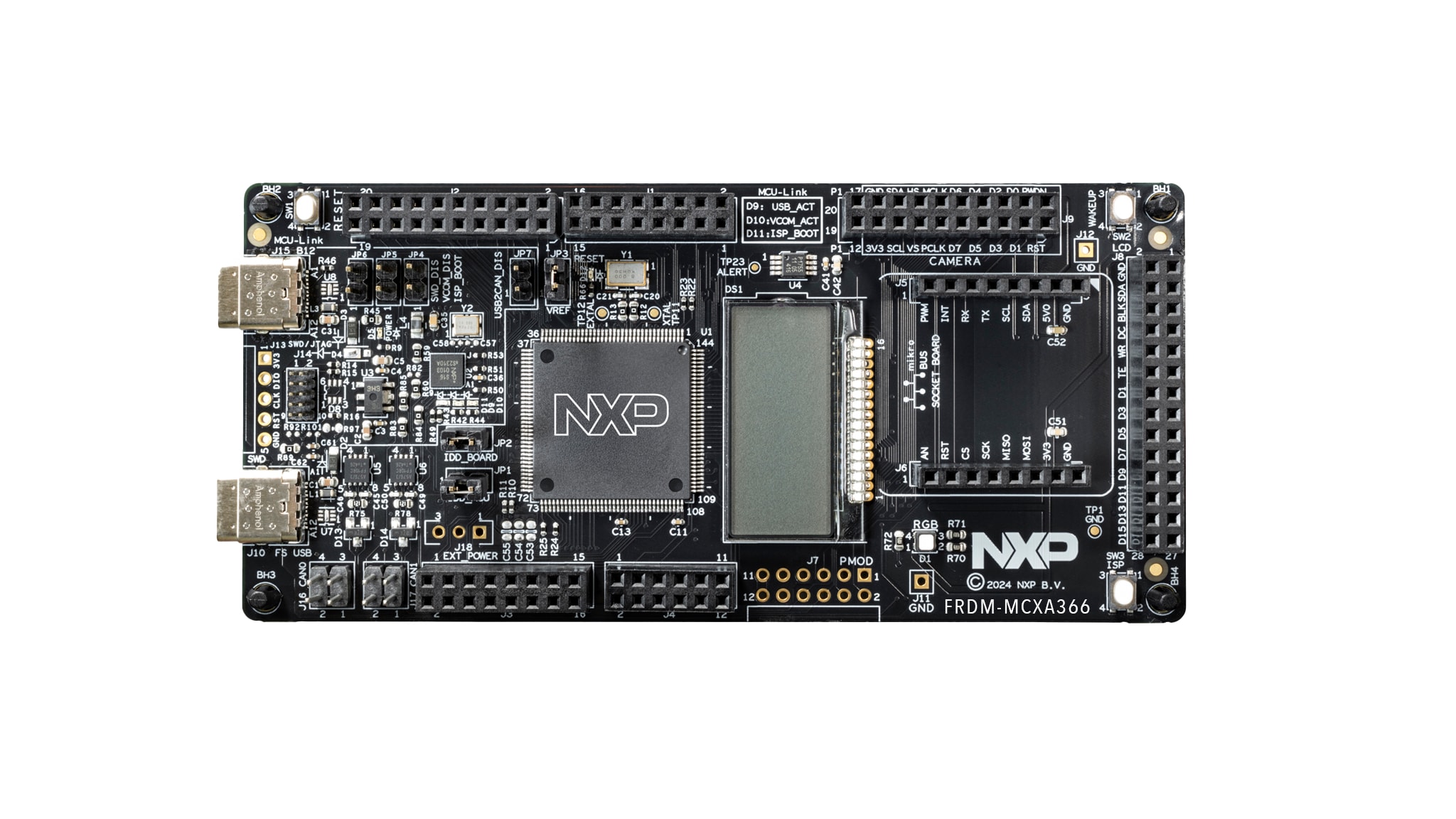

FRDM-MCXA366 are compact and scalable development boards for rapid prototyping of MCX A355, A356, A365 and A366 MCUs. They offer industry standard headers for easy access to the MCU's I/Os, integrated open-standard serial interfaces, external flash memory and an on-board MCU-Link debugger. Additional tools like our Expansion Board Hub for add-on boards and the Application Code Hub for software examples are available through the MCUXpresso Developer Experience.

Block Diagram

FRDM-MCXA366 Block DIagram

FRDM-MCXA366 Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

MCX A Series Microcontrollers

  • MCX-A36: MCX A36 Mixed-Signal MCU Arm® Cortex®-M33 240 MHz with Security and Rich Analog Peripherals
  • MCX-A35: MCX A35: Arm® Cortex®-M33 Mixed-Signal MCUs for Advanced Motor Control at 240 MHz

Features

Microcontroller

  • MCX A366 Arm® Cortex®-M33 core up to 240MHz
  • Up to 1 MB flash with up to 256 KB RAM with 8 KB ECC, support MAU and SmartDMA, Security, FlexIO, CAN-FD, LPUART, LPSPI, LPI2C, I3C, DMA and LDO

Connectivity

  • HS USB Type-C connectors (On-board MCU-Link debugger)
  • CAN/I3C/SPI/I2C/UART connector (Arduino, PMOD/mikroBUS, DNP)
  • Wi-Fi connector (Arduino, PMOD/mikroBUS, DNP)
  • Camera connector (SmartDMA)
  • LCD connector(FlexIO)

Debugger

  • On-board MCU-Link debugger with CMSIS-DAP
  • JTAG/SWD connector

Expansion Options

  • Arduino® Header
  • FRDM Header
  • Pmod™ *DNP
  • mikroBUS™
  • SmartDMA/Camera Header
  • FlexIO/LCD Header

User Interface

  • SLCD

Buy Options

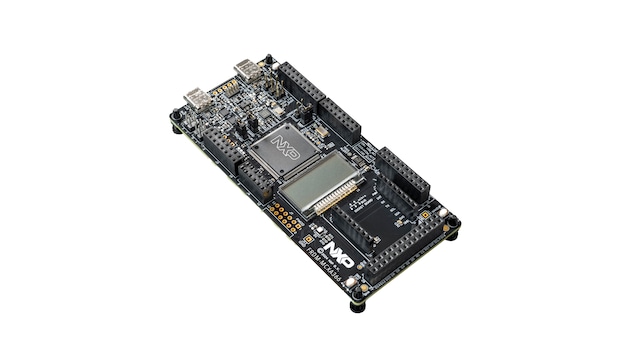

FRDM-MCXA366-Image

Click to expand

FRDM-MCXA366
Active

FRDM Development Board for MCX A355, A356, A365 and A366 MCUs.

    $30.00 USD
    In Stock :22

    Normally ships 1-2 business days

    ADD TO CART
