Name: MCX A35 MixedSignal Arm CortexM33 MCU at 240 MHz for Advanced Motor Control at 240 MHz
Price: 2.50 USD
Availability: InStock

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Click image to open expanded view

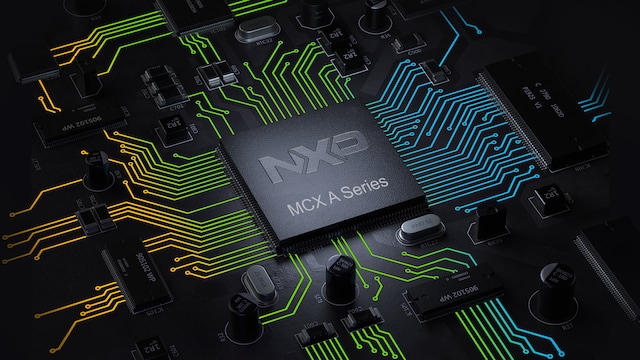

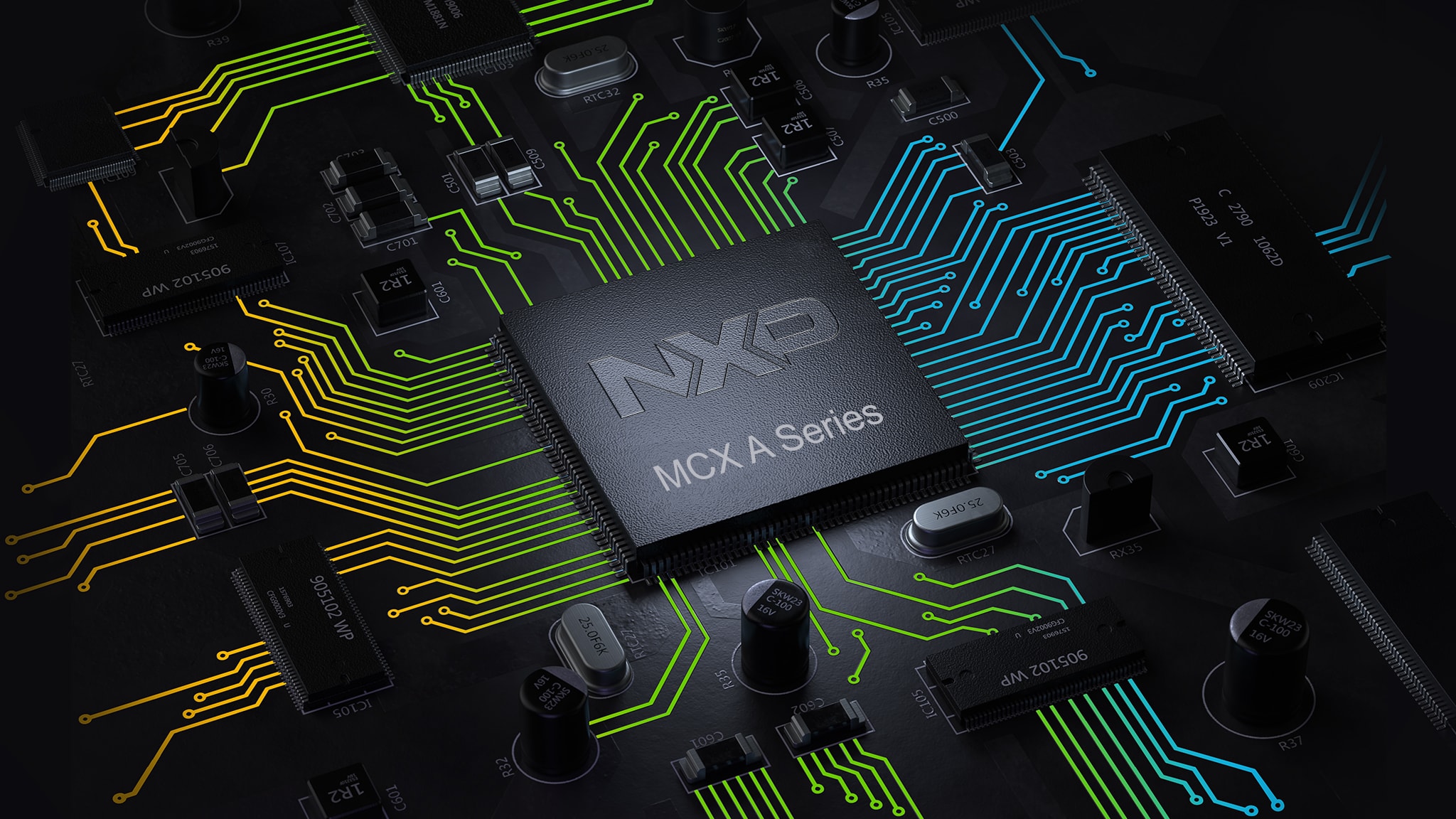

The MCX A35 devices are scalable mixed-signal microcontrollers in the MCX A Series designed for advanced motor control and high-performance embedded control.

MCX A35 integrates a 240 MHz Arm® Cortex®-M33 core, a mathematical acceleration unit (MAU) to improve performance in real-time motor control computations, SmartDMA, dual FlexPWM modules, up to 4 embedded OpAmps and four ADCs to support responsive control loops, fast math processing and accurate motor sensing. With up to 1 MB of Flash, up to 256 kB of RAM and rich serial peripherals, the MCX A35 helps developers combine processing performance, analog integration and efficient data movement in a single MCU platform.

The MCUXpresso Developer Experience provides software tools, application examples and expansion resources to support MCX A35 development with evaluation available through the FRDM-MCXA366 development board to simplify prototyping and feature exploration.

Data Sheet

Reference Manual

Product Details

Block Diagram

MCX A355 and MCX A356

MCX A355 and A356: Arm® Cortex®-M33-Based Microcontrollers

Get diagram PDF

Features

Core Platform

Arm® Cortex®-M33 240 MHz

Processing Accelerators

MAU (Math Accelerate Unit), supports trigonometric, reciprocal, square, square root, sine, cosine and arctan algorithms
SmartDMA, coprocessor for applications such as parallel camera interface and keypad scanning

Memory

Single-bank Flash: Up to 1024 kB Flash with ECC (supports one bit correction and two-bit detection)
Cache Engine with 8 kB RAM
Up to 256 kB RAM of which 8 kB is shared with cache, configurable as up to 8 kB RAM with ECC (support one bit correction and two-bit detection)
All RAM can be retained down to Deep Power-down mode
ROM

Peripherals

Advanced Motor Control
- 2x FlexPWM each with 4 submodules, providing 16 complementary outputs of PWM (no Nanoedge module)
- 2x Quadrature Encoder/Decoder (eQDC)
- Analog
  - 4x 16-bit ADC
    - 3.2 Msps in 16-bit mode, and 4 Msps in 12-bit mode
    - Up to 82 ADC Input channels total (depending on the package)
    - Integrated temperature sensor
  - 1x 12-bit DAC
    - Up to 1 Msps
  - 3x High-speed Comparators with 8 input pins and 8-bit DAC as internal reference
    - 1x LPCMP is functional down to Deep Power-down mode
  - 4x OPAMP without PGA
- Timers
  - 5x 32-bit standard general-purpose asynchronous timers/counters, which support up to four capture inputs and four compare outputs, PWM mode and external count input. Specific timer events can be selected to generate DMA requests.
  - Low power timer
  - Frequency measurement timer
  - Windowed watchdog timer
  - Wake timer
  - Micro-tick timer (UTICK)
  - OS event timer
  - RTC timer without external 32 KHz input
- Communication Interfaces for Connectivity
  - 2x LPSPI, 4x LPI2C, 6x LPUART
  - 1x FlexCAN with FD

Security

128-bit Universal Unique Identifier (UUID) per device in accordance with IETF's RFC4122 version 5 specification
Device life cycle management
Flash read/write/execute permission protect by MBC and lockable
Implicit-protected Flash Region (IFR)
Security Monitoring
- Code watchdog for code flow integrity checking
- Glitch attack resistant keyed access (Glikey) to security sensitive registers
- 6x Passive anti-tamper detect

Packaging

WFBGA169 7x7 mm, LQFP144 20x20 mm, LQFP100 14x14 mm, LQFP64 10x10 mm

Security

MCUXpresso Developer Experience
Selection of IDE choices
Pin, clock, peripheral, security and memory config tools
Security programming and provisioning tools
Software development kit (SDK)
Zephyr RTOS support

Product Programs

Product Longevity

Participating products are available for a minimum of 10 years. Designated participating products developed for the automotive, telecom and medical segments are available for a minimum of 15 years.
