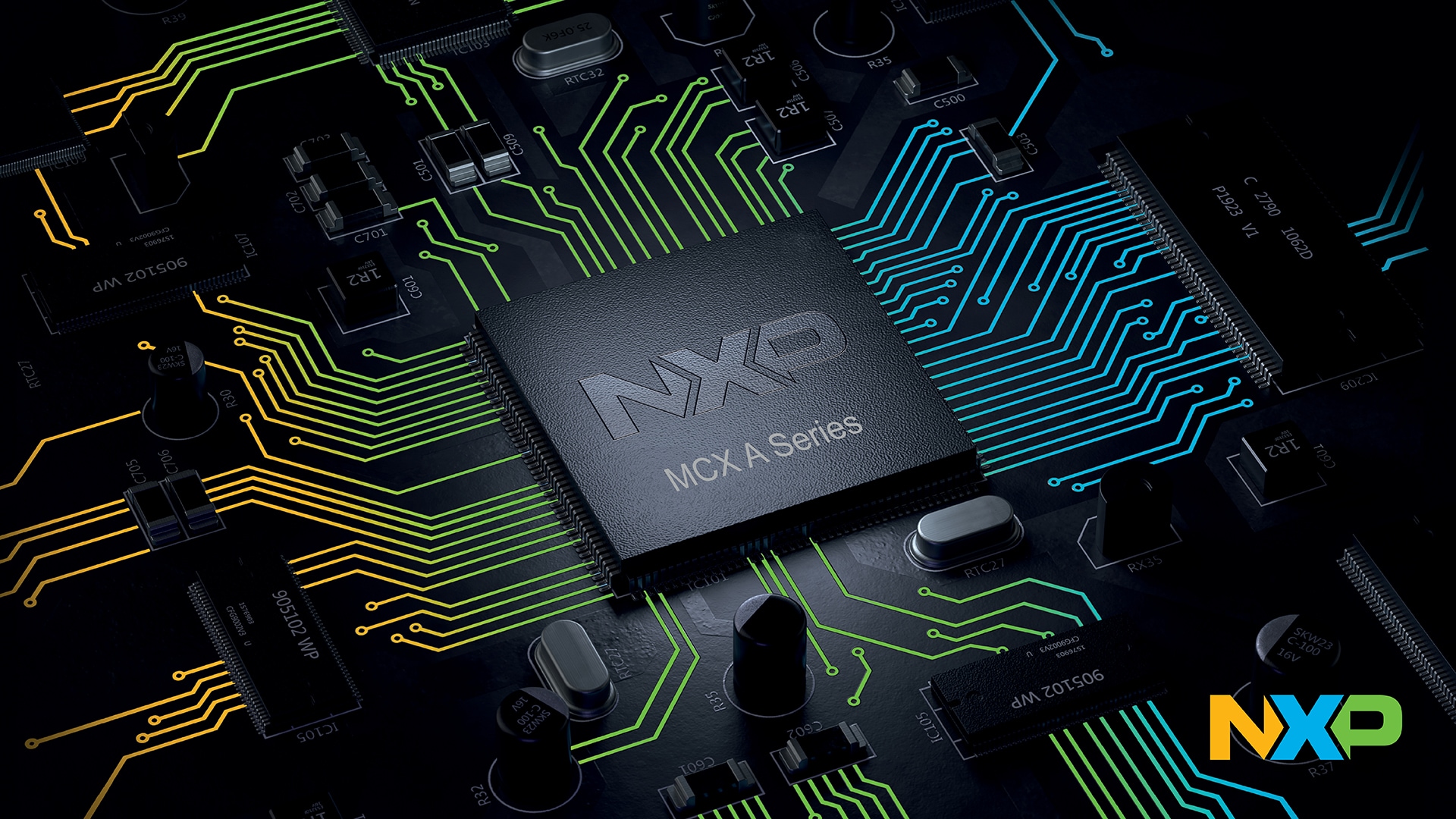

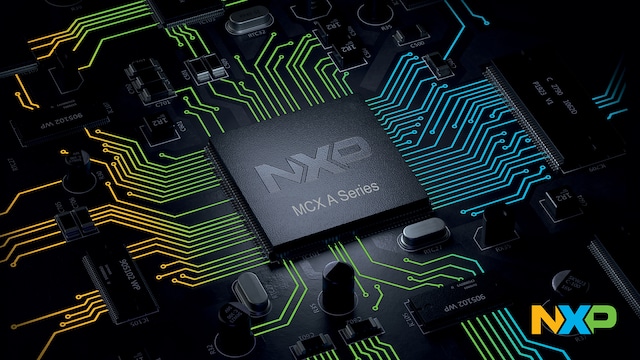

Name: MCX A17 Essential Arm Cortex M33 MCU with 180 MHz and Rich Serial Peripherals
Price: 1.40 USD
Availability: InStock

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Click image to open expanded view

The MCX A17 devices are scalable microcontrollers in the MCX A Series designed for high-performance motor control and connected embedded control.

Designed to accelerate development of brushless direct current (BLDC) and permanent magnet synchronous motor (PMSM) drives, motion control and robotics, MCX A17 integrates a 180 MHz Arm® Cortex®-M33 core, dual FlexPWM modules, up to two 16-bit ADCs and SmartDMA to support responsive real-time control and efficient data handling. I3C, CAN FD, USB and FlexIO provide interface flexibility, while scalable memory options help developers align performance, connectivity and integration needs.

The MCUXpresso Developer Experience provides software tools, application examples and expansion resources to support development, including the Expansion Board Hub (EBH) for add-on boards and the Application Code Hub (ACH) for software examples, with evaluation available through the FRDM-MCXA174 and FRDM-MCXA266 development boards to simplify prototyping and feature exploration.

Data Sheet

Reference Manual

Product Details

Block Diagram

Choose a diagram:

MCX A173 and MCX A174
MCX A175 and MCX A176

MCX A173 and MCX A174

MCX A175 and MCX A176

Get diagram PDF

Features

Core Platform

Arm® Cortex®-M33 180 MHz

Processing Accelerators

SmartDMA, co-processor for applications such as parallel camera interface and keypad scanning

Memory

Single-bank Flash: 256 kB Flash up to 1024 kB Flash with ECC (support one bit correction and two bits detection)
Cache Engine with 8 kB RAM
64 kB RAM to 256 kB of RAM which 8 kB is shared with cache, configurable as up to 8 kB RAM with ECC (support one bit correction and two bits detection)
All RAM can be retained down to Deep Power Down mode
ROM

Peripherals

Advanced Motor Control
- 2x FlexPWM each with 4 submodules, providing 16 complementary outputs of PWM (no Nanoedge module)
- 2x Quadrature Encoder/Decoder (eQDC)
- 2x AOI (AND/OR/Invert) module support up to 4 output triggers
Analog
- 2x 16-bit ADC
  - 3.2 Msps in 16-bit mode, and 4 Msps in 12-bit mode
  - Up to 43 ADC Input channels total (depending on the package)
  - Integrated temperature sensor
- 1 x 12-bit DAC
  - Up to 1 Msps
- 2 x High-speed Comparators with 8 input pins and 8-bit DAC as internal reference
  - 1x LPCMP is functional down to Deep Power Down mode
- 1x OPAMP without PGA
Timers
- Up to 5 x 32-bit standard general-purpose asynchronous timers/counters, which support up to four capture inputs and four compare outputs, PWM mode, and external count input. Specific timer events can be selected to generate DMA requests
- Low power times
- Frequency measurement timer
- Windowed watchdog timer
- Wake timer
- Microtick timer (UTICK)
- OS event timer
- RTC timer without external 32 KHz input
Communication Interfaces for Connectivity
- 2x LPSPI, up to 4x LPI2C, up to 5x LPUART
- 1x I3C
- USB Full-speed (Device) with on-chip FS PHY
- 1x FlexCAN with FD
- FlexIO

Security

128-bit Universal Unique Identifier (UUID) per device in accordance with IETF's RFC4122 version5 specification
Device life cycle management
Flash read/write/execute permission protect by MBC and lockable
Implicit-protected Flash Region (IFR)
Security Monitoring
- Code watchdog for code flow integrity checking
- GLIKEY enforces security checks before allowing a write to security-sensitive register
- 6x Passive anti tamper detect

Packaging

MCX A173 and A174: LQFP100 14x14mm, LQFP64 10x10mm, LQFP48 7x7mm, H-PQFN32 5x5mm
MCX A175 and A176: WFBGA169 7x7mm, LQFP144 20x20mm, LQFP100 14x14mm, LQFP64 10x10mm

MCUXpresso Developer Experience

MCUXpresso ecosystem support
- Selection of IDE choices
- Pin, clock, peripheral, security and memory config tools
- Security programming and provisioning tools
- Software development kit (SDK)
Zephyr RTOS support

MCX A17

Supported MCU(s)	Recommended Board	Best Fit For	Key Differentiators
MCX A173, A174	FRDM-MCXA174	Balanced real-time control and connected sensing	CAN FD, SmartDMA, ADC, compact mid-tier platform
MCX A175, A176, A185, A186, A255, A256, A265, A266	FRDM-MCXA266	Industrial HMI, secure connected sensing, USB-enabled control	FS USB, SLCD, CAN FD, FlexIO, SmartDMA, advanced security

Product Programs

Product Longevity

Participating products are available for a minimum of 10 years. Designated participating products developed for the automotive, telecom and medical segments are available for a minimum of 15 years.
