FRDM Development Board for MCX A173 and A174 MCUs

FRDM-MCXA174
Active

Click image to open expanded view

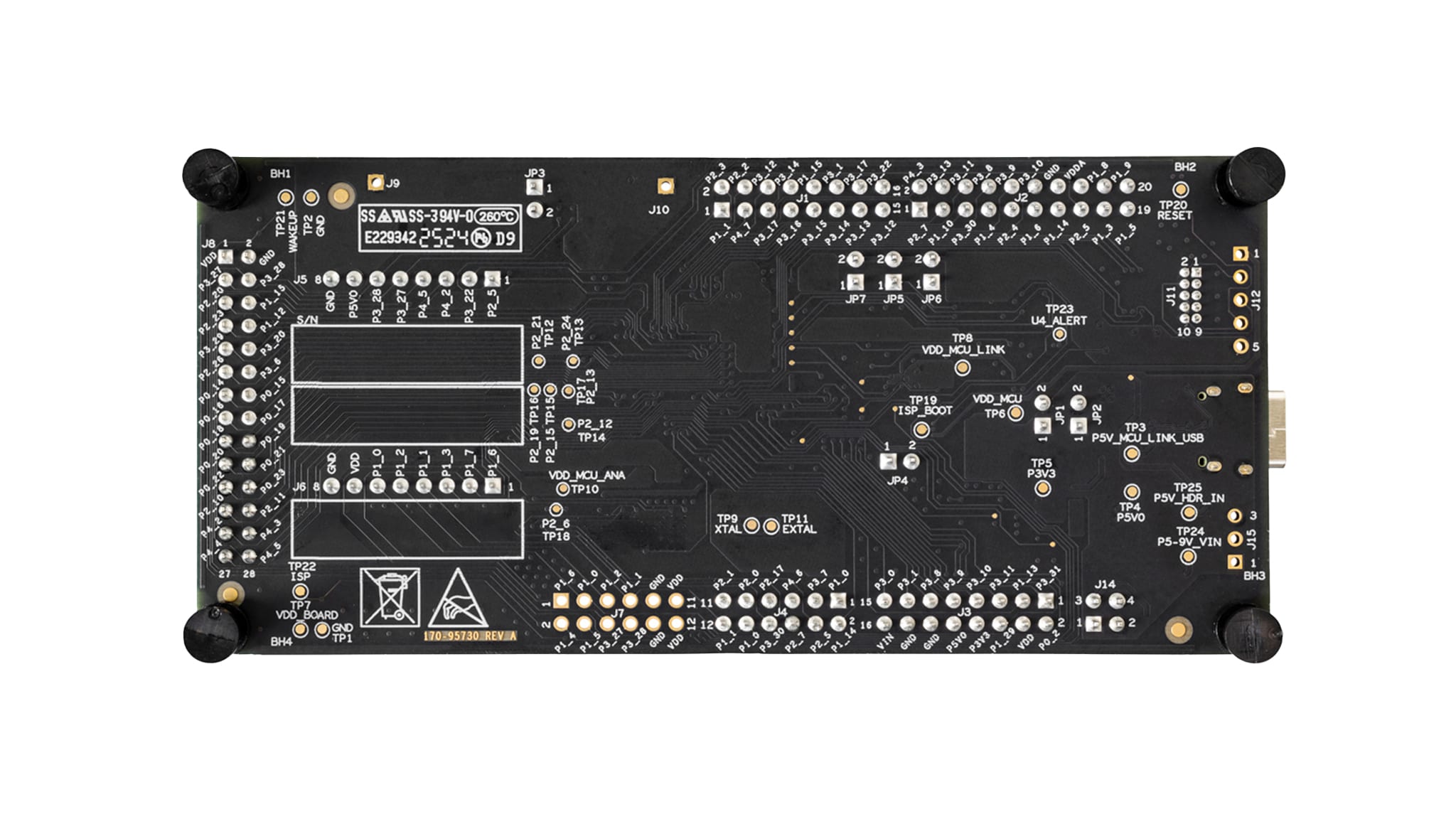

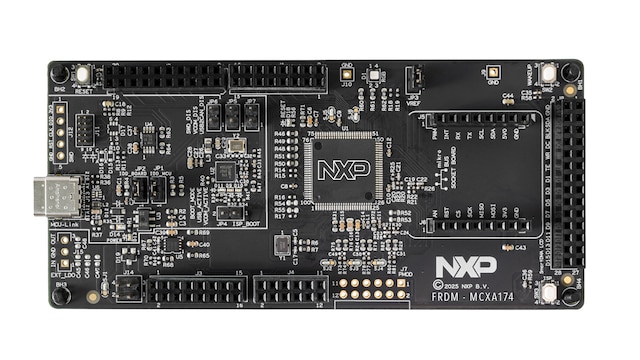

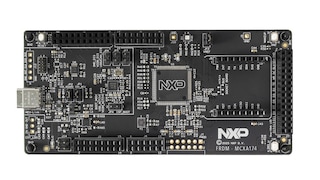

FRDM-MCXA174 is a compact and scalable development board for rapid prototyping for the A173 and A174 MCUs, ideal for balanced real-time control and connected sensing applications. It provides industry-standard headers for easy access to the MCU’s I/Os, integrated open-standard serial interfaces, and an on-board MCU-Link debugger.

Designed to accelerate development of smart sensing, motor control, and distributed control nodes, it includes 2x 16-bit ADC, CAN-FD connectivity, SmartDMA support, a SmartDMA/LCD expansion header to simplify evaluation, expansion, and application development.

Additional tools such as the Expansion Board Hub (EBH) for add-on boards and the Application Code Hub (ACH) for software examples are available through the MCUXpresso Developer Experience.

Block Diagram

FRDM-MCXA174

FRDM-MCXA174 Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

MCX A Series Microcontrollers

  • MCX-A17: MCX A17: Essential Arm® Cortex® M33 MCU with 180 MHz and Rich Serial Peripherals

Features

Microcontroller

  • MCX A174 Arm Cortex-M33 core up to 180 MHz
  • Up to 256 KB Flash with up to 64 KB RAM and with 8 KB error correction code (ECC), support for smart direct memory access (SmartDMA), controller area network flexible data-rate (CAN-FD), low-power universal asynchronous receiver/transmitter (LPUART), low-power serial peripheral interface (LPSPI), low-power inter-integrated circuit (LPI²C ) and direct memory access (DMA)

Connectivity

  • High-speed (HS) USB Type-C connectors (On-board MCU-Link debugger)
  • controller area network (CAN) / serial peripheral interface (SPI) / inter-integrated circuit (I²C) / universal asynchronous receiver-transmitter (UART) connector (Arduino, peripheral module [PMOD] / mikroBUS)
  • Wi-Fi connector (Arduino, PMOD/mikroBUS)
  • LCD connector(SmartDMA)

Debugger

  • On-board MCU-Link debugger with Cortex microcontroller software interface standard – debug access port (CMSIS-DAP)
  • Joint test action group (JTAG) / serial wire debug (SWD) connector

Expansion Options

  • Arduino® Header
  • FRDM Header
  • Pmod™ *do not populate (DNP)
  • mikroBUS™
  • SmartDMA/LCD Header

User Interface

  • RGB user LED
  • Reset button
  • In-system programming (ISP) button
  • Wake-up button

Buy Options

FRDM-MCXA174-Image

Click to expand

FRDM-MCXA174
Active

FRDM Development Board for MCX A173 and A174 MCUs.

    $20.00 USD
    Pending Stock
    ADD TO CART
