FRDM i.MX 91 Development Board

FRDM-IMX91
Active

Roll over image to zoom in

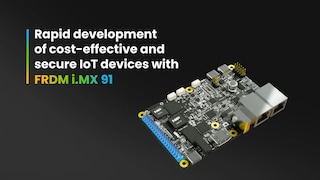

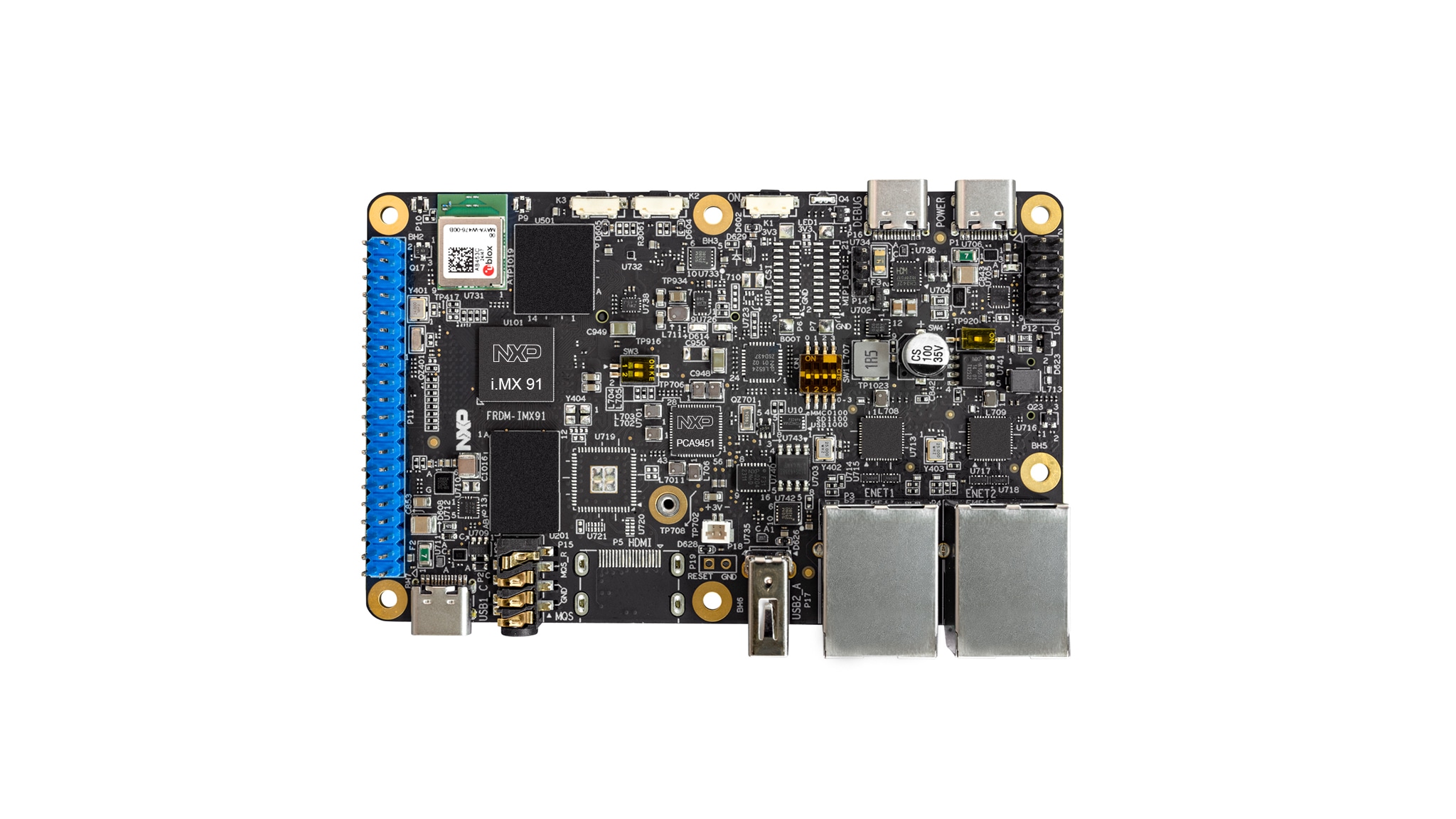

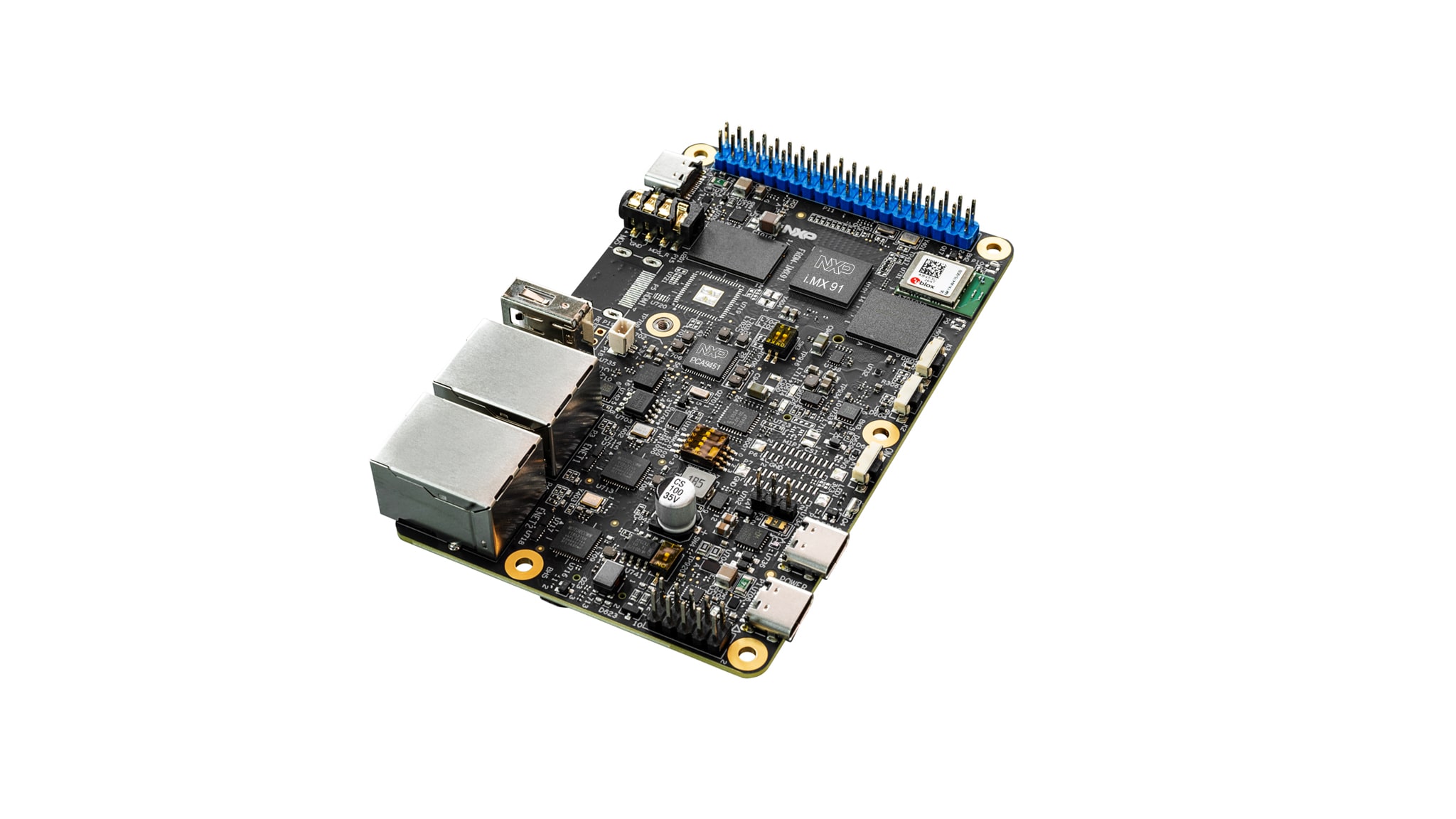

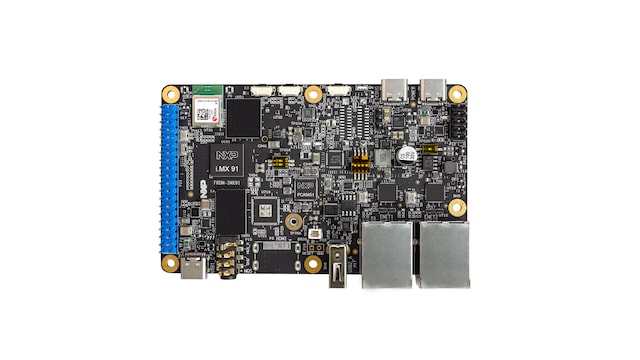

The FRDM i.MX 91 development board is a low-cost and compact development board featuring the i.MX 91 applications processor. Equipped with an onboard IW610 module, featuring NXP's Tri-Radio solution with Wi-Fi 6 + Bluetooth Low Energy 5.4 + 802.15.4, the board is ideal for developing modern Industrial and IoT applications. This development board includes LPDDR4, eMMC storage for quick boot times, PMIC and expansion capabilities.

The FRDM i.MX 91 development board is a low-cost and compact development board featuring the i.MX 91 applications processor.

Block Diagram

FRDM i.MX 91 Development Board

FRDM-iMX91-BD
Get diagram PDF

Supported Devices

Analog and Mixed Signal

Real-Time Clocks

  • PCF2131: Nano-Power Highly Accurate RTC with Integrated Quartz Crystal

Wireless Connectivity

Wi-Fi® + Bluetooth® + 802.15.4

  • IW610: 2.4/5 GHz Dual-Band 1x1 Wi-Fi® 6 + Bluetooth Low Energy 5.4 + 802.15.4 Tri-Radio Solution

Interfaces

General Purpose I/O (GPIO)

  • PCAL6524: Ultra-Low-Voltage Translating 24-Bit Fm+ I²C-Bus/SMBus I/O Expander
  • PCAL6408A: Low-Voltage Translating, 8-Bit I²C-Bus/SMBus I/O Expander

3.3 V / 5 V IO CAN Transceivers

  • TJA1051: High-Speed CAN Transceiver

Power Management

5 V PMIC Solutions

  • PCA9451A: PCA9451A Power Management IC for i.MX 93x/91x Application Processor

Processors and Microcontrollers

Features

Processor

  • i.MX 91 Applications Processor
  • Cortex-A55 @1.4G
  • EdgeLock® Secure Enclave

Memory​

  • 1 GB LPDDR4
  • 8 GB eMMC5.1
  • MicroSD slot
  • EEPROM

Display and Camera Interfaces​

  • Parallel RGB LCD interface (40-pin Expansion Interface)
  • Parallel Camera interface (40-pin Expansion Interface)

Wireless​

  • u-blox MAYA-W476-00B Tri-Radio Wi-Fi 6, Bluetooth LE 5.4, and 802.15.4 module
  • Dual-Band 2.4GHz / 5 GHz Wi-Fi
  • 802.15.4 radio supporting Thread and Zigbee
  • Matter over Wi-Fi and Thread

Audio

  • 3.5mm headphone jack for MQS support

Connectivity

  • *DNP M.2 socket
  • USB2.0 Type-C connector
  • USB2.0 type A connector
  • GbE RJ45 x 2
  • CAN (HDR)
  • 40-pin(2x20)
  • Expansion Interface
  • I²C HDR
  • ADC HDR

Debug

  • SWD connector
  • UART via USB-Type C

Tools and OS Support

  • Linux®

Buy Options

FRDM-IMX91-Image

Click to expand

FRDM-IMX91
Active

FRDM i.MX 91 Development Board.

  • Peripherals: CAN, USB
  • Connector Type: M.2
  • Power Management: PMIC onboard
  • Processing: Arm Cortex-A55
$75.00 USD
In Stock :12

Normally ships 1-2 business days

ADD TO CART
