Circuit Breaker
An Arc fault circuit breaker is an automatically operated electrical switch designed to protect an electrical circuit from damage caused by excess current, typically resulting from an overload or short circuit. A circuit breaker could be used either in a commercial or residential environment depending on the electrical current it can handle.
Industrial circuit breakers are used in warehouses, factories, or any location with a large electrical distribution.
Residential circuit breakers guard the home electrical system from a fire caused by an electrical fault.
Application Details
Interactive Block Diagram
Interactive Block Diagram
For the best experience interacting with diagrams, please use a larger screen or maximize your browser window.
Select a block diagram:
Block Diagram
- Circuit Breaker
Security (EdgeLock Discrete)
-
SE050:
EdgeLock® SE050: Plug and Trust Secure Element Family – Enhanced IoT Security with High Flexibility
AC/DC
-
TEA1721AT:
HV Start-Up Flyback Controller with Integrated MOSFET for 5 W Applications, F~burst = 430 Hz
NFC
-
NTAG_I2C:
NTAG I²C Plus 2K: NFC Forum Type 2 Tag with I²C Interface
Temperature sensor
-
P3T2030xUK:
I3C, I²C-Bus, 2.0 °C Accuracy, Digital Temperature Sensor -
P3T1035xUK:
I3C, I²C-Bus, ±0.5 °C Accuracy, Digital Temperature Sensor -
PCT2075:
I²C-Bus Fm+, 1 Degree C Accuracy, Digital Temperature Sensor and Thermal Watchdog
Customize
Block Diagram Designer*
Learn how to customize interactive diagrams with ease. Ready to jump in? Explore an overview or select an editable block diagram from above to start a project.
Designs
Community Demo
NFC DIN rail demo

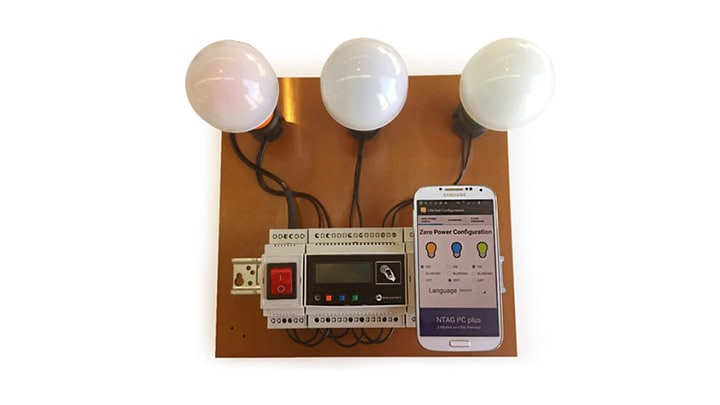

Shows how NFC can be used for handling complex device settings on a mobile touchscreen.
