Energy Storage System (ESS)

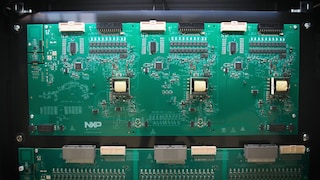

Click over video to play

The transition to renewable energy sources, electrification of vehicles and the need for resilience in power supplies have been driving a very positive trend for Li-Ion based battery storage systems.

NXP provides complete system solutions for battery management, for which leadership technologies are used for security, functional safety, detection of thermal runaway, cell monitoring, wireless and wired connectivity and microcontrollers in a broad range of performance and feature sets.

NXP’s own Transport Protocol Link technology enables modular storage at scalability with practically no limits. MCU free and SW free storage modules can be communicated through SPI, CAN FD or UART to easily scale from a few kWh capacity in residential to MWh for utility scale.

High-accuracy data can be accessed for advanced algorithms for SOC and SOH algorithms as well as optimal power management.

Application Details

Block Diagram

Interact with an application:

ESS Including BMS for HV

Recommended Products for:

ESS Including BMS for HV

Select a block to see our recommended products.

  • MC33771C: 14-Channel Li-Ion Battery Cell Controller IC
  • MC33775: 14 Channel Li-Ion Battery Cell Controller IC ASIL D
  • NBP8-9x: Highly Integrated Battery Pressure Monitor Sensor
  • MC33772C: 6-Channel Li-Ion Battery Cell Controller IC
  • MM9Z1_638: Battery Sensor with CAN and LIN
  • MC33777: Battery Junction Box Monitor IC
  • MC33664: Isolated Network High-Speed Transceiver
  • MC33665A: General Purpose BMS Communication TPL Transceiver and CAN FD Gateway
  • MCX-A13X-A14X-A15X: MCX A13, 14, 15 Essential MCUs with Arm® Cortex® M33, Low Power and Intelligent Peripherals
  • MCX-N94X-N54X: MCX N94x/54x Highly Integrated Multicore MCUs with On-Chip Accelerators, Intelligent Peripherals and Advanced Security
  • i.MX-RT1170: i.MX RT1170: 1 GHz Crossover MCU with Arm® Cortex® Cores
  • LPC553x: LPC553x/S3x: Advanced Analog Arm®Cortex®-M33-Based MCU Family
  • S32K1: S32K1 Microcontrollers for Automotive General Purpose
  • S32K3: S32K3 Microcontrollers for Automotive General Purpose
  • HB2000: SPI Programmable 10 A H-Bridge Brushed DC Motor Driver
  • MC33996: 16-Output Switch with SPI Control
  • PCF2131: Nano-Power Highly Accurate RTC with Integrated Quartz Crystal
  • MC12XS6: External Automotive Lighting Multi-Channel eXtreme Switch
  • XS2410: Quad 100 mΩ / Dual 50 mΩ, 3.0 V to 60 V High-Side Switch
  • i.MX8MNANO: i.MX 8M Nano Family - Arm® Cortex®-A53, Cortex-M7
  • i.MX6ULL: i.MX 6ULL Single-Core Processor with Arm® Cortex®-A7 Core
  • PCA9450: Power Management IC (PMIC) for i.MX 8M Mini/Nano/Plus
  • PF1510: Power Management Integrated Circuit (PMIC) for Low Power Application Processors
  • SE050: EdgeLock® SE050: Plug and Trust Secure Element Family – Enhanced IoT Security with High Flexibility
  • FS26: Safety System Basis Chip with Low Power, for ASIL D Systems
  • 88W8987: 2.4/5 GHz Dual-Band 1x1 Wi-Fi® 5 (802.11ac) + Bluetooth® 5.2 Solution
  • IW416: 2.4/5 GHz Dual-Band 1x1 Wi-Fi® 4 (802.11n) + Bluetooth® 5.2 Solution
  • 88W8987: 2.4/5 GHz Dual-Band 1x1 Wi-Fi® 5 (802.11ac) + Bluetooth® 5.2 Solution
  • IW416: 2.4/5 GHz Dual-Band 1x1 Wi-Fi® 4 (802.11n) + Bluetooth® 5.2 Solution
