Name: BESS1500 Cell Monitoring Unit CMU with 18S Capability
Price: 236.47 USD
Availability: InStock

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Click image to open expanded view

Available to selected customers only (non-disclosure agreement (NDA) required), please contact support or your local sales representative for more information.

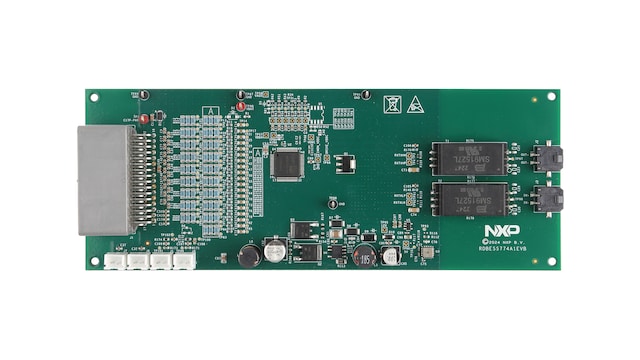

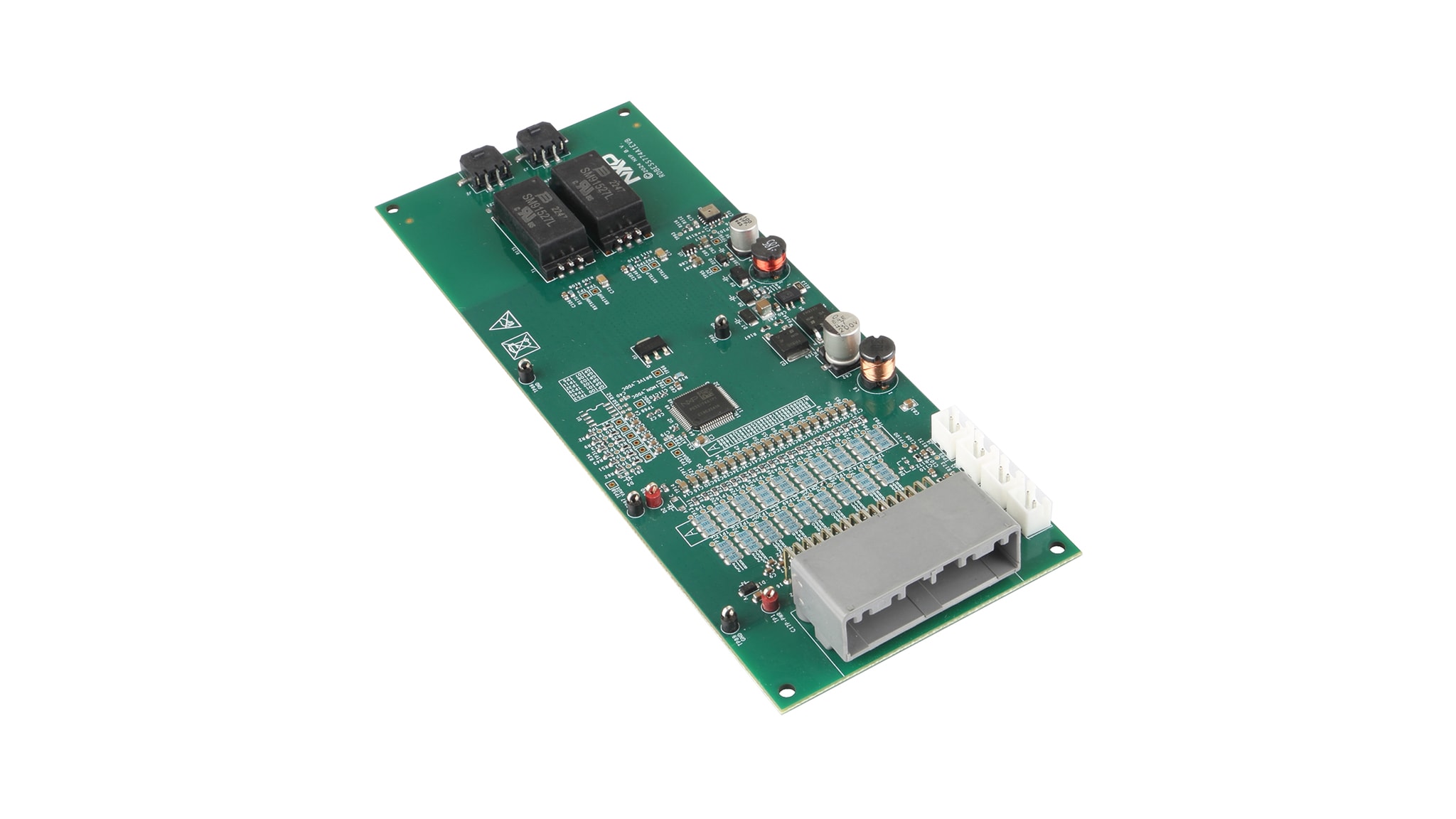

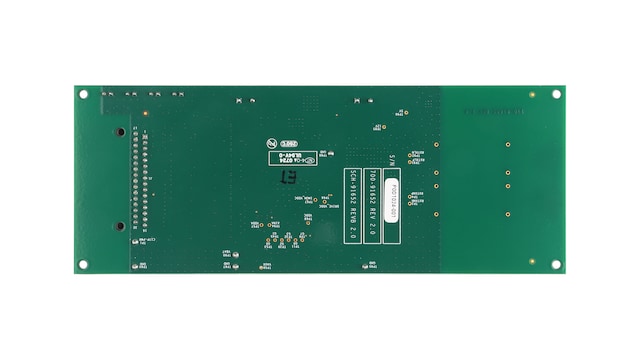

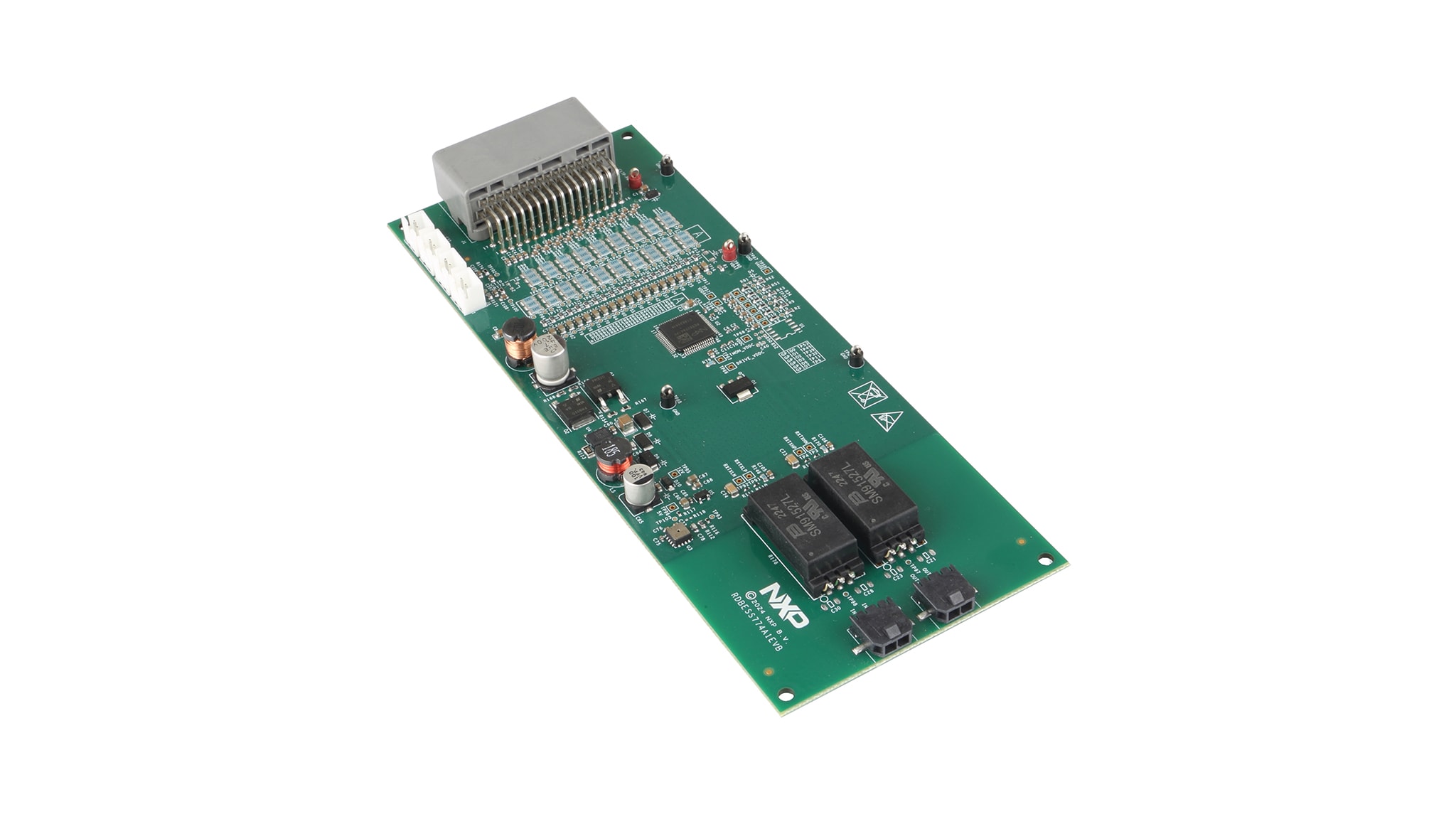

The CMU1 - RDBESS774A3EVB is a battery cell monitoring unit (CMU) reference design with electrical transport protocol link (ETPL) communication interface towards a BMU. It is ideal for rapid prototyping of a high-voltage battery energy storage system (BESS) hardware and software. This board contains one MC33774A analog front end (AFE) and it is equipped with a high-voltage transformer.

It can be used to monitor a battery module with up to 18 cells. There are in total 9 GPIO/Analog measurement inputs for temperature or other measurements. This board is part of the RD-BESS1500BUN reference design bundle.

Design Files

Product Details

Block Diagram

RDBESS774A1EVB

Get diagram PDF

Supported Devices

Battery Management

Battery Cell Controllers

MC33774: 18 Channel Li-Ion Battery Cell Controller IC ASIL D

Power Management

AC-DC Controllers with Integrated Power Switch

TEA1721AT: HV Start-Up Flyback Controller with Integrated MOSFET for 5 W Applications, F~burst = 430 Hz

Features

Voltage Measurement

18 channel BCCs for up to 54 cells, extendable by adding more CMUs to the daisy chain
Life-time guaranteed high accuracy cell voltage measurement channels, with averaging and advanced filtering

Temperature Measurement

9 analog inputs (including temperature sensors) or GPIOs with advanced filtering

Cell Balancing

Cell balancing with integrated temperature-controller function with up to 300mA (using default setup)

Pressure Sensing

On board pressure sensor for thermal runaway detection

Communication

Isolated ETPL communication between CMU and BMU

Buy Options

Click to expand

RDBESS774A1EVB
Active

BESS1500 Cell Monitoring Unit (CMU) with 18S Capability.

Kit Contains

One assembled and tested evaluation board/module in antistatic bag
One cell terminal cable
One transformer physical layer (TPL) cable

$236.47 USD

In Stock :7

Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.
