General-Purpose BMS Communication Gateway and EIS Synchronization Controller

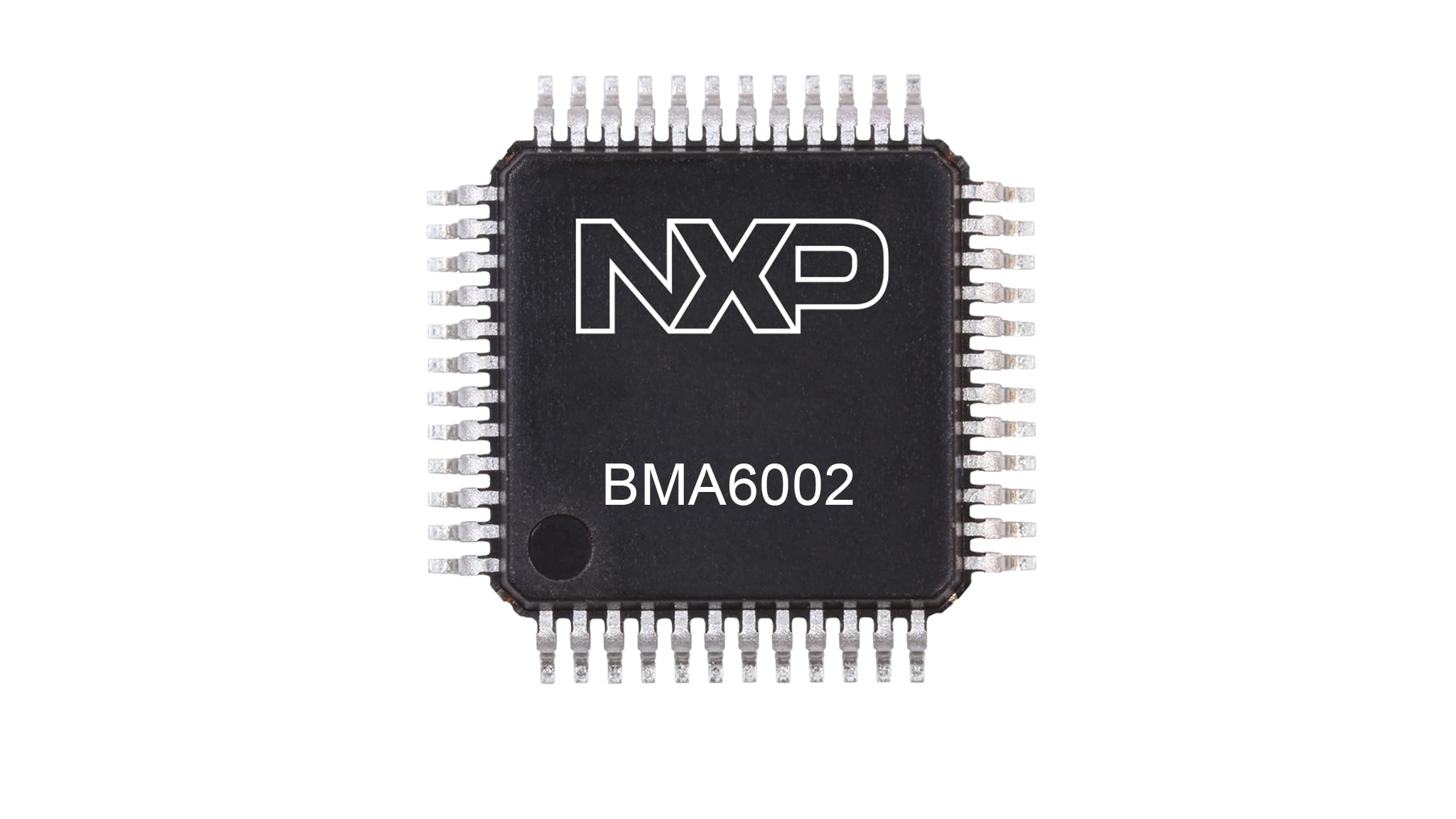

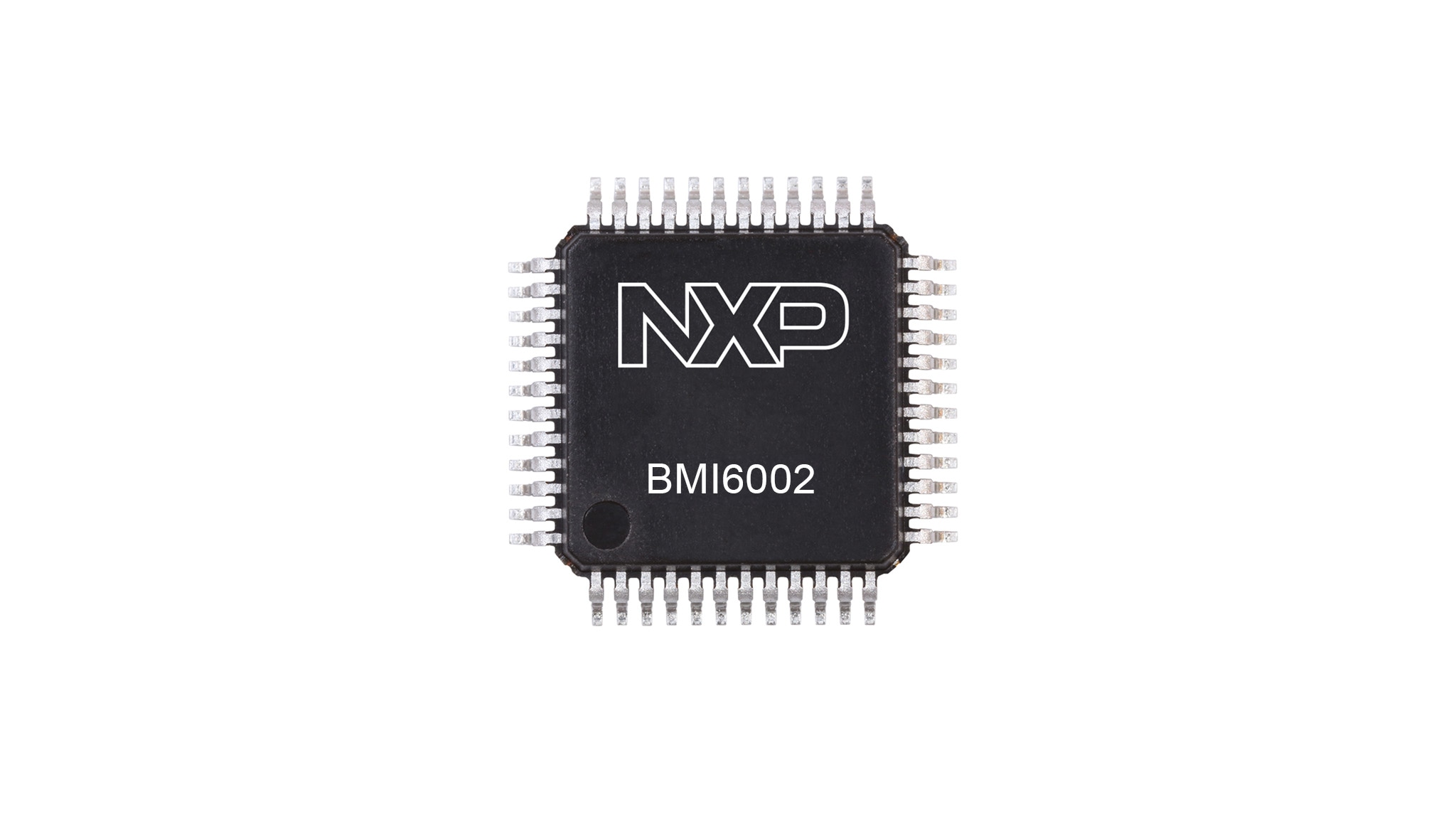

The BMA6002 is a battery management communication gateway and TPL transceiver that bridges SPI or CAN FD with TPL. It features dual isolated TPL ports and a serial interface for external control, enabling daisy-chained BMS communication. The BMI6002 is the gateway tailored for industrial environments.
The BMA6402 is a dual-channel TPL transceiver designed to act as the synchronization controller in EIS-enabled battery management systems. Accurate EIS measurement requires precise synchronization across distinct clock domains, preventing errors in impedance measurements. The BMA6402 uses a Frequency Locking Loop (FLL) to achieve nanosecond-level synchronization across multiple chips and channels. This ensures accurate impedance measurements, regardless of battery size or system scale.
Product Details
Block Diagram
Features
System Features
- Two synchronized independent TPL daisy chain ports
- SPI interface to MCU up to 10 Mbit/s data rate
- CAN FD interface to MCU up to 5 Mbit/s of data rate
- Message buffering supports traffic handling of MCU and daisy chain ports
- Enables different daisy chains message synchronization
- Daisy chain supporting 2 Mbit/s data rate
- Includes SPI host to address software free battery application
Extended Application
- Synchronization features enable synchronization of current and voltage
- Integrated CAN transceiver enables direct communication to the Domain controller via CAN
- Integrated SPI host enables the control of external devices via SPI
- Integrated GPIO enables the integration of different sensors
EIS Gateway (only BMA6402)
- Optimized for EIS application, integrated frequency locking loop mechanism
- Nanosecond level timing synchronization enabling reliable EIS measurement
- Synchronizes multiple chips and measurements channels seamlessly
