Optimized Battery Management Unit (BMU) for High Voltage Battery Management System (HVBMS) with BMA6X02, S32K358 and FS26

EVBMA6X02BMU
Active

Roll over image to zoom in

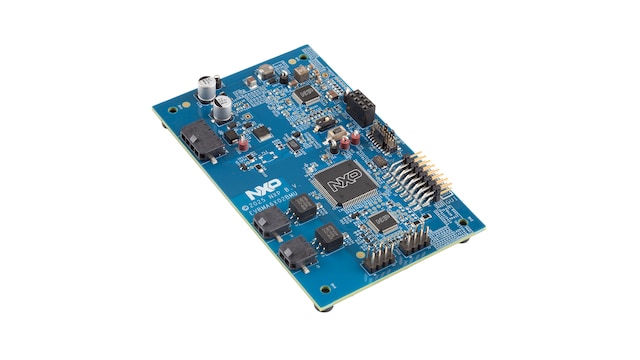

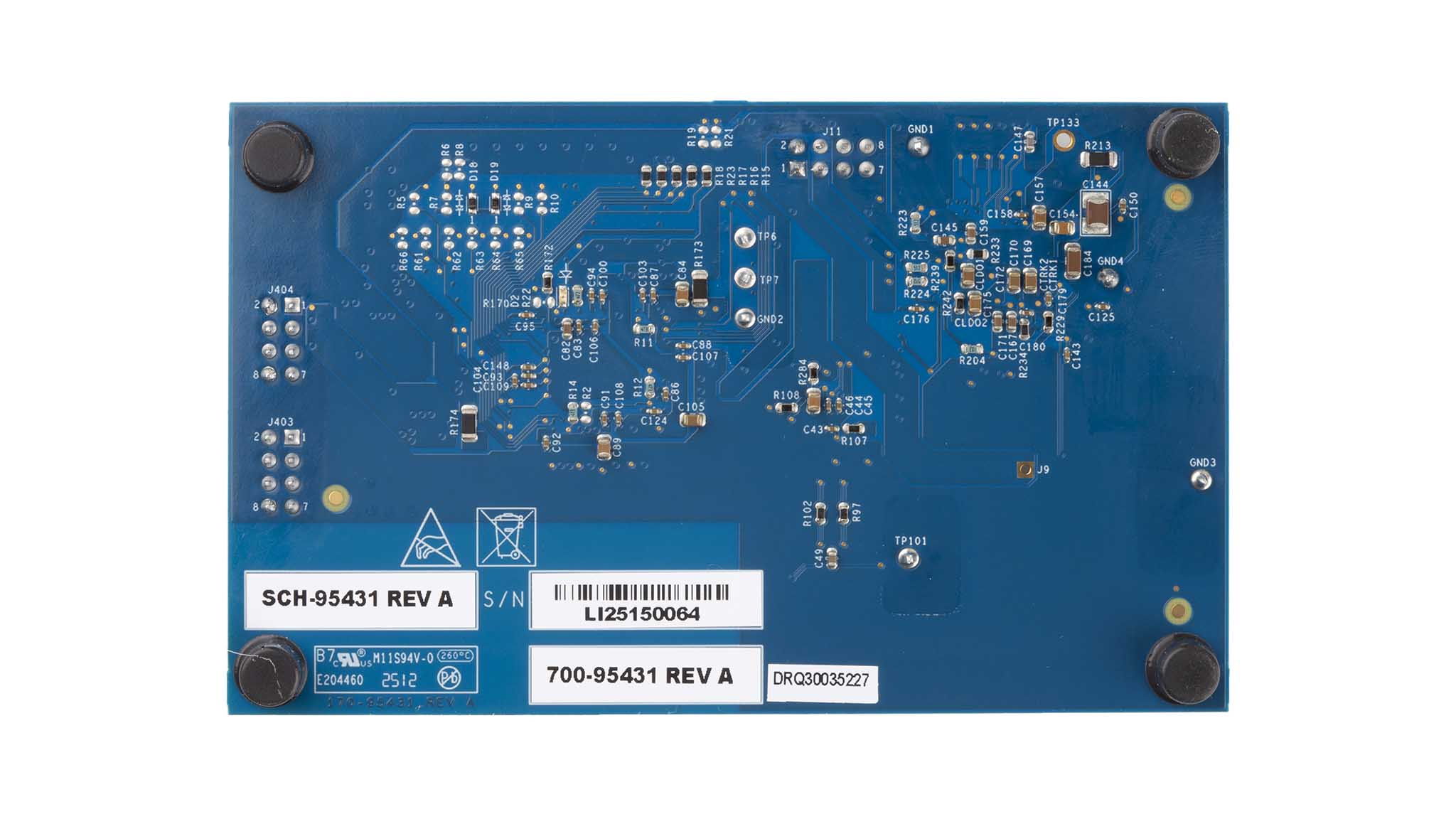

The EVBMA6X02BMU is an optimized battery management unit (BMU) for development purposes. It features the key components of a battery management system, such as a communication gateway with SPI interface (BMA6X02S), an MCU (S32K358), and SBC (FS26). The BMU can be used for rapid prototyping of a battery management system and also for early software developments.

Block Diagram

Battery Management Unit - EVBMA6X02BMU

EVBMA6X02BMU Block Diagram
Get diagram PDF

Supported Devices

Power Management

12 V, 24 V, and 48 V SBC Solutions

  • FS26: Safety System Basis Chip with Low Power, for ASIL D Systems

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

  • S32K3: S32K3 Microcontrollers for Automotive General Purpose

Battery Management

Battery Communication ICs

  • BMX6X02: General-Purpose BMS Communication Gateway and EIS Synchronization Controller

Interfaces

CAN Partial Networking

  • TJA1145A: High Speed CAN Transceiver with Partial Networking, CAN FD Data Rates up to 5 Mbit/s

Features

BMS Turn-Key Solution

  • SW support including S32K3 support and device drivers for the BMA6X02 and FS26
  • Easy integration with Battery Cell Controller (BCC) boards and Battery Junction Box (BJB) boards

Interfaces

  • Two electrical transport protocol link (ETPL) interfaces
  • UART interface for easy development interface with the S32K3 MCU through FreeMASTER
  • Standard JTAG programming interface (2x10 pin)

Buy Options

BATT-TPLCABLE20-Image

Click to expand

BATT-TPLCABLE20
Active

Electrical transport protocol link (ETPL), two-wire, twisted, 20 cm-long cable.

    $14.38 USD
    In Stock :20

    Normally ships 1-2 business days

    ADD TO CART
    Order from distributors
    BATT-TPLCABLE50-Image

    Click to expand

    BATT-TPLCABLE50
    Active

    Electrical transport protocol link (ETPL), two-wire, twisted, 50 cm-long cable.

      $14.38 USD
      In Stock :19

      Normally ships 1-2 business days

      ADD TO CART
      Order from distributors
      EVBMA6X02BMU-Image

      Click to expand

      EVBMA6X02BMU
      Active

      Optimized Battery Management Unit (BMU) for High Voltage Battery Management System (HVBMS) with BMA6X02, S32K358 and FS26.

      • Processing: Arm® Cortex®-M7
      $222.00 USD
      In Stock :2

      Normally ships 1-2 business days

      ADD TO CART
      Order from distributors
