Name: SPI2TPL Evaluation Board for BMA6X02 with SPI Interface and TPL Communication
Price: 130.00 USD
Availability: InStock

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Click image to open expanded view

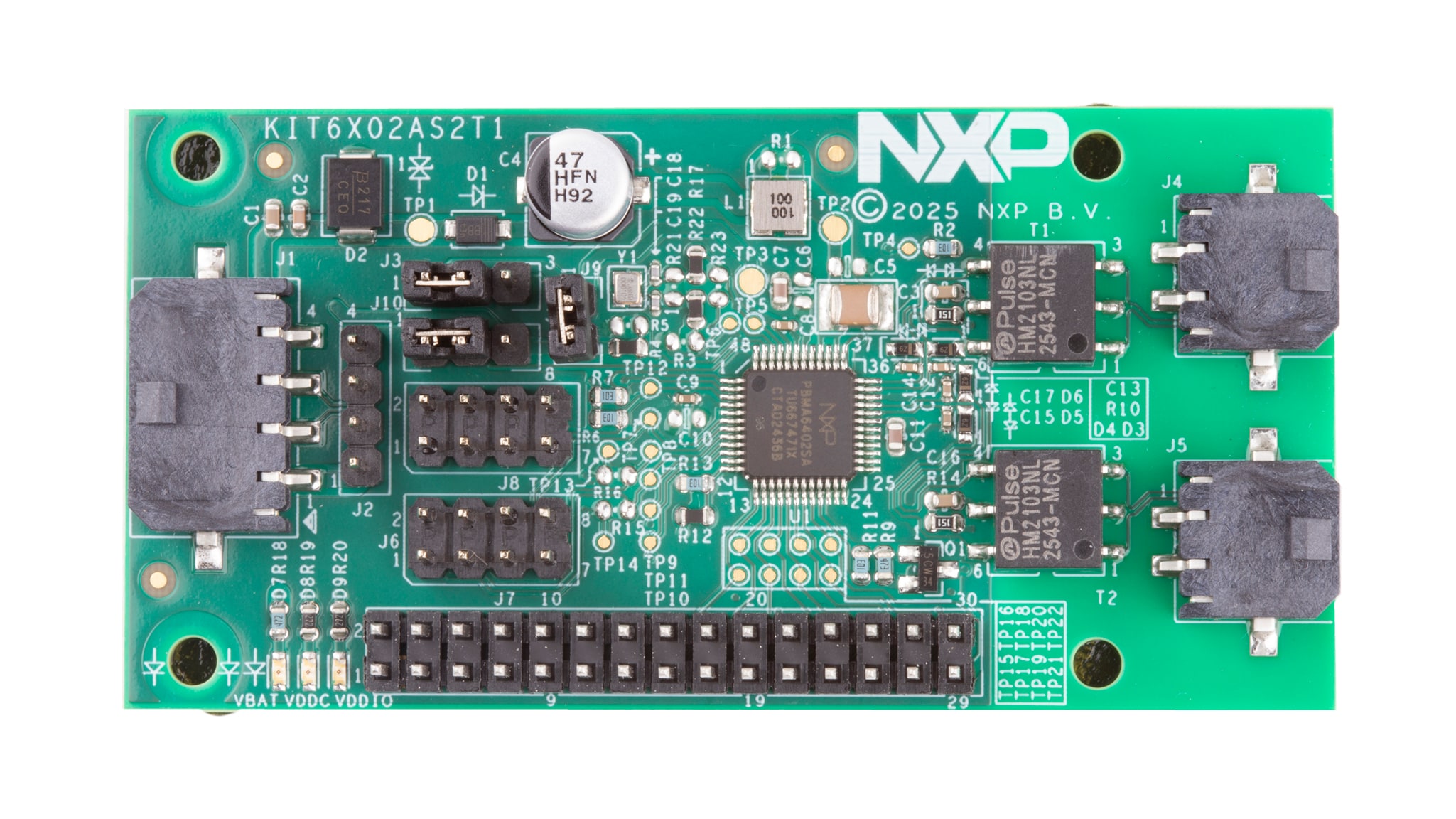

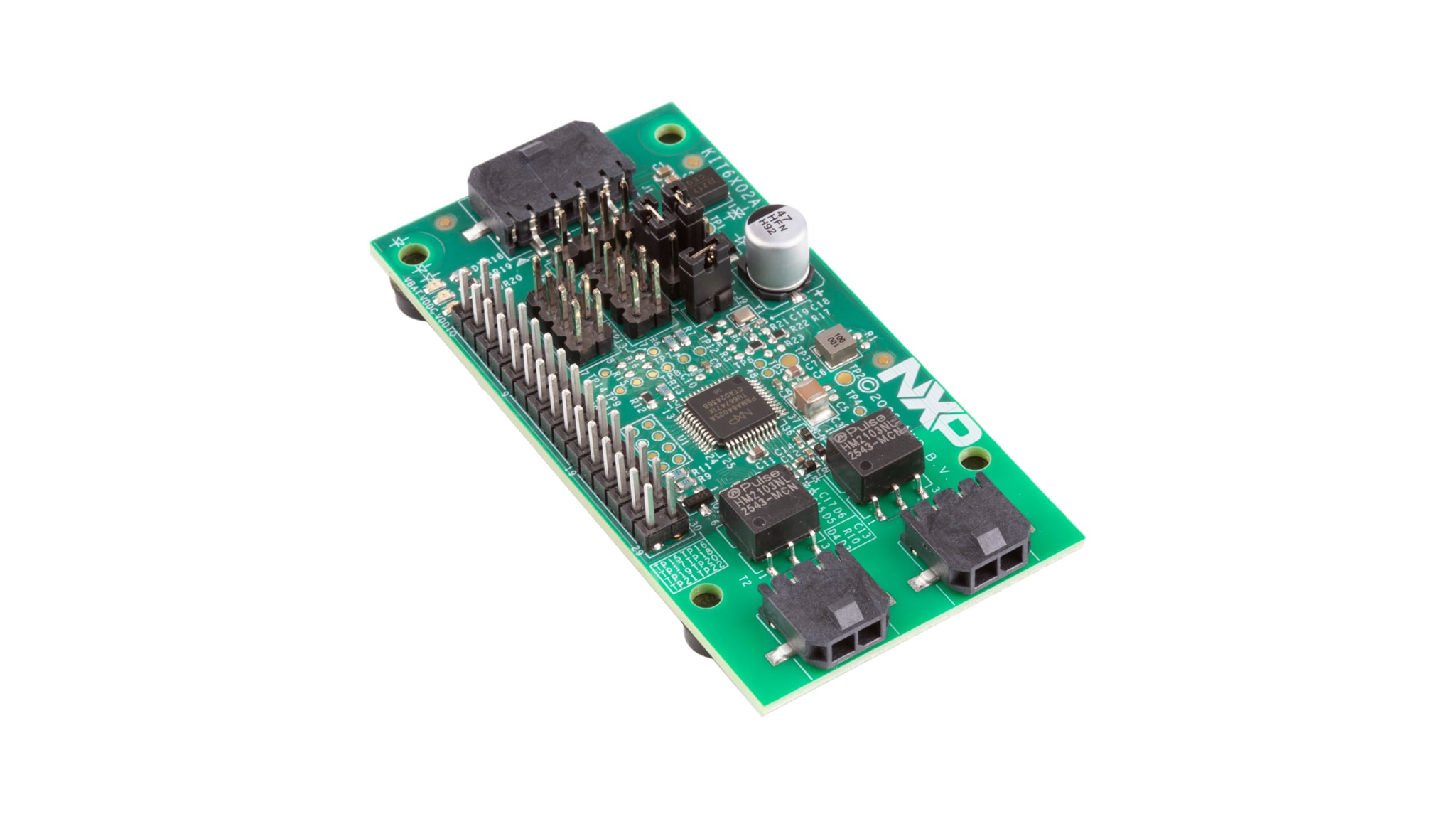

The KIT6X02AS2T1 is a hardware evaluation platform for the BMA6X02 gateway router IC. The BMA6X02 routes TPL (Two‑Pin Link) messages from the microcontroller (MCU) to two independent TPL ports, enabling flexible communication architectures for automotive and industrial systems.

The KIT6X02AS2T1 is ideal for rapid prototyping and development of SPI‑to‑TPL routing applications, which is why it is commonly referred to as SPI2TPL. This board provides a straightforward environment to evaluate device behavior, validate TPL routing functionality, and accelerate software development.

Design Files

Software

Product Details

Block Diagram

KIT6X02AS2T1

Get diagram PDF

Supported Devices

Battery Management

Battery Communication ICs

BMX6X02: General-Purpose BMS Communication Gateway and EIS Synchronization Controller

Features

BMS Turn-Key Solution

Flexible BMS evaluation solution using an SPI interface
Easy integration with battery cell controller (BCC) boards and battery junction box (BJB) boards

Interfaces

Two electrical transport protocol link (ETPL) interfaces
SPI interface

Peripherals

Integrated SPI host enabling the control of external devices via SPI
Integrated GPIO enabling the integration of different sensors

Buy Options

Click to expand

KIT6X02AS2T1
Active

SPI2TPL Evaluation Board for BMA6X02 with SPI Interface and TPL Communication.

Kit Contains

KIT6X02AS2T1: SPI2TPL evaluation board for BMA6X02 with serial peripheral interface (SPI) and transport
Protocol link (TPL) communication
Cable for supply
Electrical transport protocol link (ETPL) cable, which is a two wire twisted pair TPL cable (50 cm)

$130.00 USD

In Stock :7

Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order
