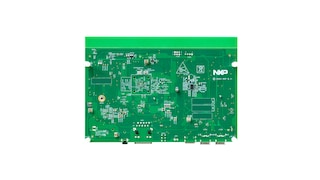

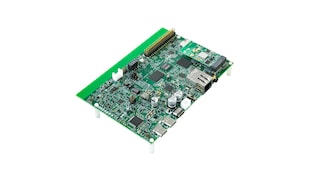

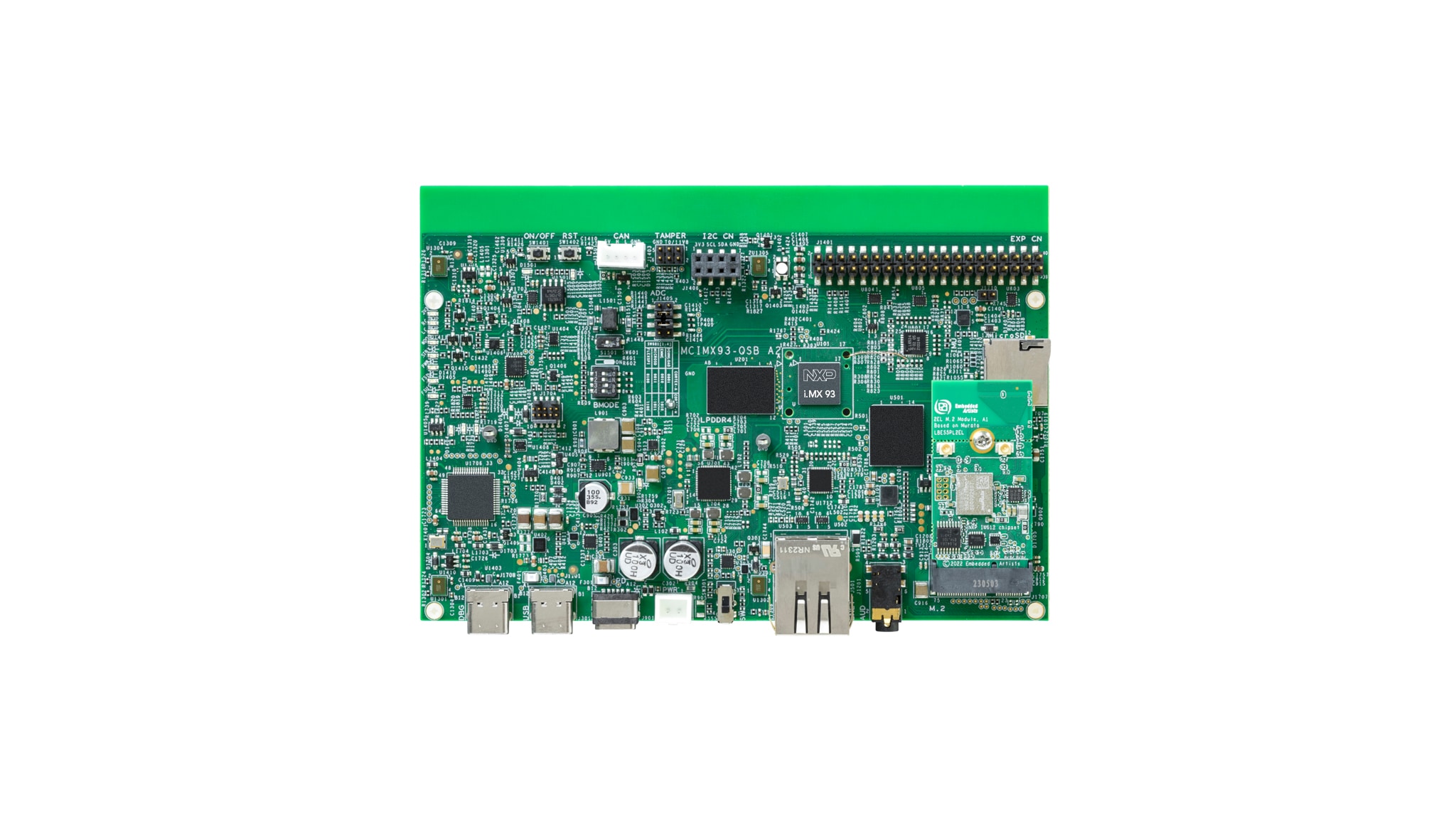

i.MX 93 Quick Start Evaluation Kit

IMX93QSB

Roll over image to zoom in

The i.MX 93 quick start evaluation kit provides a low-cost platform to evaluate the i.MX 93 applications processors in a 9x9mm package.

The single-board solution consists of the i.MX 93 SoC (9x9mm package), LPDDR4/LPDDR4X, eMMC, PMIC and brings out the broad connectivity that is needed for product evaluation. This kit provides an excellent starting point by providing a low-cost reference board design to accelerate your time to market.

Block Diagram

i.MX 93 Quick Start Evaluation Kit Block Diagram

i.MX 93 Quick Start Evaluation Kit Block Diagram
Get diagram PDF

Features

Processor

  • i.MX 93 Applications Processor
  • Dual Cortex-A55 @1.7GHz
  • Cortex-M33 @250MHz
  • Arm® Ethos™ U-65 MicroNPU
  • EdgeLock® Secure Enclave

Memory

  • 2 GB LPDDR4X / LPDDR4
  • 16 GB eMMC5.1
  • Quad SPI Flash
  • MicroSD slot

Display and Camera Interfaces

  • Parallel RGB LCD (2x20 RPi)
  • Parallel Camera (2x20 RPi)

Wireless

  • M.2 KEY-E slot with WiFi / BT IEEE802.15.4 support

Audio

  • Audio HP Jack
  • Audio HAT board support
  • PDM MIC array support

Connectivity

  • USB C 2.0 connectors
  • GbE RJ45
  • CAN (HDR)
  • RPi 2X20 GPIO HDR
  • I²C HDR
  • ADC support
  • M.2 Key-E connector

Debug

  • JTAG connector
  • UART via USB C
  • Remote debug support

Sensors

  • I3C IMU support

Security

  • Tamper support

Tools and OS Support

  • Linux®
  • FreeRTOS

Buy Options

MCIMX93-QSB-Image

Click to expand

  • MCIMX93-QSB
    Active

  • i.MX 93 Quick Start Evaluation Kit.

  • $311.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 10
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
N true 0 TSPIMX93QSBen 2 User Guide User Guide t792 1 User Manual User Manual t1009 1 en_US en_US en User Guide User Guide 1 1 1 English Follow this Quick Start Guide to get started with you i.MX 93 QSB EVK. 1708445855579715406928 TSP 767.1 KB None None documents None 1708445855579715406928 /docs/en/user-guide/IMX93QSBQSG.pdf 767079 /docs/en/user-guide/IMX93QSBQSG.pdf IMX93QSBQSG documents N N 2024-02-20 i.MX 93QSB EVK Quick Start Guide /docs/en/user-guide/IMX93QSBQSG.pdf /docs/en/user-guide/IMX93QSBQSG.pdf User Guide N 132339537837198660 2024-02-20 pdf N en Feb 20, 2024 132339537837198660 User Guide D N i.MX 93QSB EVK Quick Start Guide User Manual User Manual 1 2 1 English The i.MX 93 QSB (MCIMX93-QSB) is a platform designed to show the most commonly used features of the i.MX 93 Applications Processor in a small and low-cost package. 1708703866939715169300 TSP 2.3 MB None None documents None 1708703866939715169300 /docs/en/user-manual/UM12044.pdf 2286064 /docs/en/user-manual/UM12044.pdf UM12044 documents N N 2024-02-23 MCIMX93-QSB Board User Manual /docs/en/user-manual/UM12044.pdf /docs/en/user-manual/UM12044.pdf User Manual N 309919593431037931 2024-02-23 pdf N en Feb 23, 2024 309919593431037931 User Manual D N MCIMX93-QSB Board User Manual false 0 IMX93QSB downloads en true 0 Y TSP User Guide 1 /docs/en/user-guide/IMX93QSBQSG.pdf 2024-02-20 1708445855579715406928 TSP 1 Feb 20, 2024 User Guide Follow this Quick Start Guide to get started with you i.MX 93 QSB EVK. None /docs/en/user-guide/IMX93QSBQSG.pdf English documents 767079 None 132339537837198660 2024-02-20 N /docs/en/user-guide/IMX93QSBQSG.pdf i.MX 93QSB EVK Quick Start Guide /docs/en/user-guide/IMX93QSBQSG.pdf documents 132339537837198660 User Guide N en None D pdf 1 N N i.MX 93QSB EVK Quick Start Guide 767.1 KB IMX93QSBQSG N 1708445855579715406928 User Manual 1 /docs/en/user-manual/UM12044.pdf 2024-02-23 1708703866939715169300 TSP 2 Feb 23, 2024 User Manual The i.MX 93 QSB (MCIMX93-QSB) is a platform designed to show the most commonly used features of the i.MX 93 Applications Processor in a small and low-cost package. None /docs/en/user-manual/UM12044.pdf English documents 2286064 None 309919593431037931 2024-02-23 N /docs/en/user-manual/UM12044.pdf MCIMX93-QSB Board User Manual /docs/en/user-manual/UM12044.pdf documents 309919593431037931 User Manual N en None D pdf 1 N N MCIMX93-QSB Board User Manual 2.3 MB UM12044 N 1708703866939715169300 true Y Tools

Documentation

Quick reference to our documentation types.

Filters

2 documents

Compact List

Related Hardware

Quick reference to our board types.
Filters

2 hardware offerings

  • DART-MX93 System on Module
    Embedded Board Solutions

    DART-MX93 System on Module

    Runs on NXP’s i.MX93 with up to a 1.7GHz Dual Cortex-A55 processor, plus a 250MHz Cortex-M33 real-time co-processor, the DART-MX93 SoM integrates a AI/ML engine and an en...
    DART-MX93 System on Module By Variscite Platinum Partner
  • Nitrogen93 SMARC
    Embedded Board Solutions

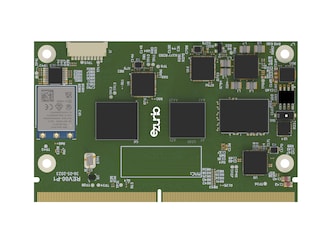

    Nitrogen93 SMARC
