Commitment to Longevity
Layerscape applications processors are ready to support your development today, tomorrow and beyond through our longevity program. The Product Longevity program ensures a stable supply of products for your embedded designs.
The Layerscape processors portfolio, part of EdgeVerse™ edge computing platform, offers wide depth and breadth. Layerscape series processors, built on Arm® core technology, extend performance to the smallest form factor—from power-constrained networking and industrial applications to new virtualized networks and embedded systems requiring an advanced data path and network peripheral interfaces.
Choosing the right product got easier. View all product finding tools.
My software plan is complete and needs support.
My software plan has some gaps (IP or labor).
My software plan depends on outsourcing and purchased IP.
16 Cortex-A72 cores running up to 2.2 GHz, targeting:
2 Cortex-A72 cores running up to 1.5 GHz with TSN-enabled Ethernet switch and Ethernet controllers, targeting:
4 (LS1043A) or 2 (LS1023A) Cortex-A53 cores running up to 1.6 GHz, targeting:
8 Cortex-A72 cores running up to 2.1 GHz, targeting:
8 core VSPA Vector engine with forward error correction. Suitable for:
Dual Arm v8 64-bit cores. Suitable for:
Octal Cortex-A53 64-bit cores. Suitable for:
Single Cortex-A53 64-bit core. Suitable for:
Dual Arm v8 64-bit cores. Suitable for:
Quad Cortex-A72 64-bit cores. Suitable for:
16 Cortex-A72 CPU Cores Suitable for:
16 Cortex-A72 CPU Cores Suitable for:
Even the most capable customers benefit from a fast pass to support.
Check out our Priority support or email us about your project.
NXP can fill your software gaps with existing IP or services.
Check out our Priority support or email us about your project.
NXP has outsourced entire software programs (IP and service) for major corporations.
Check out our Priority support or email us about your project.
Find the best product for your development needs Get Started
Device | Cores | Frequency | PCIe | SerDES Lanes | Ethernet | Display | SATA | Security | Pin to pin compatible |
---|---|---|---|---|---|---|---|---|---|
LA12xx | 6 x e200 | Up to 614 MHz | 2 x Gen3 | 1 to 8 GHz | No | No | No | No | No |
LA9310 | 1 x M4 | 307 MHz | 1 x Gen3 | 1 to 8 GHz | No | No | No | No | No |
LS1012A | 1 x Cortex-A53 | Up to 1 GHz | 1 x Gen2.0 | 3 to 6 GHz | Up to 2x GE 2.5G | - | 1x V3 | SEC, 1 Gbit/s | - |
LS1020A | 2 x Cortex-A7 | Up to 1.2 GHz | 2 x Gen2.0 | 4 to 6 GHz | 3x 1 GE | - | 1x V3 | CRC, XOR | Yes |
LS1021A | 2 x Cortex-A7 | Up to 1.2 GHz | 2 x Gen2.0 | 4 to 6 GHz | 3x 1 GE | LCD | 1x V3 | CRC, XOR | |
LS1022A | 2 x Cortex-A7 | Up to 600M | 1 x Gen2.0 | 1 to 5 GHz | 2x 1 GE | - | - | CRC, XOR | |
LS1024A | 2 x Cortex-A9 | Up to 1.2 GHz | 2 x Gen2.0 | 3 to 5 GHz | 3x 1 GE | - | 2x V2 | Yes | - |
LS1023/43A | 2 or 4 x Cortex-A53 | Up to 1.6 GHz | 3 x Gen2.0 | 4 to 10 GHz | 1x10 GE, up to 5GE | - | 1x V3 | SEC, 5 Gbit/s | Yes |
LS1026/46A | 2 or 4 x Cortex-A72 | Up to 1.8 GHz | 3 x Gen3.0 | 8 to 10 GHz | 2x10 GE, up to 5 GE | - | 1x V3 | SEC, 10 Gbit/s | |
LS1088A | 4 or 8 x Cortex-A53 | Up to 1.6 GHz | 3 x Gen3.0 | 8 to 10 GHz | 2x10 GE, up to 8 GE | - | 1x V3 | SEC, 10 Gbit/s | |
LS1017/27A | 1 or 2 x Cortex-A72 | Up to 1.3 GHz | 2 x Gen3.0 | 4 to 10 GHz | 5x2.5 GE, 1 GE | - | 1x V3 | SEC, 5 Gbit/s | Yes |
LS1018/28A | 1 or 2 x Cortex-A72 | Up to 1.3 GHz | 2 x Gen3.0 | 4 to 10 GHz | 5x2.5 GE, 1 GE | LCD - eDP/DP | 1x V3 | SEC, 5 Gbit/s | |
LS2044/84A | 4 or 8 x Cortex-A72 | Up to 2.1 GHz | 4 x Gen3.0 | 16 to 10 GHz | 8x10 GE, 8 GE | - | 2x V3 | SEC, 24Gbps | Yes |
LS2048/88A | 4 or 8 x Cortex-A72 | Up to 2.1 GHz | 4 x Gen3.0 | 16 to 10 GHz | 8x10 GE, 8 GE | - | 2x V3 | SEC, 24 Gbit/s | |

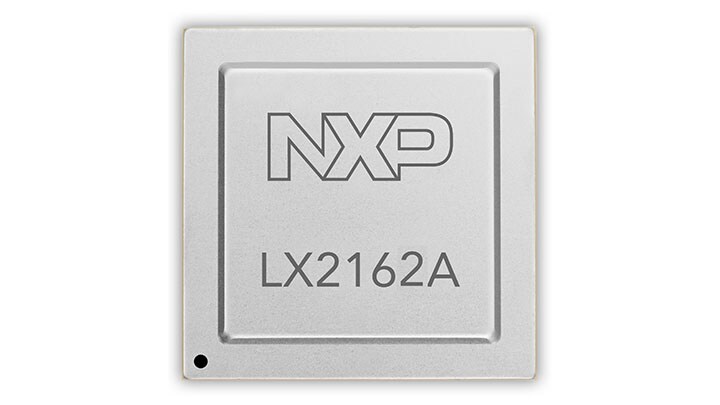

LX2162A | 8, 12 or 16 x Cortex-A72 | Up to 2.0 GHz | 3 x Gen3.0 | 12 to 25 GHz | Up 4x25 GE | - | 4x V3 | SEC, 50 Gbit/s | - |

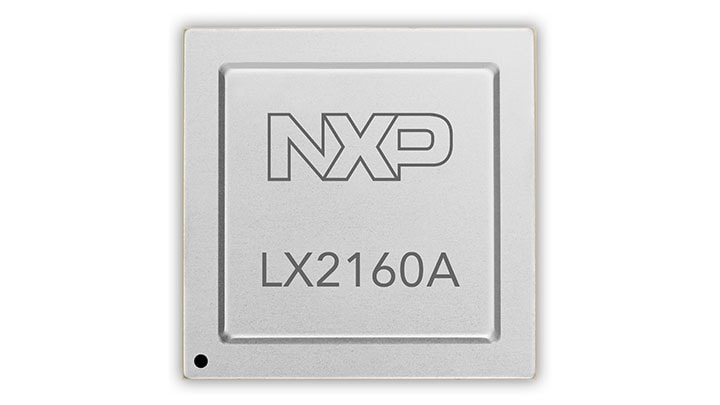

LX2160A | 8, 12 or 16 x Cortex-A72 | Up to 2.2 GHz | 6 x Gen3.0 | 24 to 25 GHz | Up 2x100 or 6x25 GE | - | 4x V3 | SEC, 50 Gbit/s | - |
Layerscape applications processors are ready to support your development today, tomorrow and beyond through our longevity program. The Product Longevity program ensures a stable supply of products for your embedded designs.
The path to a more intelligent world starts with NXP's advancement of machine learning at the edge. We created a path to accelerate even greater breakthroughs, as machine learning continues to redefine what’s possible through more flexible and robust software platforms and rapid hardware innovations.
