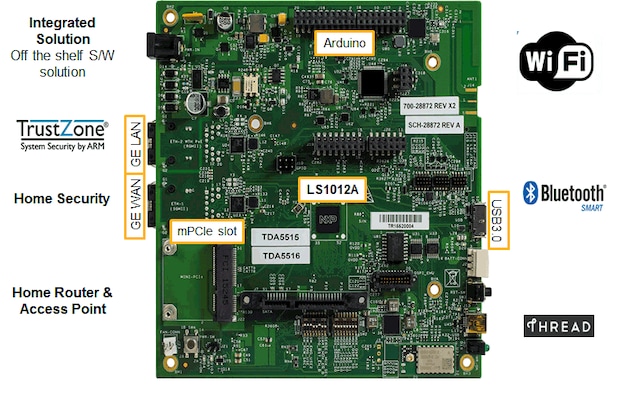

Layerscape LS1012A Smart Home Gateway Reference Design

SMART-HOME-GATEWAY

Roll over image to zoom in

NXP’s Smart Home Gateway Reference Design provides a bridge from a wide area network (WAN/Cloud) connection to a local area network, usually through Wi-Fi and/or Ethernet, while supporting a wide array of wireless communication protocols in the home. Based on the Layerscape® LS1012A processor and the LS1012A Broadband Home Router Application Solution Kit, it allows developers to easily leverage a highly optimized software stack.

Block Diagram

Smart Home Gateway

Smart Home Gateway Block Diagram
Get diagram PDF

Supported Devices

Wireless Connectivity

Wireless MCUs

  • KW41Z: Kinetis® KW41Z-2.4 GHz Dual Mode: Bluetooth® Low Energy and 802.15.4 Wireless Radio Microcontroller (MCU) based on Arm® Cortex®-M0+ Core

RFID

NFC Readers

  • PN7150: High-Performance NFC Controller with Integrated Firmware for Smart Devices

Processors and Microcontrollers

Layerscape Processors

  • LS1024A: Layerscape® 1024A Dual-Core Processor
  • LS1012A: Layerscape® 1012A Low Power Processor

K2x / KS2x USB

  • K22_100: Kinetis® K22-100 MHz, Cost Effective, Full-Speed USB Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

Power Management

5 V PMIC Solutions

  • VR5100: Multi-Output DC-DC Regulator for Low Power LS1 Communication Processors

Interfaces

USB Interfaces

Features

  • Integrated hardware and software based on customer requirements
  • 10M+ systems deployed
  • Market proven in service provider networks
  • Authentication with secure boot
  • Platform control - tamper detection
  • Secure data/communication encryption
  • Interfaces
    • Gigabit Ethernet for LAN and WAN connectivity
    • Wi-Fi for high-speed wireless with support for 802.11ac
    • ZigBee® home automation, home security and energy control applications
    • Optional: Arduino® shield header for expansion
  • Compatibility
    • OSGi/JVM based platform for third-party application support

Buy Options

USB-KW41Z-Image

Click to expand

USB-KW41Z
Active

USB-KW41Z Bluetooth Low Energy/IEEE® 802.15.4 Packet Sniffer/USB Dongle. 1 board per order.

    $69.00 USD
    In Stock :1

    Normally ships 1-2 business days

    ADD TO CART
    Order from distributors
    LS1012ARDB-PC-Image

    Click to expand

    LS1012ARDB-PC
    Active

    Layerscape LS1012A Reference Design Board.

      Order from distributors

      Design Resources

      Select a section:

      Related Hardware

      Quick reference to our board types.
      Filters

      2 hardware offerings

      Design Files

      Quick reference to our design files types.
      Filters

      2 design files

      Software

      Quick reference to our software types.

      Filters

      1 software file

      • Libraries

        ASK Loadable binaries for LS1012A - BHR

        FLEXERARev 8.0.0-B1Jul 30, 2018 18:00:001 KBLS1012A-SW-ASK-BHR
        Download
