USB-KW41Z| Bluetooth Low Energy Thread Zigbee Wireless Packet Sniffer | NXP Semiconductors

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

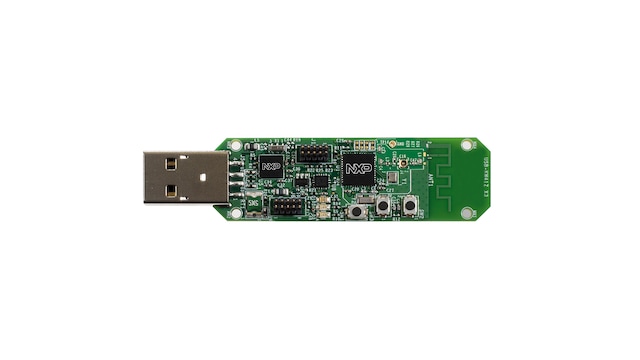

The USB-KW41Z is a development platform enabled by the Kinetis^® W series KW41Z/31Z/21Z (KW41Z) family built on the Arm^® Cortex^®-M0+ processor in a convenient USB dongle form factor.

The USB-KW41Z can be used as a Bluetooth^® Smart/Bluetooth^® Low Energy and/or IEEE^® 802.15.4 packet sniffer or development board.

The USB Dongle used as a wireless packet sniffer can monitor over-the-air communications. Alternatively the USB dongle can be used as a wireless network node with a simple connection to a PC or other USB enabled device.

Note: K32W061/41 is preferred for any new Zigbee^®, Thread and Bluetooth^® LE 5.0 design. No new software releases planned

Product Details

Supported Devices

Wireless Connectivity

Zigbee

KW21Z: Kinetis^® KW21Z-2.4 GHz 802.15.4 Wireless Radio Microcontroller (MCU) based on Arm^® Cortex^®-M0+ Core

Bluetooth Low Energy

KW31Z: Kinetis^® KW31Z-2.4 GHz Bluetooth Low Energy Wireless Radio Microcontroller (MCU) based on Arm^® Cortex^®-M0+ Core

Multiprotocol MCUs

KW41Z: Kinetis^® KW41Z-2.4 GHz Dual Mode: Bluetooth^® Low Energy and 802.15.4 Wireless Radio Microcontroller (MCU) based on Arm^® Cortex^®-M0+ Core

Features

Debug

OpenSDA debug interface

Connectivity

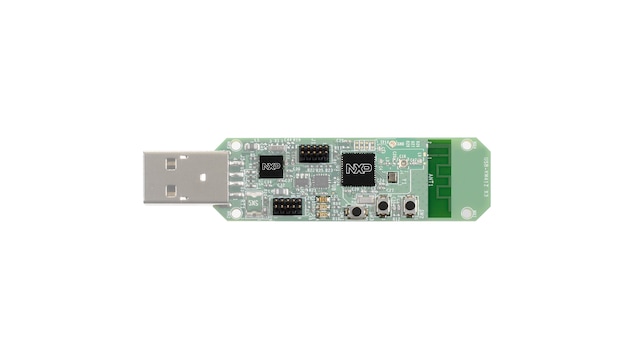

Meandering PCB Antenna
USB Type A Connector
Ideal for Bluetooth Low Energy /Generic FSK/802.15.4 packet sniffer or connection to PC/Tablet

RF regulatory certified

Buy Options

USB-KW41Z-Image

Click to expand

USB-KW41Z
Active
Part Description: USB-KW41Z Bluetooth Low Energy/IEEE® 802.15.4 Packet Sniffer/USB Dongle. 1 board per order..
- USB-KW41Z packet sniffer/dongle
- Quick start guide

$69.00 USD
For a quantity of 1
- Availability: Pending Stock

Order from distributors
