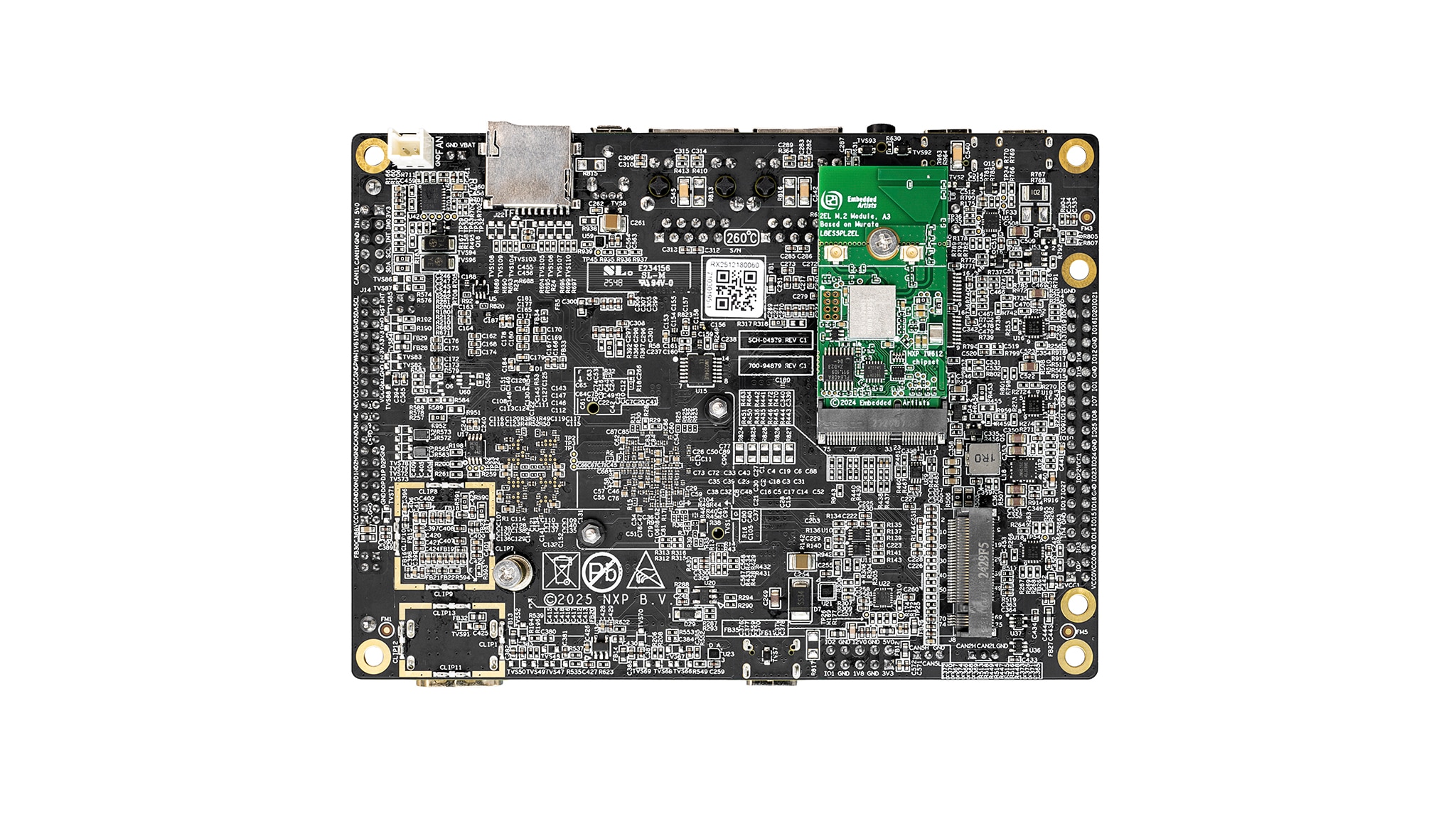

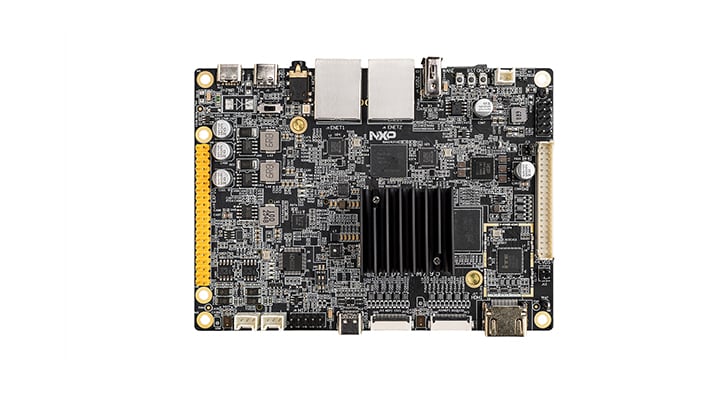

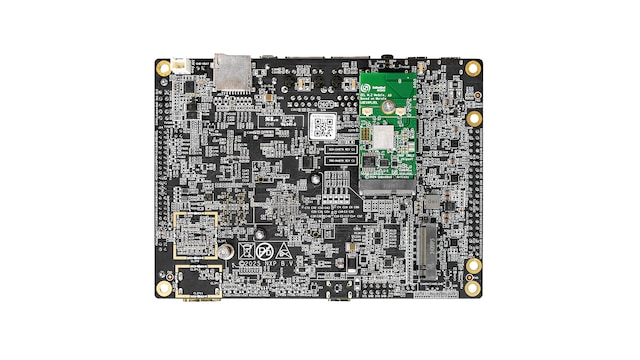

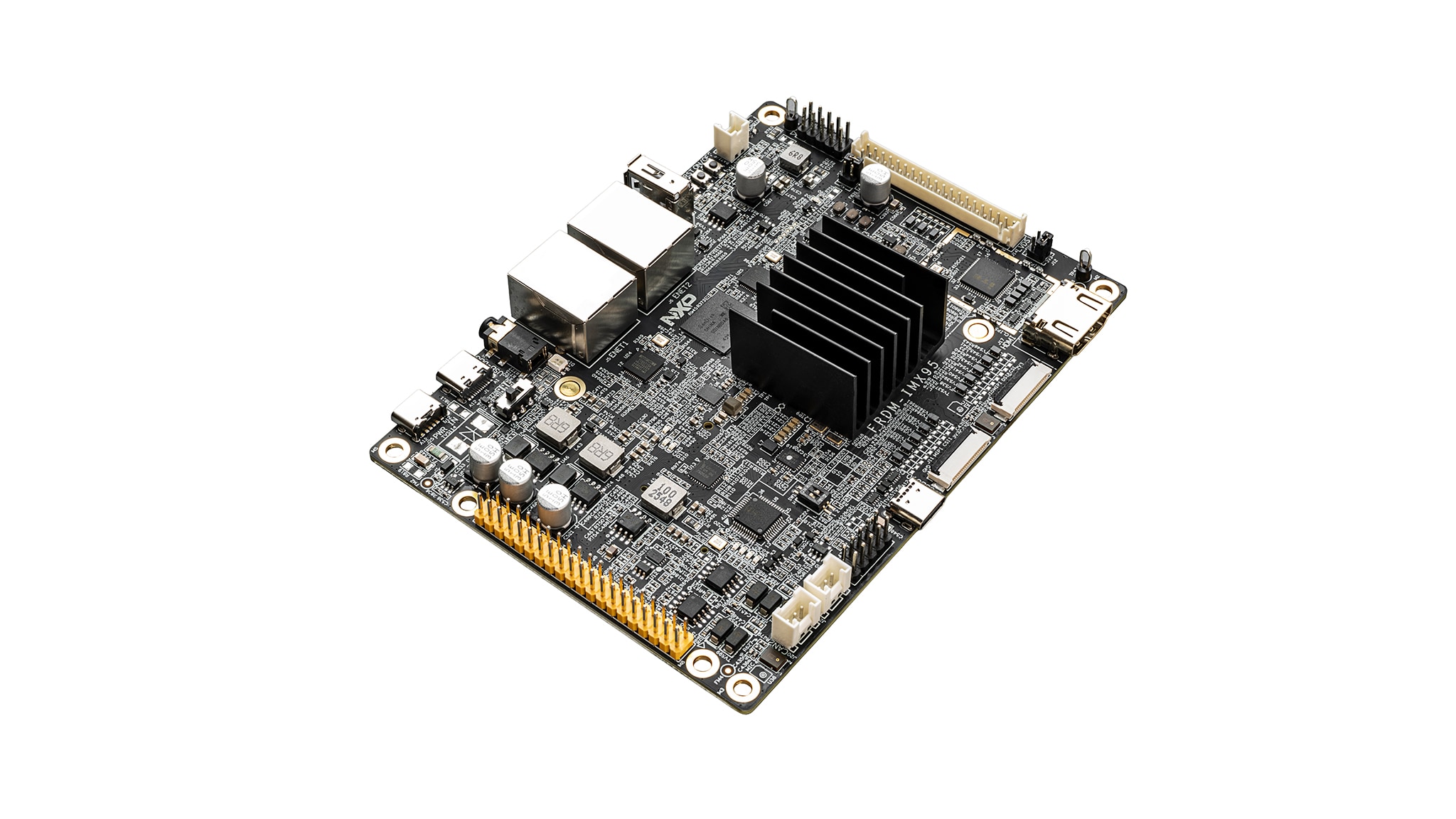

FRDM i.MX 95 Development Board

FRDM-IMX95 new
Preproduction
  • This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information contact support or your sales representative.

Roll over image to zoom in

The FRDM‑IMX95 is a low‑cost, compact development board built on the powerful i.MX 95 applications processor in a 15 mm x 15 mm package. Designed for rapid prototyping and evaluation, it delivers advanced AI acceleration, rich multimedia performance and connectivity based on Wi-Fi 6 Tri-Radio IW612 M.2 module ideal for modern edge designs.

With flexible expansion interfaces, comprehensive software enablement and integrated GoPoint, an intuitive demo interface that simplifies exploring key use cases, the FRDM‑IMX95 is perfectly suited for advanced HMI systems, industrial networking, edge gateways, vision processing and AI‑driven applications.

Block Diagram

FRDM I.MX95

FRDM-IMX95 Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

i.MX 9 Processors

  • i.MX95: i.MX 95 Applications Processor Family: High-Performance, Safety Enabled Platform with eIQ® Neutron NPU

Interfaces

General Purpose I/O (GPIO)

  • PCAL6408A: Low-Voltage Translating, 8-Bit I²C-Bus/SMBus I/O Expander
  • PCAL6524: Ultra-Low-Voltage Translating 24-Bit Fm+ I²C-Bus/SMBus I/O Expander

3.3 V / 5 V IO CAN Transceivers

  • TJA1051: High-Speed CAN Transceiver

Power Management

VBUS Protection

  • NX5P3290UK: USB PD and Type-C Current-Limited Power Switch
  • NX5P3090UK: USB PD and Type-C Current-Limited Power Switch
  • NX20P5090UK: High-Voltage USB PD Power Switch

Data Protection

  • NX20P0407: USB Type-C CC and SBU Protection IC

5 V PMIC Solutions

  • PF53: 12 A / 8 A / 15 A Core Supply Regulator with AVP and Watchdog
  • PF09: 9-Channel PMIC for High-Performance Applications, ASIL D and SIL 2

LED Drivers

  • PCA9632: 4-Bit Fm+ I²C-Bus Low-Power LED Driver

Analog and Mixed Signal

Real-Time Clocks

  • PCF2131: Nano-Power Highly Accurate RTC with Integrated Quartz Crystal

Wireless Connectivity

Wi-Fi® + Bluetooth® + 802.15.4

  • IW612: 2.4/5 GHz Dual-Band 1x1 Wi-Fi® 6 (802.11ax) + Bluetooth® 5.4 + 802.15.4 Tri-Radio Solution

Features

Processor

Memory

  • 8 GB Low-Power Double Data Rate(LPDDR) 4X-4000
  • 32 GB embedded MultiMediaCard (eMMC 5.1)
  • MicroSD slot
  • Electrically Erasable Programmable Read-Only Memory (EEPROM)

Display and Camera Interfaces

  • 1 x4 lane combo mobile industry processor interface-display
  • MIPI-DSI/CSI (FPC 22-pin connector)
  • 1 x4 lane low-voltage differential signaling (LVDS) to HDMI (HDMI connector)
  • 1 x4 lane LVDS (2x20-pin HDR)
  • 1 x4 lane MIPI-CSI (FPC 22-pin connector)

Wireless​

Audio

  • 3.5mm Audio Jack for Master Quality Sound (MQS) support
  • Pulse Density Modulation Microphone (PDM) MIC Support

Connectivity

  • 1x USB 3.0 Type-C connector; 1x USB 2.0 Type-A connector
  • 2x GbE RJ-45; CAN Header (HDR)
  • 2x20-pin Expansion Interface (EXPI) HDR
  • 2x5-pin HDR for I²C, Analog-to-Digital Converter (ADC) and CAN

Debug

  • Universal asynchronous receiver/transmitter (UART) via USB-Type C
