12 A / 8 A / 15 A Core Supply Regulator with AVP and Watchdog
The part numbers with the MPF53xxBxxxxx suffix are recommended for new designs.
The PF5300, PF5301, and PF5302 are single-channel power management integrated circuits (PMICs) designed to power high-performance automotive and industrial processors. The PF53 family integrates high-current buck converters rated at 12 A, 8 A, and 15 A, respectively, and features adaptive voltage positioning, high-bandwidth control loops, and low-power operating modes for efficient power delivery. Developed in compliance with ISO 26262, the PF53 family supports functional safety requirements up to ASIL D and is qualified to AEC-Q100 standards. Co-architected with the VR5510 PMIC for S32G3 processor platforms, the PF53 family supports scalable system power architectures and advanced power management solutions.
Product Details
Features
Key Features
- High-efficiency DC-DC converter
- Programmable Adaptive Voltage Positioning (AVP)
- PFM mode (PF53xxB version only)
- High accuracy (+/-1%)
- 1.5 uA Off Quiescent Current

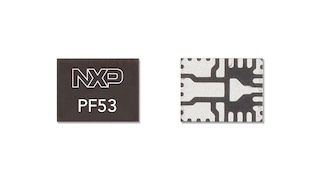

- 24-pin 3.5 x 4.5 FC-QFN package
System Features
- OTP (One-time programmable) memory for flexible device configuration
- High speed I²C interface (3.4 MHz)
- PGOOD monitoring circuits
- External clock synchronization
- Frequency spread spectrum
Monitoring Circuits to Fit ASIL D Safety Level
- Independent circuits to fit ASIL D safety level
- Voltage monitoring with programmable fault reaction
- Advanced thermal monitoring and protection
- Programmable internal watchdog timer
- I²C CRC and write protection mechanism
- Analog built-in self-test (ABIST)
Programmability
- Supplies, sequencing and specific functions can be programmed by one time programmable (OTP) memory
- During development phase, customized OTP part can be programmed using the evaluation board
- Custom OTP can be provided for production. Please contact your NXP sales channel (NXP or your distributor)
- Custom OTP can be created using the GUI tool
Comparison Table
| Part Number | Description | OTP ID* | Safety Grade | Package |
|---|---|---|---|---|
| MPF5301BMMABES | i.MX95 | MAB Report and configuration files | QM | SOT2283-1(SC) |
| MPF5302BMMAAES | i.MX95 | MAA Report and configuration files | QM | SOT2283-1(SC) |
| MPF5300BMMBRES | i.MX95 | MBR Report and configuration files | QM | SOT2283-1(SC) |
| MPF5301BVNABEP | i.MX95 | NAB Report and configuration files | QM | SOT2283-1 |
| MPF5302BVNAAEP | i.MX95 | NAA Report and configuration files | QM | SOT2283-1 |
| MPF5300BVNBREP | i.MX95 | NBR Report and configuration files | QM | SOT2283-1 |
| MPF53BDBMMA1ES | S32G3 | MA1 Report and configuration files | QM | SOT2283-1(SC) |
| MPF5300BMMALES | S32N | MAL Report and configuration files | QM | SOT2283-1(SC) |
| MPF5300BMMAMES | S32N | MAM Report and configuration files | QM | SOT2283-1(SC) |
| MPF5301AMMABES | i.MX95 | MAB Report and configuration files | QM | SOT2090-1(SC) |
| MPF5302AMMAAES | i.MX95 | MAA Report and configuration files | QM | SOT2090-1(SC) |
| MPF5301AVNABEP | i.MX95 | NAB Report and configuration files | QM | SOT2090-1 |
| MPF5302AVNAAEP | i.MX95 | NAA Report and configuration files | QM | SOT2090-1 |
| MPF53BDAMMA1ES | S32G3 | MA1 Report and configuration files | QM | SOT2090-1(SC) |
| MPF5300AMMALES | S32N | MAL Report and configuration files | QM | SOT2090-1(SC) |
| MPF5300AMMAMES | S32N | MAM Report and configuration files | QM | SOT2090-1(SC) |
| MPF5300AMMALES | S32N | MAL Report and configuration files | QM | HWQFN24 |
| MPF5300AMMAMES | S32N | MAM Report and configuration files | QM | HWQFN24 |
| MPF5301AMMABES | i.MX 95 | MAB Report and configuration files | QM | HWQFN24 |
| MPF5301AVNABEP | i.MX 95 | NAB Report and configuration files | QM | H-FC-PQFN24, HWQFN24 |
| MPF5302AMMAAES | i.MX 95 | MAA Report and configuration files | QM | HWQFN24 |
| MPF5302AVNAAEP | i.MX 95 | NAA Report and configuration files | QM | H-FC-PQFN24 |
| MPF53BDAMMA1ES | S32G3 | MA1 Report and configuration files | ASIL D | HWQFN24 |
*OTP configuration files are embedded in the PDF reports
Product Programs
Related products
Dual-Channel PMIC for Automotive Applications – 2 High Efficient LVBUCK, Fit for ASIL B Safety Level
Buy/Parametrics
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Documentation
Quick reference to our documentation types
6 documents
Compact List
Brochure (1)
Data Sheet (1)
Training Presentation (3)
-
Core to Compute: NXP's Power Strategy for Gateways, HPC, ADAS and Domain Controllers[TP-TD-DETROIT-CORE-TO-COMP]
-
Powering Smart Connectivity: NXP's Safety PMICs for i.MX 9x Platforms[TP-TD-DETROIT-POW-SMA-CON]
-
Powering Electrification: NXP's HV and 12 V/24 V/48 V Solutions for Vehicle Energy Management[TP-TD-DETROIT-POW-ELEC-HV-SOL]
White Paper (1)
Design Resources
Hardware
Quick reference to our
board types.
1-5 of 12 hardware offerings
-
Complete SolutionGoldBox 3 Vehicle Networking Development Platform
-
Complete SolutionS32G3 Vehicle Networking Reference Design
-
-

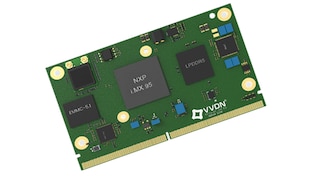

Additional hardware available. View our featured partner solutions.
-

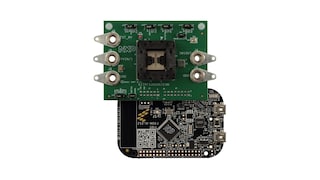

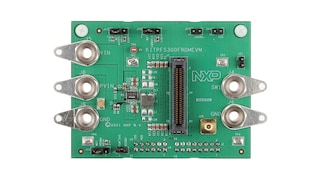

Evaluation and Development BoardsPF5300 / PF5301 / PF5302 Socketed Programming Board
-

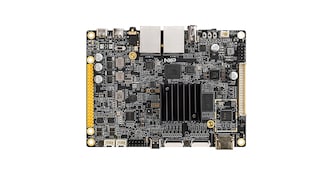

Evaluation and Development Boardsi.MX 95 19mm x 19mm Evaluation Kit
