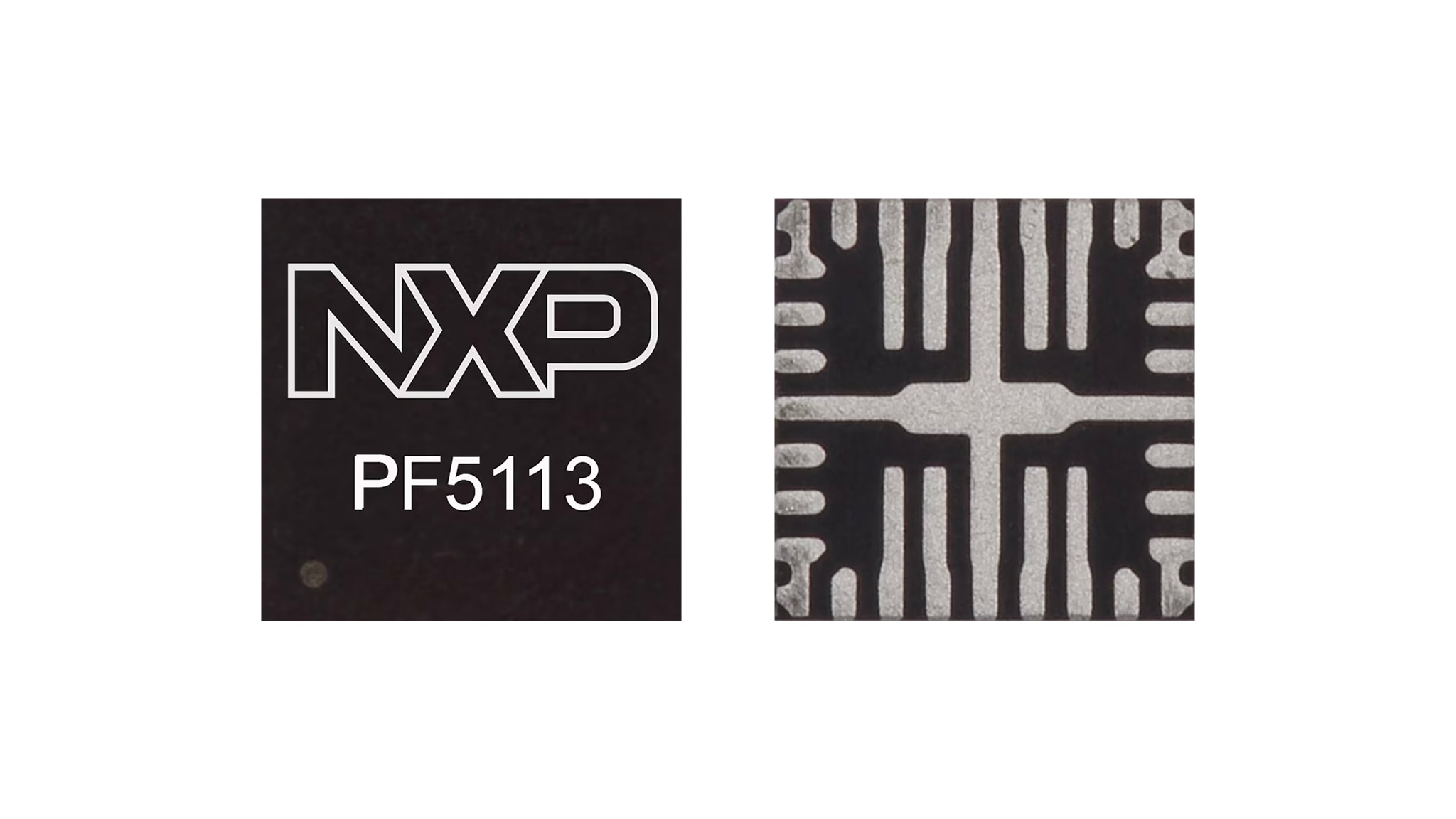

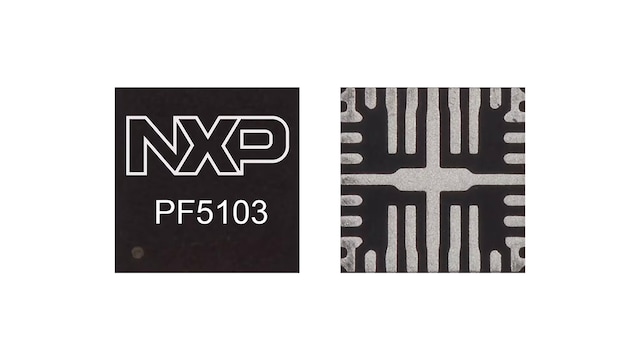

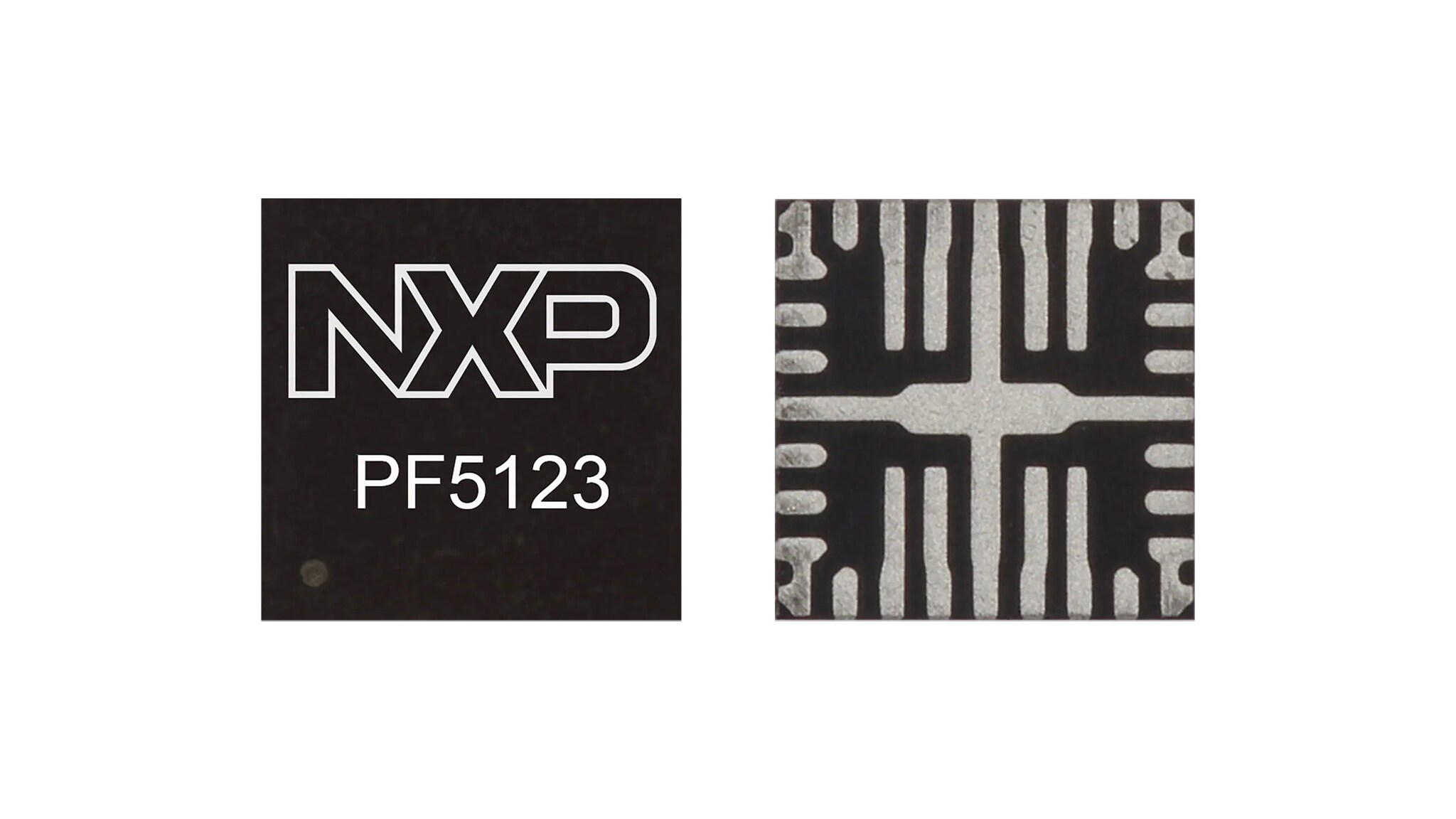

Multi-Channel (5) PMIC for Automotive Applications: 3 LVBUCK and 2 LDO, Fit for ASIL B Safety Level
The PF51x3 is a multi-channel power management integrated circuit (PMIC) designed for automotive safety and industrial applications. The PF51x3 provides a configurable power management solution for systems requiring multiple power rails, including infotainment, ADAS, vision, and radar applications.
Integrated safety features support ISO 26262 compliance up to ASIL B, while a non-safety variant is available for applications that do not require functional safety. The PF51x3 can be used alongside PMICs or SBCs such as the FS8x family and is suitable for NXP radar solutions including S32R41, TEF82xx, and SAF85xx devices.
Product Details
Block Diagram
PF51x3 Comparison Table
| Product Family | PF5103 | PF5113 | PF5123 |
|---|---|---|---|
| BUCK1 | 0.5 V to 3.3 V, 3.5 A (Single/Multi phase) | 0.8 V, 0.825 V, 0.9 V, 1.2 V, 2.6 A (Single phase) | 0.5 V to 3.3 V, 3.5 A (Single/Multi phase) |
| BUCK2 | 0.5 V to 3.3 V, 3.5 A (Single/Multi phase) | 1.3 V, 1.5 V, 1.8 V, 2.3 V, 2.5 V, 3.3 V, 3.5 A (Single phase) | 0.5 V to 3.3 V, 3.5 A (Single/Multi phase) |
| BUCK3 | 0.5 V to 3.3 V, 3.5 A (Single/Multi phase) | 1.1 V, 1.3 V, 1.5 V, 2.5 V, 3.3 V, 2.6 A (Single phase) | 0.5 V to 3.3 V, 3.5 A (Single/Multi phase) |
| LDO1 | 0.75 V to 3.3 V, 0.2 A | 1.8 V to 3.3 V, 0.2 A | No |
| LDO2 | 0.75 V to 3.3 V, 0.5 A | 1.8 V to 3.3 V, 0.25 A | No |
| PWRON | Yes | Yes | Yes |
| SYNC_STANDBY | Yes | Yes | Yes |
| FCCU_XFAILB | Yes | Yes | Yes |
| I²C | Yes | Yes | Yes |
| PGOOD | Yes | Yes | Yes |
| INTB_RSTB | Yes | Yes | Yes |
| Watchdog | Simple | Simple | Simple |
| SAFETY | QM, ASIL B | QM, ASIL B | QM, ASIL B |
| Target Application | General | Radar System (example: S32R41, TEF82xx, SAF85xx) | General |
Standard Configurations
| Part Number | Use Case | Safety Grade | OTP Configuration |
|---|---|---|---|
| MPF5103AMMA6ES | Marvell AQR113C | QM | MA6 OTP report |
| MPF5103AMMA9ES | NXP i.MXRT117x | QM | MA9 OTP report |
| MPF5103AMMACES | IFX CTRX8191FS | QM | MAC OTP report |
| MPF5103AMBAHES | NXP SAF85xx | ASIL B | BAH OTP report |
Product Programs
Related products
High Performance 77GHz RFCMOS Automotive Radar One-Chip SoC
Buy/Parametrics
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Documentation
Quick reference to our documentation types
6 documents
Compact List
Application Note (1)
-
PF51x3 Hardware Design Guide[AN14790]
Brochure (1)
Data Sheet (1)
Training Presentation (2)
-
Powering Smart Connectivity: NXP's Safety PMICs for i.MX 9x Platforms[TP-TD-DETROIT-POW-SMA-CON]
-
Powering Electrification: NXP's HV and 12 V/24 V/48 V Solutions for Vehicle Energy Management[TP-TD-DETROIT-POW-ELEC-HV-SOL]
White Paper (1)
Design Resources
Hardware
Quick reference to our
board types.
1-5 of 7 hardware offerings
-
Evaluation and Development Boardsi.MX 95 19mm x 19mm Evaluation Kit
Active -

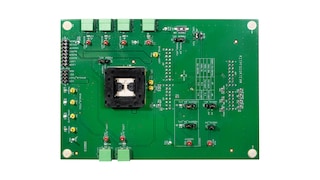

Evaluation and Development BoardsPF51x3 Socket Evaluation Board
