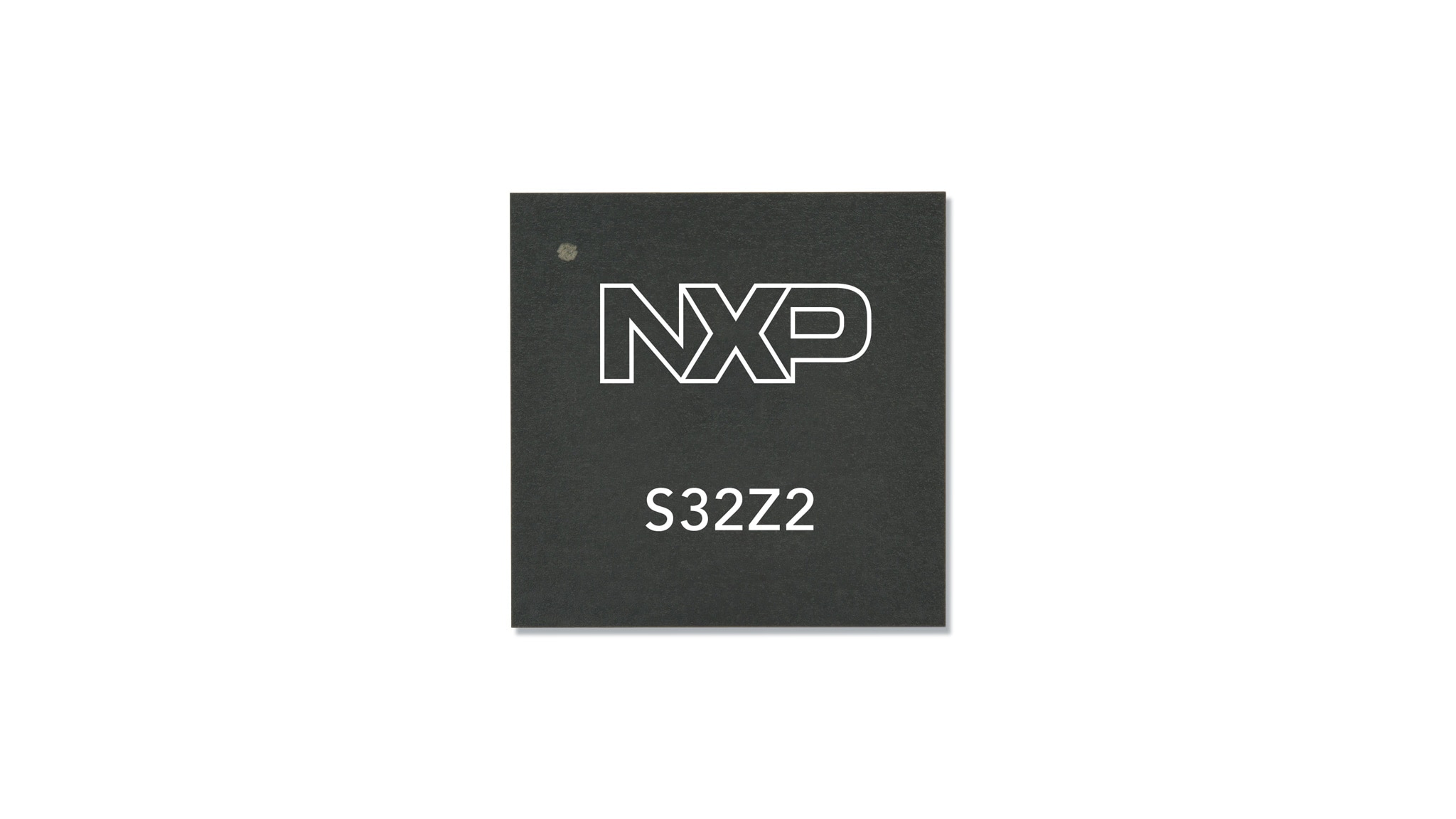

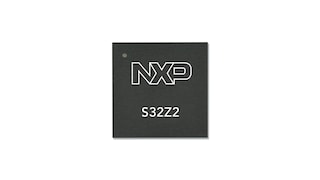

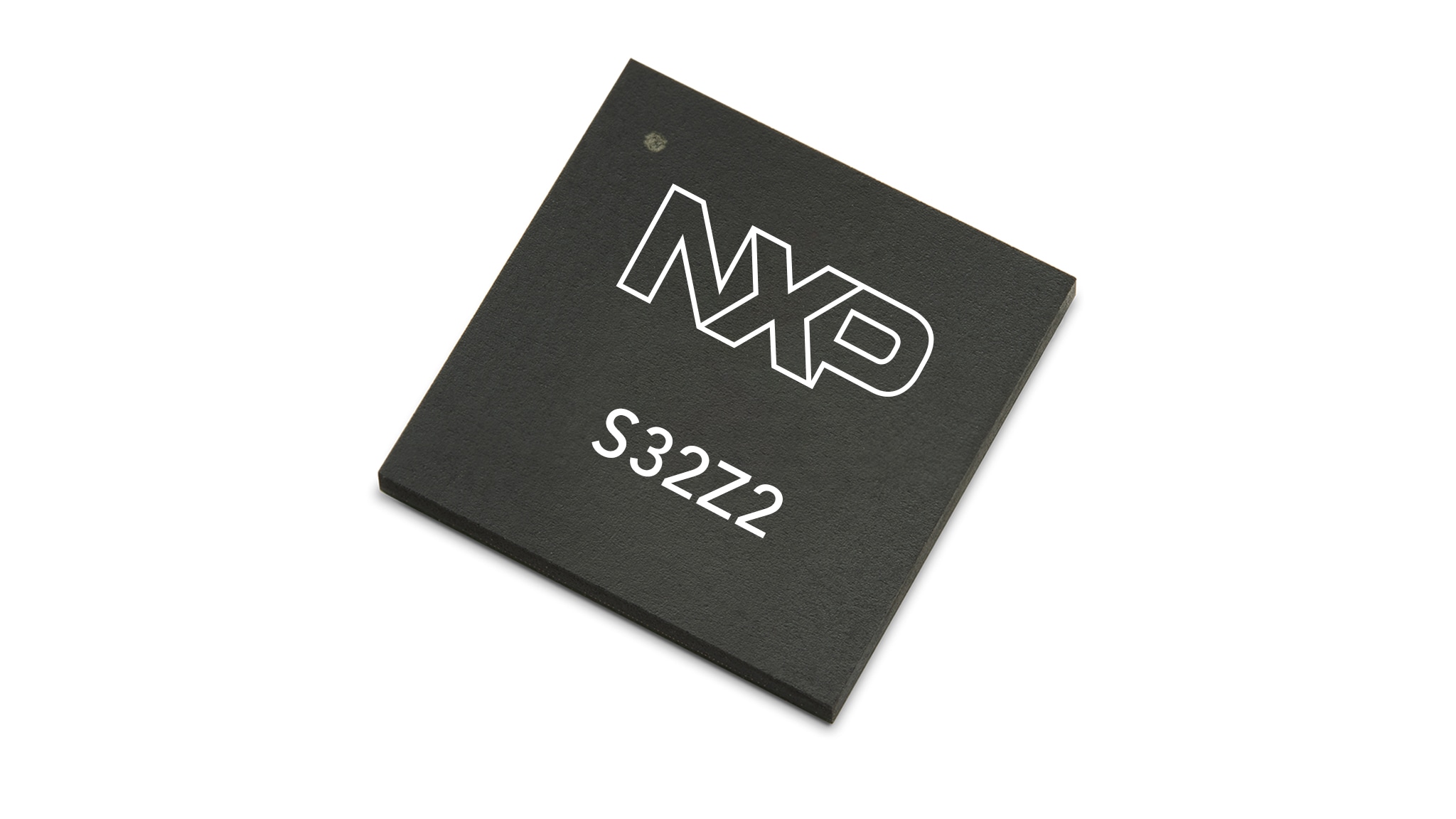

S32Z2 Safe and Secure High-Performance Real-Time Processors

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

S32Z2 high-performance real-time processors accelerate the integration of diverse, real-time applications include safety processing and domain and zonal control. The S32Z2 processors help enable software-defined vehicles, reduce software integration complexity and enhance safety and security.

The 16nm S32Z2 processors combine real-time and DSP/ML processing with hardware virtualization, scalable non-volatile memory, flexible expansion memory support and network acceleration. The processors are developed according to processes that are certified to ISO/SAE 21434 for cybersecurity and ISO 26262 for ASIL D functional safety. The S32Z2 processors are software-compatible with the S32E2 processors that target electric vehicle (xEV) control and smart actuation applications.

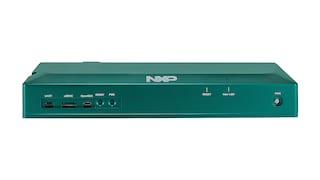

The S32Z2 processors are enabled with GreenVIP vehicle integration platform software and the GreenBox 3 development platform, along with a strong partner ecosystem.

Data Sheet

Reference Manual

Product Details

Block Diagram

Choose a diagram:

S32Z2 Real-Time Processors
S32Z and S32E Real-Time Processors Software

S32Z2 Real-Time Processors

S32Z2 Safe and Secure High-Performance Real-Time Processors

S32Z and S32E Real-Time Processors Software

Get diagram PDF

Features

Processors

Eight Arm® Cortex®-R52 cores running at up to 1 GHz with flexible split/lock configurations:
- Two clusters with a pair of dual-core lockstep cores in each cluster
- One cluster with a pair of dual-core lockstep cores and one cluster with four cores
- Two clusters of four cores
Each Arm Cortex-R52 core includes Arm Neon^™ SIMD technology
Lockstep Arm® Cortex®-M33 System Manager core
DSP/ML processor (25 GFLOPS)

Memory

19 MB SRAM
Up to 64 MB of integrated flash memory
2x QSPI for NOR flash (x1, x4, x8) and HyperRAM^™ memory
SD Card/SDIO and eMMC NAND flash support
Memory expansion with LPDDR4 interface for DRAM and flash memory (3.2 GB/s)
Supports on-the-fly, over-the-air update capability with zero processor downtime

Communications

CAN accelerator: flexible, low-latency communications engine (FlexLLCE) with 24 CAN 2.0 / CAN FD interfaces

Networking

Integrated time-sensitive networking (TSN) Gigabit Ethernet switch (NETC3)
2x Ethernet MACs each supporting 10/100 Mbps MII/RMII and 100/1000 Mbps RGMII

Timers

Complex timer unit (CTU)
2x enhanced modular I/O subsystem (eMIOS)
Optional complex timers (GTM 4.1)

Safety

Advanced safety functionality and fault recovery
Processors are developed according to processes that are certified to ISO/SAE 21434 for cybersecurity and ISO 26262 for ASIL D functional safety

Security

Integrated hardware security engine (HSE) for root of trust (RoT)
- Secure boot, security services and key management
Public key infrastructure and side-channel attack resistance
Dedicated crypto accelerators for CAN, QSPI and LPDDR4 interfaces
Processors are developed according to processes that are certified to ISO/SAE 21434 for cybersecurity and ISO 26262 for ASIL D functional safety

Other

AEC-Q100 Grade 1 device with support up to -40 to 150º C (junction)

Software Enablement

Offered software support enables the S32Z/E features running on the Cortex -R52.

Tools	Reference Software	Standard Software	Premium Software
S32 Design Studio for S32 Platform Including Config Tools FreeMASTER Run-Time Debugging Tool Host PC Real-Time Debugging Tools eIQ® Auto Machine Learning (ML) Toolkit Automotive Math and Motor Control Library (AMMCLib) Model-Based Design Toolbox (MBDT)	Zephyr® Cortex®-R52 FreeRTOS™ Cortex®-R52, M33 TCP/IP Stack Cortex®-R52, M33 SDHC Stack Cortex-R52 TSN Stack Cortex-R52 S32Z/E Board Diagnostic Tests	S32 Real-Time Drivers (RTD) Cortex -R52, M33 Including EB tresos Studio Safety Peripheral Drivers (SPD) Cortex -R52, M33 Inter-Platform Comms Framework (IPCF) Cortex -R52, M33 FlexLLCE Driver and Standard Firmware HSE Standard Firmware gPTP stack EL2 Monitor SPF2 (DSP) core enablement	S32 Security NDA required Increased key count Customization services NXP RTOS NDA required	S32 Safety NDA required S32 Safety Software Framework (SAF) Cortex -R52, M33 Safety concept implementation Structural Core Self-Test (SCST) Cortex -R52
Vehicle Integration Platform S32Z/E Vehicle Integration Platform (GreenVIP): Accelerates S32Z/E evaluation, development, integration and rapid prototyping efforts.
Software Package Manager Use the Automotive Software Package Manager to navigate the offerings, view product briefs and release notes and easily download software. Launch Software Package Manager			NXP Support Contact an NXP representative for more information. Support Home	SafeAssure NDA group Available through NXP Secure Content. Request Access

Product Programs

Product Longevity

Participating products are available for a minimum of 10 years. Designated participating products developed for the automotive, telecom and medical segments are available for a minimum of 15 years.
