i.MX 95 19mm x 19mm Evaluation Kit

IMX95LPD5EVK-19
Active

Click image to open expanded view

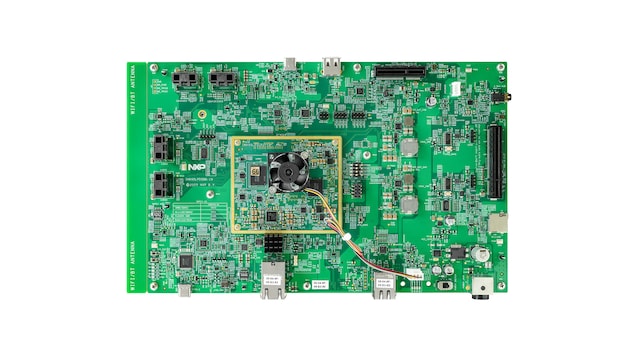

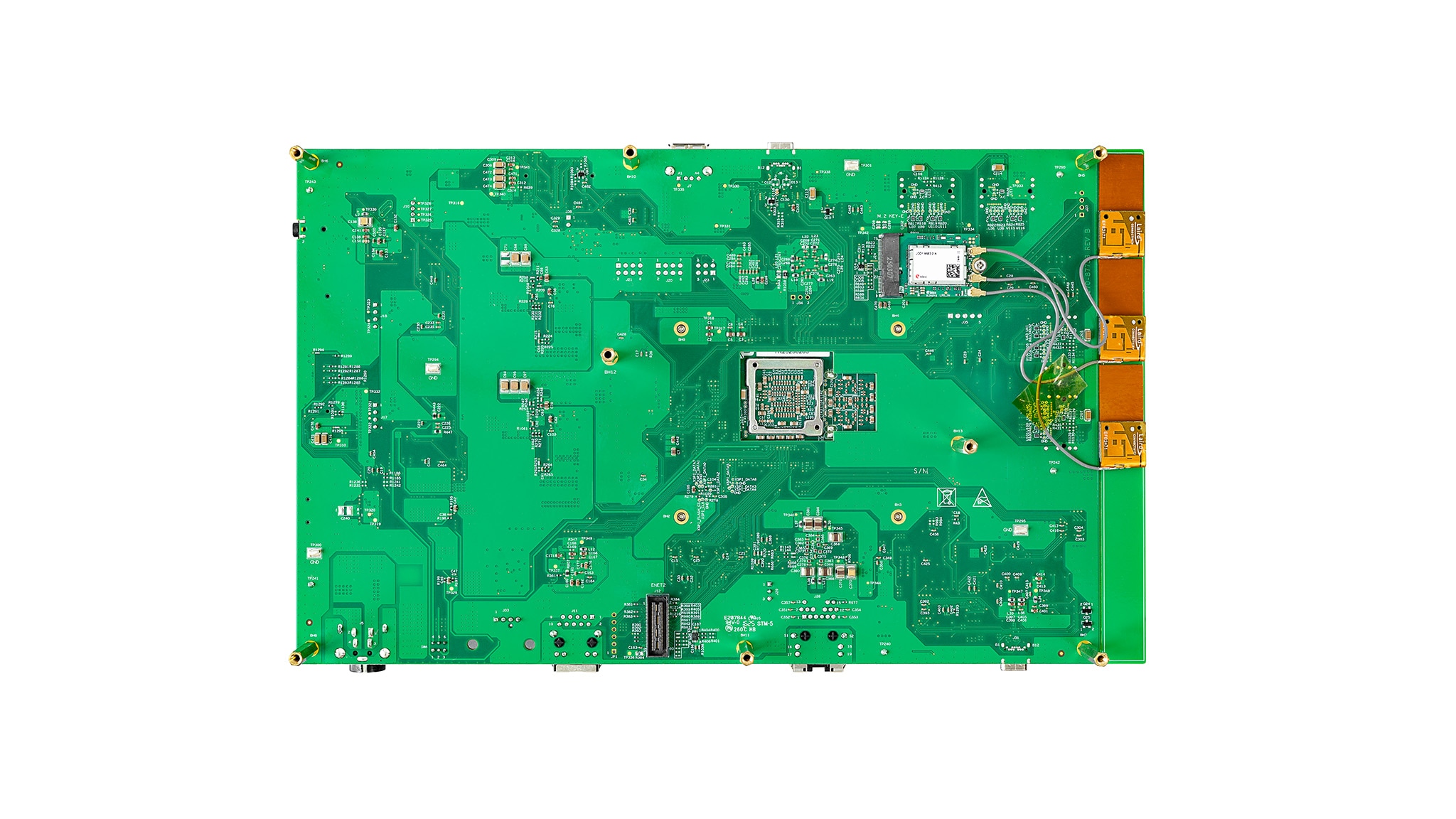

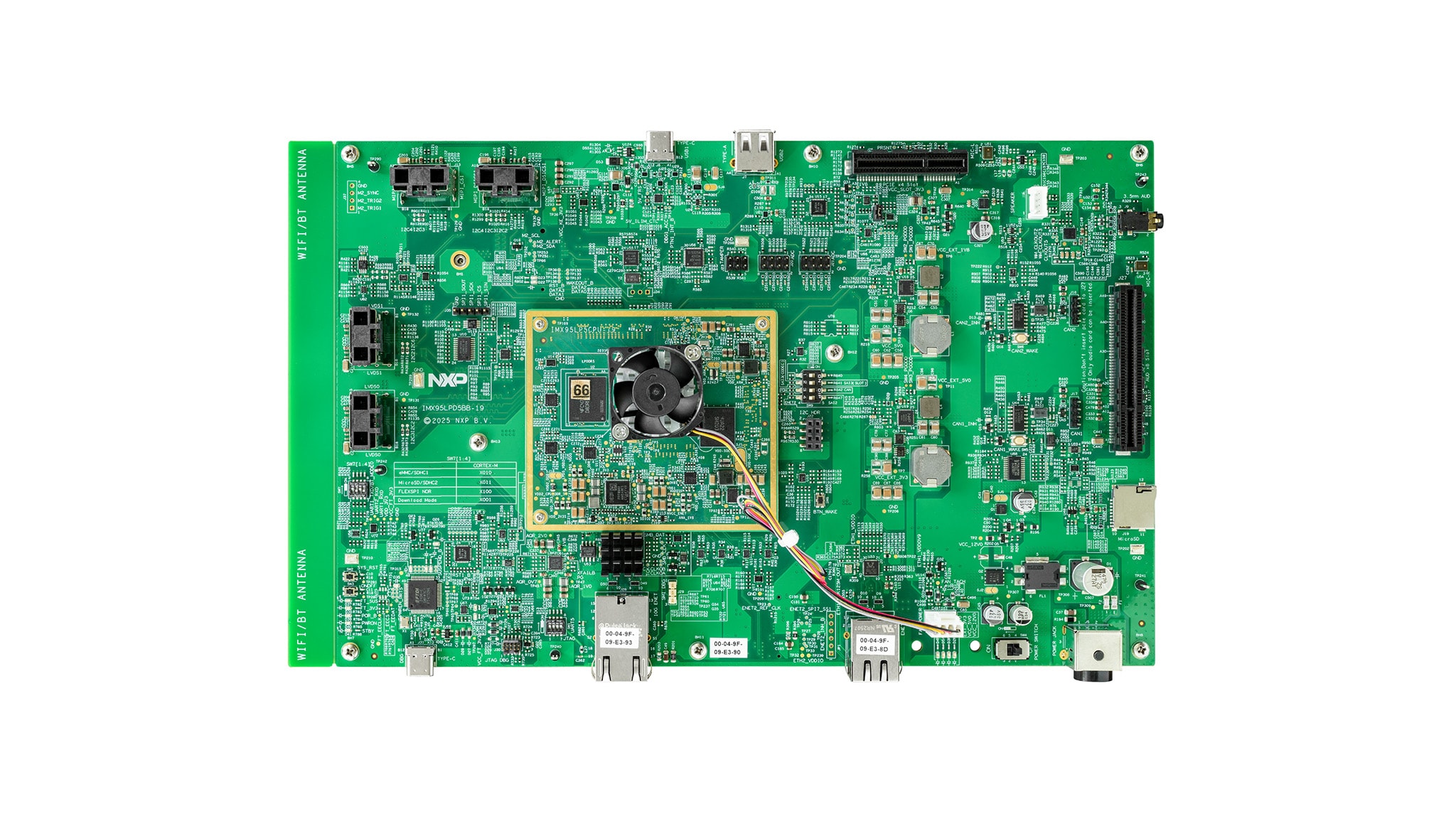

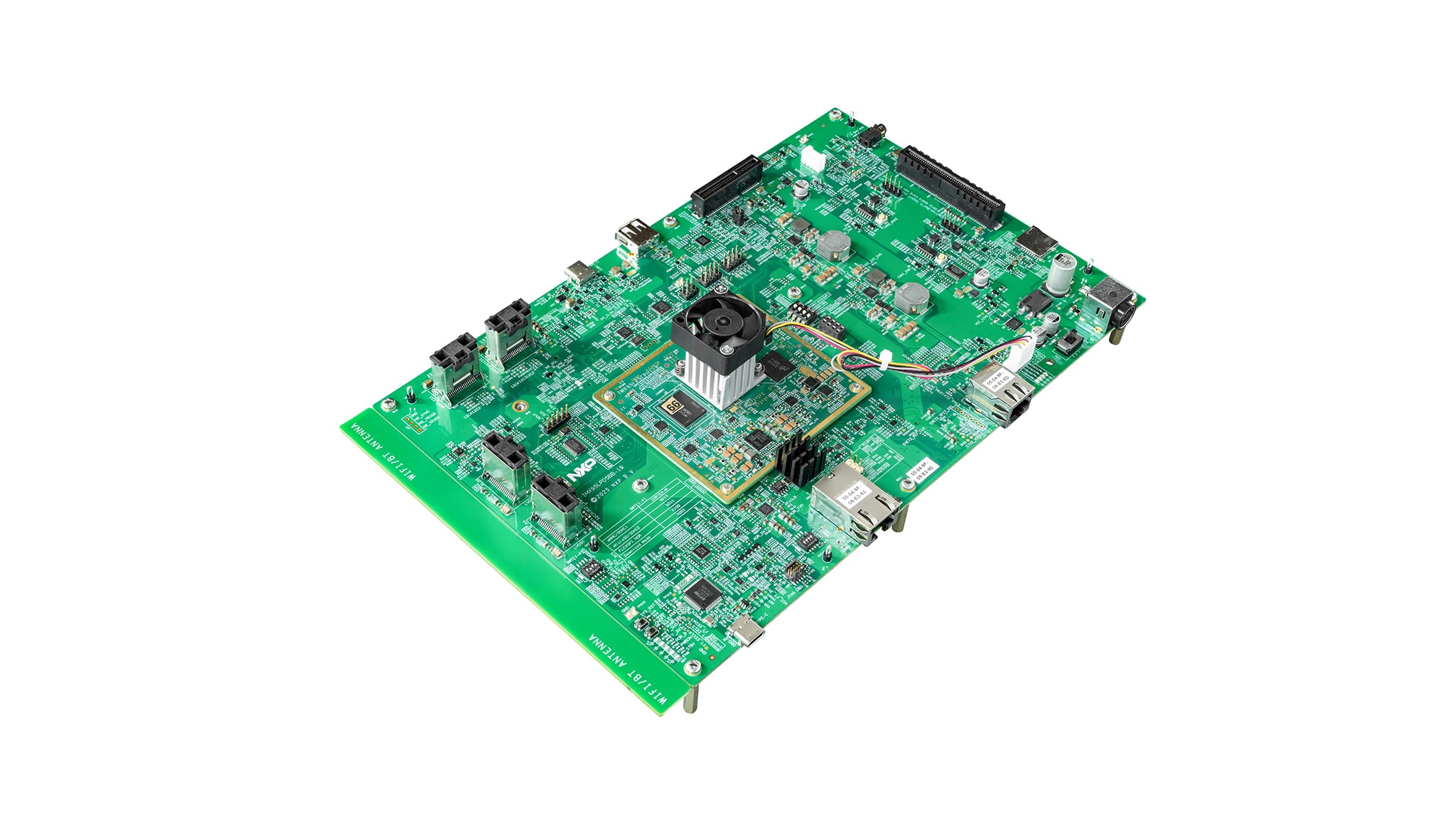

The i.MX 95 19 mm x 19 mm evaluation kit supports development for AI, vision, industrial, smart home and automotive applications. The kit features the i.MX 95 applications processor with six Arm® Cortex®-A55 cores, Arm® Cortex®-M33 and Arm® Cortex®-M7 cores and an integrated eIQ® Neutron neural processing unit. It provides LPDDR5 memory, eMMC storage, Ethernet, USB, PCIe, MIPI-CSI/DSI and audio interfaces. Preloaded Linux, Android board support package support, cameras and display adapters extend prototyping for connected edge applications.

Block Diagram

i.MX 95 19mm x 19mm

IMX95LPD5EVK-19 Block Diagram
Get diagram PDF

Supported Devices

Interfaces

General Purpose I/O (GPIO)

  • PCAL6524: Ultra-Low-Voltage Translating 24-Bit Fm+ I²C-Bus/SMBus I/O Expander
  • PCAL6408A: Low-Voltage Translating, 8-Bit I²C-Bus/SMBus I/O Expander
  • PCAL6416A: Low-Voltage Translating 16-Bit I²C-Bus/SMBus I/O Expander

CAN Signal Improvement

  • TJA1463: CAN Signal Improvement Capability Transceiver with Sleep Mode

USB Interfaces

Processors and Microcontrollers

i.MX 9 Processors

  • i.MX95: i.MX 95 Applications Processor Family: High-Performance, Safety Enabled Platform with eIQ® Neutron NPU

Wireless Connectivity

Wi-Fi® + Bluetooth® + 802.15.4

  • AW693: 2x2 Dual-Band (5-7 GHz), 1x1 (2.4 GHz) Concurrent Dual Wi-Fi 6/6E and Bluetooth® Combo Solution

Power Management

5 V PMIC Solutions

  • PF09: 9-Channel PMIC for High-Performance Applications, ASIL D and SIL 2
  • PF53: 12 A / 8 A / 15 A Core Supply Regulator with AVP and Watchdog
  • PF51x3: Multi-Channel (5) PMIC for Automotive Applications: 3 LVBUCK and 2 LDO, Fit for ASIL B Safety Level

12 V, 24 V, and 48 V SBC Solutions

  • FS5600: Automotive Dual Buck Regulator and Controller with Voltage Monitors and Watchdog Timer

VBUS Protection

  • NX5P3290UK: USB PD and Type-C Current-Limited Power Switch
  • NX5P3090UK: USB PD and Type-C Current-Limited Power Switch
  • NX20P5090UK: High-Voltage USB PD Power Switch

Data Protection

General Load Switches

  • NX5P2924: Logic-Controlled High-Side Power Switch

Sensors

I3C/I²C Digital Temp. Sensors

  • PCT2075: I²C-Bus Fm+, 1 Degree C Accuracy, Digital Temperature Sensor and Thermal Watchdog

Power Drivers

LED Drivers

  • PCA9632: 4-Bit Fm+ I²C-Bus Low-Power LED Driver

Features

i.MX 95 Processing and AI Acceleration

  • i.MX 95 Applications Processor
    • 6x Arm Cortex-A55
    • 1x Arm Cortex-M33
    • 1x Arm Cortex-M7
    • eIQ® Neutron NPU

High-Speed Memory and Onboard Storage

  • 16 GB LPDDR5-6400MT/s
  • 64GB eMMC
  • 1GB octal Serial Peripheral Interface (SPI) Nor flash
  • MicroSD slot

Display, Camera and Vision Interfaces

  • 1x 4 data lane combo MIPI-DSI/CSI Mini Serial Attached Small Computer System Interface (MINI-SAS) connector
  • 2x 4 data lane low-voltage differential signaling (LVDS) MINI-SAS connector
  • 1x 4 data lane MIPI-CSI MINI-SAS connector

Wi-Fi 6E and Bluetooth Connectivity

  • M.2 card with Wi-Fi 6E and Dual-Mode Bluetooth®

Audio Input, Codec and Expansion Support

  • Audio codec
  • Pulse Density Modulation (PDM) MIC
  • One PCIe x8 slot for audio

USB, Ethernet and Expansion Interfaces

  • USB 3.0 Type-C connector
  • USB 2.0 Type-A connector
  • 1x gigabit Ethernet (GbE) RJ45
  • 1x 10 GbE RJ45
  • Ethernet (ENET) Board-to-Board (B2B) connector
  • 2x CAN header (HDR)
  • I²C HDR
  • Analog-to-digital converter (ADC) HDR

Debug and Development Interfaces

  • Joint Test Action Group (JTAG) connector
  • Universal asynchronous receiver-transmitter (UART) to USB for debug

Security

  • x2 tamper support

Buy Options

IMX95LPD5EVK-19-Image

Click to expand

IMX95LPD5EVK-19
Active

i.MX 95 19mm x 19mm Evaluation Kit.

    $1170.00 USD
    In Stock :61

    Normally ships 1-2 business days

    ADD TO CART
