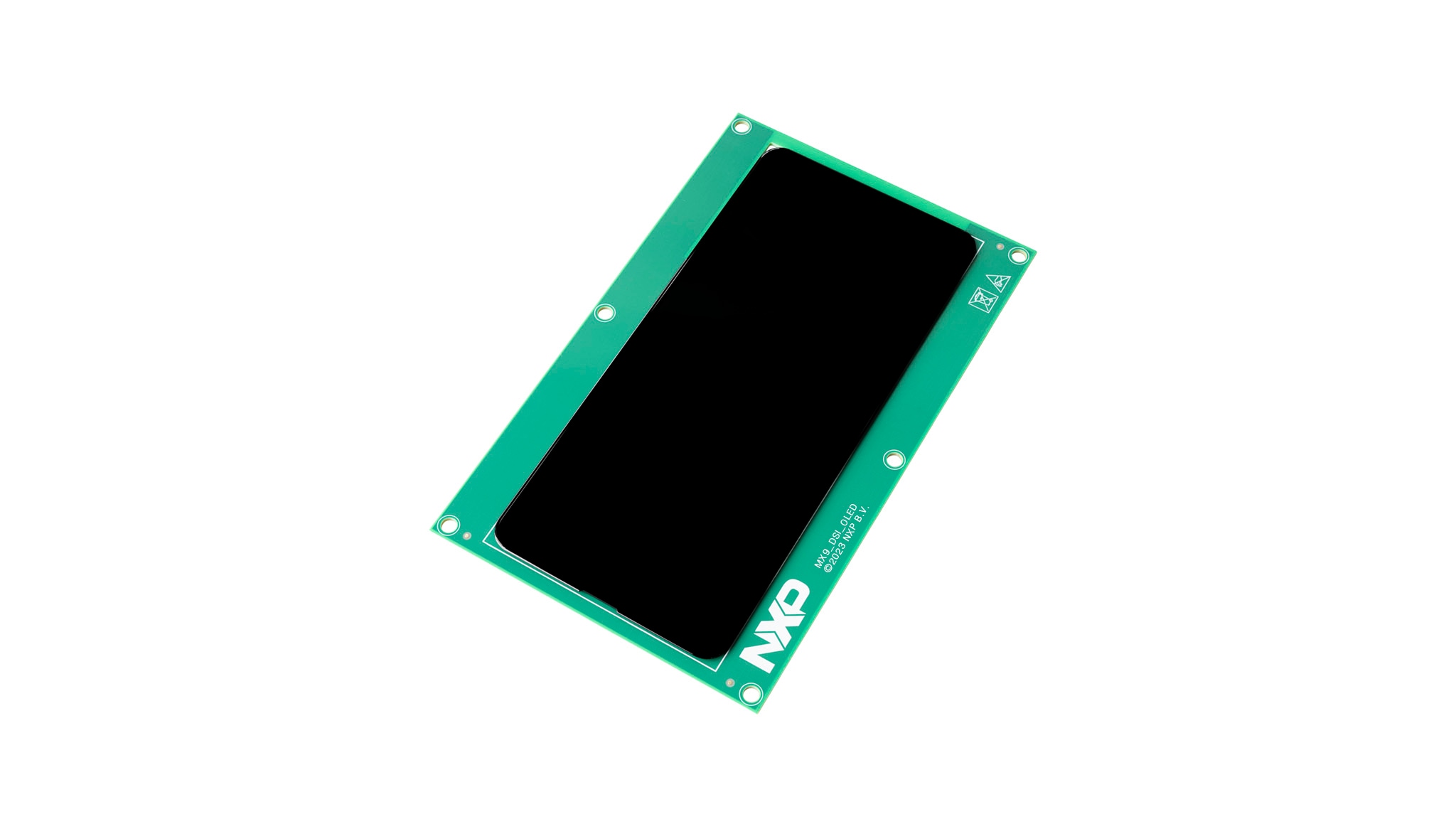

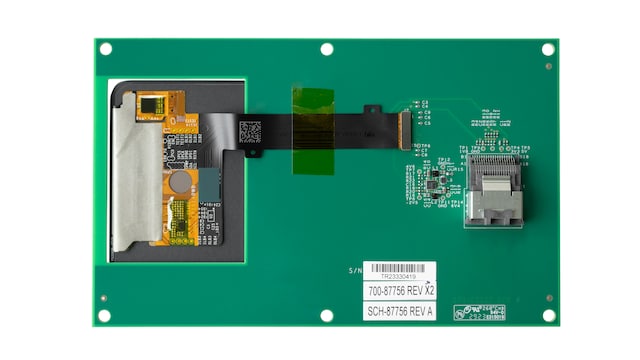

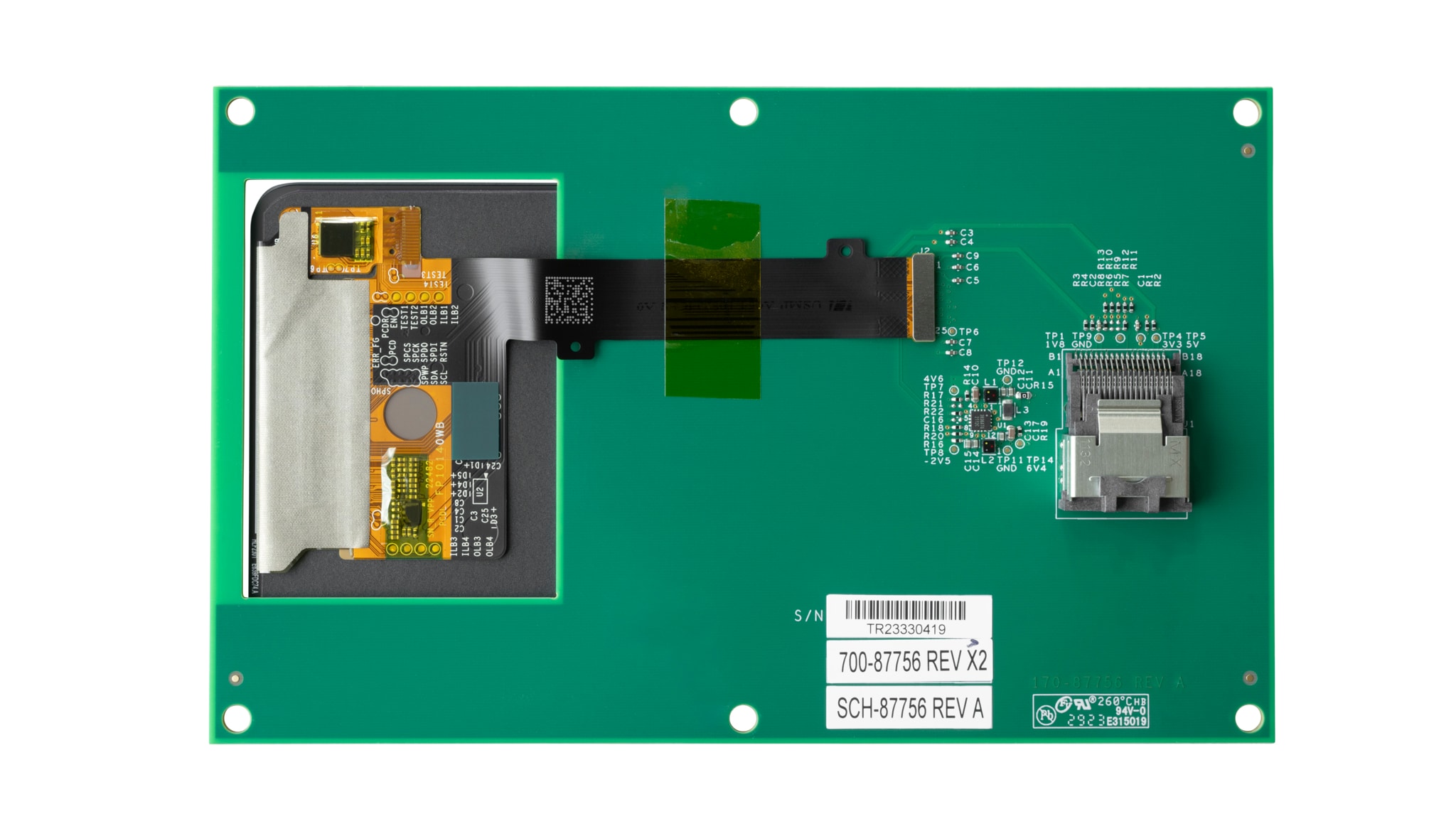

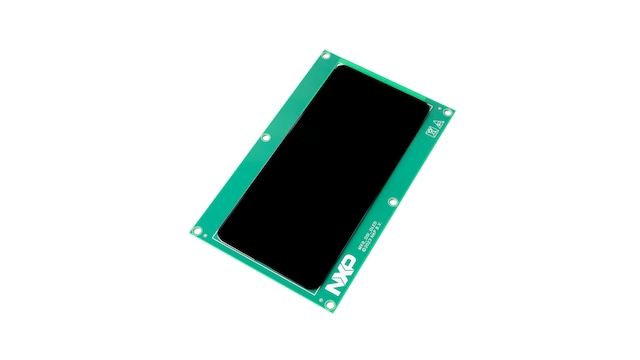

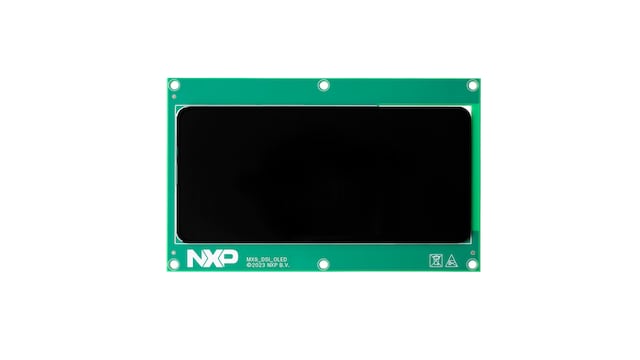

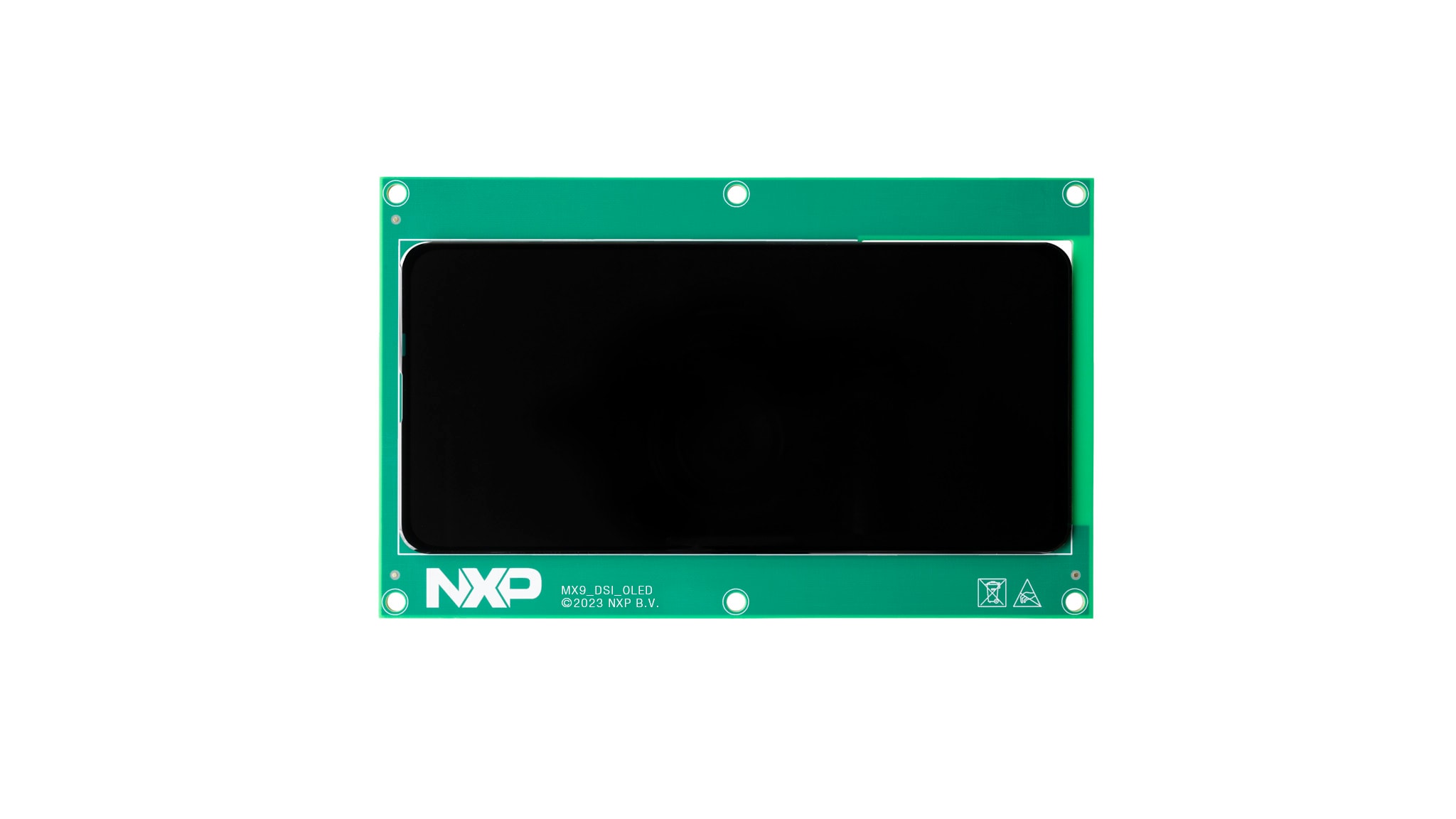

The MX9-DSI-OLED is a MIPI-DSI interface OLED display kit with touch screen support. This accessory can be used with the i.MX 9 series and i.MX 8M family EVKs through Mini-SAS connector. However, only the display functionality is supported on i.MX 8M family EVKs (which lack the required reset signal for touch functionality).

Design Files

Product Details

Features

Display type

6.39" FHD AMOLED display

Resolution

2340 x 1080 pixels

Color depth

16.7 million colors (24-bit, 8 bits per color channel)

Pixel pitch

31.5 μm x 63.0 μm

Buy Options

Click to expand

MX9-DSI-OLED
Active

MX9-DSI-OLED Display Panel.

Kit Contains

Kit contains:

1 x Cable assembly ipass(mini-sas) nternal cable 36 ckt 4x w/ sidebands
