CAN Signal Improvement Capability Transceiver with Sleep Mode
The TJA1463 is a CAN Signal Improvement Capability (SIC) transceiver designed for CAN and CAN FD networks in automotive applications. The TJA1463 implements CAN SIC according to ISO 11898-2:2024 and supports reliable CAN FD communication at data rates up to 8 Mbit/s in larger network topologies by reducing signal ringing and improving bit timing symmetry. The TJA1463 includes a low-power sleep mode and is fully interoperable with Classical CAN and CAN FD networks. Backward compatible with devices such as the TJA1043 and TJA1443, the TJA1463 provides a drop-in migration path for enhanced CAN network performance.
Product Details
Features
General Features
- ISO 11898-2:2024, SAE J2284-1 to SAE J2284-5 and SAE J1939-14 compliant
- CAN FD communication up to 8 Mbit/s
- VIO input for interfacing with 3.3 V to 5 V microcontrollers
- Low electromagnetic emission (EME) and high electromagnetic immunity (EMI)
- Qualified according to AEC-Q100 grade 1

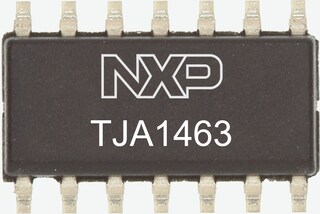

- Available in SO14 package and leadless HVSON14 package
Signal Improvement
- Implements CAN signal improvement capability as defined in CiA 601-4 to significantly reduce signal ringing effects on a network
- Tighter bit timing symmetry performance allowing more time to reduce signal ringing
Predictable and Fail-Safe Behavior
- Undervoltage detection with defined handling on all supply pins
- Full functionality guaranteed from the undervoltage detection thresholds up to the maximum limiting voltage values
- Defined behavior below the undervoltage detection thresholds
- Transceiver disengages from the bus (high-ohmic) when the supply voltage drops below the Off mode threshold
- Internal biasing of TXD and mode selection input pins, to enable defined fail-safe behavior
