S32K389EVB-Q437 Evaluation Board for Automotive General Purpose

S32K389EVB-Q437
Active

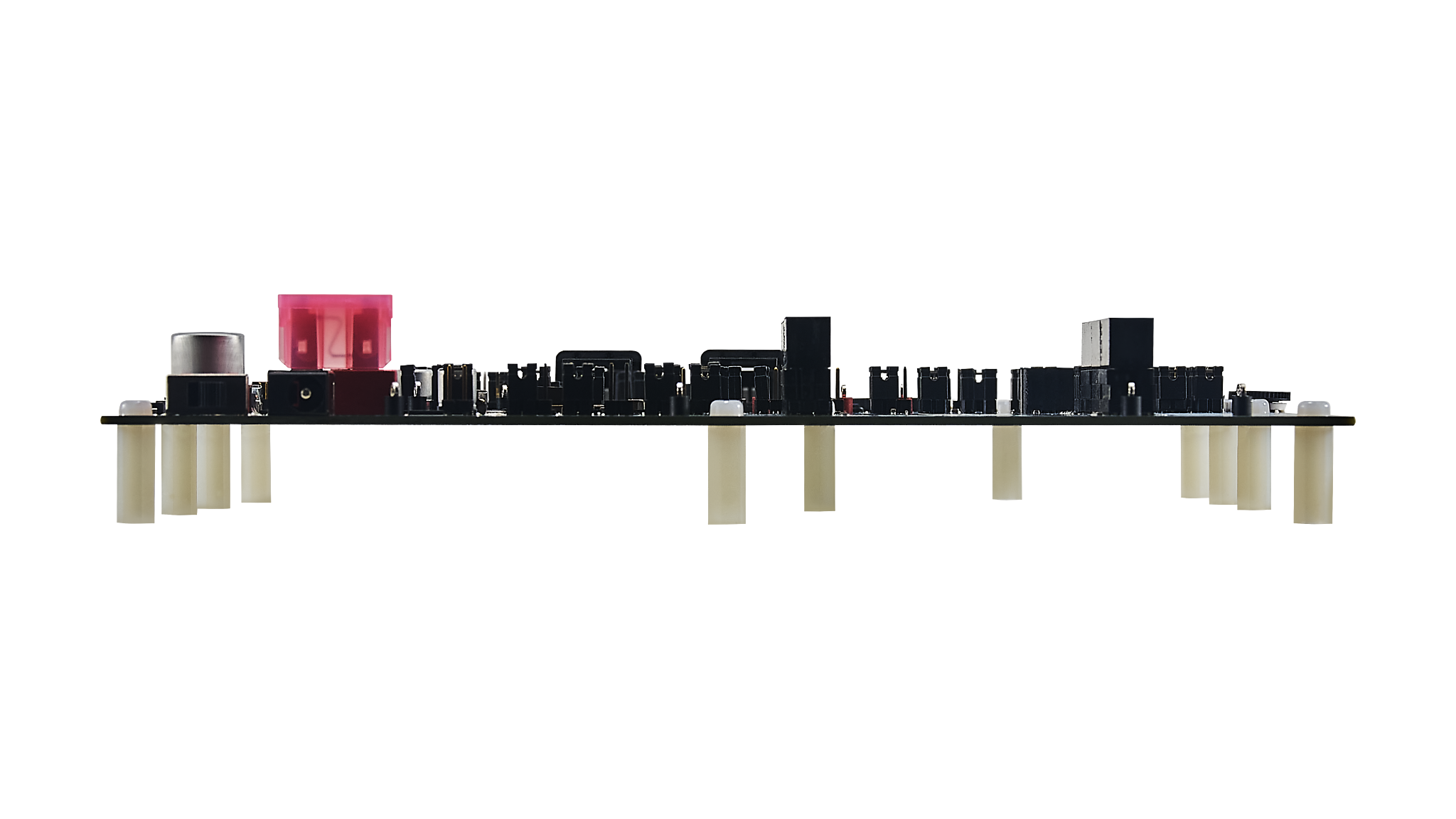

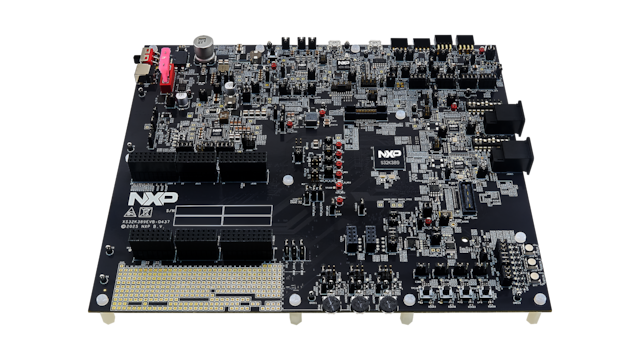

Click image to open expanded view

The S32K389EVB-Q437 is an evaluation and development board designed for next-generation automotive and industrial applications, including body control modules, zonal/domain controllers, I/O aggregators and electrification systems.

Based on the 32-bit Arm® Cortex®-M7 S32K389 MCU in a 437-pin MAPBGA package, this board offers multicore mode, HSE_B security engine, OTA support, and enhanced connectivity with two 1xGigabit Ethernet and up to twelve CAN FD channels for high-performance networking.

With 12 MB Flash and 2.3 MB SRAM, the S32K389 provides the memory headroom needed for advanced SDV applications.

The board features a standard-based form factor compatible with the Arduino® UNO pin layout, enabling rapid prototyping and expansion for demanding automotive and industrial solutions.

Block Diagram

S32K389EVB-Q437 Evaluation Board

S32K389EVB-Q437 Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

  • S32K3: S32K3 Microcontrollers for Automotive General Purpose

K2x / KS2x USB

  • K26_180: Kinetis® K26-180 MHz, Dual High-Speed and Full-Speed USBs, 2MB Flash Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

Power Management

12 V, 24 V, and 48 V SBC Solutions

  • FS26: Safety System Basis Chip with Low Power, for ASIL D Systems
  • FS27: 12 V / 24 V / 48 V Safety System Basis Chip for ASIL D

5 V PMIC Solutions

  • PF5020: Multi-Channel (5) PMIC for Automotive Applications – 4 High Power and 1 Low Power, Fit for ASIL B Safety Level

Interfaces

Automotive Ethernet PHYs

  • TJA1120: TJA1120, ASIL B Compliant Automotive Ethernet 1000BASE-T1 PHY Transceiver

Automotive LIN Solutions

  • TJA1124: Quad LIN Commander Transceiver for In-Vehicle Subnetworks

CAN with Flexible Data Rate

  • TJA144x: Automotive CAN FD Transceiver Family

CAN Signal Improvement

  • TJA1463: CAN Signal Improvement Capability Transceiver with Sleep Mode

Features

Hardware Interface

  • Power supply switch
  • 2x User RGB LED
  • 2x User push-buttons
  • 2x ADC rotatory potentiometer
  • I/O matrix
  • USB connector for OpenSDA
  • SABRE connector to Ethernet interface
  • 2x 10/100/1000 Gigabit Ethernet interface
  • 2x CAN/CANFD
  • 4x LIN
  • 3x LPSPI 20 Mbps Interface
  • JTAG Connector

Software Enablement

Compatibility

  • Arduino UNO pin-out compatible with expansion "shield" support

Interfaces

  • On-board CAN FD
  • LIN
  • 2x 1 Gbit Ethernet
  • USB to UART
  • SPI

Buy Options

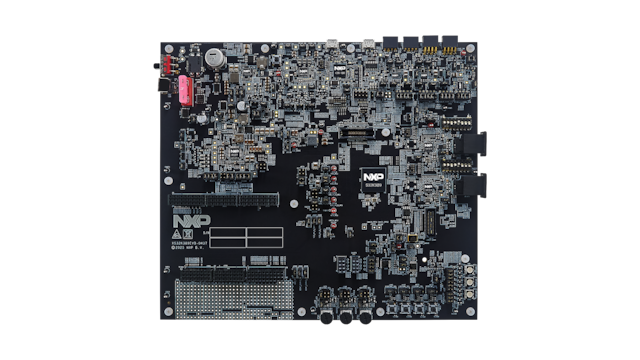

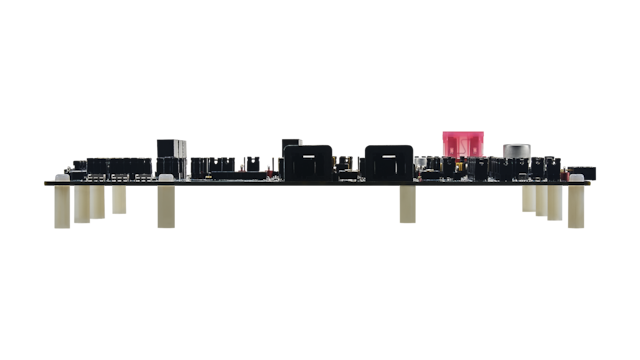

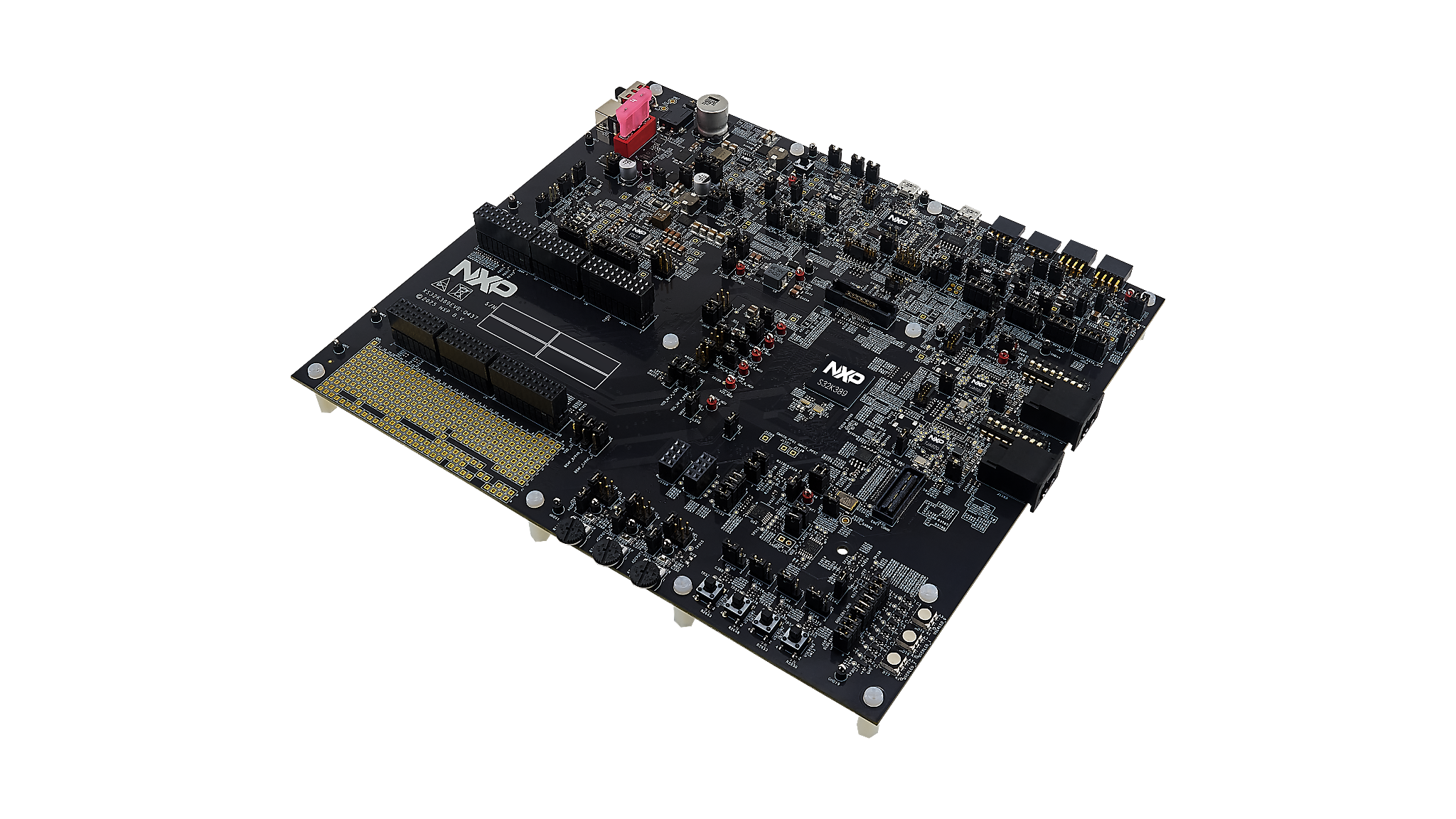

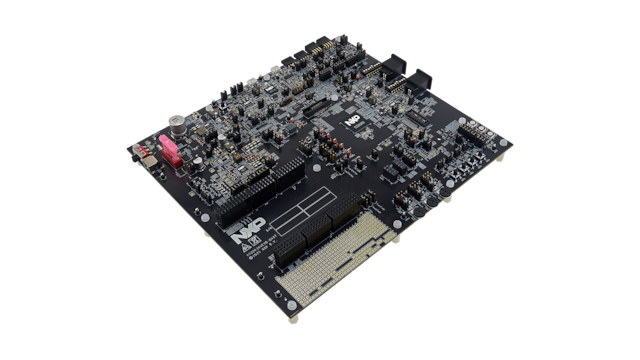

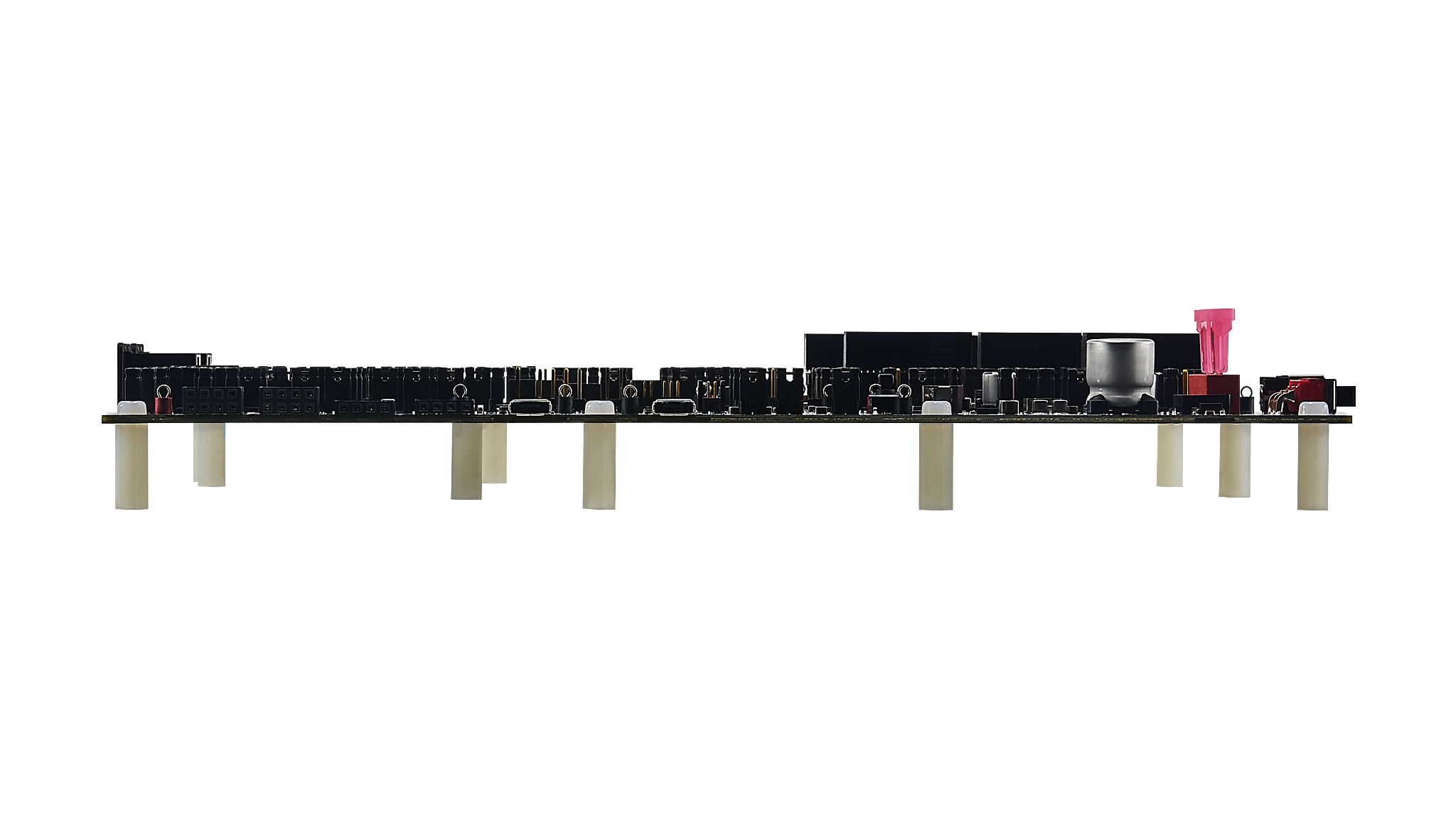

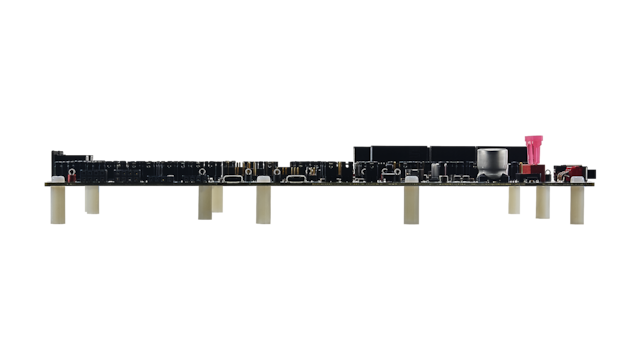

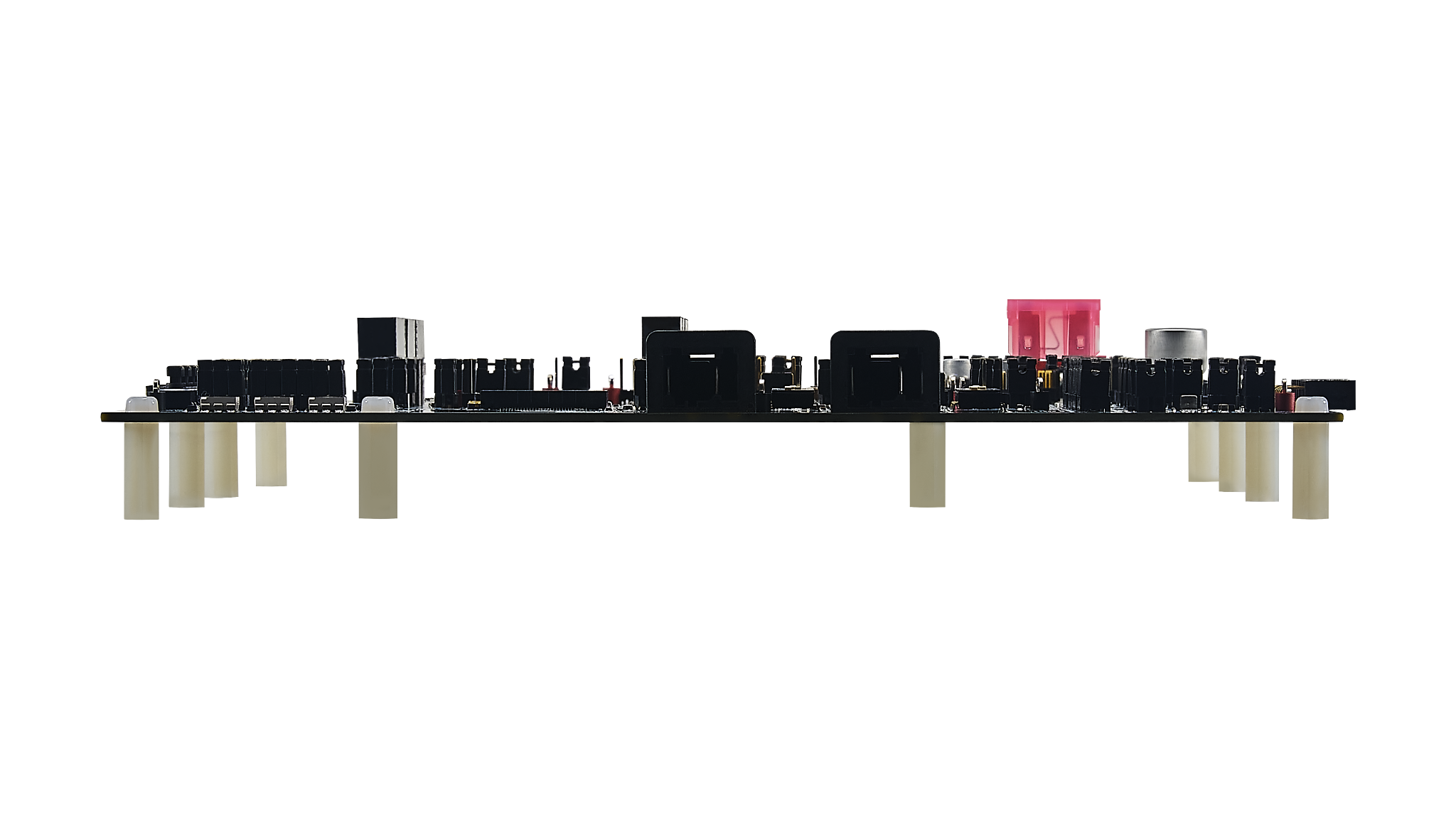

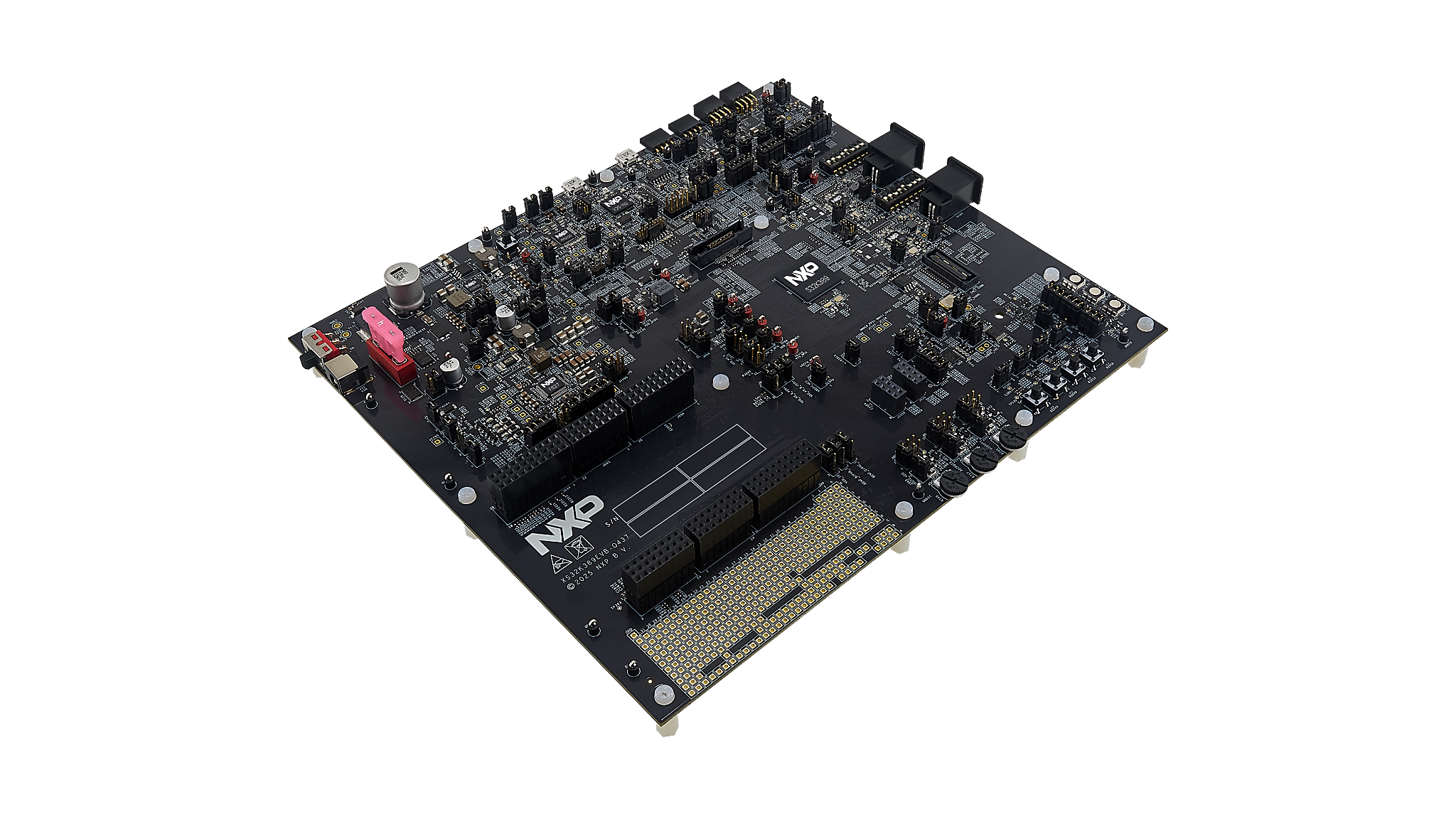

S32K389EVB-Q437-Image

Click to expand

S32K389EVB-Q437
Active

S32K389EVB-Q437 Evaluation Board for Automotive General Purpose.

  • Processing: Arm® Cortex®-M7
$640.00 USD
In Stock :4

Normally ships 1-2 business days

ADD TO CART
