S32K324 Triple Permanent Magnet Synchronous Motor Control (PMSM) Reference Design Board

MCTPTX1AK324

Roll over image to zoom in

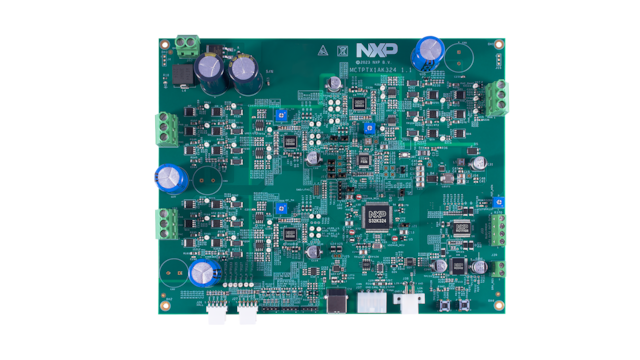

The MCTPTX1AK324 is a reference design board engineered for out-of-the-box automotive multi permanent magnet synchronous motor (PMSM), targeting electric pumps, electric powertrain, eTurbo or thermal management system controller applications.

Based on the 32-bit Arm® Cortex®-M7 S32K3 microcontroller and the GD3000 pre-driver, the MCTPTX1AK324 controls three sensorless-based PMSMs, one direct current (DC) motor and four valves under low CPU loading.

The MCTPTX1AK324 can be used directly by carmakers, suppliers and software ecosystem partners to accelerate development for a shorter time-to-market.

Block Diagram

MCTPTX1AK324 Reference Design Board

MCTPTX1AK324 Reference Design Board
Get diagram PDF

Supported Devices

BLDC, H-Bridge, Stepper

  • HB2001: SPI Programmable 10 A H-Bridge Brushed DC Motor Driver
  • GD3000: 3-Phase Brushless Motor Pre-Driver

High Side Switches

  • MC12XS6: External Automotive Lighting Multi-Channel eXtreme Switch

Interfaces

Automotive LIN Solutions

  • TJA1021: ISO17987 LIN 2.1/SAE J2602 Transceiver

3.3 V / 5 V IO CAN Transceivers

  • TJA1044: High-Speed CAN Transceiver with Standby Mode - Mantis Family

Power Management

12 V, 24 V, and 48 V SBC Solutions

  • FS26: Safety System Basis Chip with Low Power, for ASIL D Systems

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

  • S32K3: S32K3 Microcontrollers for Automotive General Purpose

Features

Hardware Features

  • Supports up to three PMS motors sensorless field-oriented control (FOC)
  • Up to 100W power for each PMSM
  • Up to 20W power for DC motors
  • Up to 5A peak current for high-side switch
  • One-way CAN and one-way LIN
  • Dual-core operation mode to reduce CPU load
  • ISO 26262 support
