S32K14W-Q064 Evaluation Board for Automotive General Purpose

S32K14WEVB-Q064 Active

Roll over image to zoom in

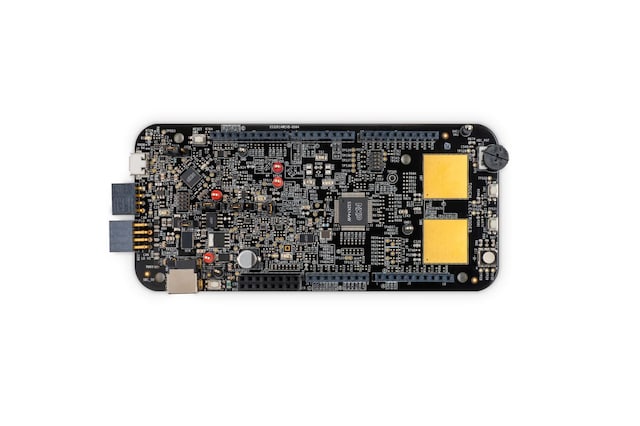

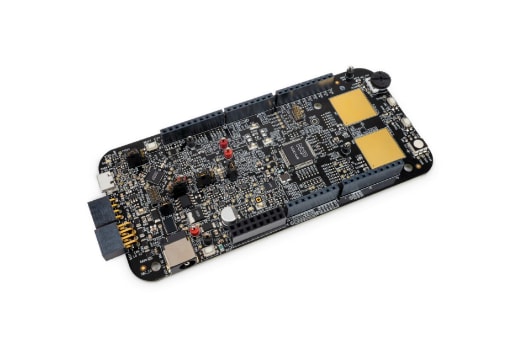

The S32K14WEVB-Q064 is an evaluation and development board for general purpose industrial and automotive applications with higher demands for ambient operating temperature range.

Based on the 32-bit Arm® Cortex®-M4F S32K144W AEC-Q100 Grade 0 qualified (-40° C to +150° C Ta), the S32K14WEVB-Q064 offers a standard-based form factor compatible with the Arduino® UNO pin layout, providing a broad range of expansion board options for quick application prototyping and demonstration.

Supported Devices

Interfaces

Automotive LIN Solutions

  • TJA1027: LIN 2.2A/SAE J2602 Transceiver

CAN Partial Networking

  • TJA1145A: High Speed CAN Transceiver with Partial Networking, CAN FD Data Rates up to 5 Mbit/s

Power Management

12 V, 24 V, and 48 V SBC Solutions

  • UJA1169TK: Mini High-Speed CAN System Basis Chip

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

  • S32K1: S32K1 Microcontrollers for Automotive General Purpose

Features

Microcontroller (MCU)

  • 32-bit Cortex-M4F based S32K144

System Basis Chip (SBC)

  • UJA1169TK: Mini high-speed CAN system basis chip

Transceivers

Adapters

  • OpenSDA: Serial and Debug Adapter with support for several industry-standard debug interfaces
  • Easy access to the MCU I/O header pins for prototyping

Size and Price

  • Small form factor
  • Low cost

Compatibility

  • Arduino® UNO pint-out compatible with expansion “shield” support

Interfaces

  • On-board connectivity for CAN, LIN, UART/SCI

Power Supply

  • Flexible power supply options: micro USB or external 12 V supply

Components

  • 2 x touchpads
  • 1 x potentiometer
  • 1 x RGB LED
  • 2 x push buttons

Buy Options

S32K14WEVB-Q064-Image

Click to expand

S32K14WEVB-Q064
Active

S32K144W Evaluation Board for General Purpose.

    $169.00 USD
    Pending Stock
    ADD TO CART
