S32K39/37/36 Electrification Microcontrollers Evaluation Board

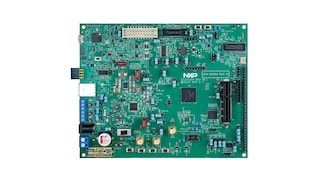

S32K396-BGA-DC1

Roll over image to zoom in

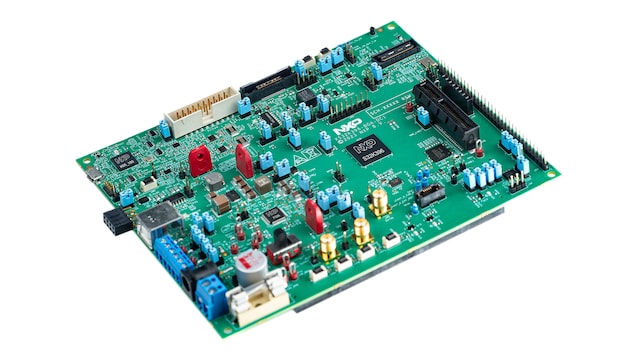

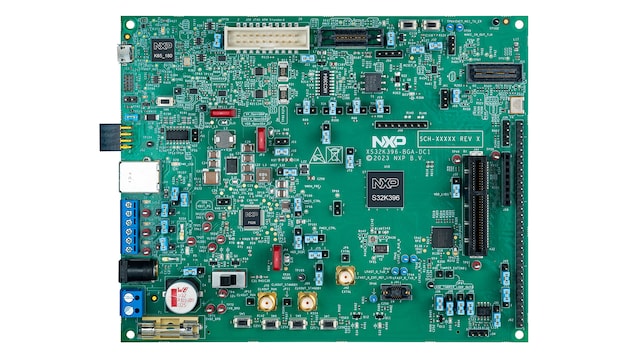

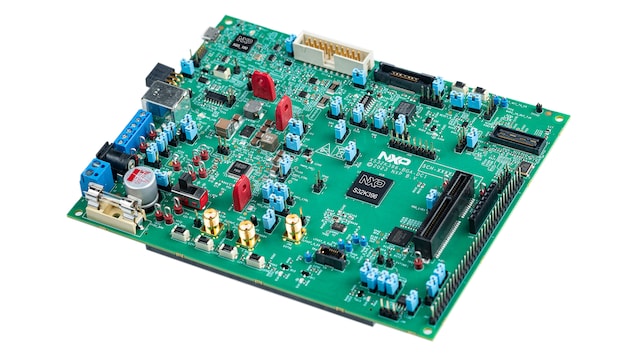

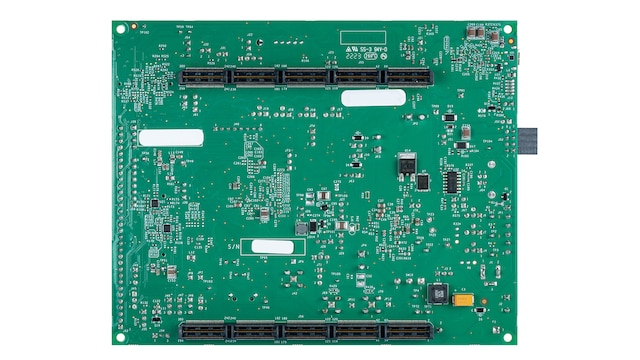

The S32K396-BGA-DC1 evaluation board features the ASIL D S32K396 microcontroller unit in a MAPBGA 289 package optimized for developing electrification applications. With onboard debugger, robust communication interfaces, support of automotive Ethernet communication is designed for real-time control applications, especially safety-critical ones like traction drive or torque vectoring.

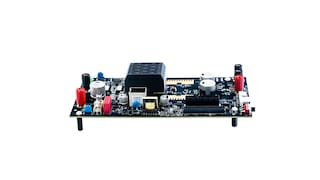

It can be expanded by the following boards:

Block Diagram

S32K396-BGA-DC1 Evaluation Board Features

S32K396-BGA-DC1 Evaluation Board features
Get diagram PDF

Supported Devices

Interfaces

3.3 V / 5 V IO CAN Transceivers

  • TJA1044: High-Speed CAN Transceiver with Standby Mode - Mantis Family

Automotive LIN Solutions

  • TJA1022: Dual LIN 2.2A/SAE J2602 Transceiver

Power Management

12 V, 24 V, and 48 V SBC Solutions

  • FS26: Safety System Basis Chip with Low Power, for ASIL D Systems

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

  • S32K39-37-36: S32K39/37/36 Microcontrollers for Electrification Applications

K6x Ethernet

  • K65_180: Kinetis® K65-180 MHz, Dual High-Speed and Full-speed USBs, 2MB Flash, Anti-Tamper Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

Battery Management

Battery Communication ICs

  • MC33664: Isolated Network High-Speed Transceiver

Features

Motor Control Support

  • 3-Phase Permanent Magnet Synchronous Motor (PMSM) or Brushless DC (BLDC) motor control
  • 3-phase PMSM or BLDC motor control or 1 x 6 phase motor when S32X-MB IO exension board is used

Interfaces

  • 1 x CAN-FD
  • 2 x LIN
  • 2 x USB/UART
  • 1 x QSPI memory (64 Mb HyperRAM/512 Mb FLASH memory)
  • 1 x Zipwire
  • 1 x I²C
  • 1 x motor control
  • 1 x Ethernet (no PHY) connector
  • MSC
  • FlexIO
  • eMIOS Headers
  • 3 x User LEDs
  • 4 User push buttons
  • Battery management isolated interface
  • Wake up button
  • Expansion connectors for connection to the S32X-MB I/O
