TJA1103-SDB | ASIL B Compliant Automotive Ethernet 100BASE-T1 PHY SABRE Development Board

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

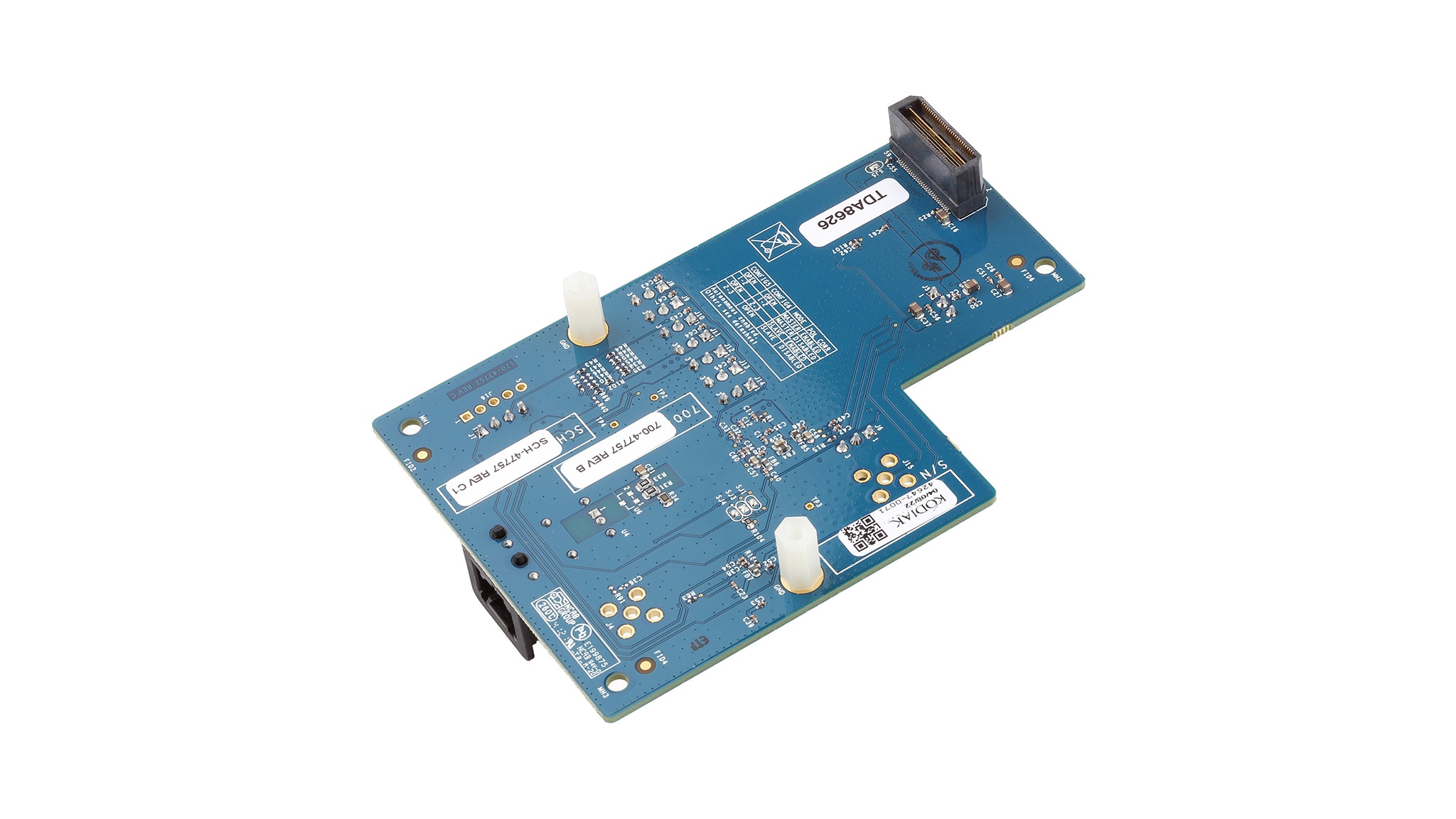

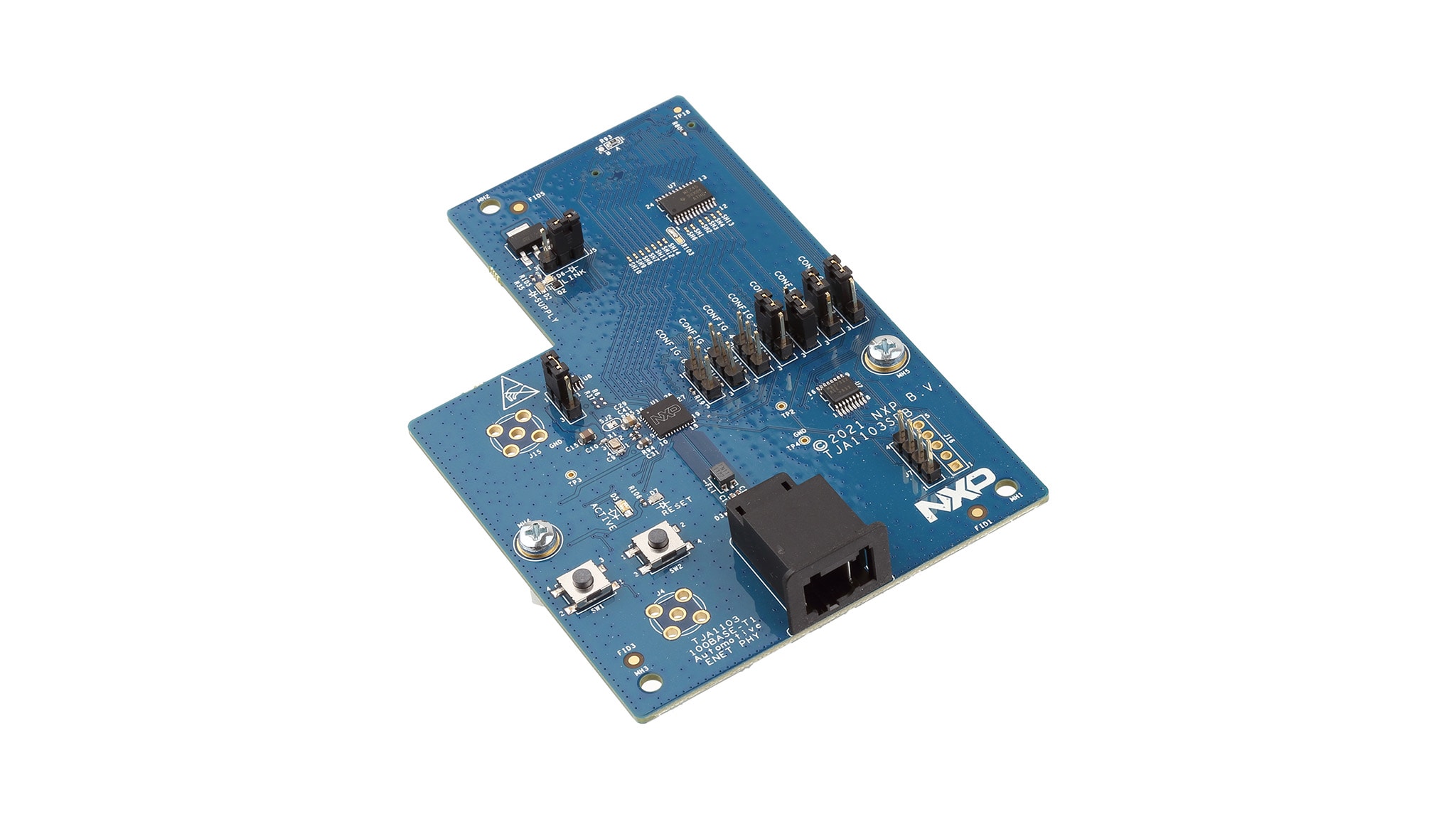

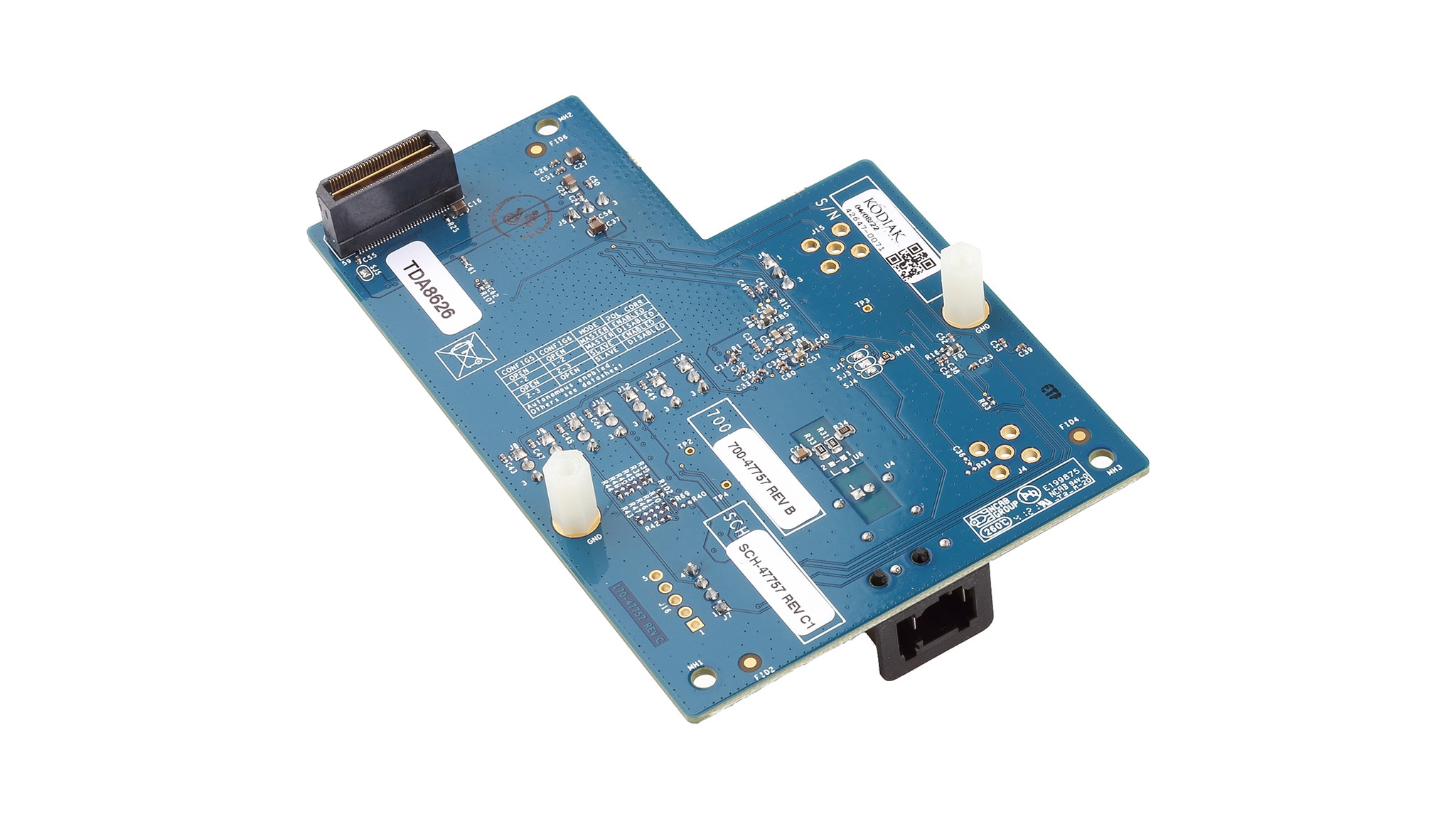

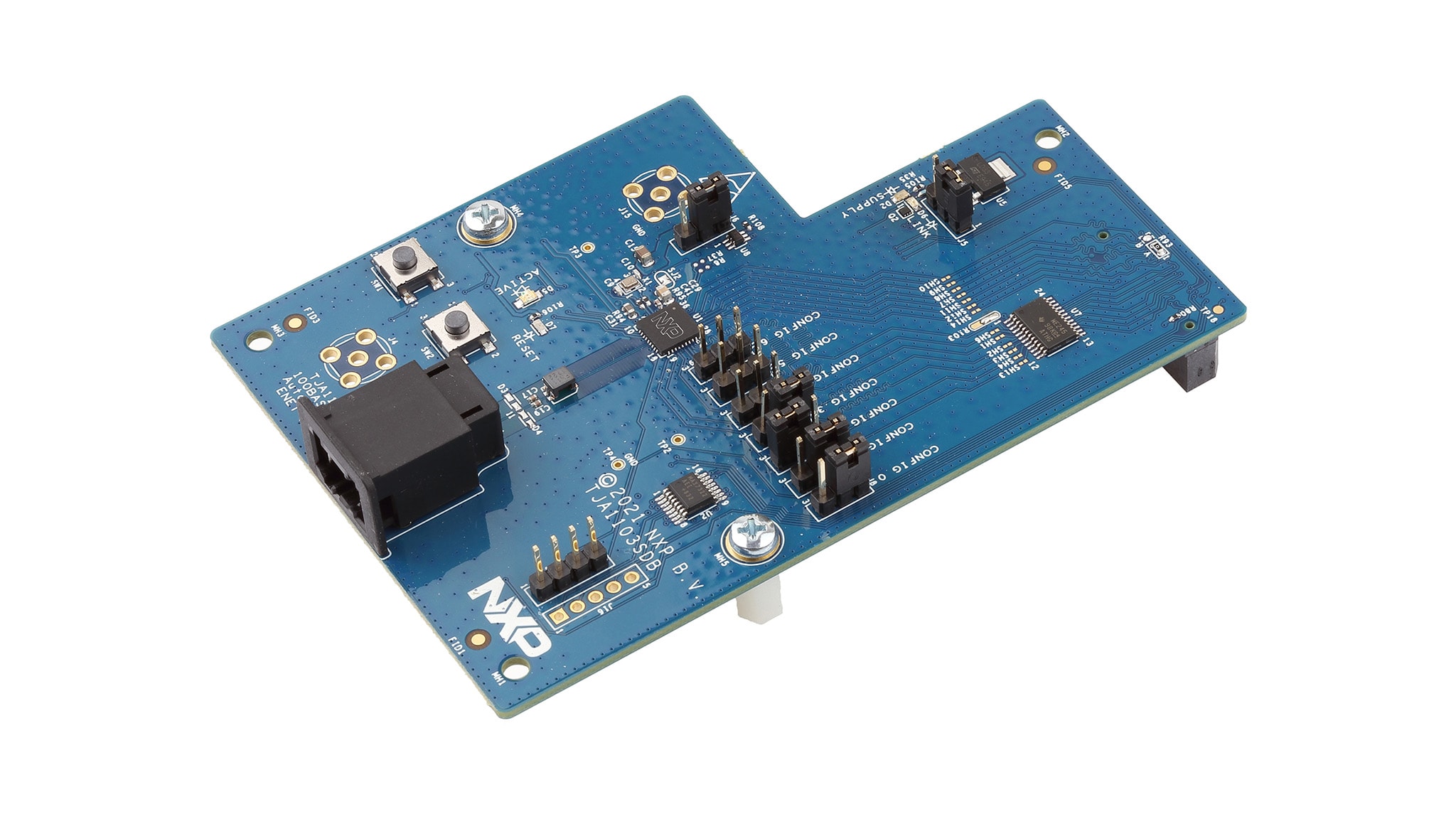

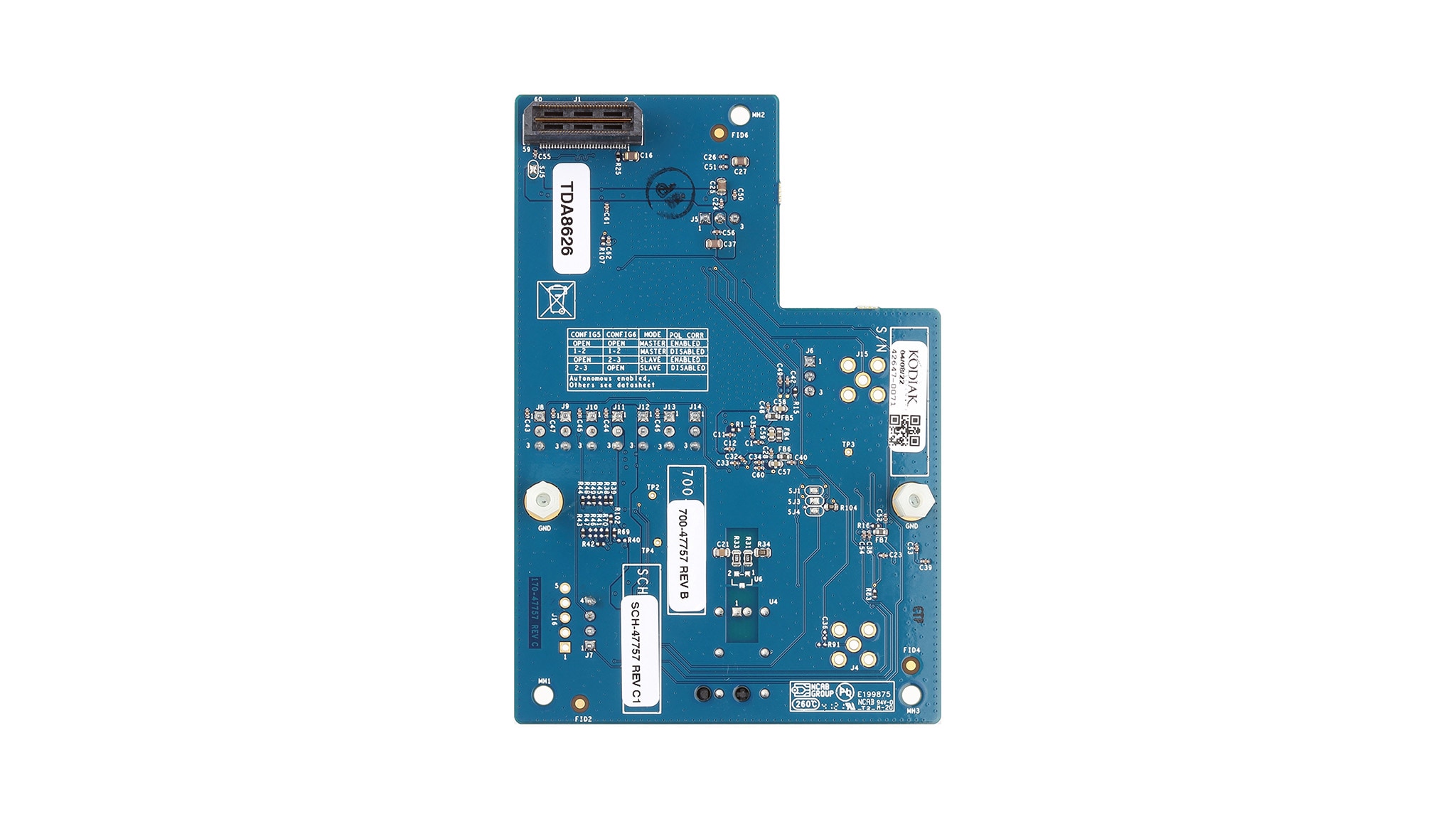

The TJA1103SDB SABRE development board is a purpose-built tool to evaluate the xMII data path in an application context together with a NXP processor and is specifically designed for software engineering tasks. To enable quick application prototyping, various NXP system development boards feature the common SABRE connector; for example, our latest S32K3 general-purpose MCU, S32G vehicle network processors and i.MX 8 processors.

Product Details

Supported Devices

Interfaces

Automotive Ethernet PHYs

TJA1103: TJA1103, ASIL B Compliant Automotive Ethernet 100BASE-T1 PHY Transceiver

Features

Connectivity

100BASE-T1 Automotive Ethernet

General Specifications

Simple Automotive Ethernet system setup for prototype applications
Quick functional evaluation of TJA1103

Microcontroller

SABRE Adapter for connection to S32K3, S32G and I.MX8+ boards
- 100BASE-T1 connectivity at ECU prototyping stage
- Simple chip configuration
- Chip status report via onboard LEDs

Buy Options

Click to expand

TJA1103SDB
Active

SABRE Development Board for TJA1103 100BASE-T1 PHY.

Kit Contains

Kit Contains:

1 x TJA1103 SABRE development board
1 x Unshielded twisted Pair (UTP) cable (automotive grade)

Note: An NDA is required in order to access the TJA1103SDB documentation.
