Motor Control Application Tuning (MCAT) Tool

MCATSW updated

Click image to open expanded view

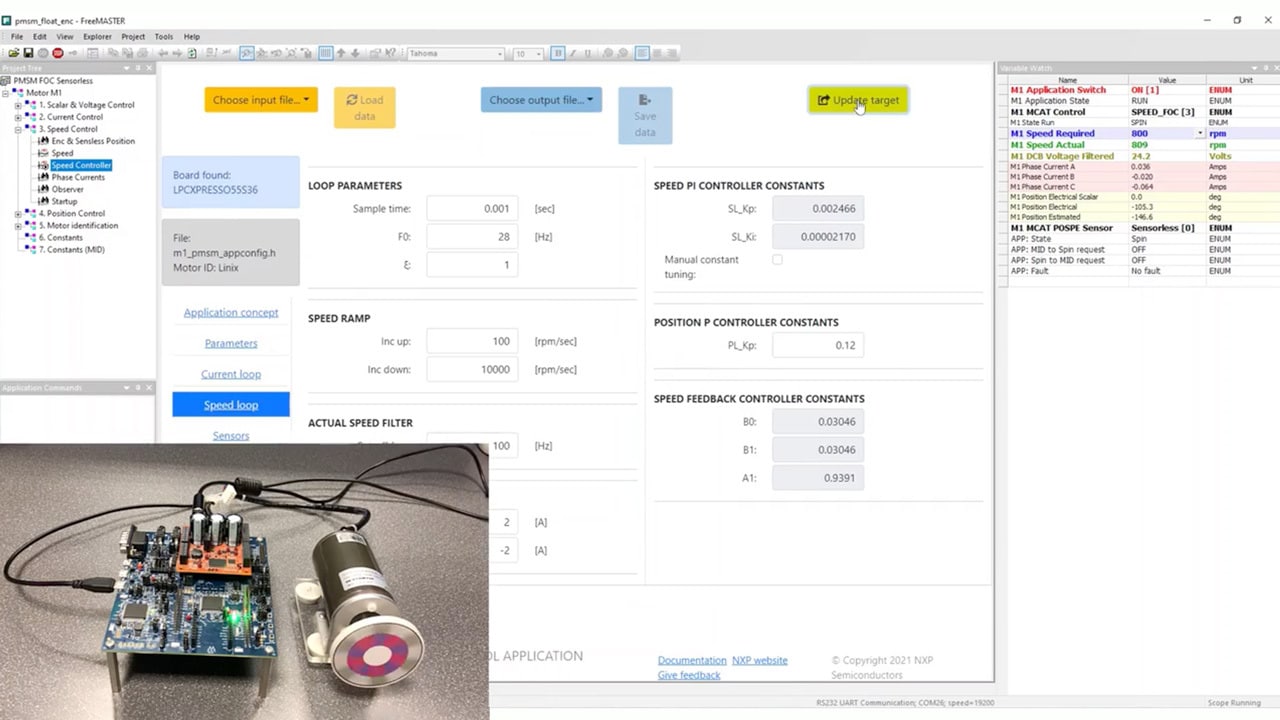

The Motor Control Application Tuning (MCAT) tool is a FreeMASTER graphical plug-in for real-time tuning of industrial and automotive permanent magnet synchronous motor (PMSM), brushless DC (BLDC) and alternating current induction motor (ACIM) motor control applications.

It enables automated motor parameter estimation, control-loop autotuning and multimotor management, helping users adapt NXP's motor control solutions without requiring deep control theory expertise.

MCAT Tool may support different features and have different look depending on automotive or industrial domains.

Diagram

Choose a diagram:

MCAT Tool

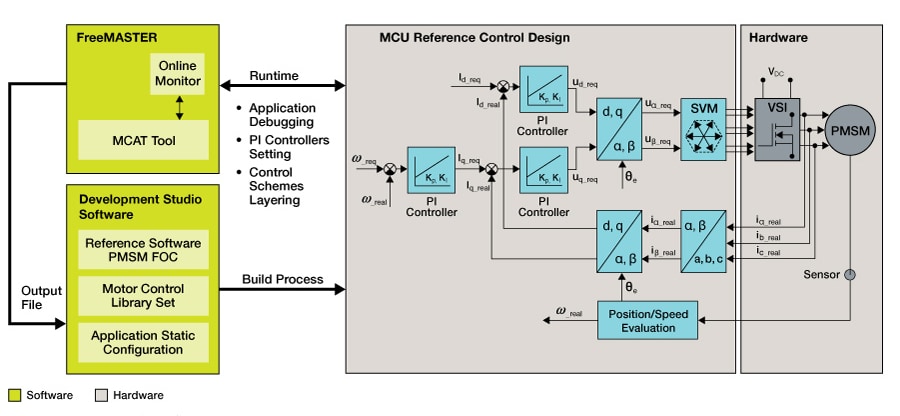

Motor Control Application Tuning Tool Block Diagram

MCAT Tool 2.0 Layer

MCATSW Block Diagram
Get diagram PDF

Features

  • FreeMASTER graphical plug-in (not a standalone tool)
  • Real-time control-parameter tuning and updates
  • Support for PMSM, BLDC and ACIM motor control applications
  • Preview of static configuration for tuned parameters
  • Generic output file for static parameter configuration
  • Chromium-based graphical user interface (GUI) that runs in standard web browsers
  • Modular software concept with easy configurability
  • Motor parameter estimation and control-loop autotuning
  • MCAT core functionality is portable from GUI to embedded code
  • MCAT GUI configurable directly from the software project
  • Simplified, user-friendly GUI for rapid development

Supported Devices

  • MPC560xB: Ultra-Reliable MPC56xB MCU for Automotive and Industrial General Purpose
  • MPC560xP: Ultra-Reliable MPC560xP MCU for Automotive and Industrial Safety Applications
  • MPC564xL: Ultra-Reliable Dual-Core 32-bit MCU for Automotive and Industrial Applications
  • MPC574xP: Ultra-Reliable MPC574xP MCU for Automotive and Industrial Safety Applications
  • MPC5775B-E: MPC5775B and MPC5775E Microcontrollers for Battery Management Systems (BMS) and Inverter Applications
  • MPC5777C: Ultra-Reliable MPC5777C MCU for Automotive and Industrial Engine Management
  • S32K1: S32K1 Microcontrollers for Automotive General Purpose
  • S32K39-37-36: S32K39/37/36 Microcontrollers for Electrification Applications
  • S32K3: S32K3 Microcontrollers for Automotive General Purpose
  • S32K5: S32K5 Automotive Microcontrollers
  • S32M2: S32M2 Integrated Solution for 12V Motor Control
  • S12ZVM: S12ZVM Mixed-Signal MCU for Automotive and Industrial Motor Control Applications
