S32M276SFFRD
Active -

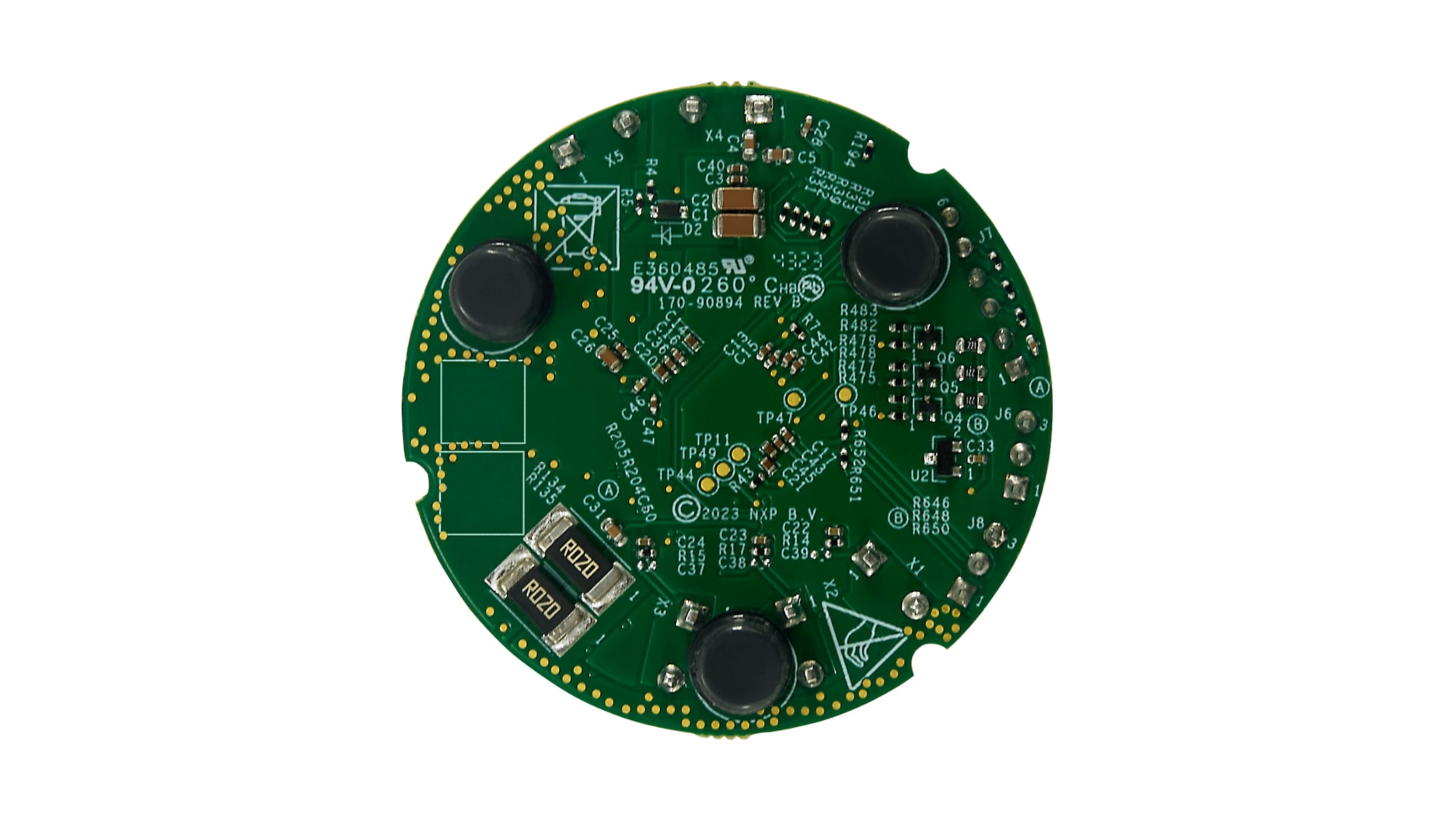

S32M276SFFRD Reference Design Board for Automotive Motor Control.
Kit Contains:
- S32M276SFFRD Reference Design Board for Automotive Motor Control
The S32M276SFFRD is a reference design board for automotive BLDC and PMSM motor control applications. Based on the S32M276 integrated solution, which offers a 32-bit Arm® Cortex®-M7 S32K3 microcontroller and an analog die with voltage regulator, gate driver and current sensing in a system-in-package (SiP) design.
The S32M276SFFRD is designed to demonstrate BOM and PCB size reduction. In a less than 2-inch diameter (5 cm diameter) the boards are able to drive BLDC/PMSM motor control applications.

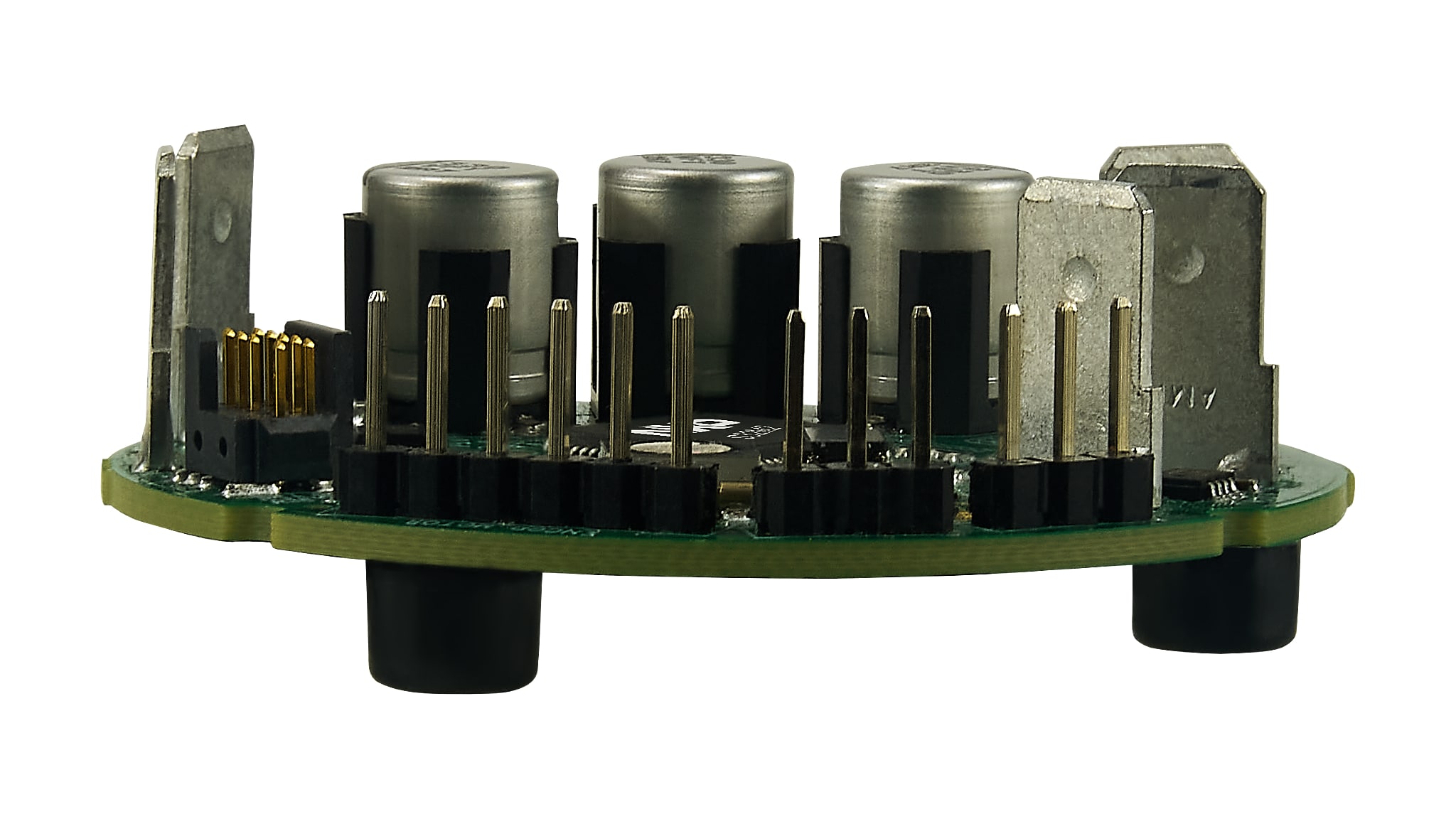

The S32M276SFFRD offers UART, CAN (FD) (using internal PHY), RGB LED, JTAG 10-pin connector and faston connectors for power supply and 3-phase motor.
Choose a diagram:
Note: To see the product features close this window.
S32M276SFFRD Reference Design Board for Automotive Motor Control.
