S12ZVM PMSM Development Kit

MTRCKTSPNZVM128
Preproduction

Roll over image to zoom in

The MTRCKTSPNZVM128 motor control development kit is ideal for sensorless applications required to control one PMSM motor, such as HVAC or electric pumps. The kit is designed to enable rapid prototyping and evaluation of the motor control application without the need to wait for the final hardware design.

The kit includes the evaluation boards along with application software reference implementation of the PMSM motor control application using single-shunt and dual-shunt current sensing.

Product Details

Supported Devices

Processors and Microcontrollers

S12 MagniV Mixed-Signal MCUs

  • S12ZVM: S12ZVM Mixed-Signal MCU for Automotive and Industrial Motor Control Applications

Features

Microcontroller

  • S12 MagniV® MC9S12ZVML128 microcontroller evaluation board

Sensors

  • DC-bus overvoltage, overcurrent, and under voltage fault detection

Support

  • Supports low-voltage PMSM/BLDC motors
  • FreeMASTER visualization/configuration support
  • ANSI-C based motor control reference software with easy portability
  • Extensive documentation for software and hardware
  • Dual or single shunt current sensing

Buy Options

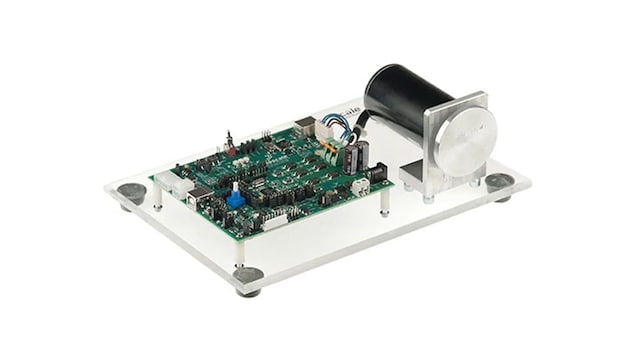

MTRCKTSPNZVM128-Image

Click to expand

  • MTRCKTSPNZVM128

  • S12ZVML128 Development Kit for 3-phase sensorless PMSM.

    • S12 MagniV MC9S12ZVML128 microcontroller evaluation board
    • AC/DC 12 V Universal Power Supply Kit
    • 3-phase BLDC low voltage motor
    • USB 2.0 A-B type cable
    • Fact sheets and quick start guides
  • $899.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
