S32K344 Motor Control Development Kit for High-Power 48 V Applications

MC_XTM4CK344 new
Active

Roll over image to zoom in

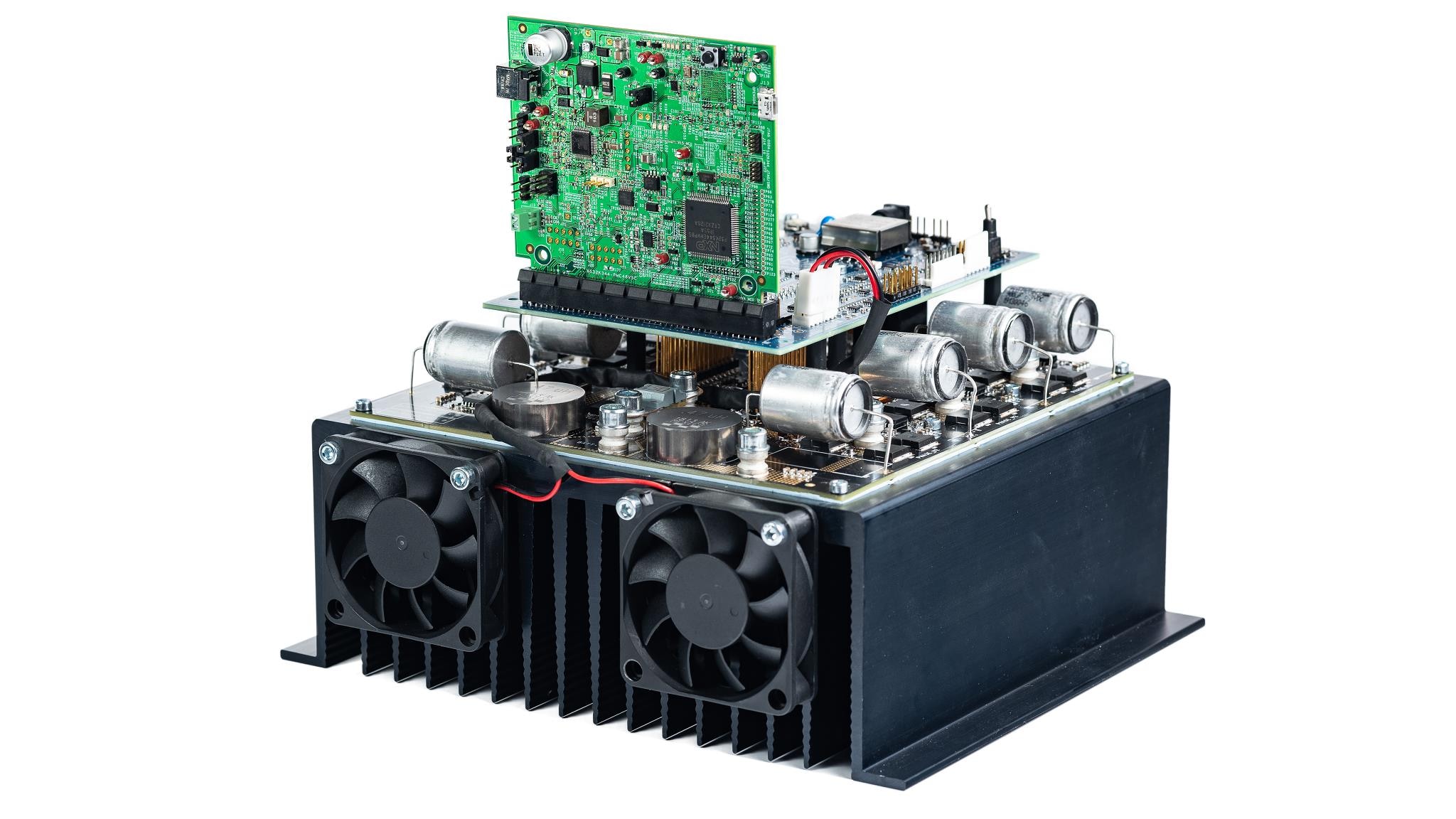

The MCSXTM4CK344 and MCDXTM4CK344 are motor control development kits for rapid prototyping and evaluation of high-power 48 V applications.

Based on the 32-bit Arm® Cortex®-M7 S32K3 microcontroller, the MCSXTM4CK344 kit controls one 3-phase permanent magnet synchronous motor (PMSM) or brushless direct current (BLDC) motor, while the MCDXTM4CK344 development kit may control either two 3-phase motors or one 6-phase PMSM/BLDC motor.

The 48 V development kit can be used directly by automotive manufacturers, suppliers and software ecosystem partners to accelerate development for a shorter time to market in 48 V applications like starter generators, eTurbo, eCompressors or small traction drives for eBikes, e-Scooters and rickshaws.

Block Diagram

Choose a diagram:

S32K3 Single Field-Oriented Control (FOC)

S32K3 Single FOC Diagram

S32K3 Dual Field-Oriented Control (FOC)

S32K3 Dual FOC Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

  • S32K3: S32K3 Microcontrollers for Automotive General Purpose

K2x / KS2x USB

  • K26_180: Kinetis® K26-180 MHz, Dual High-Speed and Full-Speed USBs, 2MB Flash Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

Interfaces

CAN with Flexible Data Rate

  • TJA1052IT: Galvanically-Isolated High-Speed CAN Transceiver

Secure CAN Transceivers

  • TJA1153: Secure HS-CAN Transceiver with Sleep Mode

Automotive LIN Solutions

  • TJA1021: ISO17987 LIN 2.1/SAE J2602 Transceiver

Automotive Ethernet PHYs

  • TJA1101: TJA1101B, IEEE 100BASE-T1 Compliant Automotive Ethernet PHY Transceiver

Power Management

12 V, 24 V, and 48 V SBC Solutions

  • FS26: Safety System Basis Chip with Low Power, for ASIL D Systems

Features

Hardware

  • Control of 3/6-phase AC motors types:
    • PMSM/BLDC/Alternating Current Induction Motor (ACIM)/(optional DC)
    • 3.8 kVA - 5.7 kVA power rate, up to ~170 Amps (peak current)
  • Position/Speed sensor options:
    • Resolver
    • Encoder
    • HALL
    • Sensorless techniques
  • Isolated 48/12 V layer: Isolated CAN PHY and Flyback converter
  • Voltage/current sensors:
    • Battery Voltage
    • DC Bus voltage
    • Phase voltages and currents
    • Back Electromotive Force (BEMF) voltages
    • Over current/voltage/temperature protections
  • Temperature measurement

Software

Interfaces

  • Onboard isolated and nonisolated CAN
  • Onboard LIN
  • Onboard Ethernet (socket connector)
  • Onboard S32K3 debug interface (including serial communication)
  • Joint Test Action Group (JTAG) debug interface

Enablement

  • ANSI-C based example SW created in S32 Design Studio for S32 Platform built on S32K3 RTD drivers
  • FreeMASTER visualization/configuration support
  • MCAT tool - part of software package
  • MCU peripherals initialization generated by S32CT Configuration Tool (CT)

Buy Options

MCDXTM4CK344-Image

Click to expand

MCDXTM4CK344
Active

S32K344 Motor Control Development Kit for High-Power 48 V Applications.

  • Processing: Arm® Cortex®-M7
$2200.00 USD
In Stock :5

Normally ships 1-2 business days

ADD TO CART
Order from distributors
MCSXTM4CK344-Image

Click to expand

MCSXTM4CK344
Active

S32K344 Motor Control Development Kit for High-Power 48 V Applications.

  • Processing: Arm® Cortex®-M7
$1700.00 USD
Pending Stock
ADD TO CART
Order from distributors
