S32K344MINI‑EVB Renamed to FRDM‑A‑S32K344: Now, part of the FRDM Automotive Ecosystem under its new name, the board keeps the same hardware and adds full ecosystem compatibility for flexible, scalable development.

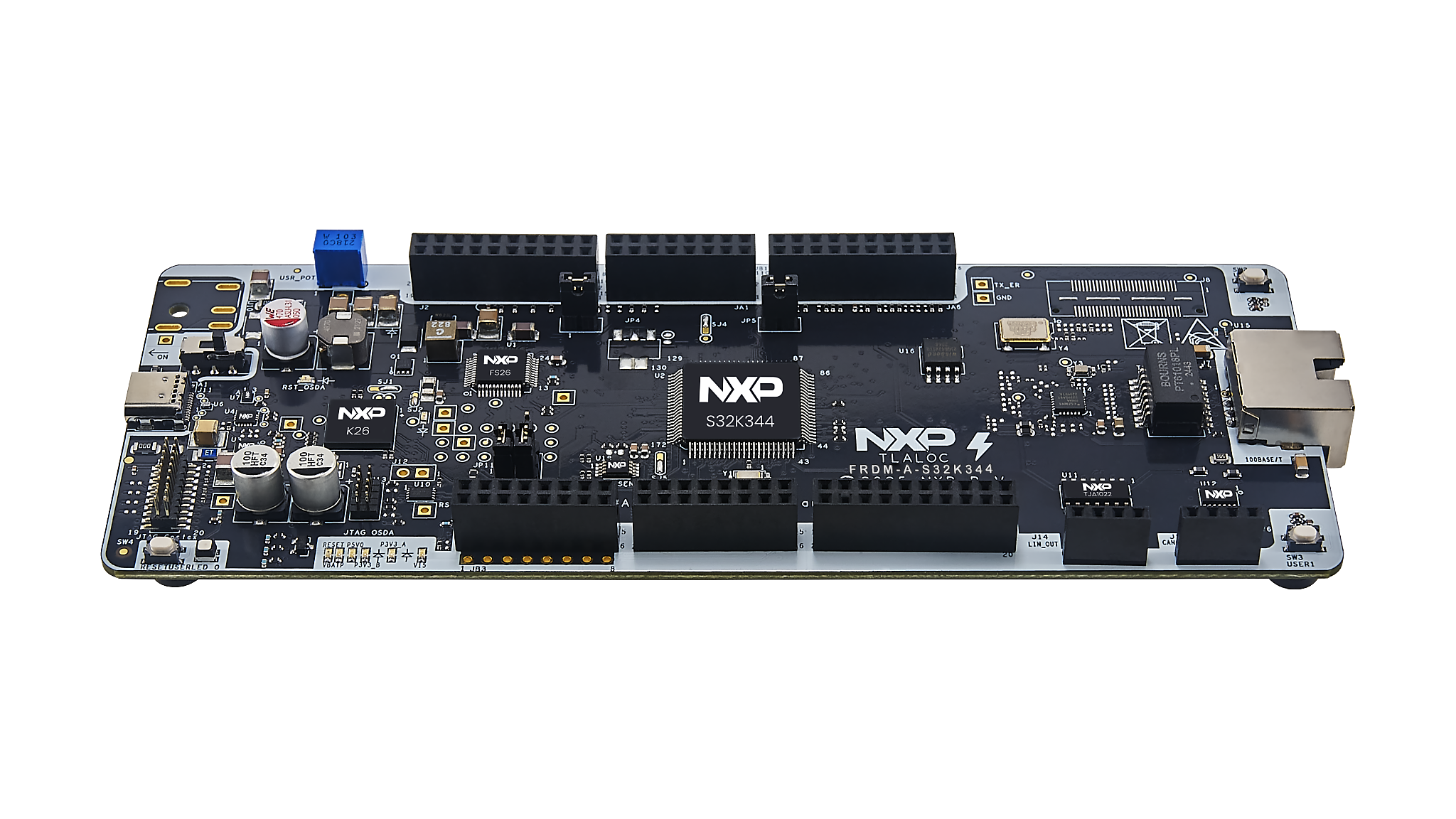

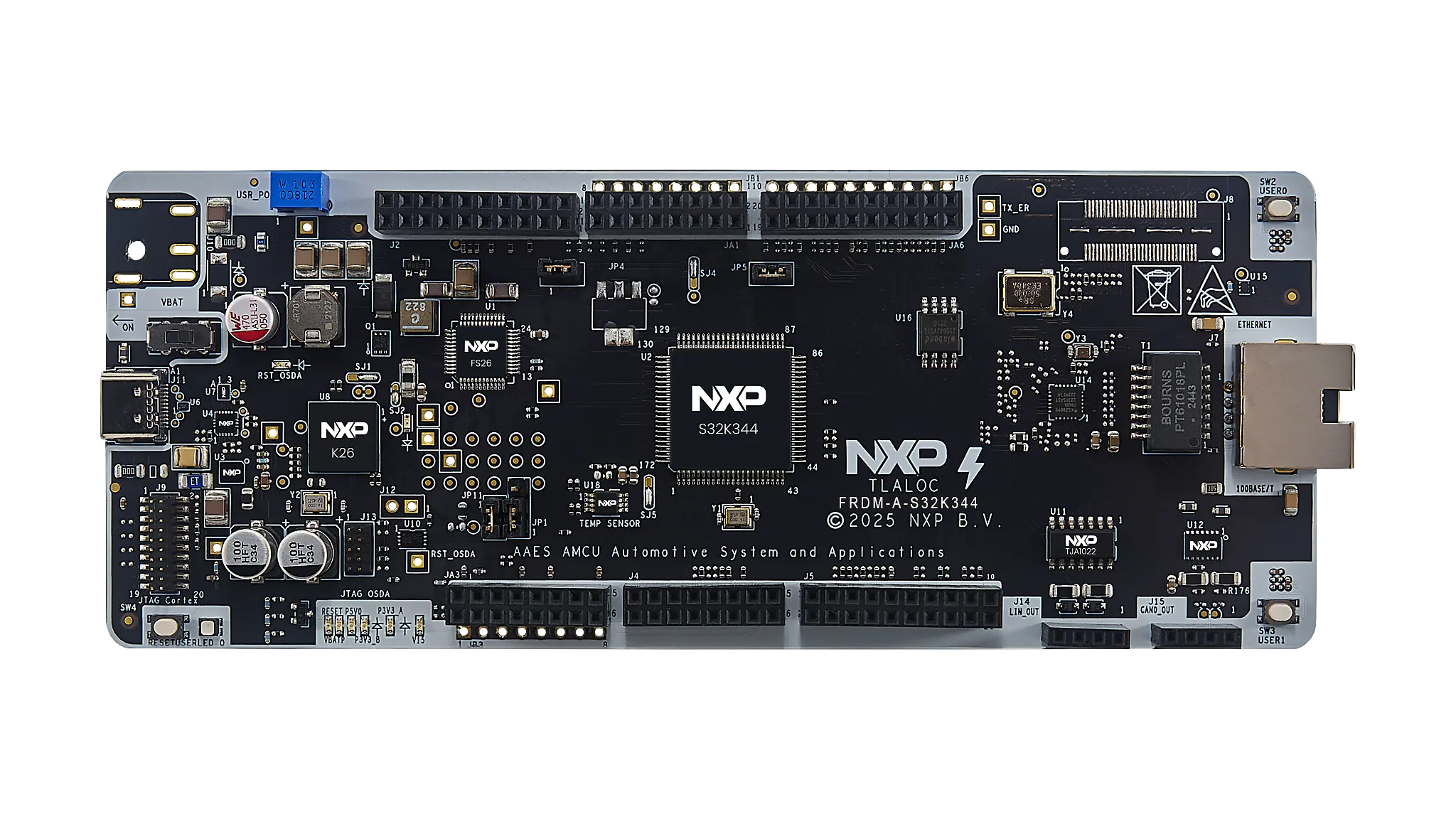

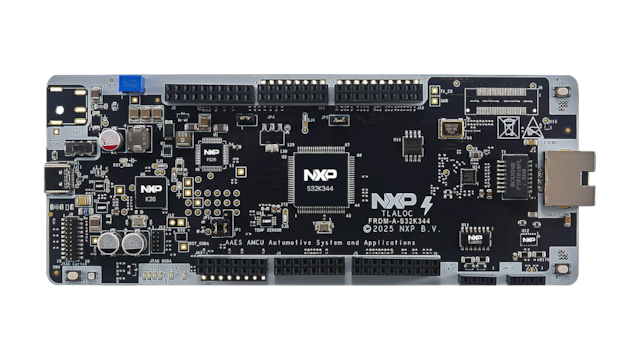

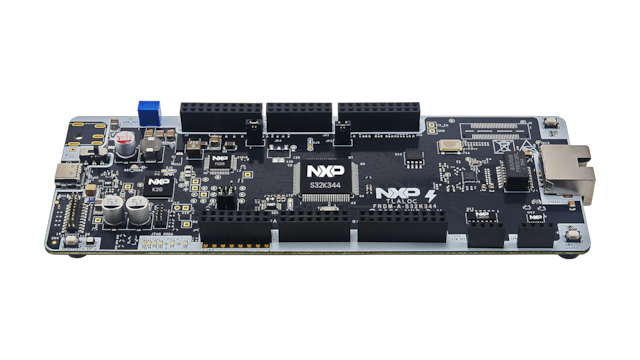

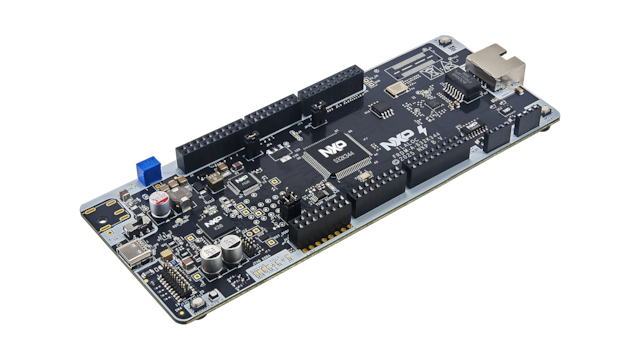

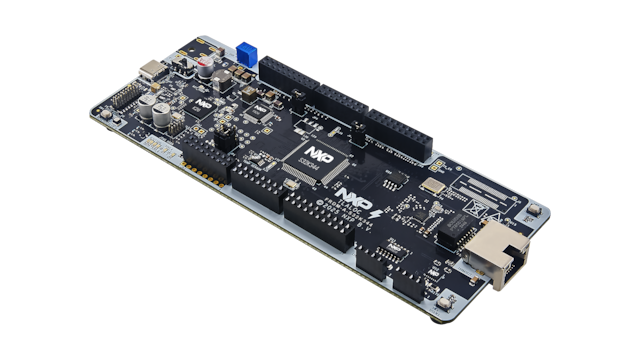

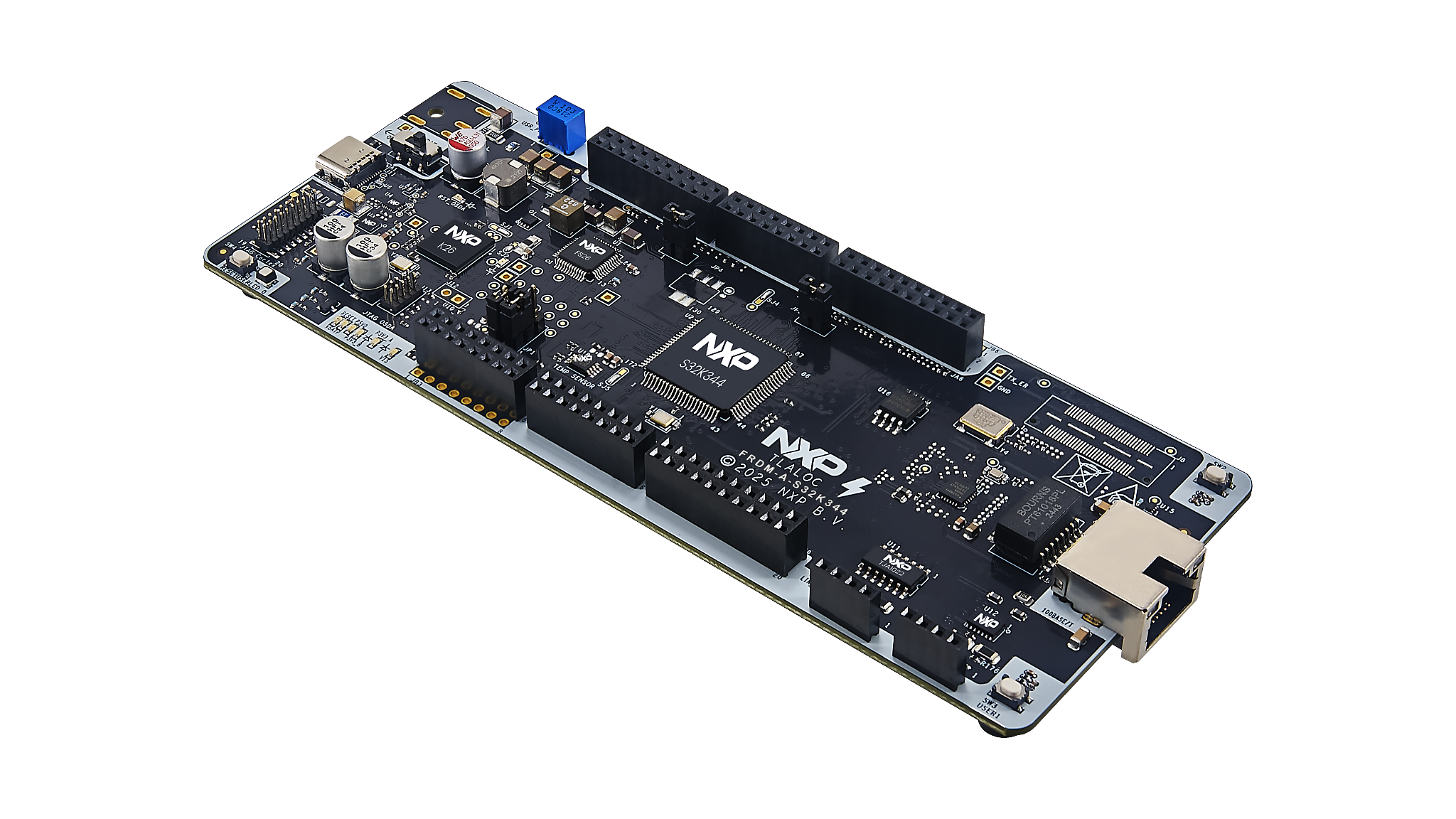

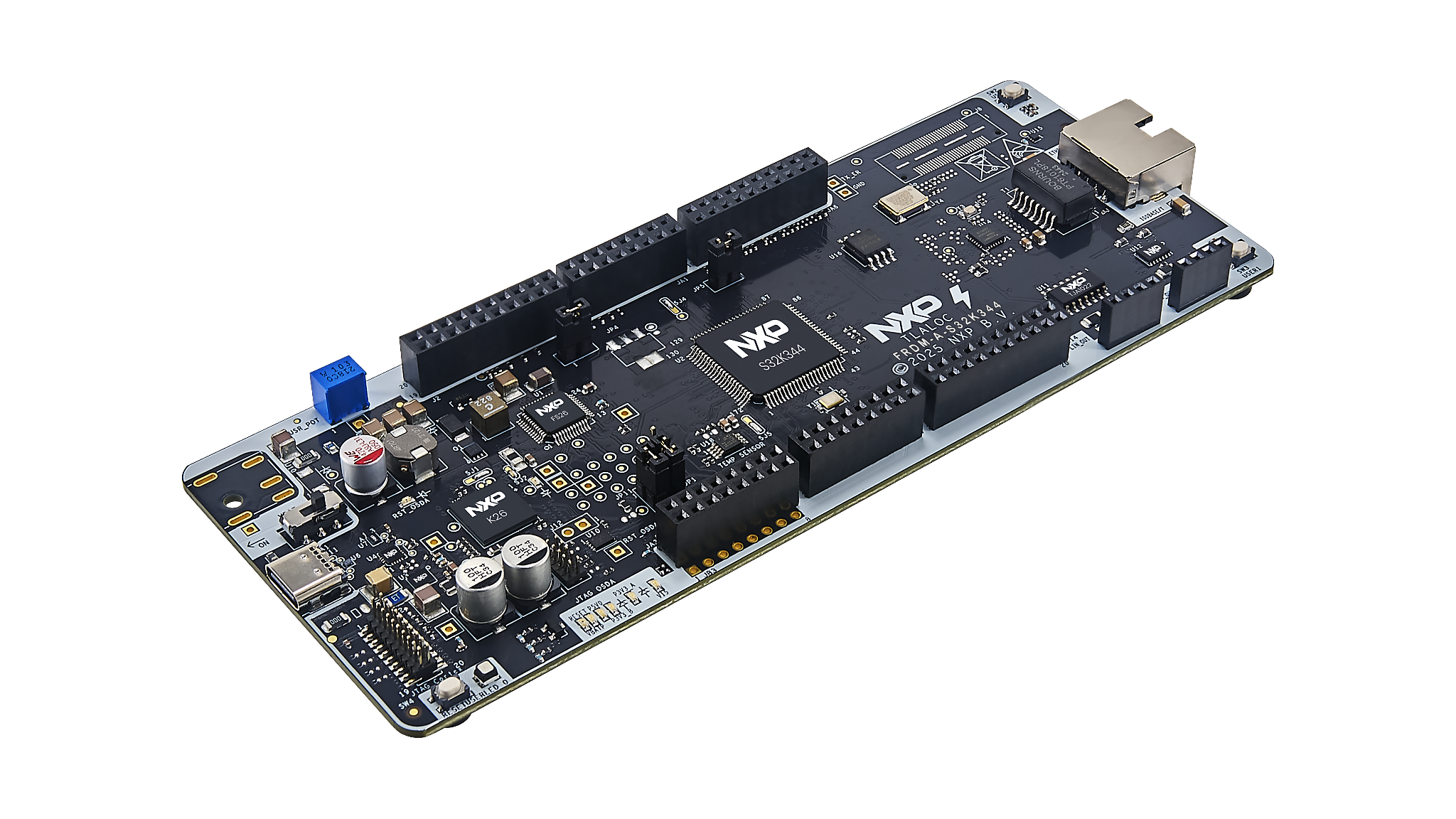

The FRDM Automotive S32K344 is a development board for general-purpose industrial and automotive applications.

Based on the 32-bit Arm® Cortex®-M7 S32K3 microcontroller unit (MCU) in a 172 High Density Quad Flat Package (HDQFP), the FRDM Automotive S32K344 offers two cores in lockstep mode, Hardware Security Engine (HSE), advanced connectivity and low-power.

The FRDM Automotive S32K344 offers a standard-based form factor compatible with the Arduino® UNO pin layout, providing a broad range of expansion board options for quick application prototyping and demonstration.

Product Details

Block Diagram

FRDM Automotive S32K344 Development Board

FRDM-A-S32K344 Development Board Block Diagram

Get diagram PDF

Supported Devices

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

S32K3: S32K3 Microcontrollers for Automotive General Purpose

K2x / KS2x USB

K26_180: Kinetis® K26-180 MHz, Dual High-Speed and Full-Speed USBs, 2MB Flash Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

Interfaces

3.3 V / 5 V IO CAN Transceivers

TJA1043: High-Speed CAN Transceiver with Standby and Sleep Mode

Automotive LIN Solutions

TJA1022: Dual LIN 2.2A/SAE J2602 Transceiver

USB Interfaces

PTN5110: USB PD TCPC PHY IC

Power Management

12 V, 24 V, and 48 V SBC Solutions

FS26: Safety System Basis Chip with Low Power, for ASIL D Systems

Data Protection

NX20P0407: USB Type-C CC and SBU Protection IC

VBUS Protection

NX20P3483UK: USB PD and Type-C High-Voltage Sink/Source Combo Switch with Protection

Sensors

I3C/I²C Digital Temp. Sensors

P3T1750DP: I3C/I²C-Bus, ±1 °C Accuracy, Digital Temperature Sensor

Accelerometers

FXLS8964AF: ±2g/±4g/±8g/±16g, Low-Power 12-Bit Digital Accelerometer

Features

Hardware Features

Power supply switch
MCU voltage measurement
User red-green-blue (RGB) LED
2x user push-buttons

Software Features

Free-of-charge Real-Time Drivers (RTD) for Automotive Open System ARchitecture (AUTOSAR®) and non-AUTOSAR use and ASIL D-compliant
Configuration tools for both AUTOSAR® and non-AUTOSAR users
Free-of-charge security firmware: Secure Hardware Extension (SHE)+ compliant, NXP-supplied, designed for International Organization for Standardization (ISO) 21434
S32 Safety Software Framework (SAF): Six fault-detection and reaction libraries
Free-of-charge Safety Peripheral Drivers (SPD)
Structural Core Self-Test (SCST)
Free-of-charge Inter-Platform Communication Framework (IPCF): Middleware for multicore, multi-OS communication in single- and multichip systems
Free-of-charge Model-Based Design Toolbox for MATLAB®: NXP-supplied plug-in for Simulink® environment

Compatibility

Arduino UNO pinout compatible with expansion "shield" support
Expansion options using the DEVKIT-MOTORGD and DEVKIT-COMM boards

Interfaces

On-board Controller Area Network Flexible Data-rate (CAN FD)
On-board LIN
Serial Wire Debug/Joint Test Action Group (SWD/JTAG) debug interface for S32K3 debugger

Enablement

Free-of-charge S32 Design Studio Integrated Development Environment (IDE) (Eclipse, GNU Compiler Collection (GCC) and debugger) and S32 Config Tool (Pins, Clocks and Peripherals) with third-party compilers and debuggers

Buy Options

S32K344MINI-EVB-Image

Click to expand

S32K344MINI-EVB
Active

S32K344MINI-EVB is now FRDM-A-S32K344, joining the FRDM ecosystem.

Kit Contains

FRDM-A-S32K344 Development Board
USB Type C cable
Post card
Kit content sheet

Processing: Arm® Cortex®-M7

$59.00 USD

In Stock :10

Normally ships 1-2 business days

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.
