Name: FRDM Automotive S32K312 Development Board for General Purpose
Price: 49.00 USD
Availability: InStock

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Click over video to play

S32K312MINI‑EVB Renamed to FRDM‑A‑S32K312: Now part of the FRDM Automotive Ecosystem under its new name, the board keeps the same hardware and adds full ecosystem compatibility for flexible, scalable development.

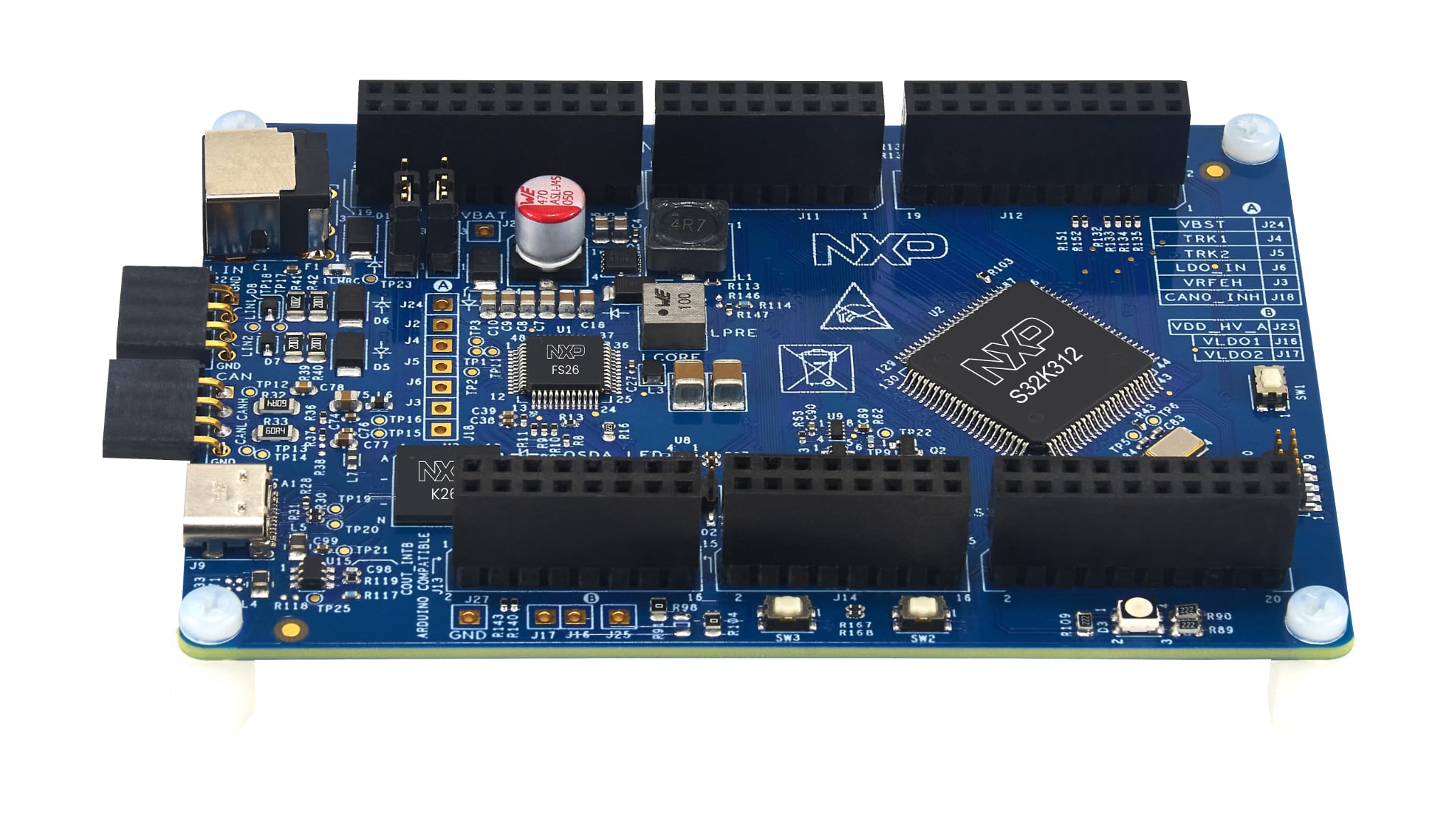

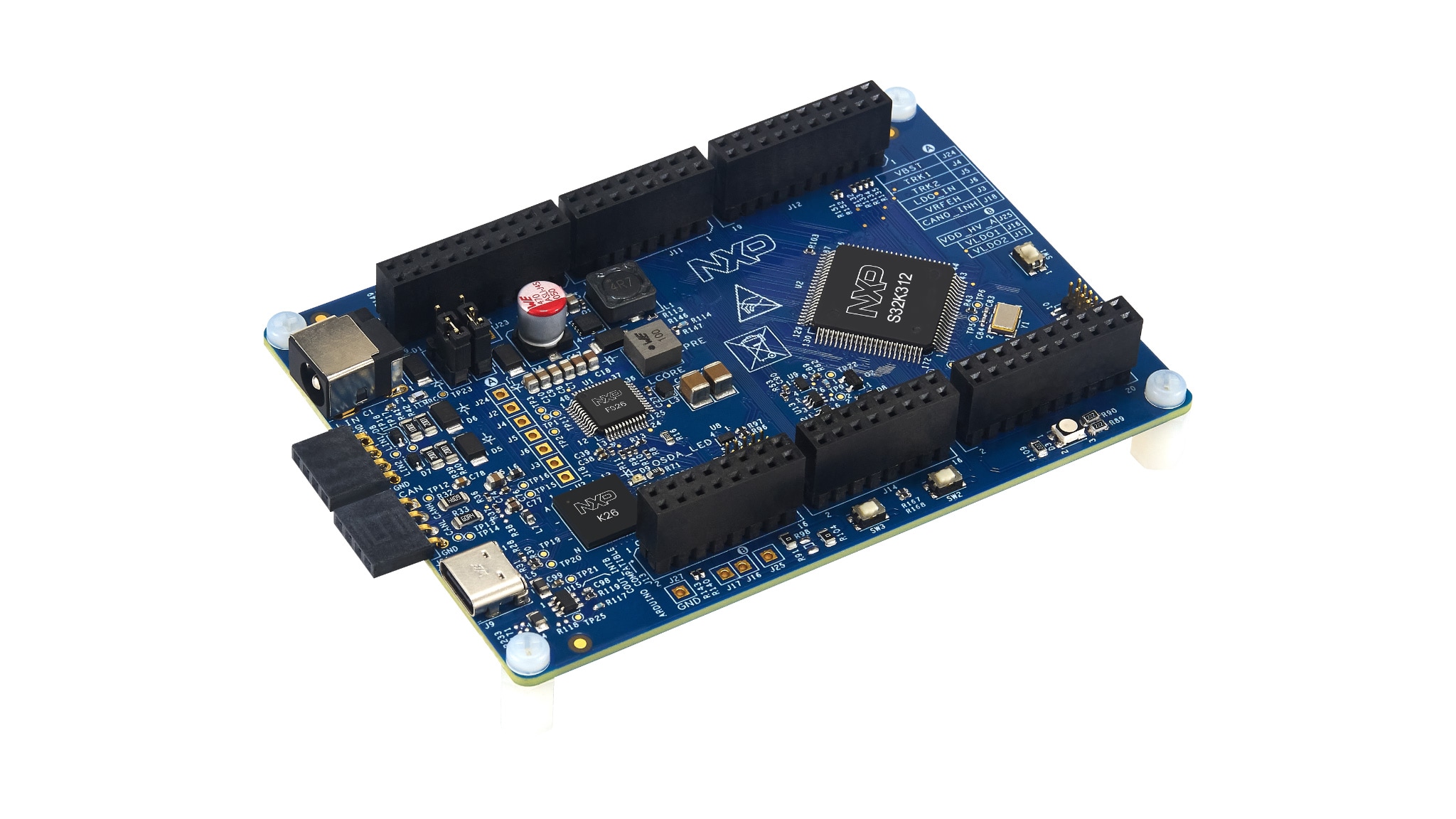

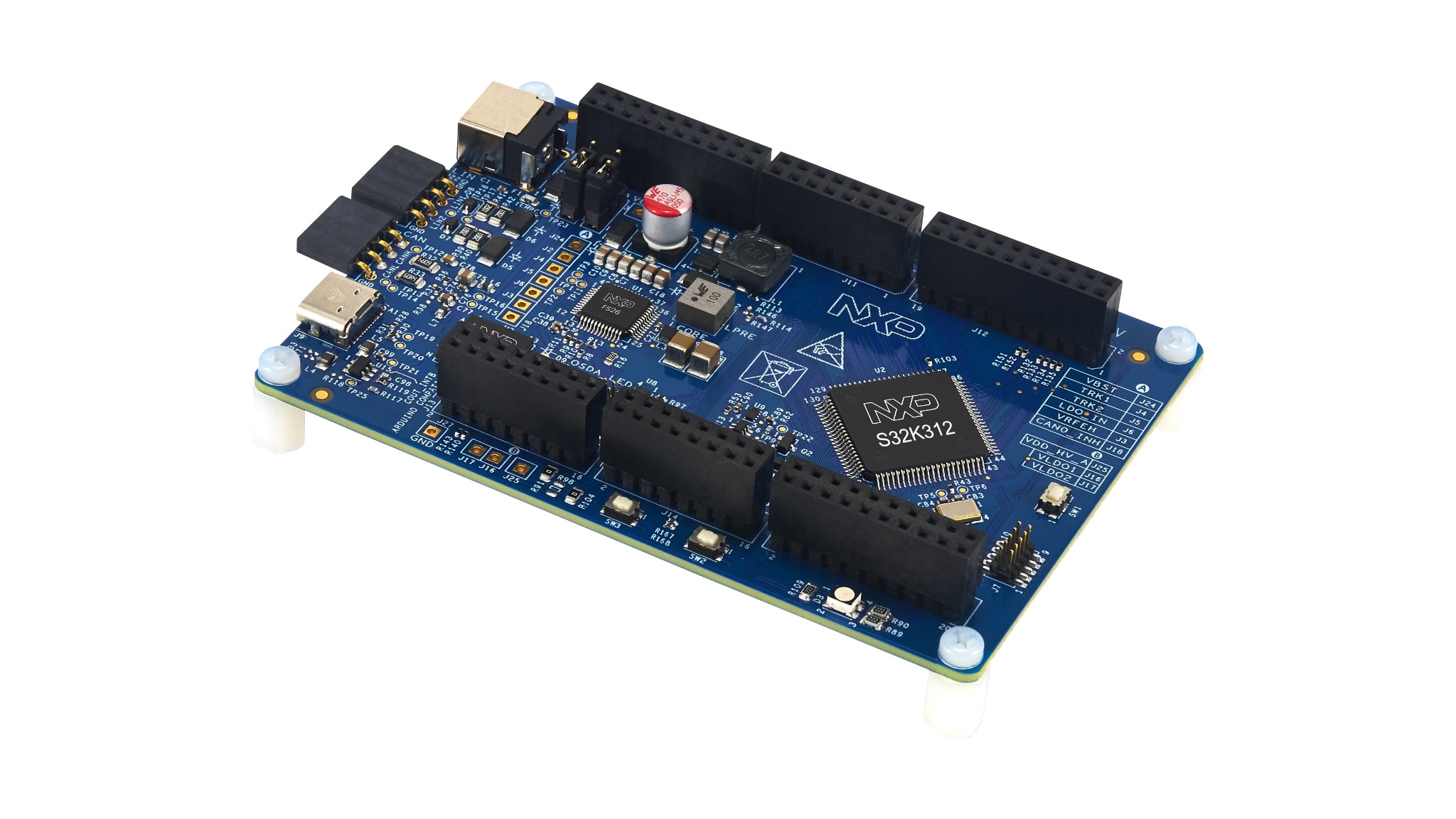

The FRDM-A-S32K312 is a development board for general-purpose industrial and automotive applications.

Based on the 32-bit Arm® Cortex®-M7 S32K3 microcontroller unit (MCU) in a 172 High Density Quad Flat Package (HDQFP) package, the FRDM-A-S32K312 offers a single-core mode, Hardware Security Engine (HSE), over-the-air (OTA) support, advanced connectivity and low-power.

The FRDM-A-S32K312 offers a standard-based form factor compatible with the Arduino® UNO pin layout, providing a broad range of expansion board options for quick application prototyping and demonstration.

Design Files

Software

Product Details

Block Diagram

Choose a diagram:

FRDM-A-S32K312 Development Board
S32K3 Family

FRDM-A-S32K312 Development Board

S32K3 Family

Supported Devices

Interfaces

3.3 V / 5 V IO CAN Transceivers

TJA1043: High-Speed CAN Transceiver with Standby and Sleep Mode

Automotive LIN Solutions

TJA1022: Dual LIN 2.2A/SAE J2602 Transceiver

Power Management

12 V, 24 V, and 48 V SBC Solutions

FS26: Safety System Basis Chip with Low Power, for ASIL D Systems

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

S32K3: S32K3 Microcontrollers for Automotive General Purpose

K2x / KS2x USB

K26_180: Kinetis® K26-180 MHz, Dual High-Speed and Full-Speed USBs, 2MB Flash Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

Features

Hardware Features

Power supply switch
MCU voltage measurement
User red-green-blue (RGB) LED
2x user push-buttons

Software Features

Free-of-charge real-time drivers for AUTomotive Open System ARchitecture (AUTOSAR®) and non-AUTOSAR use and ASIL D-compliant
Configuration tools for both AUTOSAR® and non-AUTOSAR users
Free-of-charge security firmware: Secure Hardware Extension (SHE)+ compliant, NXP-supplied, designed for International Organization for Standardization (ISO) 21434
S32 Safety Software Framework (SAF): Six fault-detection and reaction libraries
Free-of-charge Safety Peripheral Drivers (SPD)
Structural Core Self-Test (SCST)
Free-of-charge Inter-Platform Communication Framework (IPCF): Middleware for multicore, multi-OS communication in single- and multichip systems
Free-of-charge Model-Based Design Toolbox for MATLAB®: NXP-supplied plug-in for Simulink® environment

Compatibility

Arduino UNO pinout compatible with expansion "shield" support
Expansion options using the DEVKIT-MOTORGD and DEVKIT-COMM boards.

Interfaces

On-board Controller Area Network Flexible Data-rate (CAN FD)
On-board LIN
Serial Wire Debug/Joint Test Action Group (SWD/JTAG) debug interface for S32K3 debugger

Enablement

Free-of-charge S32 Design Studio Integrated Development Environment (IDE) (Eclipse, GNU Compiler Collection (GCC) and debugger) and S32 Config Tool (Pins, Clocks and Peripherals) with third-party compilers and debuggers

Buy Options

Click to expand

S32K312MINI-EVB
Active

FRDM Automotive S32K312 Development Board for General Purpose.

Kit Contains

Note: S32K312MINI-EVB is now FRDM-A-S32K312, joining the FRDM ecosystem.

Processing: Arm® Cortex®-M7

$49.00 USD

In Stock :89

Normally ships 1-2 business days

ADD TO CART

Order from distributors
