S32K146EVB-Q144 Evaluation Board for Automotive General Purpose

S32K146EVB Active

Roll over image to zoom in

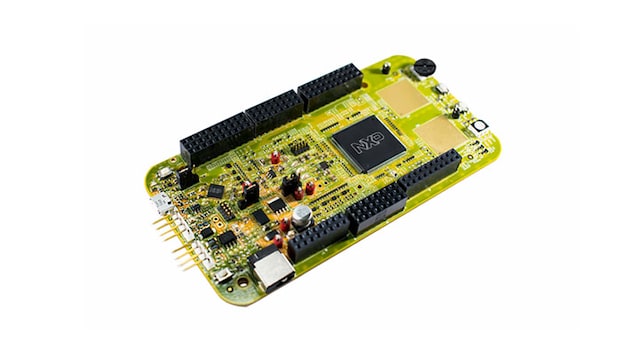

The S32K146EVB-Q144 is a low-cost evaluation and development board for general-purpose industrial and automotive applications.

Based on the 32-bit Arm®Cortex®-M4F S32K14 MCU, the S32K146EVB-Q144 offers a standard-based form factor compatible with the Arduino® UNO pin layout, providing a broad range of expansion board options for quick application prototyping and demonstration.

Product Details

Supported Devices

Interfaces

Automotive LIN Solutions

  • TJA1027: LIN 2.2A/SAE J2602 Transceiver

Power Management

System Basis Chips

  • UJA1169TK: Mini High-Speed CAN System Basis Chip

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

  • S32K1: S32K1 Microcontrollers for Automotive General Purpose

Features

  • Easy access to the MCU I/O header pins for prototyping

Size and Price

  • Small form factor
  • Low cost

Compatibility

  • Arduino® UNO pint-out compatible with expansion “shield” support

Interfaces

  • On-board connectivity for CAN, LIN, UART/SCI

Power

  • Flexible power supply options: micro USB or external 12 V supply

Components

  • 2 x touchpads
  • 1 x potentiometer
  • 1 x RGB LED
  • 2 x push buttons

Buy Options

S32K146EVB-Q144-Image

Click to expand

  • $159.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 7
    • Shipping: Normally ships 1-2 business days
ADD TO CART
