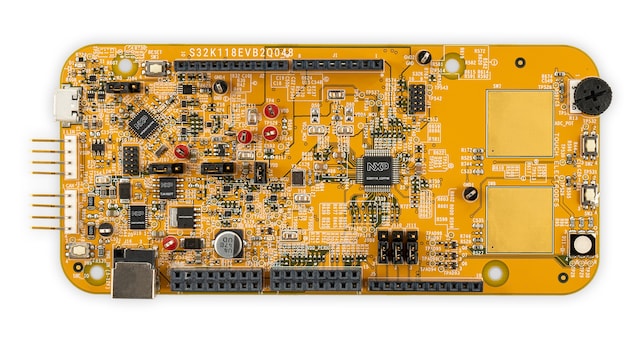

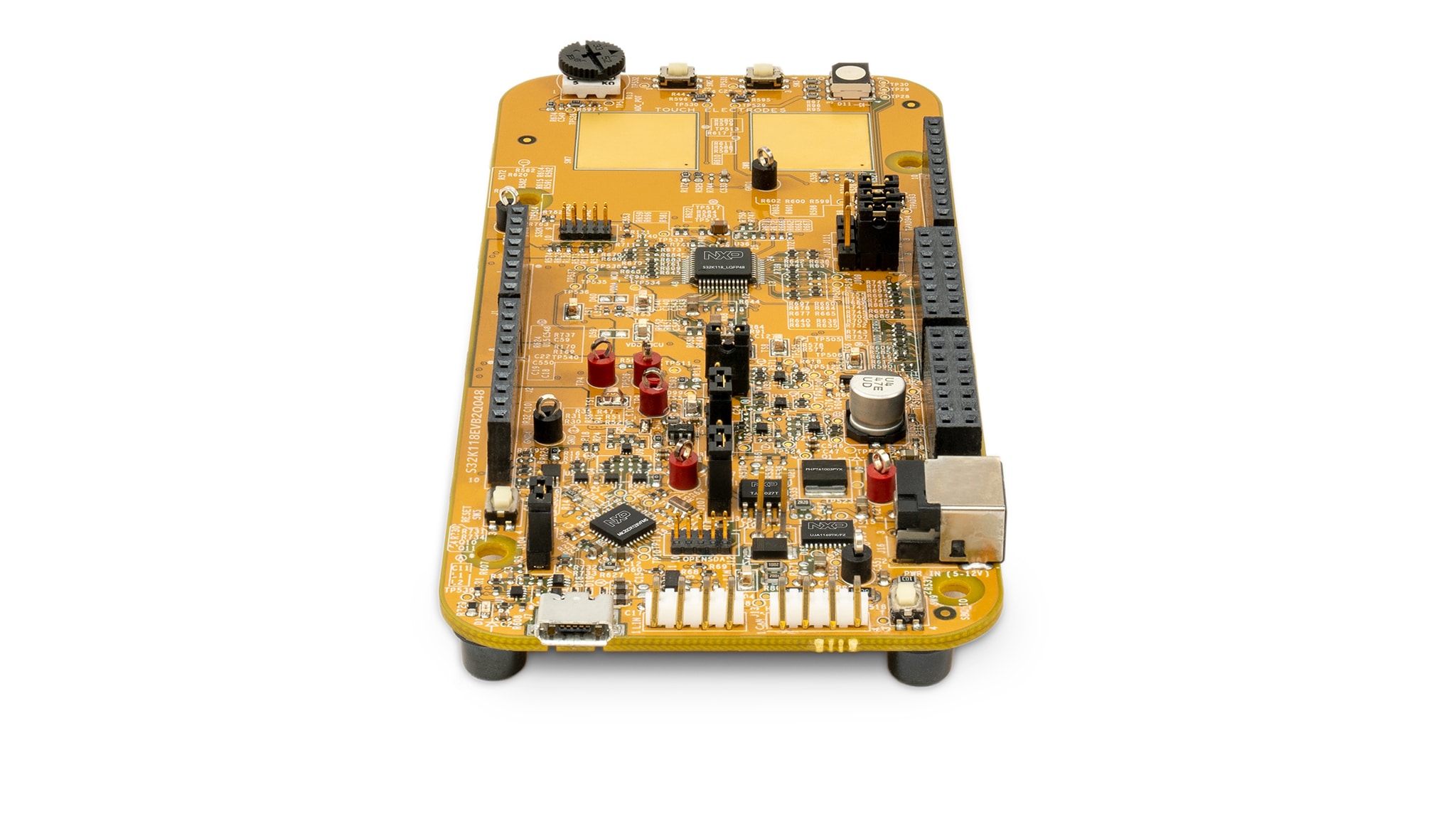

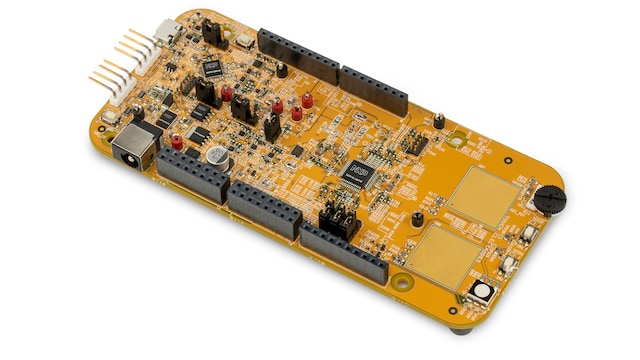

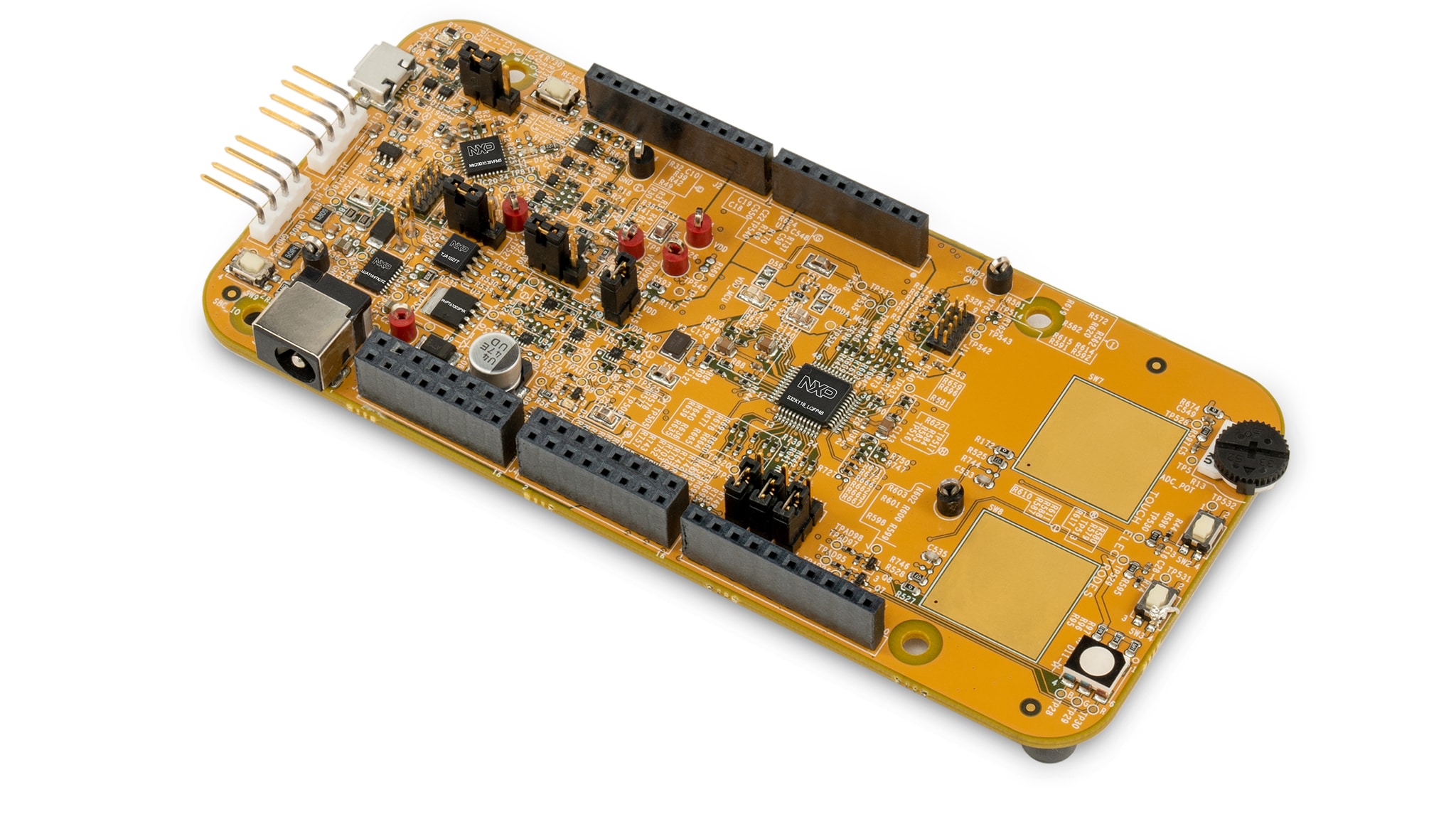

Name: S32K118Q048 Evaluation Board for Automotive General Purpose
Price: 105.00 USD
Availability: BackOrder

Product Details

Block Diagram

S32K118EVB2Q048 Features

Get diagram PDF

Supported Devices

Interfaces

Automotive LIN Solutions

TJA1027: LIN 2.2A/SAE J2602 Transceiver

Power Management

12 V, 24 V, and 48 V SBC Solutions

UJA1169TK: Mini High-Speed CAN System Basis Chip

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

S32K1: S32K1 Microcontrollers for Automotive General Purpose

Technical and Functional Specifications

Microcontroller (MCU)	32-bit Arm^® Cortex^®-M0+ based S32K118
System Basis Chip (SBC)	UJA1169TK: Mini high-speed CAN system basis chip
Transceivers	TJA1027: LIN 2.2A/SAE J2602 transceiver
Adapters	OpenSDA: Serial and Debug Adapter with support for several industry-standard debug interfaces
	Easy access to the MCU I/O header pins for prototyping
Size and Price	Small form factor Low cost
Compatibility	Arduino^® UNO pint-out compatible with expansion “shield” support
Interfaces	On-board connectivity for CAN, LIN, UART/SCI
Power	Flexible power supply options: micro USB or external 12 V supply
Components	2 x touchpads 1 x potentiometer 1 x RGB LED 2 x push buttons

Buy Options

Click to expand

S32K118EVB2Q048
Active

S32K118-Q048 Evaluation Board for Automotive General Purpose.

Kit Contains

Kit Contains:

S32K118EVB2Q048 Evaluation Board

$105.00 USD

Pending Stock

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order
