CAN Signal Improvement Capability Transceiver with Standby Mode
The TJA1462 is a CAN Signal Improvement Capability (SIC) transceiver with Standby mode designed for CAN and CAN FD automotive networks. The TJA1462 implements CAN SIC according to ISO 11898-2:2024 and supports reliable CAN FD communication at data rates up to 8 Mbit/s.

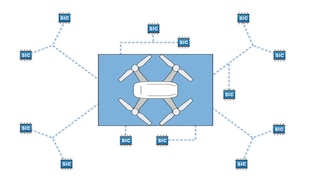

By reducing signal ringing and improving bit timing symmetry, the TJA1462 enables larger network topologies and improved signal integrity.

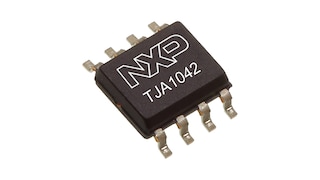

Fully interoperable with Classical CAN and CAN FD networks, the TJA1462 is backward compatible with devices such as the TJA1042 and TJA1044GT, providing a drop-in upgrade path for enhanced network performance.
Product Details
Features
General Features
- ISO 11898-2:2024, SAE J2284-1 to SAE J2284-5 and SAE J1939-14 compliant
- CAN FD communication up to 8 Mbit/s
- VIO input for interfacing with 3.3 V to 5 V microcontrollers (TJA1462A)
- Low electromagnetic emission (EME) and high electromagnetic immunity (EMI)
- Qualified according to AEC-Q100 grade 1

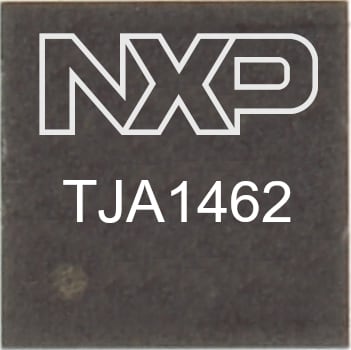

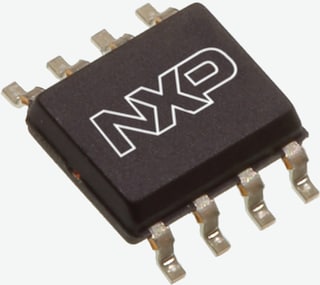

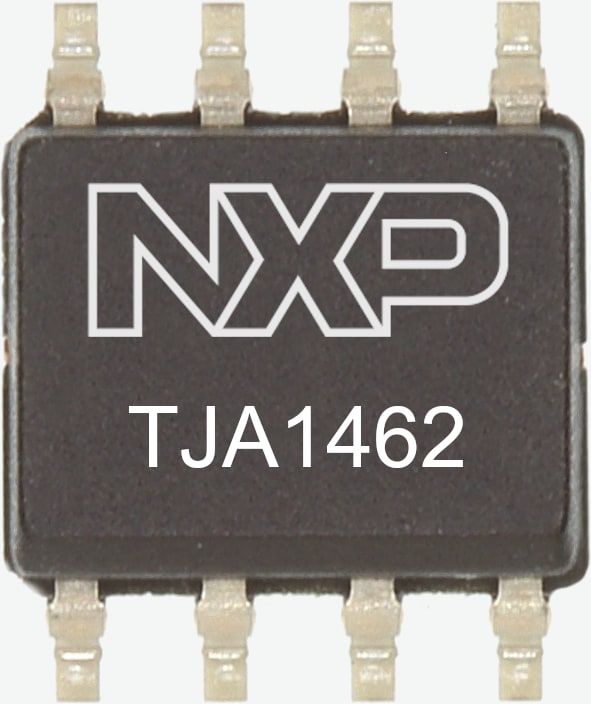

- Available in SO8 package and leadless HVSON8 package
Signal Improvement
- Implements CAN signal improvement capability as defined in CiA 601-4 to significantly reduce signal ringing effects on a network
- Tighter bit timing symmetry performance allowing more time to reduce signal ringing
Predictable and Fail-Safe Behavior
- Undervoltage detection with defined handling on all supply pins
- Full functionality guaranteed from the undervoltage detection thresholds up to the maximum limiting voltage values
- Defined behavior below the undervoltage detection thresholds
- Transceiver disengages from the bus (high-ohmic) when the supply voltage drops below the off-mode threshold
- Internal biasing of TXD and mode selection input pins, to enable defined fail-safe behavior
