S32G Vehicle Network Processing Evaluation Board 3

S32G-VNP-EVB3
Active

Roll over image to zoom in

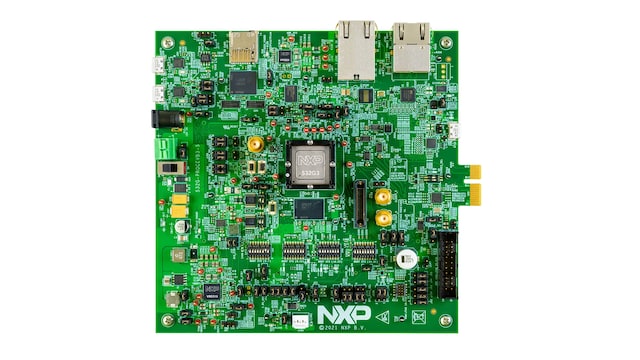

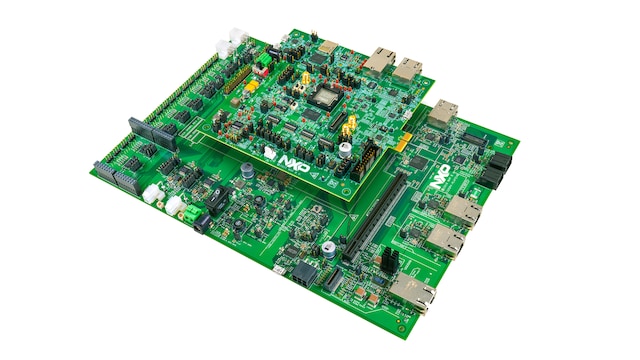

The S32G-VNP-EVB3 is an evaluation and development board engineered for developing vehicle network processing applications, such as vehicle computers, service-oriented gateways and domain controllers.

Based on S32G2 and S32G3 processors for vehicle networking, the S32G-VNP-EVB3 offers a combination of automotive and enterprise networking technology with a wealth of interfaces (CAN/LIN/FlexRay/Ethernet) for vehicle networks, in addition to substantial safe compute performance.

The S32G-VNP-EVB3 includes peripheral devices with PCI Express and USB interfaces that can be leveraged by OEMs, Tier 1s and software ecosystem partners to shorten time to market.

Block Diagram

S32G Vehicle Network Processing Evaluation Board 3

S32G Vehicle Network Processing Evaluation Board 3
Get diagram PDF

Supported Devices

Processors and Microcontrollers

S32G Vehicle Network Processors

  • S32G2: S32G2 Processors for Vehicle Networking
  • S32G3: S32G3 Processors for Vehicle Networking

Power Management

12 V, 24 V, and 48 V SBC Solutions

  • VR5510: Multi-Channel (9) PMIC for S32G Processor – 8 High Power, 1 Low Power, Fit for ASIL D Safety Level

5 V PMIC Solutions

  • PF53: 12 A / 8 A / 15 A Core Supply Regulator with AVP and Watchdog

Interfaces

Automotive Ethernet Switches and Network Controllers

  • SJA1105PQRS: SJA1105PEL/QEL/REL/SEL Series Ethernet Switches
  • SJA1110: Multi-Gig Safe and Secure TSN Ethernet Switch with Integrated 100BASE-T1 PHYs

Automotive Ethernet PHYs

  • TJA1102A: TJA1102A/TJA1102AS, Dual/Single Port Automotive Ethernet 100BASE-T1 PHY Transceiver

Automotive LIN Solutions

  • TJA1021: ISO17987 LIN 2.1/SAE J2602 Transceiver
  • TJA1024HG: Quad LIN 2.2 A/SAE J2602 Transceiver

CAN Signal Improvement

  • TJA1463: CAN Signal Improvement Capability Transceiver with Sleep Mode
  • TJA1462: CAN Signal Improvement Capability Transceiver with Standby Mode

Secure CAN Transceivers

  • TJA1153: Secure HS-CAN Transceiver with Sleep Mode

3.3 V / 5 V IO CAN Transceivers

  • TJA1043: High-Speed CAN Transceiver with Standby and Sleep Mode
  • TJF1051T: High-Speed CAN Transceiver
  • TJA1044: High-Speed CAN Transceiver with Standby Mode - Mantis Family

CAN with Flexible Data Rate

  • TJA144x: Automotive CAN FD Transceiver Family

Buy Options

S32G-VNP-EVB3-Image

Click to expand

S32G-VNP-EVB3
Active

S32G Vehicle Network Processing Evaluation Board 3.

    $3560.00 USD
    In Stock :2

    Normally ships 1-2 business days

    ADD TO CART
