SAF85xx Evaluation Kit with Antenna
The SAF85xx evaluation kit is available for selected customers with an approved NDA. For additional information, contact support or your local sales representative.

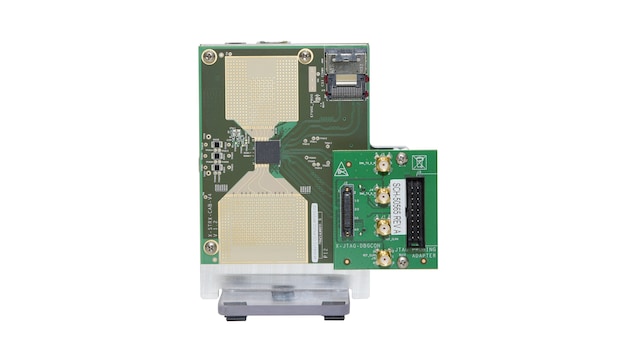

The SAF85xx evaluation kit supports development of 77 GHz radar application and evaluation of SAF85xx one-chip radar SoC for automotive applications. This kit allows evaluation of various radar use cases by flexibly configuring the radar chirps and observing the processed output on a PC. Radar software development and evaluation of a comprehensive set of communication and debug interfaces are enabled by the kit. It consists of a front end antenna board with patch antenna supporting four transmitter and four receivers.

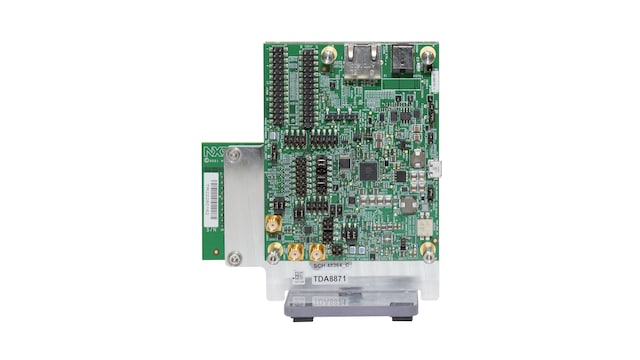

Back-end interface board supports power management and other interfaces to the PC. This evaluation kit can be used for comprehensive application development as well as RF evaluation.
Product Details
Supported Devices
RF
Radar Transceivers and SoCs
- SAF85XX: High Performance 77GHz RFCMOS Automotive Radar One-Chip SoC
Interfaces
CAN with Flexible Data Rate
- TJA144x: Automotive CAN FD Transceiver Family
CAN Signal Improvement
- TJA1462: CAN Signal Improvement Capability Transceiver with Standby Mode
Power Management
12 V, 24 V, and 48 V SBC Solutions
- FS84: Safety System Basis Chip for S32 Microcontrollers, Fit for ASIL B
Features
Function and Configuration
- Supports RF evaluation
- Supports evaluation of digital interfaces
- Supports radar software and use case development
- Provides access to debug interfaces like Aurora
- Streams radar data to PC
- Allows configuration of radar profile from PC using Radar Xplorer
Supported Connection Types
- PC ethernet support with RJ45 connector
- 2x CAN FD interface
- Aurora/JTAG access
