The SAF85xx one-chip Radar SoC is designed to meet industry standards and follows NXP's security-by-design approach.
High Performance 77GHz RFCMOS Automotive Radar One-Chip SoC
The SAF85xx RFCMOS automotive radar System-on-Chip (SoC) is a high performance one-chip for automotive FMCW radar application, which is optimized for fast chirp modulation. This device is designed to operate from 76 GHz to 81 GHz covering the full automotive radar frequency band. SAF85xx integrates a radar transceiver with radar microprocessor unit (MPU) based on Arm® Cortex® - A53, Arm Cortex - M7 cores and SRAM. Entry NCAP sensor all the way up to high performance front radar sensors are enabled by this 3rd generation RFCMOS radar device supporting short-range, medium-range and long-range radar applications in a compact form factor.

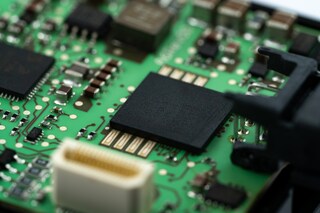

This fully integrated RFCMOS chip contains 4 transmitters, 4 receivers, ADC conversion, phase rotator, low-phase-noise VCO, SPT radar accelerator, BBE32 Vector DSP, Arm Cortex - A53, Arm Cortex - M7 cores and SRAM to support various use cases and different radar data outputs such as object data, point cloud data or FFT output.
SAF85xx is an ISO 26262 compliant device targeting ASIL Level B and is developed to meet the latest SHE+, EVITA Full security requirements through its HSE security engine.
Product Details
Features
Highly Integrated Transceiver
- Operates in 76 GHz to 81 GHz band
Wide Bandwidth
- Total bandwidth of 5 GHz
- Effective chirp bandwidth up to 4 GHz
High Performance RF transceiver
- Improved power output
- Low noise figure
- Low phase noise
High Performance Safe Compute
- Arm Cortex- A53 @320 MHz
- Arm Cortex- M7 with @320 MHz
Radar Processing Acceleration
- SPT 3.4 @320 MHz with integrated BBE32 Vector DSP
Onboard Memory
- 4 MB SRAM with ECC

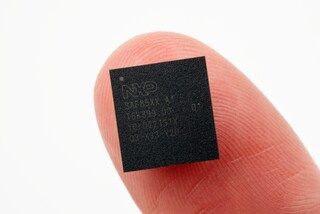

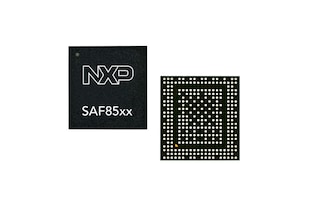

Small Package
- FC-CSP package for excellent thermal performance
- Very small footprint of 10.6 mm x 11.3 mm
- Launcher-in-Package (LiP) package for enhanced performance (available on request)
Flexible Interfaces
- 1 x SGMII Gbit Ethernet 10/100/1000 Mbit/s
- 2 x CAN-FD
Future Proof Security
- Hardware security engine (HSE)
- EVITA Full, SHE+, ISO/SAE 21434 compliant
Functional Safety
- Developed in accordance with ISO26262 SEoOC methodology, supporting ASIL B applications
- Built-in functional safety monitoring circuit

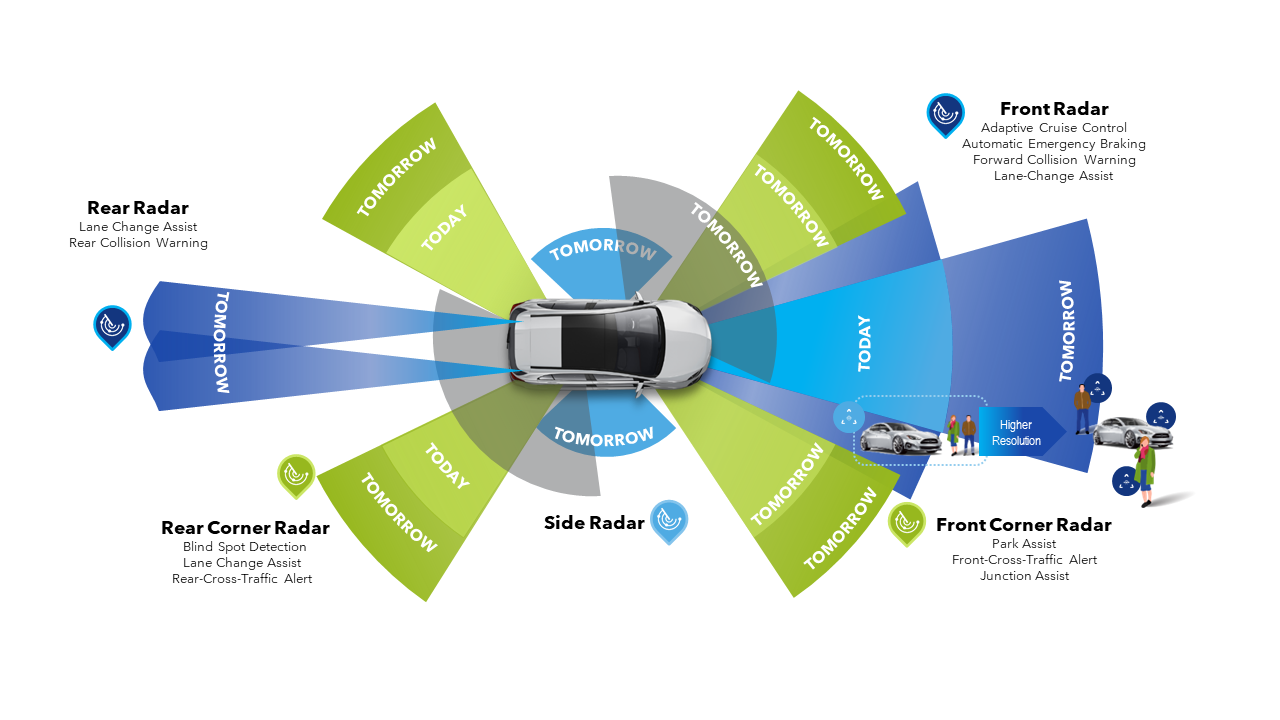

Scalable Applications
- Supports short to long range applications
Automotive Quality
- AEC-Q100
Wide Automotive Temperature Range
- -40 °C to 150 °C junction temperature
Product Programs
Safe Assure™
When it comes to functional safety, NXP stands for quality and reliability. Our SafeAssure program simplifies system-level safety requirements in accordance with ISO 26262.
Buy/Parametrics
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Documentation
Quick reference to our documentation types
5 documents
Compact List
Fact Sheet (1)
Product Brief (2)
White Paper (2)
-
ADAS Architectures and Radar Processing[RADARARCHWPA4]
Design Resources
Hardware
Quick reference to our
board types.
4 hardware offerings
-
Emulators, Probes, and ProgrammersS32 Debug Probe
Active -

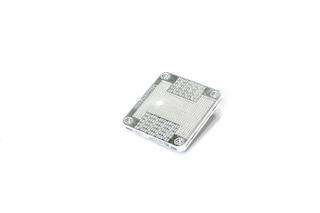

Evaluation and Development BoardsSAF85xx Evaluation Kit with Antenna
-
Reference DesignSAF8544 Pluto Sensor - Radar Reference Design
Preproduction -
Additional hardware available. View our featured partner solutions.
-
Reference DesignPurpleBox Reference Design for Distributed Radar Architectures
Software
Quick reference to our software types.
4 software files
-
Debugging and Visualization Tools
S32 Debugger for S32 Platform
-
Development IDEs and Build Tools
S32 Flash Tool for S32 Platform
-
Development IDEs and Build Tools
S32 Design Studio for S32 Platform
-
Additional software available. View our featured partner solutions.
-
Development IDEs and Build Tools
Premium Radar SDK for Advanced Radar Signal Processing
Note: For better experience, software downloads are recommended on desktop.
Engineering Services
To get further assistance directly from NXP, please see our Engineering Services.
2 engineering services
-
Independent Design House (IDH)
ADAS Product Development - Engineering ServicesFeatured
-
Independent Design House (IDH)

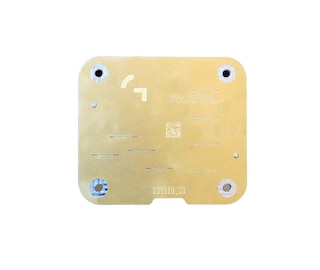

Gapwaves custom-made waveguide antennas
