Name: S32G2 Vehicle Networking Reference Design
Price: 2500.00 USD
Availability: BackOrder

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Click image to open expanded view

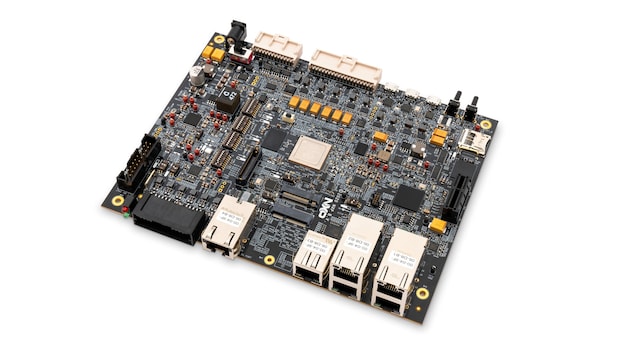

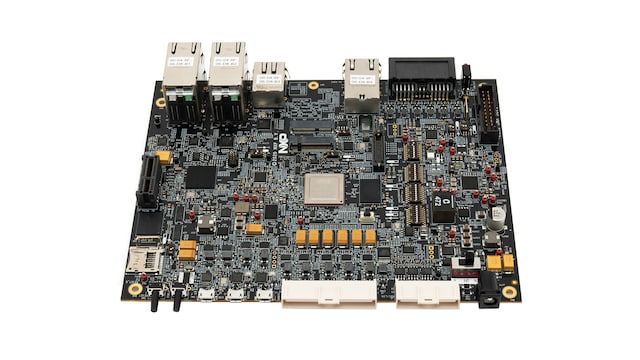

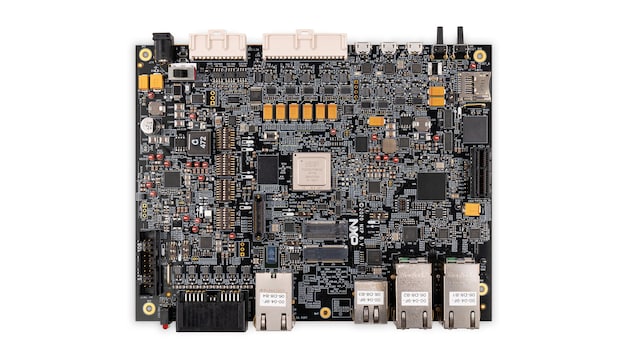

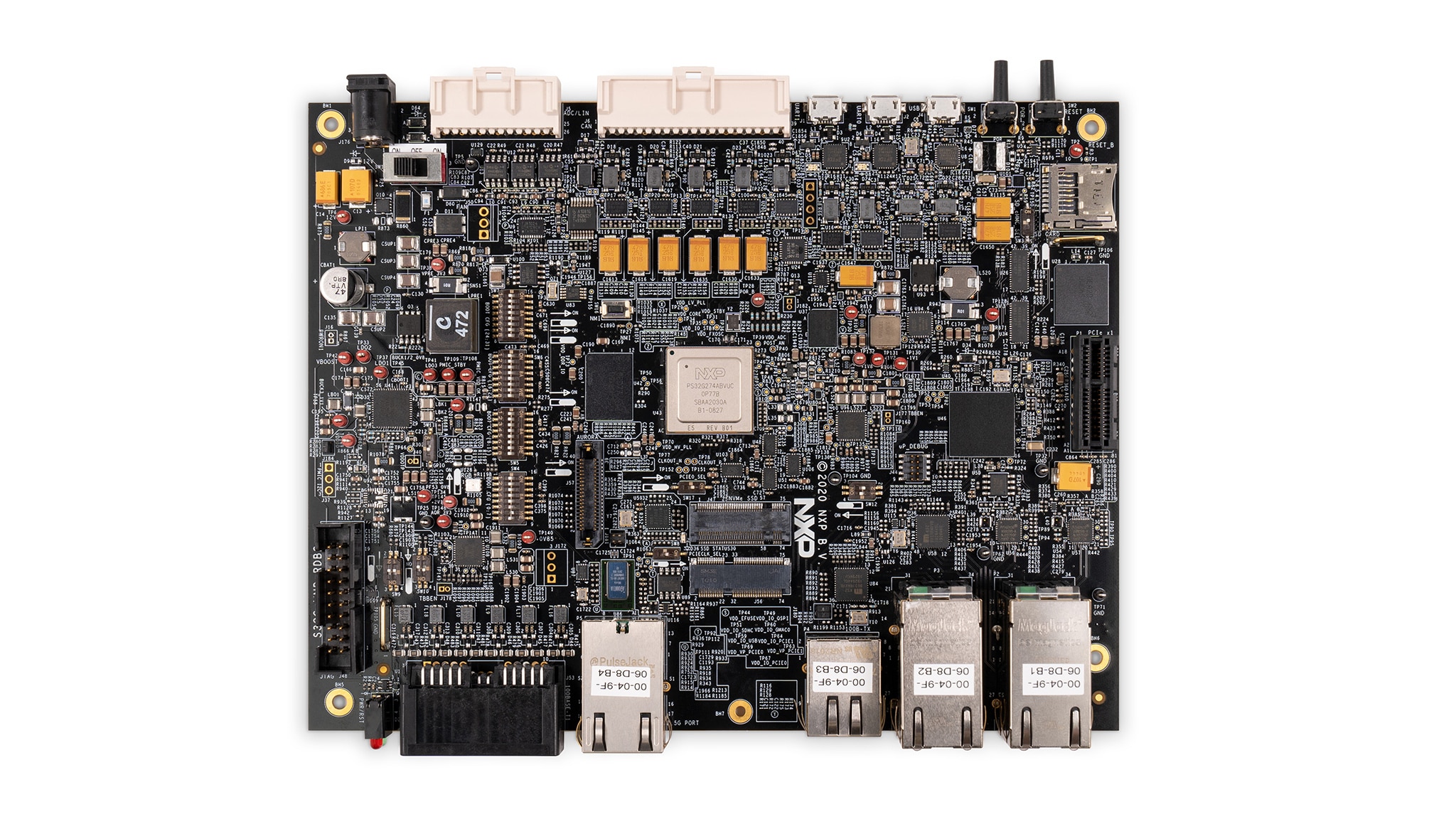

The S32G-VNP-RDB2 is a compact, highly optimized and integrated board engineering for vehicle service-oriented gateway (SoG), domain control applications, high-performance processing, safety and security applications.

Based on quad Arm® Cortex®-A53 cores and triple, dual-core lockstep Arm Cortex-M7 cores, the S32G-VNP-RDB2 offers a high-performance computing capacity and rich input/output(I/O), providing reference for a variety of typical automotive applications, such as central gateway, domain controller, FOTA, secure key management, smart antenna and high-performance central compute nodes.

S32G-VNP-RDB2 offers high levels of compute, real-time network performance, multi-Gigabit packet acceleration and security for new automotive applications.

Design Files

Software

Product Details

Block Diagram

S32G-VNP-RDB2 system architecture

Get diagram PDF

Supported Devices

Power Management

12 V, 24 V, and 48 V SBC Solutions

VR5510: Multi-Channel (9) PMIC for S32G Processor – 8 High Power, 1 Low Power, Fit for ASIL D Safety Level

Interfaces

Automotive Ethernet Switches and Network Controllers

SJA1110: Multi-Gig Safe and Secure TSN Ethernet Switch with Integrated 100BASE-T1 PHYs

Automotive Ethernet PHYs

TJA1102A: TJA1102A/TJA1102AS, Dual/Single Port Automotive Ethernet 100BASE-T1 PHY Transceiver

3.3 V / 5 V IO CAN Transceivers

TJA1043: High-Speed CAN Transceiver with Standby and Sleep Mode

CAN Signal Improvement

TJA1463: CAN Signal Improvement Capability Transceiver with Sleep Mode

Secure CAN Transceivers

TJA1153: Secure HS-CAN Transceiver with Sleep Mode

Features

S32G-VNP-RDB2 Features

Supports service-oriented gateway and domain controller applications
Multiple network interfaces, featuring 18 CAN/CAN FD and 12 Ethernet ports
Supports low-power mode and multiple wake-up sources
Supports two M.2 modules (M-key slot, E-key slot)
ISO 26262 support by using safety components and architecture

Buy Options

Click to expand

S32G-VNP-RDB2
Active

S32G2 Vehicle Networking Reference Design.

Kit Contains

S32G Reference Design Board 2
Universal AC Adapter
AC/DC 12 V, 6.67 A power supply
16 GB SD Card
DuPont Line
(2) USB A-to-Micro B cables (UART0/1)
Ethernet and Ethernet Loopback cables
100BASE-T1 Ethernet cable
J5 cable (LIN/ADC) and J6 cable (CAN/FlexRay)
(4) Heatsinks
(4) Thermal Pads
M2 Screws

$2500.00 USD

Pending Stock

ADD TO CART

Order from distributors
