S32E288-975EVB High-Performance Real-Time Processors Evaluation Board

S32E288-975EVB
Active

Roll over image to zoom in

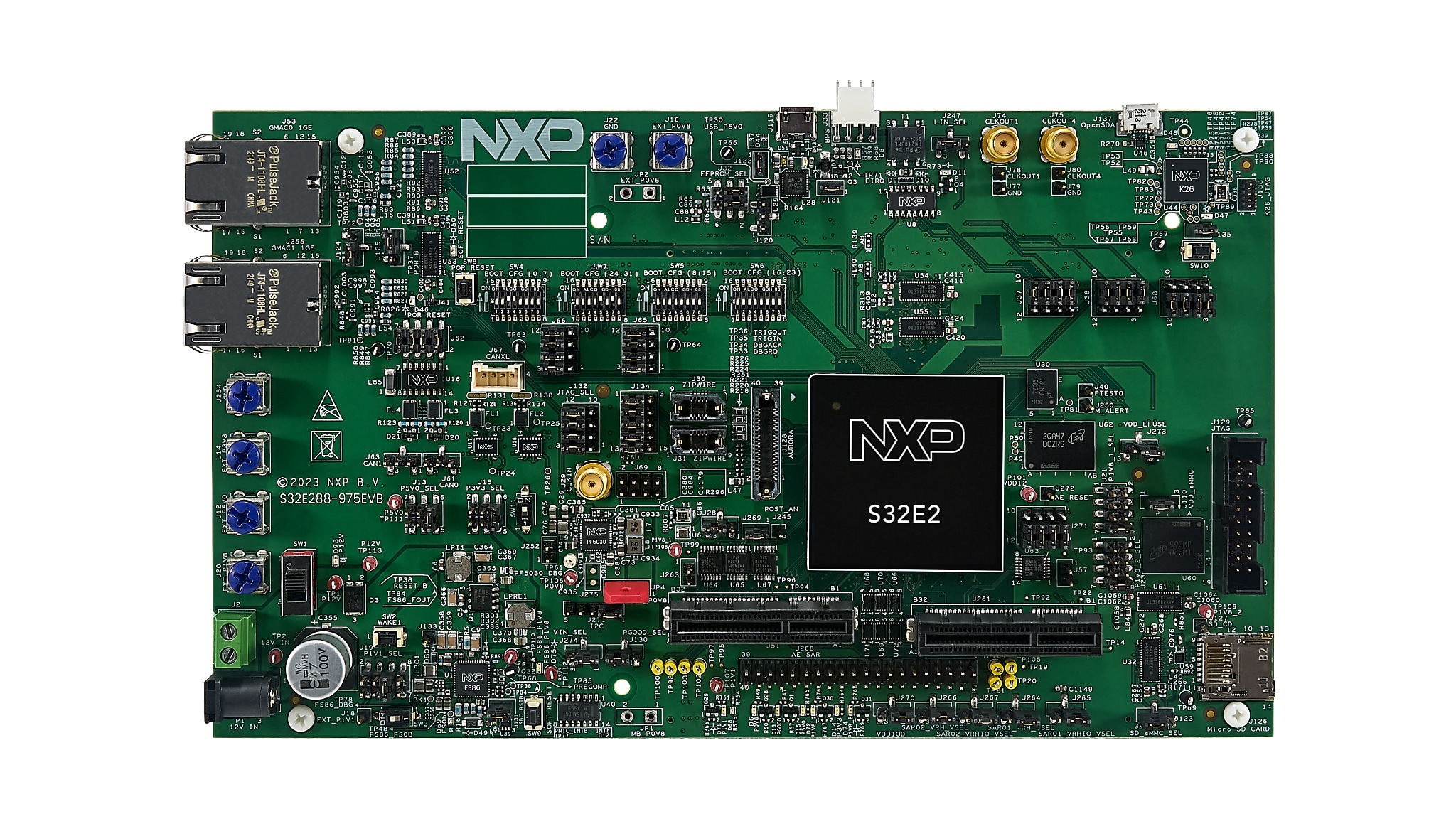

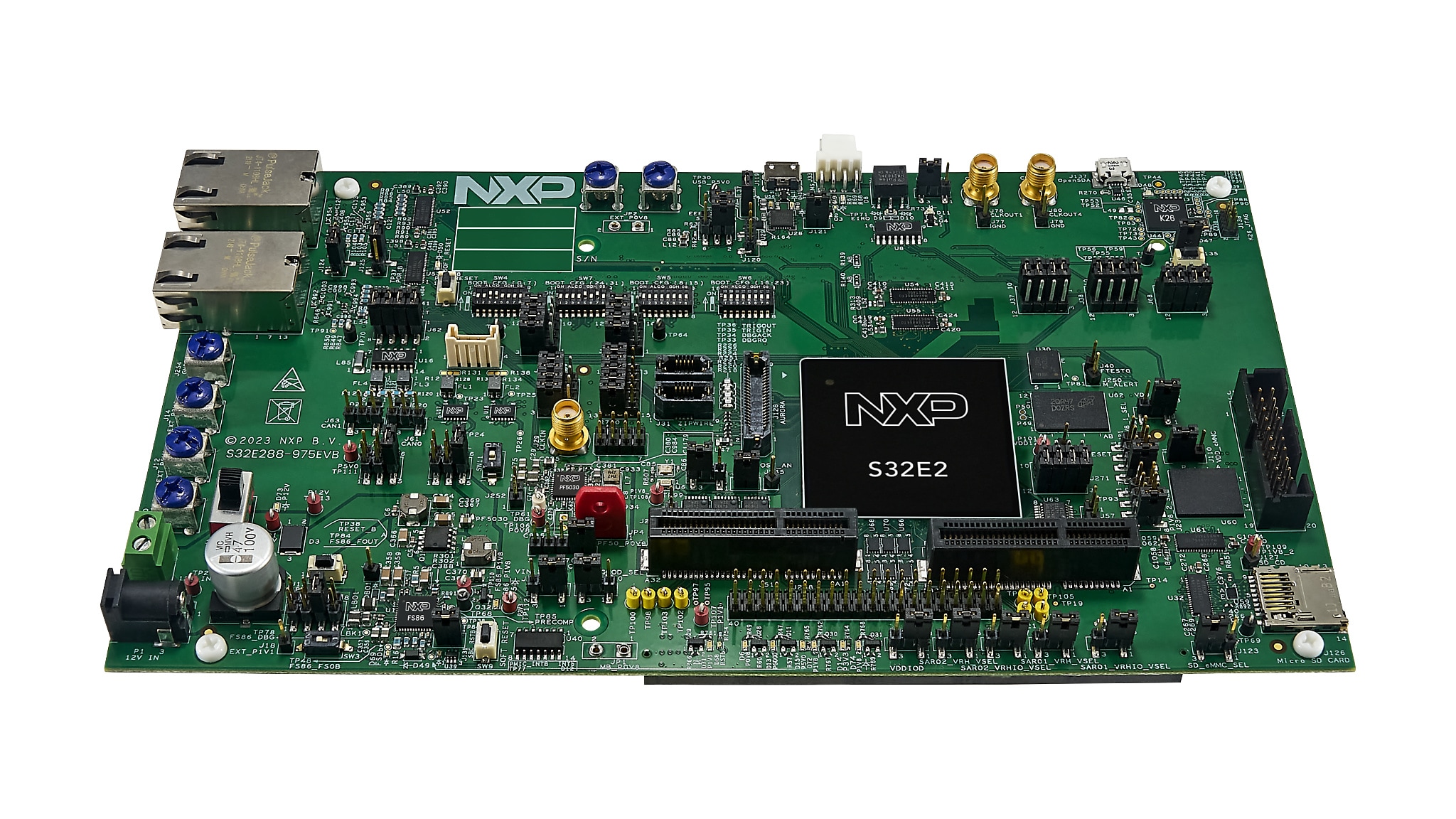

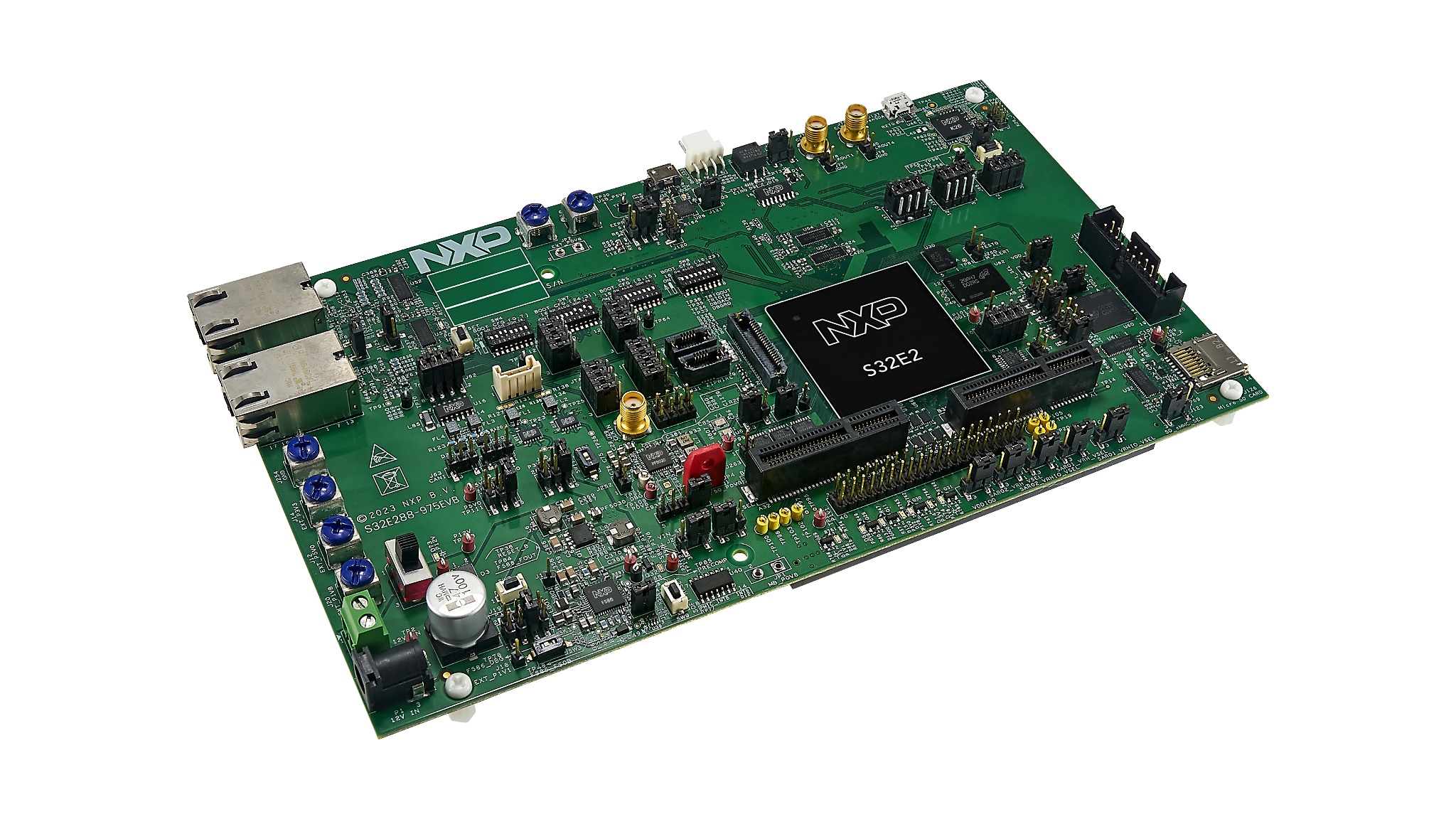

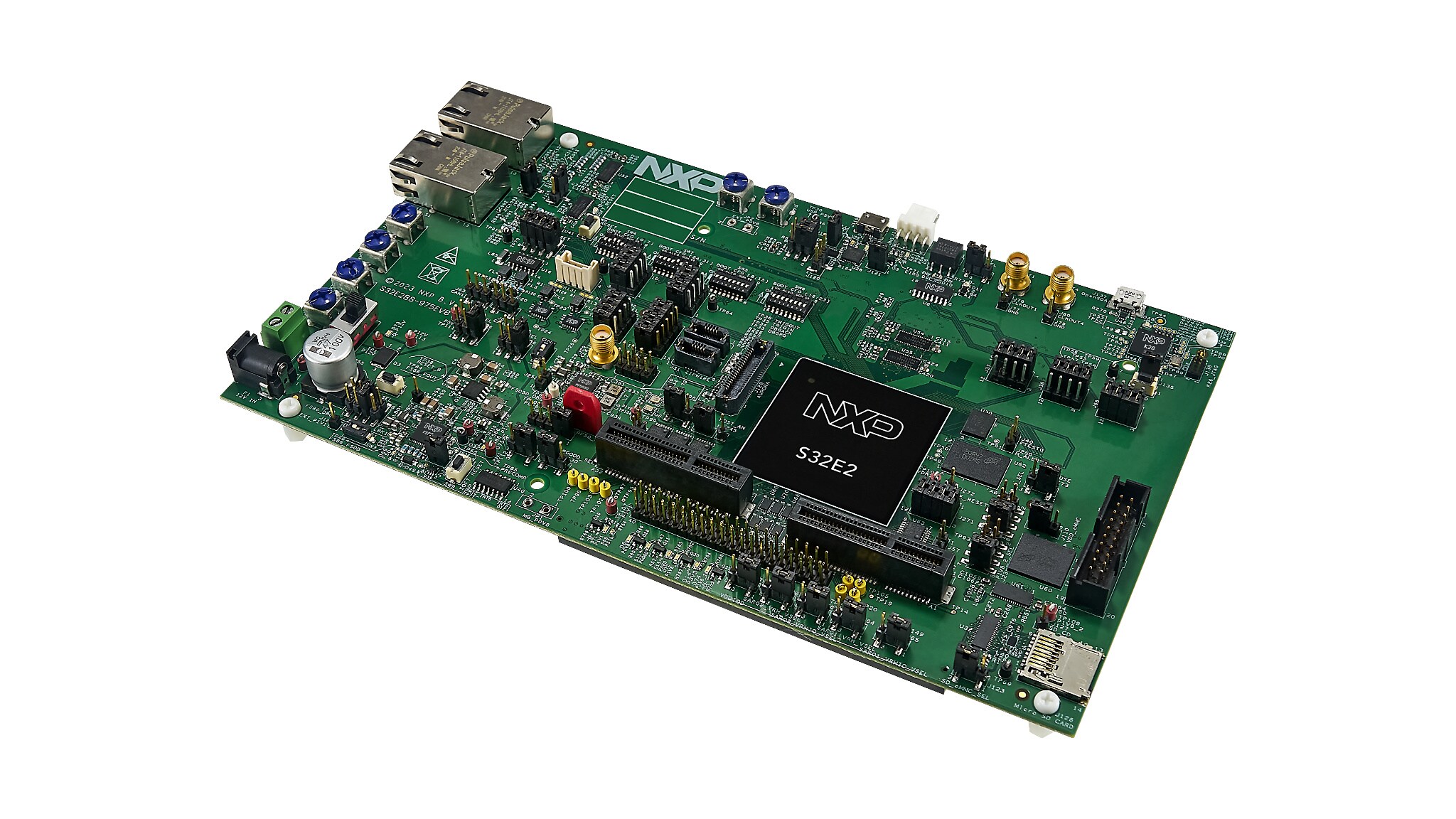

The S32E288-975EVB is an evaluation board for the S32E2 family of safe and secure, high-performance real-time processors. It provides a platform to accelerate the integration of diverse, real-time applications to support electric vehicle (xEV) control and smart actuation.

Based on a production-grade S32E288 processor that combines real-time and DSP/ML processing with hardware virtualization, 32 MB of Octal QSPI Flash, power management devices, multiple clock, boot, I/O and external memory options, Gb Ethernet, CAN FD, UART and SPI interfaces, and JTAG/Aurora debug support.

The S32E288-975EVB is enabled with the GreenVIP vehicle integration platform software that integrates NXP standard and reference design software, along with open source and third-party software to support evaluation, development and rapid prototyping.

S32E288-975EVB is a standalone development board. However, it can also be utilized with the S32X-MB for additional functionality and access to I/O and peripherals. Some of these additional peripherals include CAN FD, Ethernet, FlexRay, LIN and motor control.

Block Diagram

S32E288-975EVB Evaluation Board

S32E288-975EVB Evaluation Board
Get diagram PDF

Supported Devices

Processors and Microcontrollers

S32Z and S32E Real-Time Processors

  • S32E2: S32E2 Safe and Secure High-Performance Real-Time Processors with Actuation Support

Battery Management

Battery Communication ICs

  • MC33664: Isolated Network High-Speed Transceiver

Power Management

12 V, 24 V, and 48 V SBC Solutions

  • FS86: Safety System Basis Chip For Domain Controller, Fit For ASIL B and D

5 V PMIC Solutions

  • PF5030: Multi-Channel PMIC for Automotive Applications

Interfaces

CAN with Flexible Data Rate

  • TJA144x: Automotive CAN FD Transceiver Family

CAN Signal Improvement

  • TJA1463: CAN Signal Improvement Capability Transceiver with Sleep Mode

Features

Interfaces

  • 2x 1 Gbps Ethernet
  • 1x LIN
  • 1x HyperFlash
  • 2x CAN-FD
  • 2x CAN-XL
  • 1x LPDDR4 DRAM
  • 1x SDHC
  • 1x Serial Flash
  • 1x EEPROM
  • 2x Zipwire
  • 1x BMS Interface
  • 1x SPI
  • 2x Motor Control Connectors
  • 1x Aurora Trace
  • 1x JTAG
  • Interface to S32X-MB I/O Extension evaluation board

Power Supply

  • +12 V power connector
  • Interfaces for individual external supplies

Buy Options

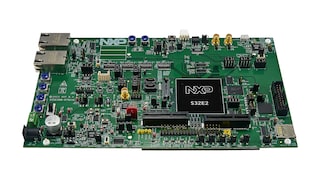

S32E288-975EVB-Image

Click to expand

S32E288-975EVB
Active

S32E288-975EVB High-Performance Real-Time Processors Evaluation Board.

    $1150.00 USD
    In Stock :2

    Normally ships 1-2 business days

    ADD TO CART
