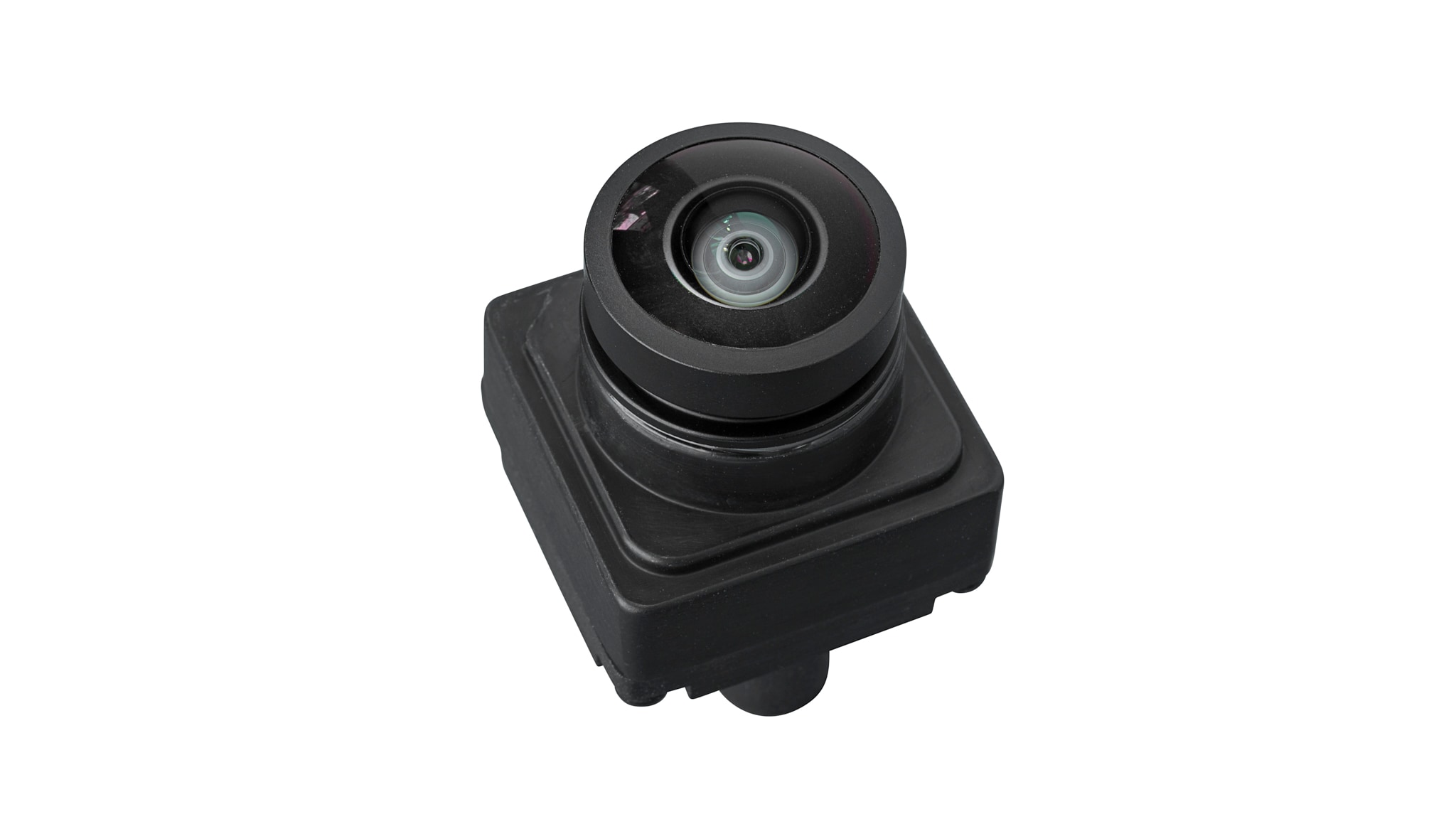

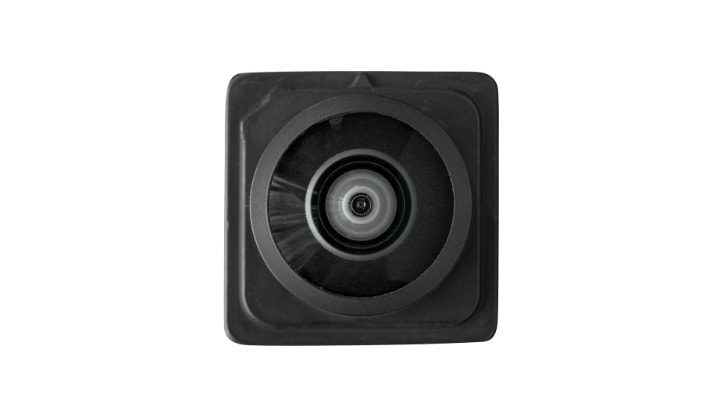

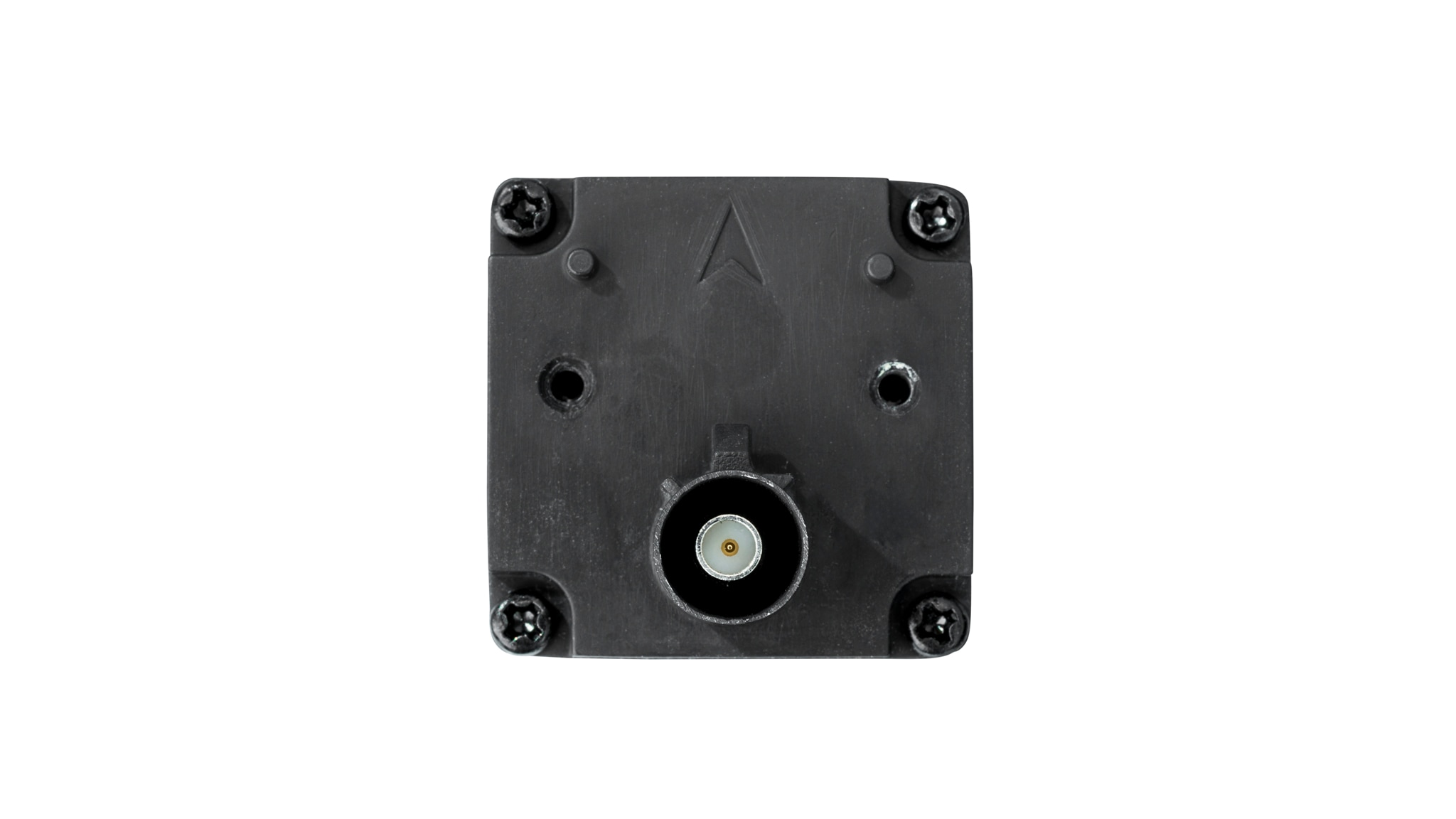

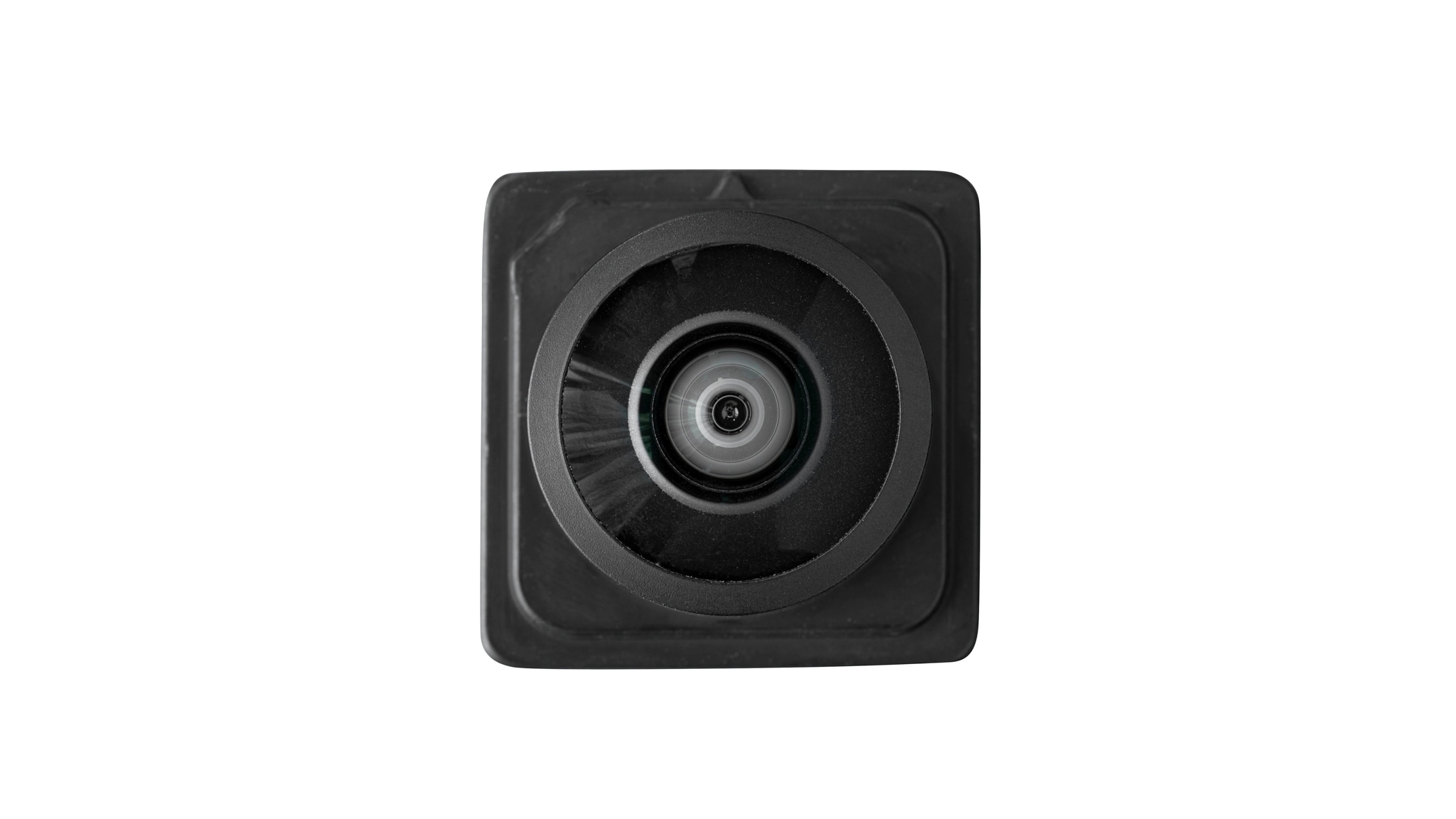

The camera serilizer module accessory converts the OX03C10 sensor's MIPI CSI output to GMSL2, GMSL2 data that can be transported over Coaxial cables.

Design Files

Product Details

Supported Devices

Processors and Microcontrollers

i.MX 9 Processors

i.MX95: i.MX 95 Applications Processor Family: High-Performance, Safety Enabled Platform with eIQ® Neutron NPU

Features

The OX03C10 sensor:

Supports uncompressed 24-bit and 20/16/14/12-bit (PWL) combined HDR
Supports 1920 × 1280 image size and any cropped size
Delivers a maximum image transfer rate of 60 fps at 1280p
Offers a pixel size of 3 μm × 3 μm
Lens specifications:

Field of View (FOV): H 195.9°, V 130.4°, D 210.4°
F-number: f/2.0 ± 5 %

Buy Options

Click to expand

MX95MBCAM10001
Active

MX95MBCAM10001.

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Design Resources

Related Hardware

Quick reference to our board types.

2 hardware offerings

Evaluation and Development Boards
i.MX 95 19mm x 19mm Evaluation Kit
Active

IMX95LPD5EVK-19Complementary
Module
MX95MBDES10001 Adapter Board Kit

MX95MBDES10001Similar

Design Files

Quick reference to our design files types.

1 design file

Design Files - miscellaneous
MX95MBCAM10001 Design Filesnew

ZIPRev 1.0Mar 23, 2026 14:04:00546.84 KBMX95MBCAM10001-DESIGNFILES
