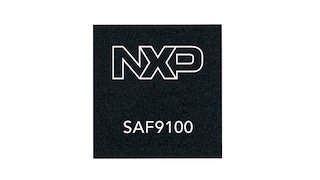

One-Chip Solution, Scalable Audio DSP Processing with AI/ML Capability
Design Files
Receive the full breakdown. See the product footprint and more in the eCad file.
Multi-Channel (4) PMIC for Automotive Radio Applications – 3 LVBUCK and 1 LDO
The PF0300 is NXP’s multi-channel PMIC device designed to be used for automotive radio application and industrial application. The PF0300 is also highly configurable making it a great companion and fit for various system level power requirements.
This device is suitable for NXP radio processor based applications.
Product Details
Block Diagram
Features
Key Features
- Three LVBUCK converters up to 3.5 A
- One LDO up to 500 mA
- 28-pin 4.5 x 4.5 FC-QFN package
System Features
- One-time programmable (OTP) memory for flexible device configuration
- High speed I²C interface (3.4 MHz)
- PGOOD monitoring circuits
- External clock synchronization
- Frequency spread spectrum
- Multi PMIC synchronization bus
- Watchdog (Simple window)
- Voltage monitoring with programmable fault protection
Programmability
- Supplies, sequencing and specific functions can be programmed by one time programmable (OTP) memory
- During development phase, customized OTP part can be programmed using the evaluation board
- Custom OTP can be provided for production. Please contact your NXP sales channel (NXP or your distributor)
- Custom OTP can be created using the GUI tool
Standard Configurations
| Part Number | Use Case | Safety Grade | OTP Configuration |
|---|---|---|---|
| MPF0300AMMA1ES | NXP SAF9x00 | QM | MA1 OTP report |
| MPF0300AMMA5ES | NXP SAF9x00 | QM | MA5 OTP report |
