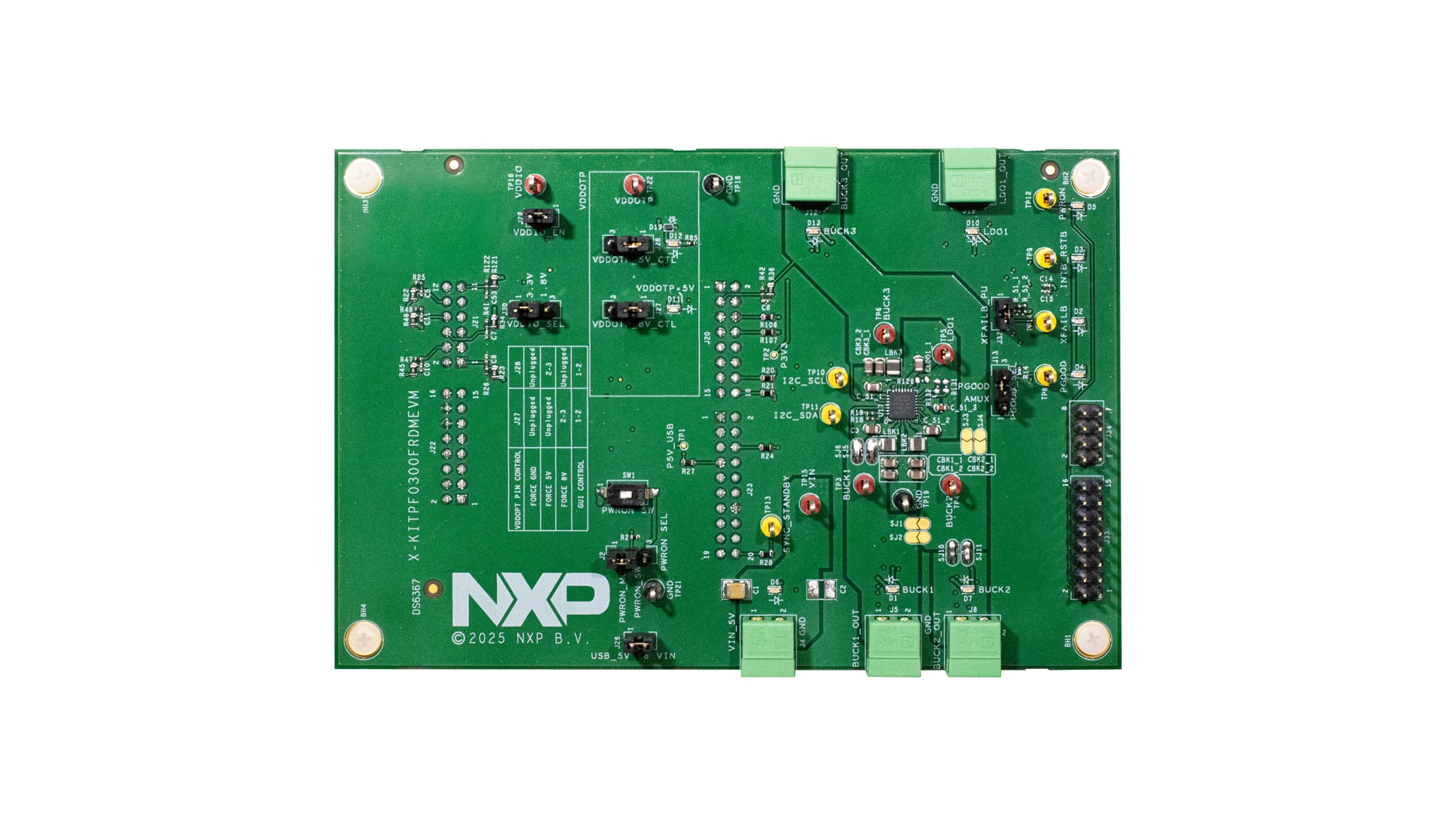

The KITPF0300FRDMEVM enables easy evaluation and development of the PF0300 power management IC, designed for low-voltage automotive radio applications up to 5 V. The evaluation module can operate in standalone mode or be controlled through its USB interface, and all I²C commands are easily managed using NXP's GUI software.

The board is populated with a superset version of the PF0300. The device soldered onto the board supports one-time OTP (One-Time Programmable) fusing, or it can be used in Debug mode to test and validate as many configuration settings as needed before final OTP programming.

Product Details

Block Diagram

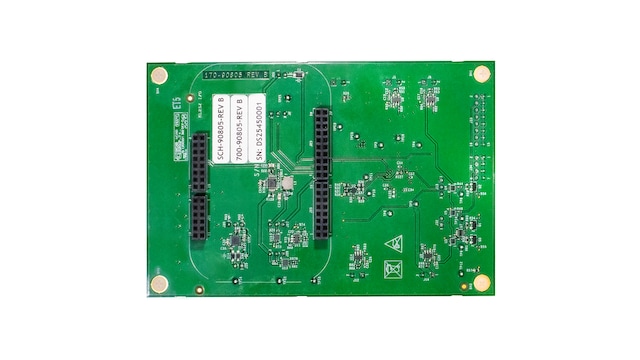

PF0300 Evaluation Board

PF0300 PMIC Evaluation board for Automotive Applications fit for ASIL-B.

Get diagram PDF

Supported Devices

Power Management

5 V PMIC Solutions

PF0300: Multi-Channel (4) PMIC for Automotive Radio Applications – 3 LVBUCK and 1 LDO

Features

Connectivity

FRDM-KL25Z board allows USB connection for easy connection to software GUI (I²C, IOs, Safety outputs, Debug, AMUX, regulators) USB connection for register access, debug mode and programmation

Power Management

BUCK1 : 0.5 V to 3.3 V, 3.5 A (Single/Multi phase)
BUCK2 : 0.5 V to 3.3 V, 3.5 A (Single/Multi phase)
LDO1 : 0.75 V to 3.3 V, 0.5 A

Components

LEDs that indicate signal or regulator status

Support

Debug mode access
OTP fuse programming
Connectors allowing easy access to digital signals

Buy Options

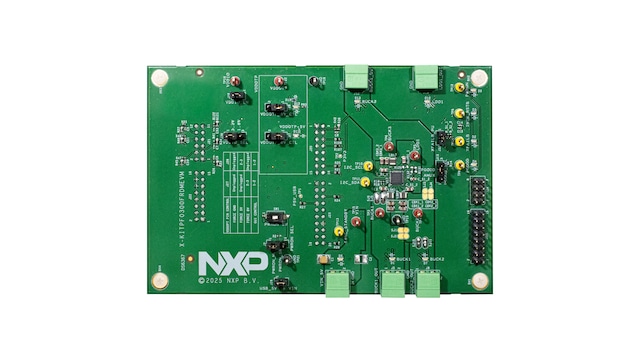

KITPF0300FRDMEVM-Image

Click to expand

KITPF0300FRDMEVM
Active

PF0300 Evaluation Board.

Kit Contains

PF0300 PMIC Evaluation Board.

Assembled and tested the evaluation board in an antistatic bag
Quick start guide
An assembled and tested evaluation board and preprogrammed FRDM-KL25Z microcontroller board in an antistatic bag
A 3.0 ft USB-STD A to USB-C-minicable
Jumpers mounted onboard
Mating Phoenix connector

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Documentation

Quick reference to our documentation types

2 documents

Compact List

Getting Started with the KITPF0300FRDMEVM Evaluation Board[GS-KITPF0300FRDMEVM]

HTMLMar 26, 2026

KITPF0300FRDMEVM Evaluation Board[UM12149]

HTML | PDFMar 6, 2026Rev 1.2

Design Resources

Design Files

Quick reference to our design files types.

2 design files

Printed Circuit Boards and Schematics
KITPF0300FRDMEVM Design Files

ZIPRev 1.0Feb 17, 2026 17:02:009.86 MBKITPF0300FRDMEVM-DESIGN-FILES
