PF51x3 Evaluation Board

KITPF5103FRDMEVM
Active

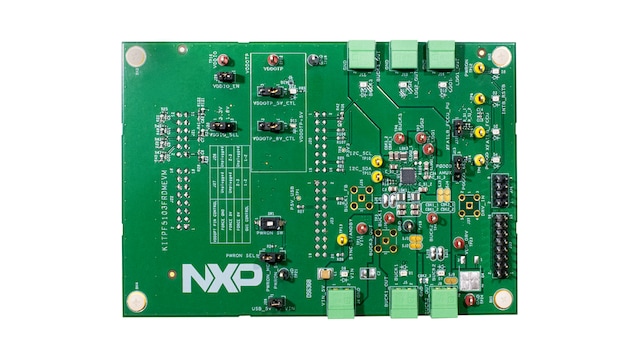

Click image to open expanded view

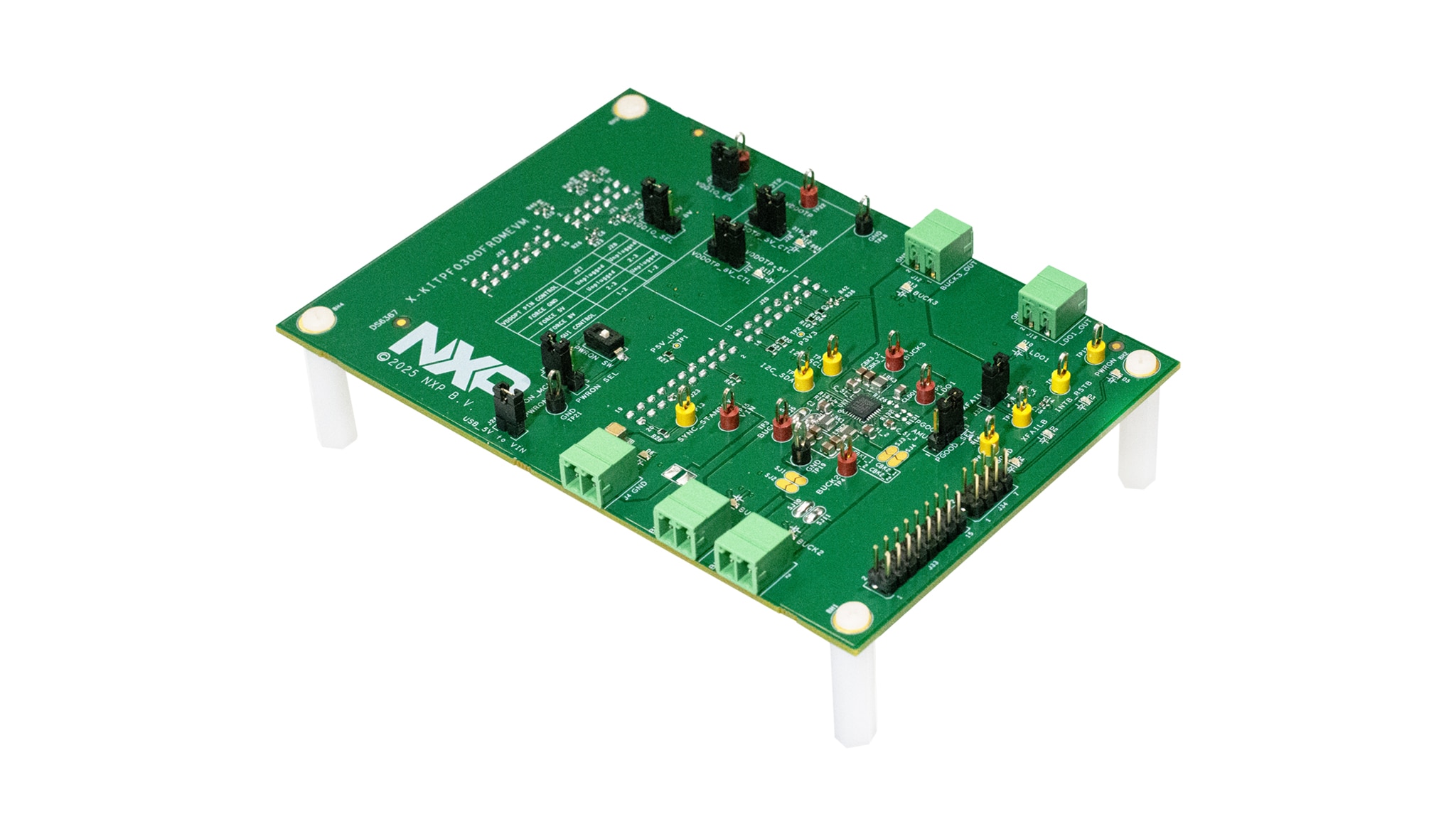

The KITPF5103FRDMEVM enables easy evaluation and development of the PF51x3 power management IC family, designed for low-voltage automotive applications up to 5 V. The tool can operate in standalone mode or be controlled through its USB interface, and all I²C commands are easily managed using NXP's GUI software.

The board is populated with a superset PF51x3 device. The PMIC soldered on the board supports one-time OTP (One-Time Programmable) fusing, or it can be used in debug mode to test and validate as many configuration settings as needed before final OTP programming.

Block Diagram

KITPF5103FRDMEVM

KITPF5103FRDMEVM Block Diagram
Get diagram PDF

Supported Devices

Power Management

5 V PMIC Solutions

  • PF51x3: Multi-Channel (5) PMIC for Automotive Applications: 3 LVBUCK and 2 LDO, Fit for ASIL B Safety Level

Features

Connectivity

  • FRDM-KL25Z board allows USB connection for easy connection to software GUI (I²C, IOs, Safety outputs, Debug, AMUX, regulators) USB connection for register access, debug mode and programmation

Power Management

  • BUCK1: 0.5 V to 3.3 V, 3.5 A (Single/Multi phase)
  • BUCK2: 0.5 V to 3.3 V, 3.5 A (Single/Multi phase)
  • BUCK2: 0.5 V to 3.3 V, 3.5 A (Single/Multi phase)
  • LDO1: 0.75 V to 3.3 V, 0.2 A
  • LDO2: 0.75 V to 3.3 V, 0.5 A

Components

  • LEDs that indicate signal or regulator status

Support

  • Debug mode access
  • OTP fuse programming
  • Connectors allowing easy access to digital signals

Buy Options

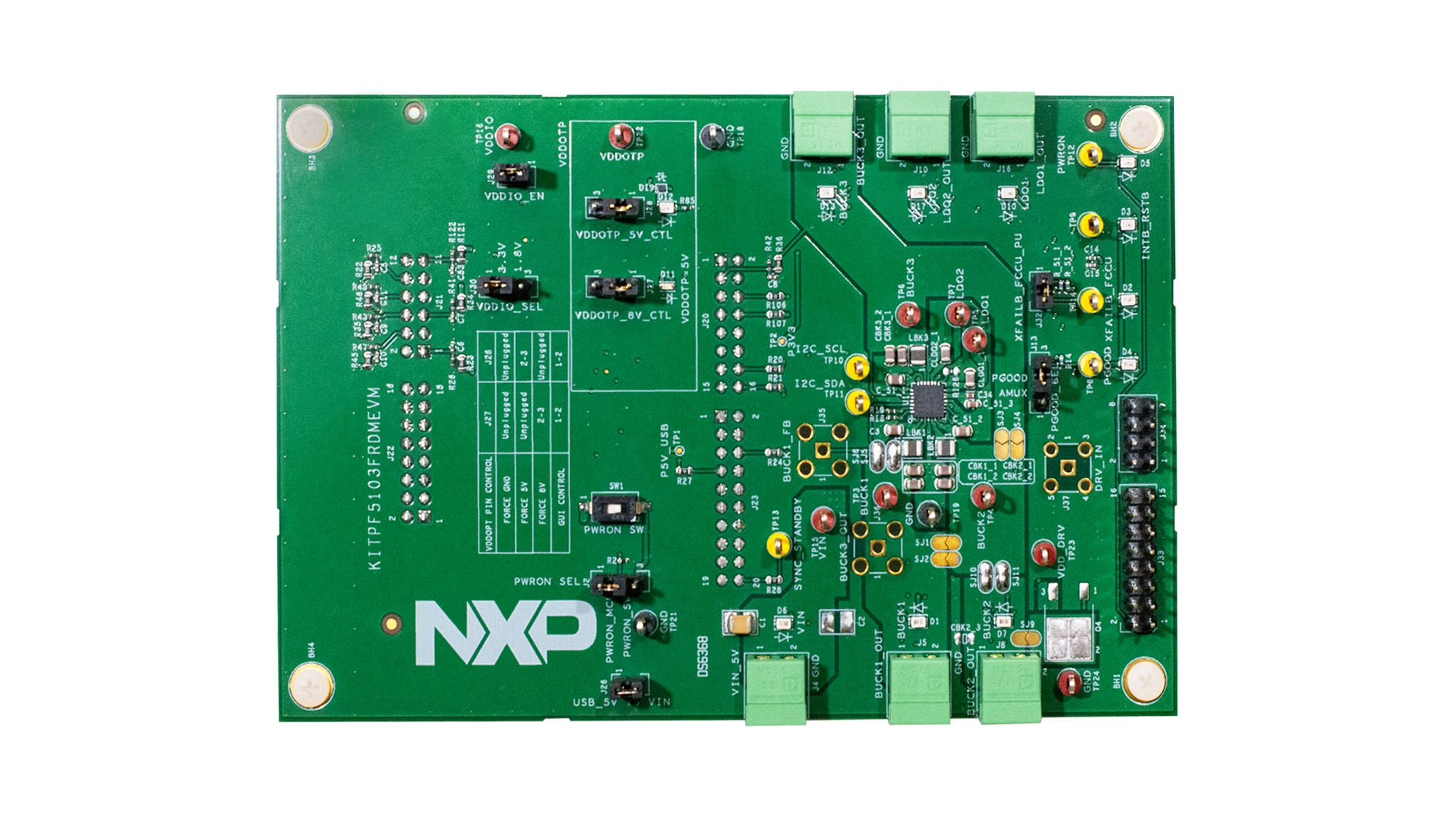

KITPF5103FRDMEVM-Image

Click to expand

KITPF5103FRDMEVM
Active

PF51x3 Evaluation Board.

    $343.85 USD
    In Stock :9

    Normally ships 1-2 business days

    ADD TO CART
    Order from distributors
