KITPF5302FRDMEVM 15 A Core Regulator Evaluation Board

KITPF5302FRDMEVM

Roll over image to zoom in

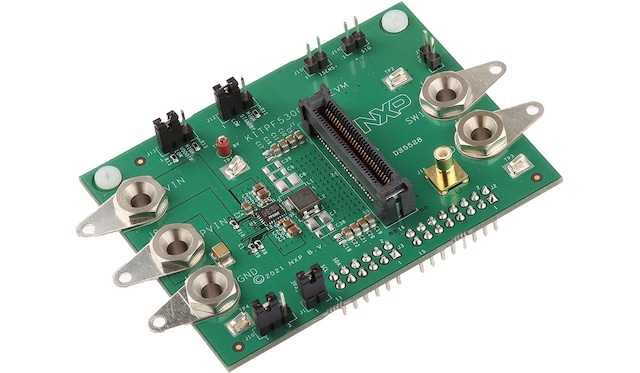

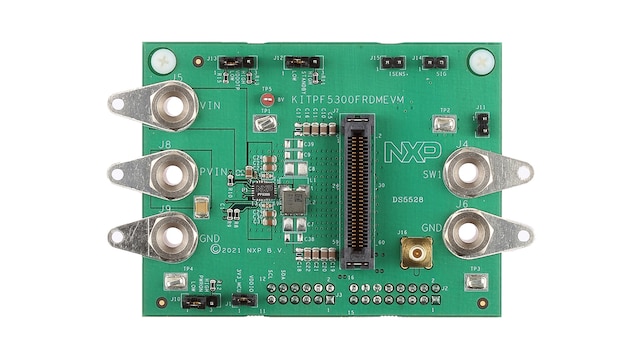

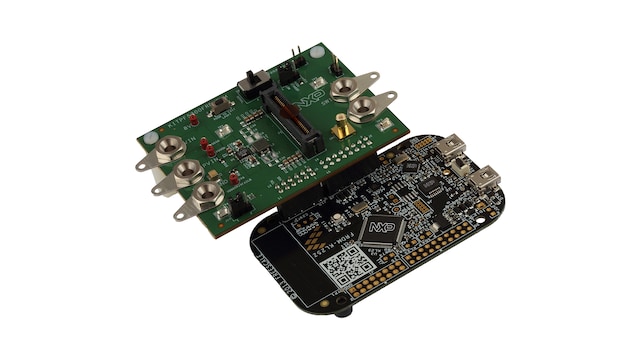

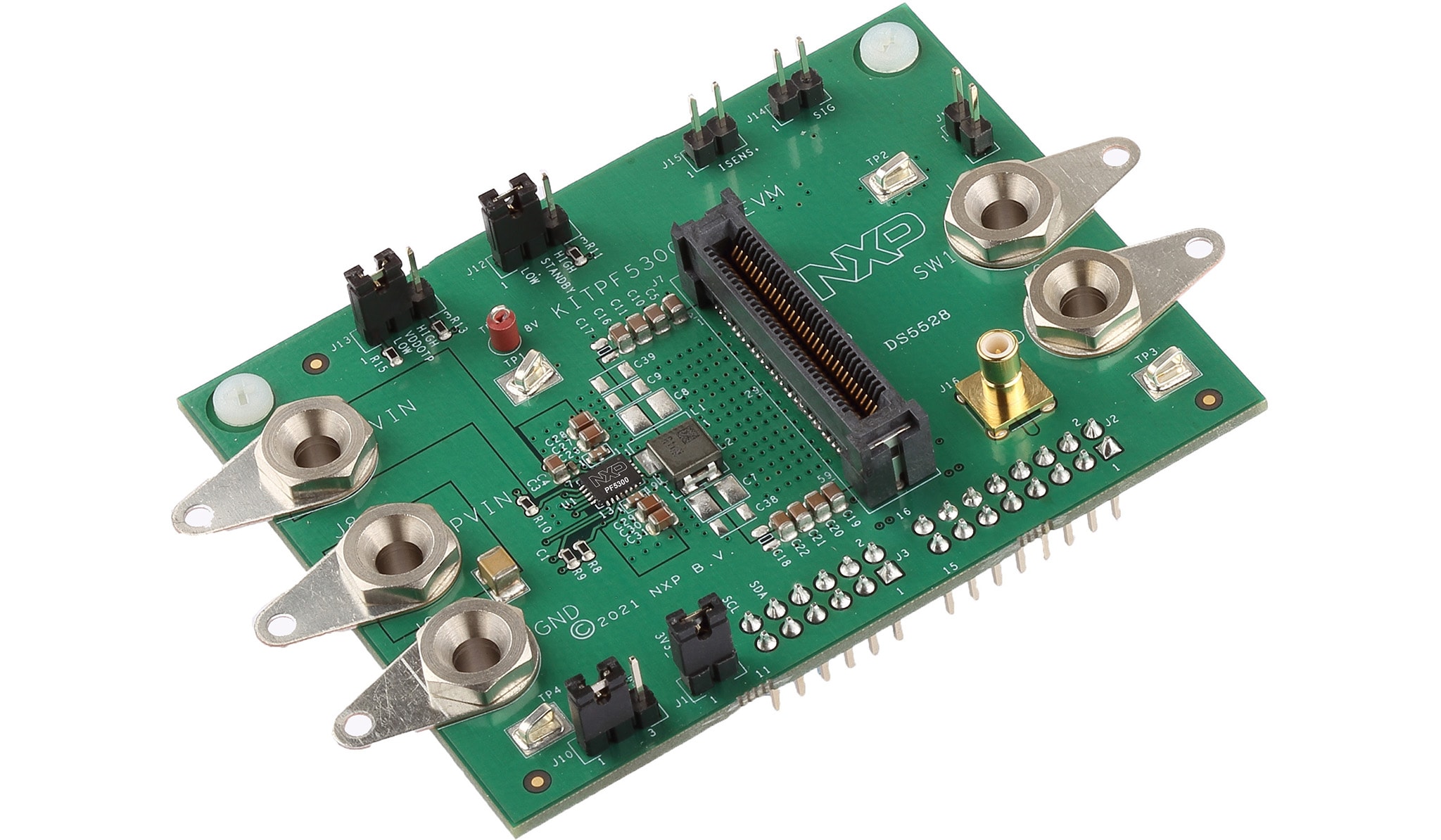

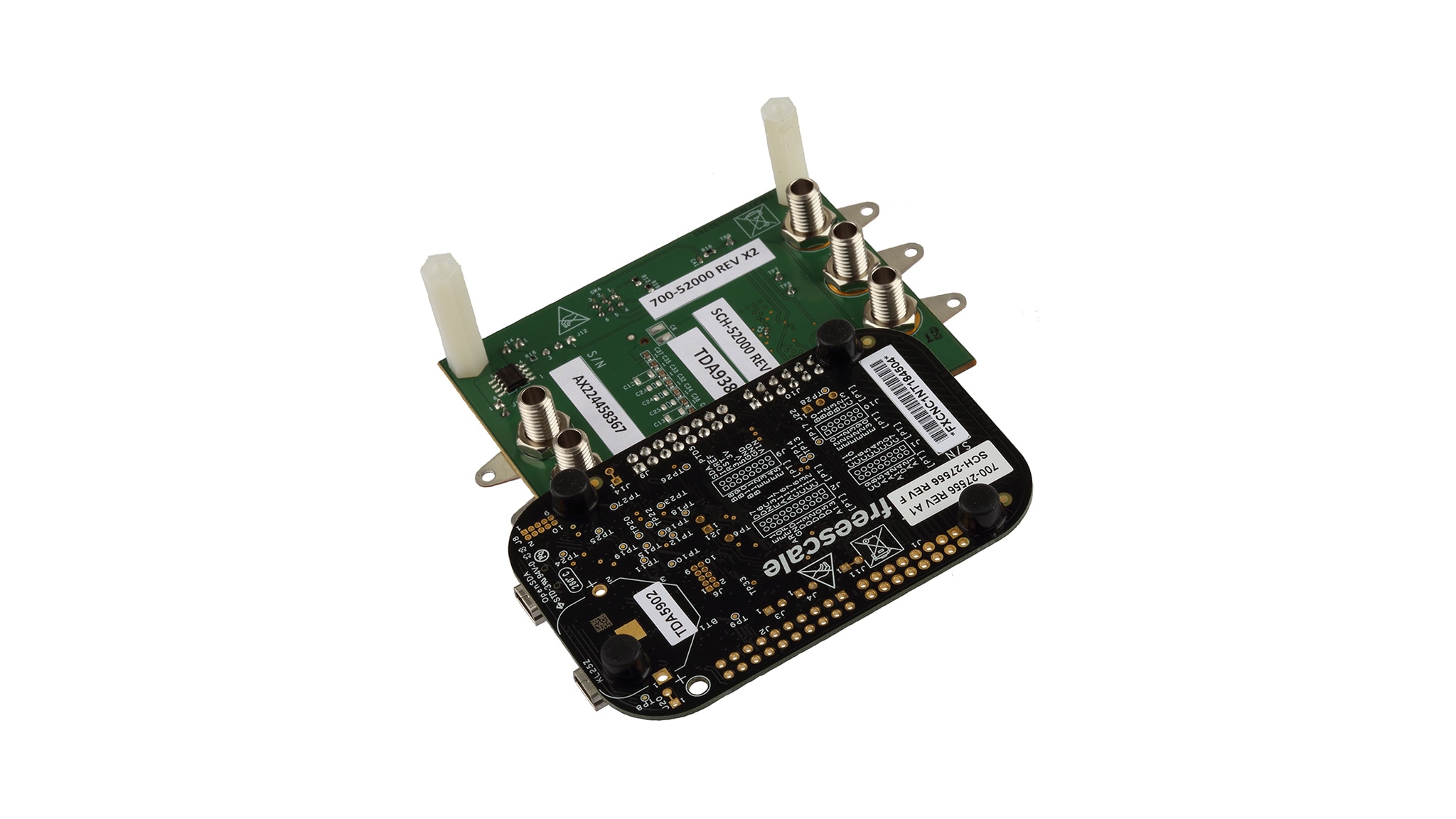

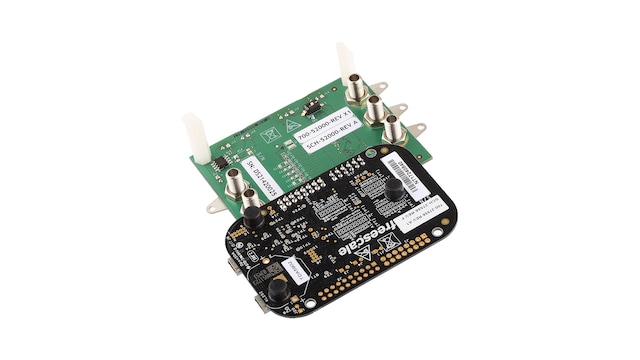

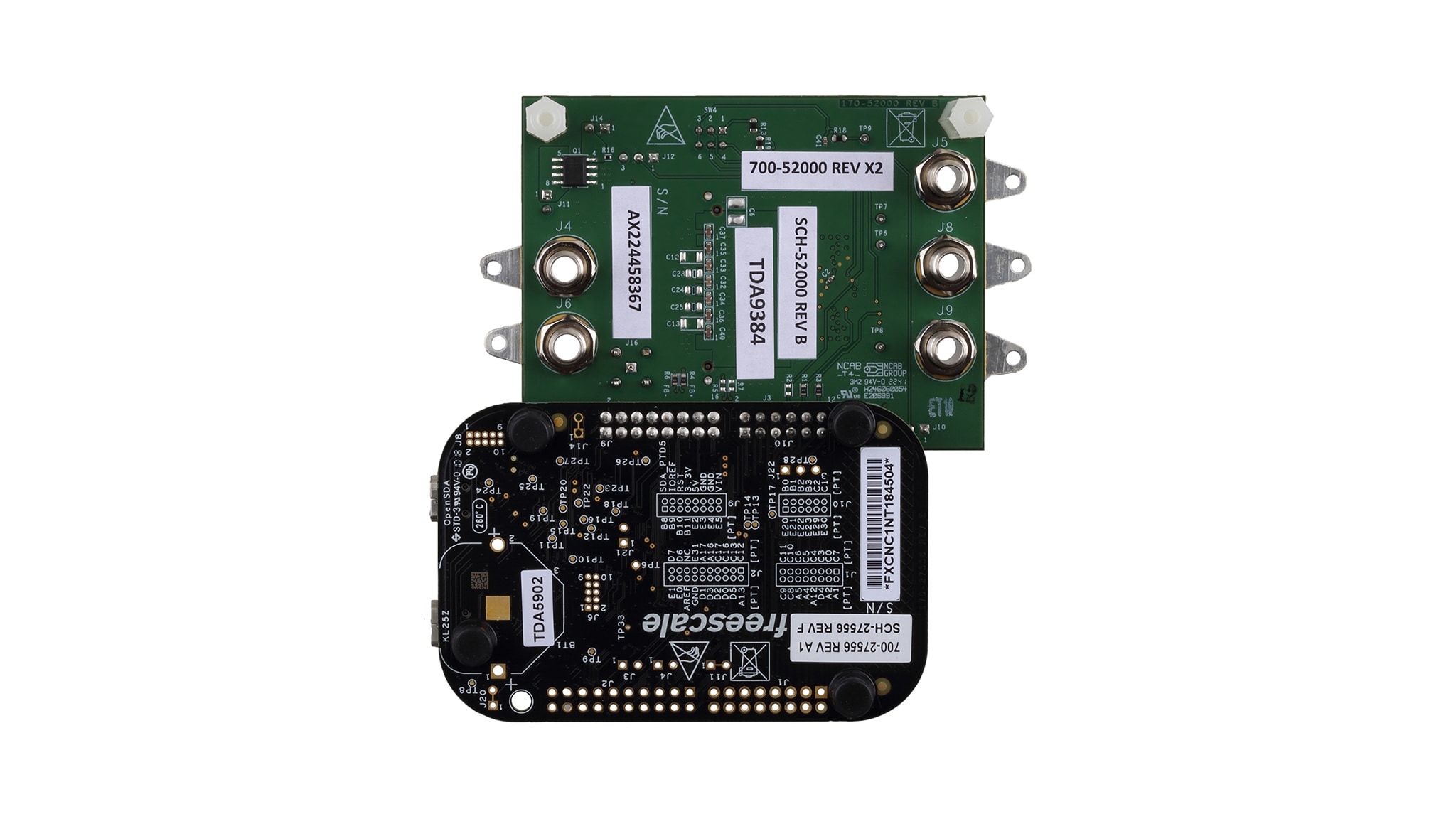

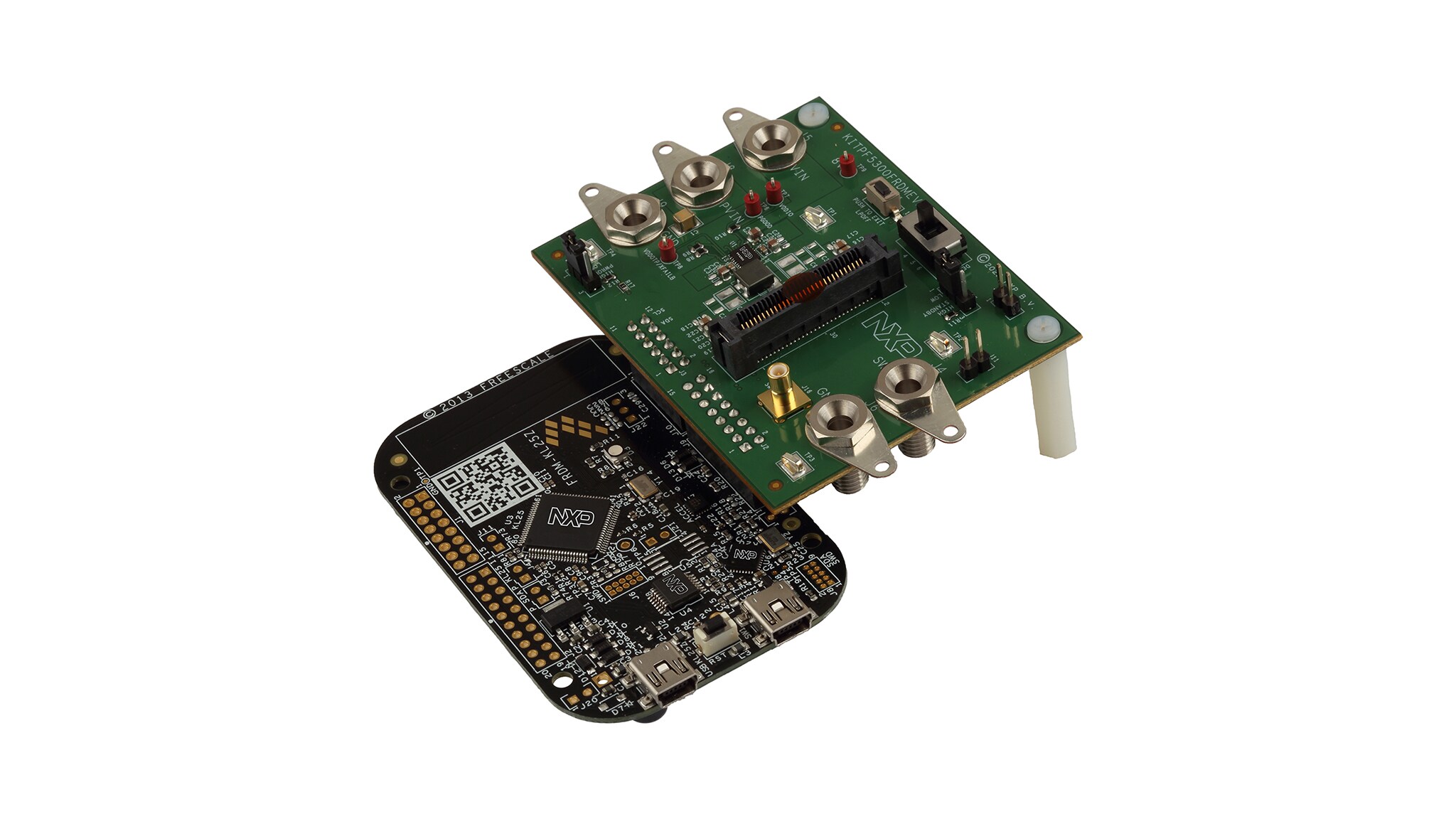

The KITPF5302FRDMEVM is a customer evaluation board/kit featuring the PF5302 core regulator IC.

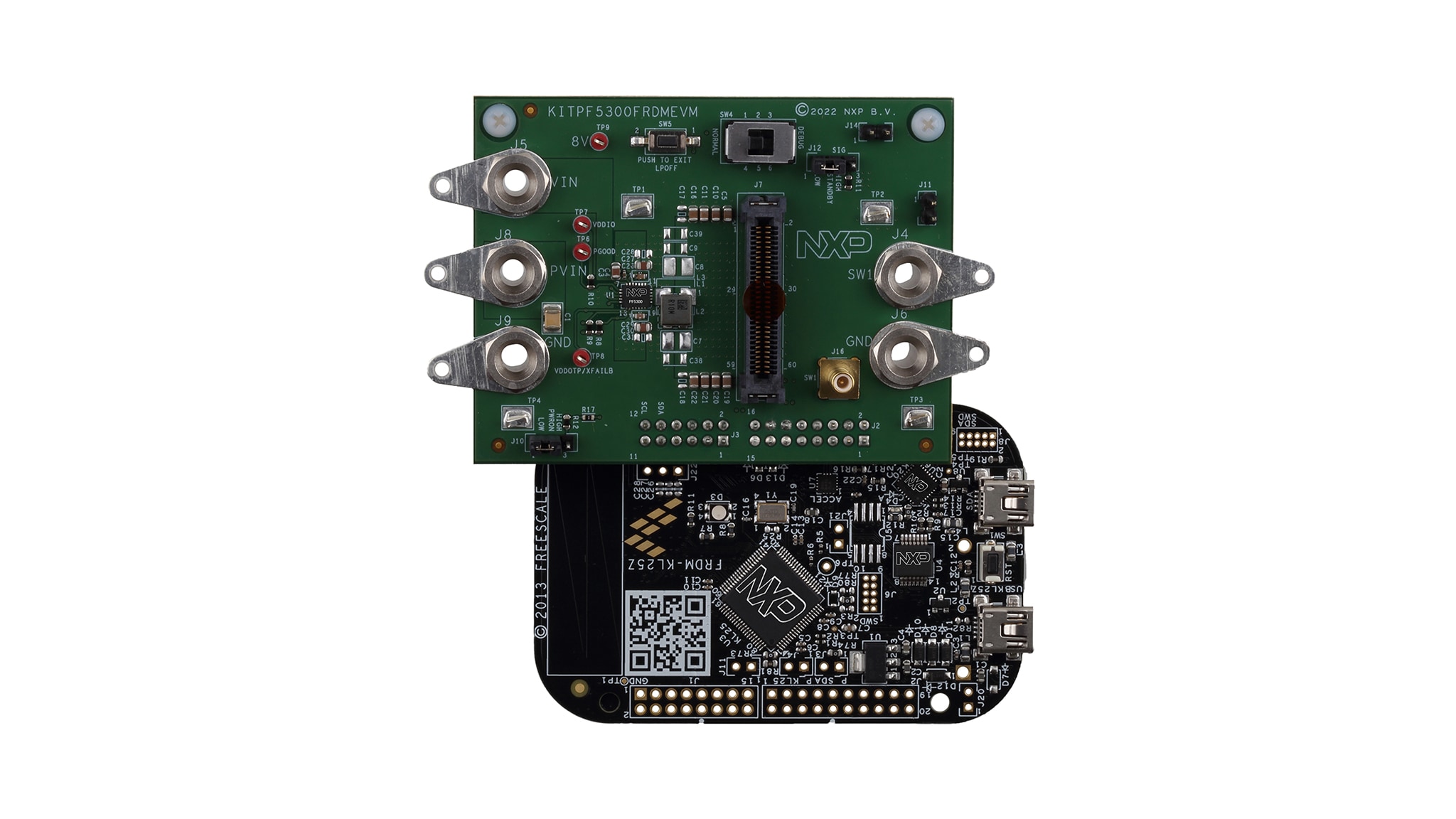

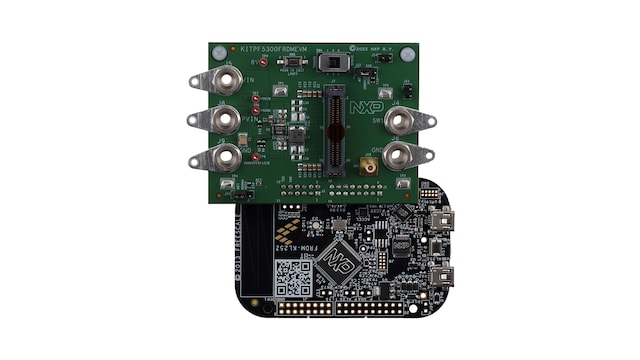

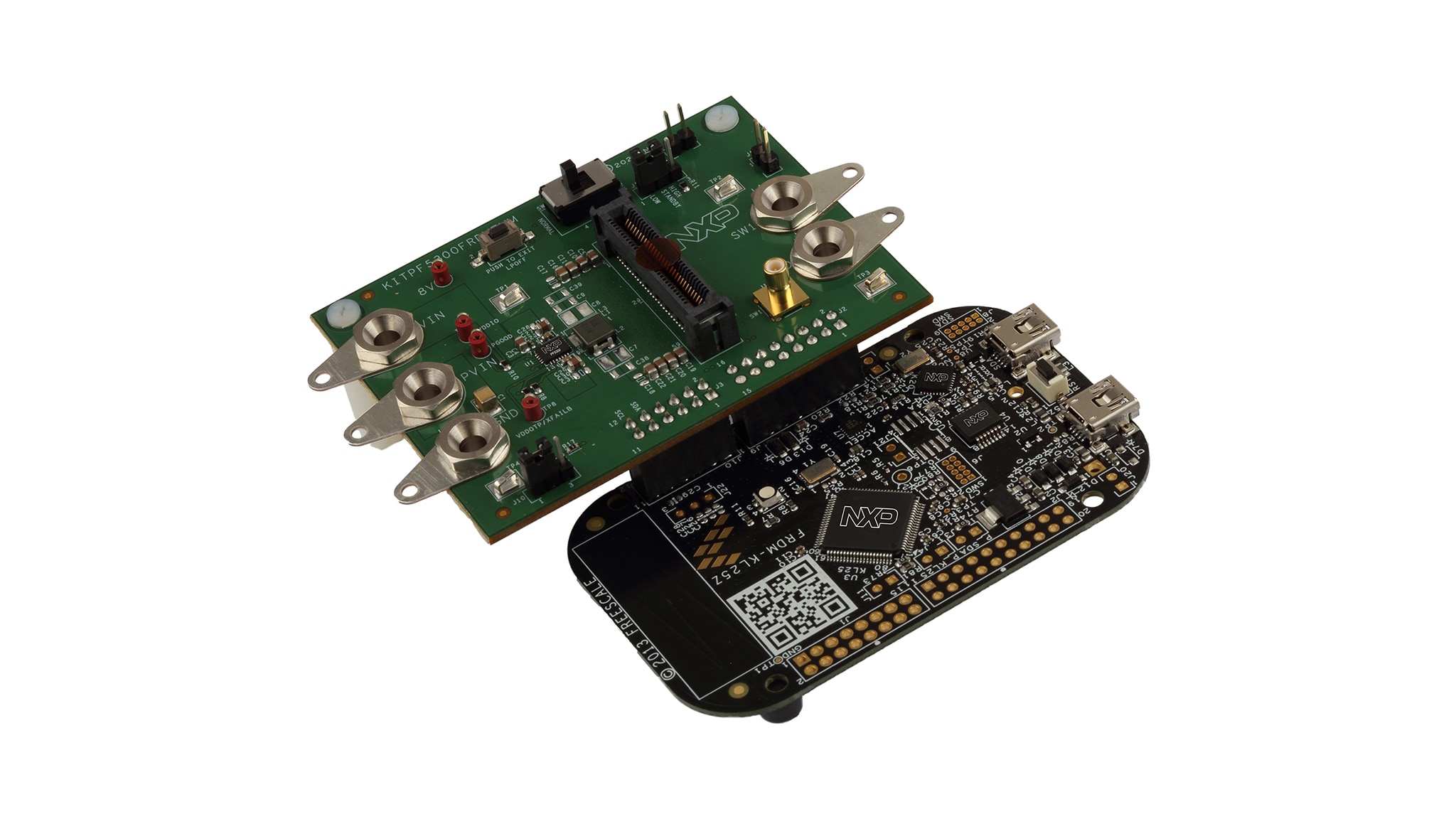

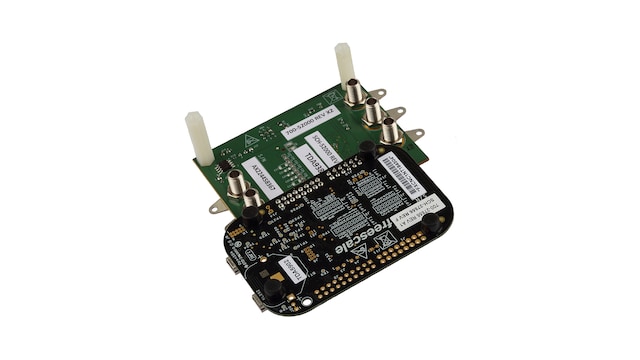

The kit integrates all hardware needed to fully evaluate the featured power management integrated circuit. It integrates a communication interface based on the FRDM-KL25Z development board to interface with the NXP GUI software to fully configure and control the PF5302 PMIC. It can also be used to evaluate the PF5300 and PF5301.

Supported Devices

Power Management

5 V PMIC Solutions

  • PF53: 12 A / 8 A / 15 A Core Supply Regulator with AVP and Watchdog

Features

PMICs

  • PF5300
  • PF5301
  • PF5302

Features

  • High current core supply
  • OTP programmable
  • Fit up to ASIL D level

Connectivity

  • High-speed I²C through KL25Z

Jumpers and Switches

  • PMIC enable and IO control

Buy Options

KITPF5302FRDMEVM-Image

Click to expand

KITPF5302FRDMEVM
Active

KITPF5302FRDMEVM 15 A Core Regulator Evaluation Board.

    $176.50 USD
    In Stock :7

    Normally ships 1-2 business days
