FRDM Development Board for MCX A343 and MCX A344 MCUs

FRDM-MCXA344
Active

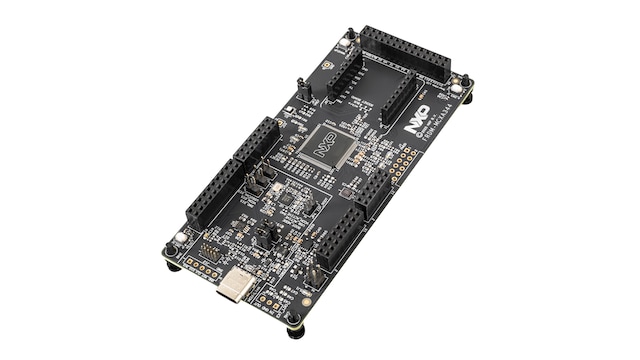

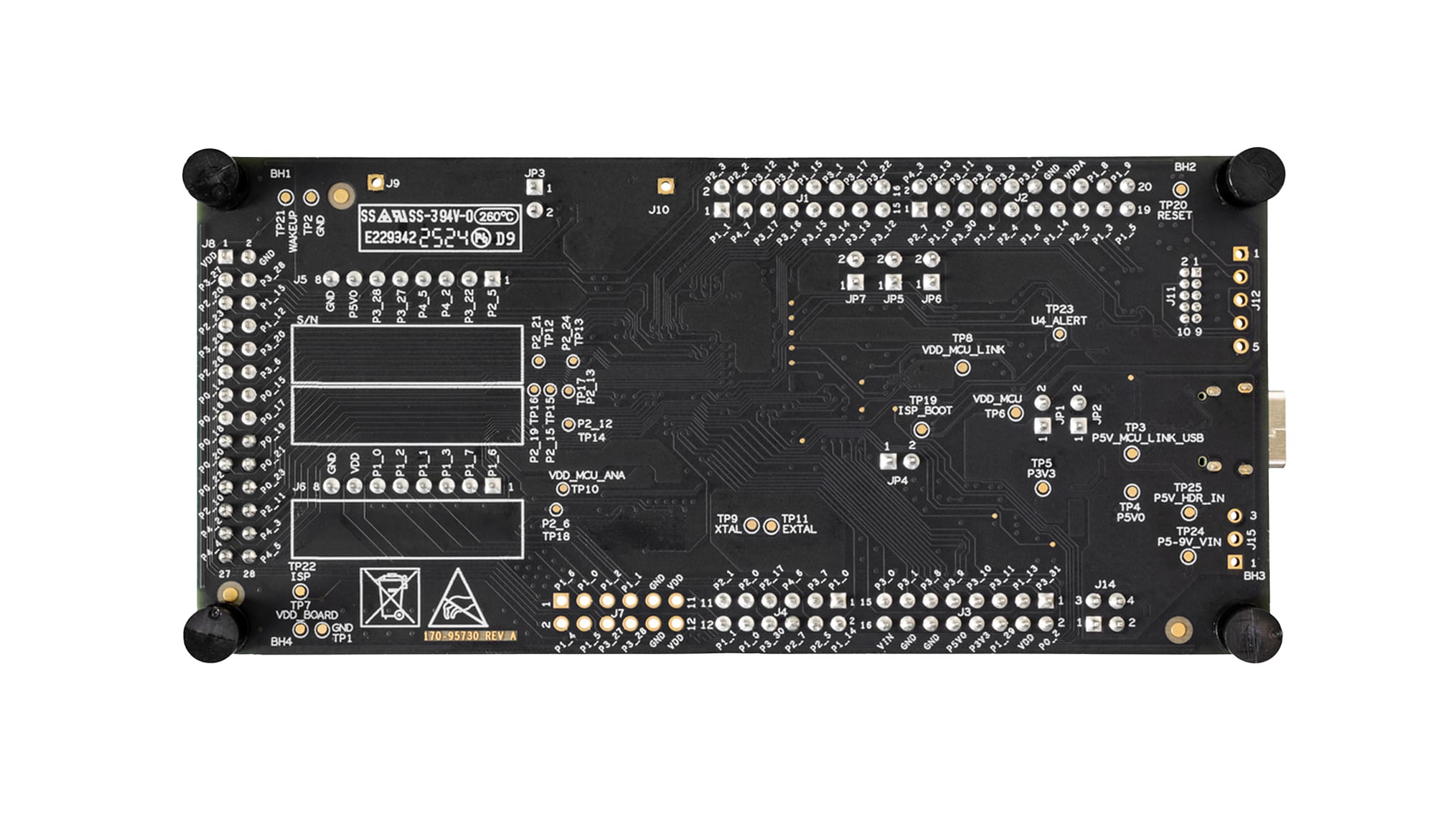

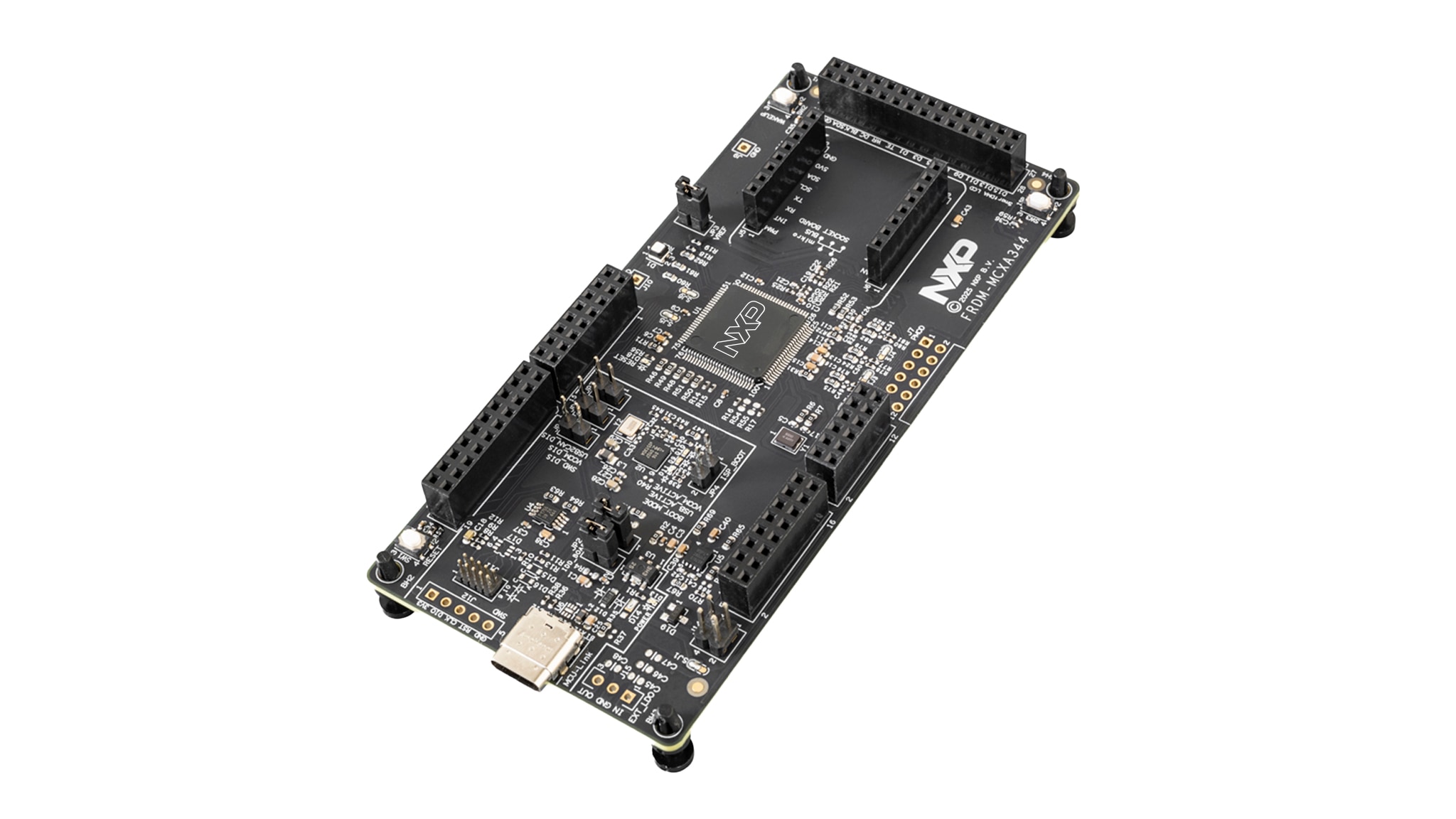

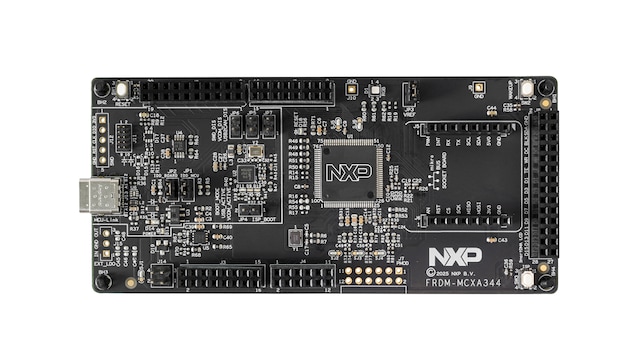

Click image to open expanded view

FRDM‑MCXA344 is a compact and scalable development board for rapid prototyping with MCX A343 and A344 MCUs, ideal for cost-optimized motor control and smart sensing designs. It provides industry-standard headers for easy access to the MCU’s I/Os, integrated open-standard serial interfaces and an on-board MCU-Link debugger.

Designed to accelerate development of smart sensing, motor control, and compact control endpoints, it includes CAN-FD connectivity, a Mathematical Acceleration Unit (MAU) to improve performance in real-time motor control computations, a SmartDMA/LCD expansion header to simplify evaluation, expansion and application development.

Additional tools such as the expansion board hub (EBH) for add-on boards and the application code hub (ACH) for software examples are available through the MCUXpresso Developer Experience.

Block Diagram

FRDM Development Board for MCX A343 and MCX A344 MCUs

FRDM Development Board for MCX A343 and MCX A344 MCUs
Get diagram PDF

Supported Devices

Processors and Microcontrollers

MCX A Series Microcontrollers

  • MCX-A34: MCX A34: Mixed-Signal MCUs for Motor Control and High Performance Analog Peripherals

Features

Microcontroller

  • MCXA344 Arm® Cortex®-M33 core up to 180MHz
  • Up to 256 KB flash with up to 64 KB RAM with 8 KB error-correcting code (ECC), support memory access unit (MAU) and SmartDMA, controller area network with flexible data-rate (CAN-FD), Low-Power Universal Asynchronous Receiver-Transmitter (LPUART), Low-Power Serial Peripheal Interface (LPSPI), Low-Power Integrated Circuit (LPI2C), Direct Memory Access (DMA), Low-Dropout Regulator (LDO)

Connectivity

  • HS USB Type-C connectors (onboard MCU-Link debugger)
  • Controller area network (CAN)/serial peripheal interface (SPI)/ inter-integrated circuit (I²C)/universal asynchronous receiver transmitter (UART) connector (Arduino, PMOD/mikroBUS, DNP)
  • Wi-Fi connector (Arduino, PMOD/mikroBUS, DNP)
  • LCD connector (SmartDMA)

Debugger

  • Onboard MCU-Link debugger with CMSIS-DAP
  • Joint Test Action Group (JTAG)/serial wire bug (SWD) connector

Expansion Options

  • Arduino® Header
  • FRDM Header
  • Pmod™ Do Not Populate (DNP)
  • mikroBUS™
  • SmartDMA/LCD Header

User Interface

  • RGB user LED
  • Reset button
  • In-system programming (ISP) button
  • Wake-up button

Buy Options

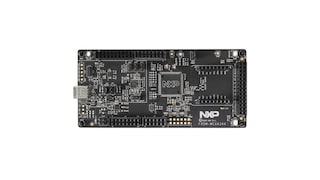

FRDM-MCXA344-Image

Click to expand

FRDM-MCXA344
Active

FRDM Development Board for MCX A343 and MCX A344 MCUs.

    $20.00 USD
    In Stock :31

    Normally ships 1-2 business days
