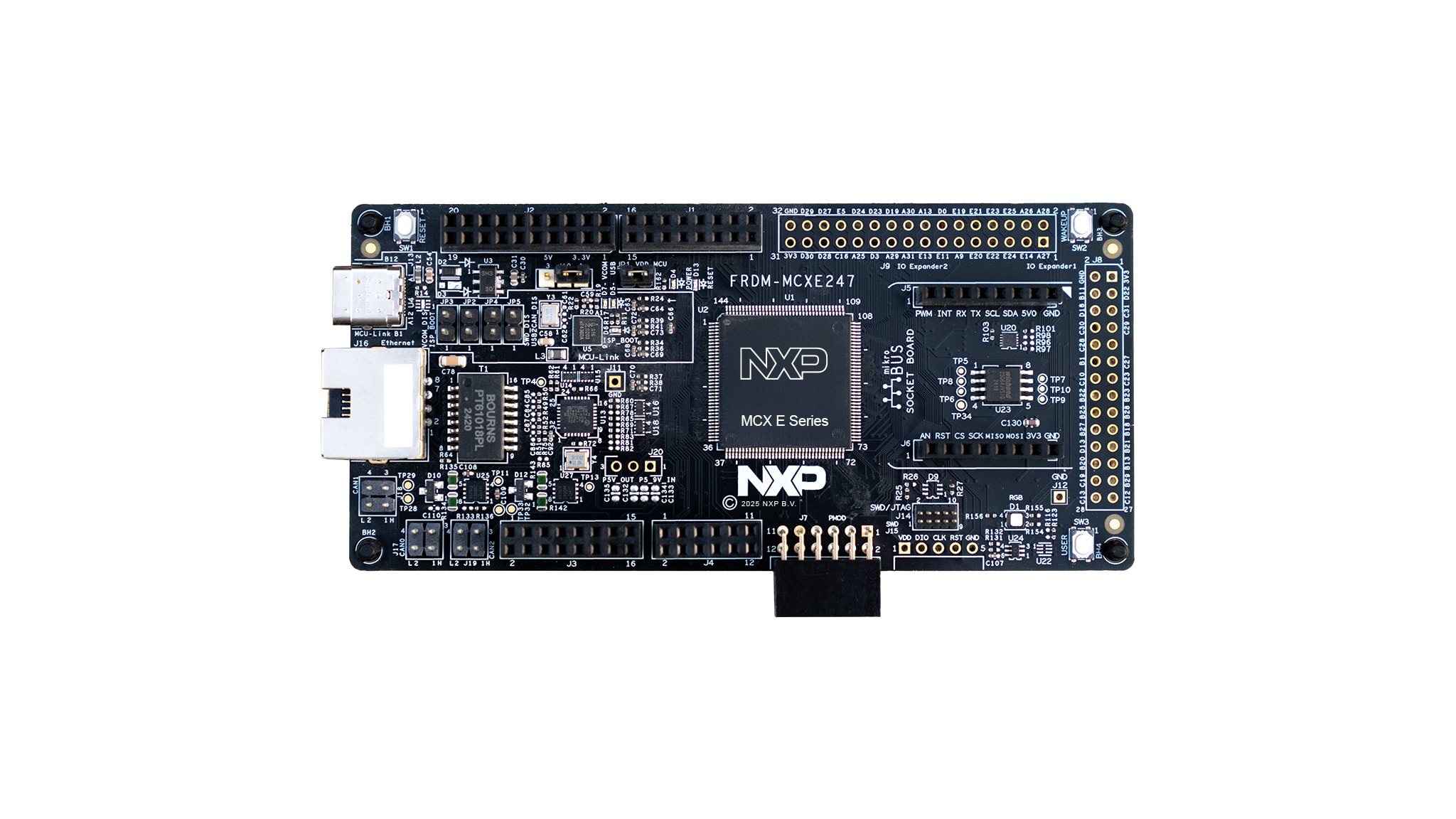

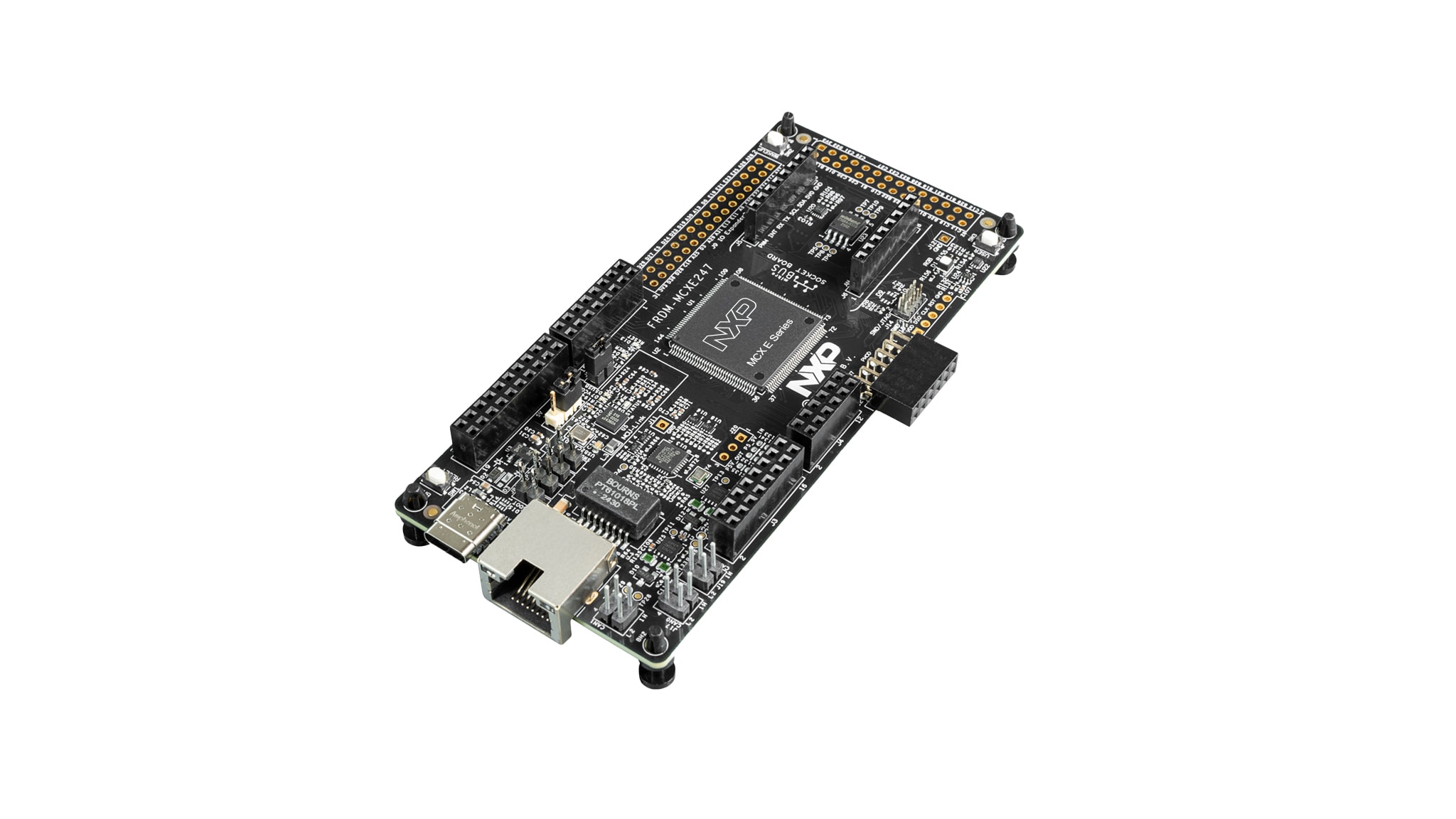

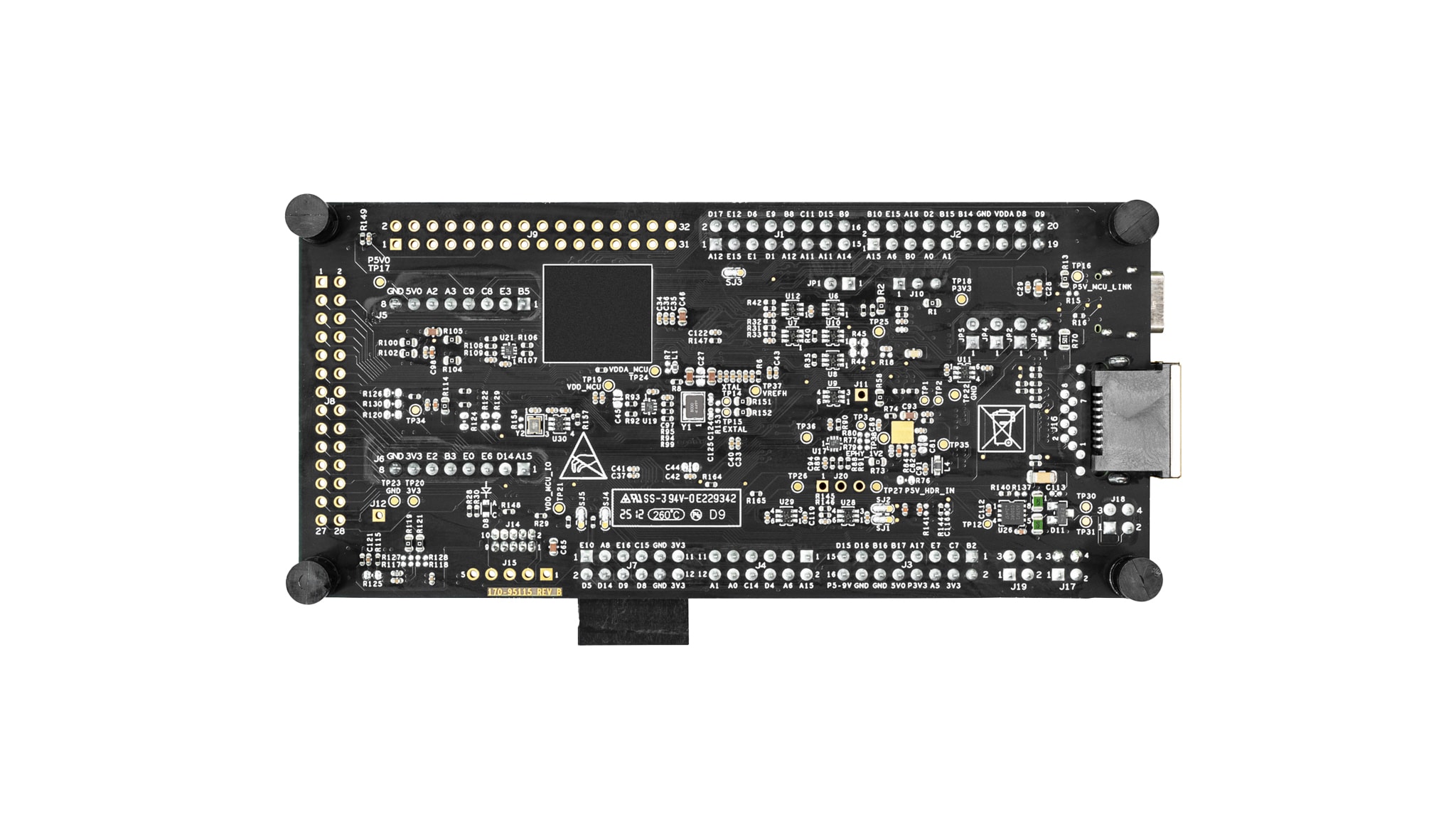

FRDM Development Board for MCX E245/246/247 MCUs
- This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information contact support or your sales representative.
FRDM-MCXE247 are compact and scalable development boards for rapid prototyping of MCX E245/246/247 MCUs. They offer industry standard headers for easy access to the MCU's I/Os, integrated open-standard serial interfaces, external flash memory and an on-board MCU-Link debugger. Additional tools like our Expansion Board Hub for add-on boards and the Application Code Hub for software examples are available through the MCUXpresso Developer Experience.
Product Details
Supported Devices
Processors and Microcontrollers
MCX E Series Microcontrollers
- MCX-E24X: MCX E24x Series Microcontrollers
Features
Microcontrollers
- MCX E247 general-purpose 32-bit microcontroller based on Arm Cortex M4F
- Up to 112 MHz CPU performance with DSP and FPI support
- Up to 2 MB flash, up to 256 kB SRAM
Connectivity
- USB Type-C connectors (On-board MCU-Link debugger)
- CAN/I3C/SPI/I²C/UART connector (Arduino, PMOD/mikroBUS, DNP)
- 10 / 100 Mbit/s (RMII) LAN8741 Ethernet PHY and RJ45
Debug
- On-board MCU-Link debugger with CMSIS-DAP
- JTAG/SWD connector
Sensor
- FXLS8974CFR3 I²C sensor
- Magnetic switch NMH1000
Expansion Options
- Arduino® Header
- FRDM Header
- Pmod™ *DNP
- mikroBUS™
- FlexIO/LCD Header
- FlexIO/Camera Header
User Interface
- RGB user LED
- Plus Reset
- ISP
- Wake up buttons
