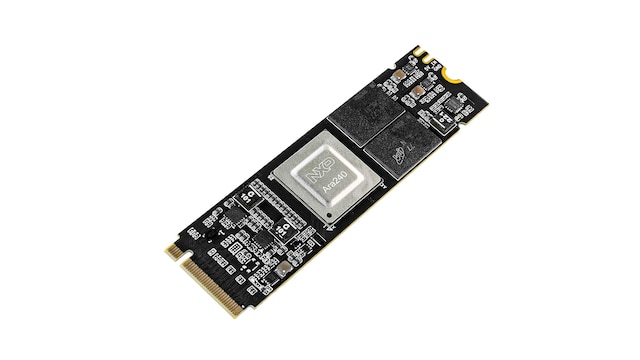

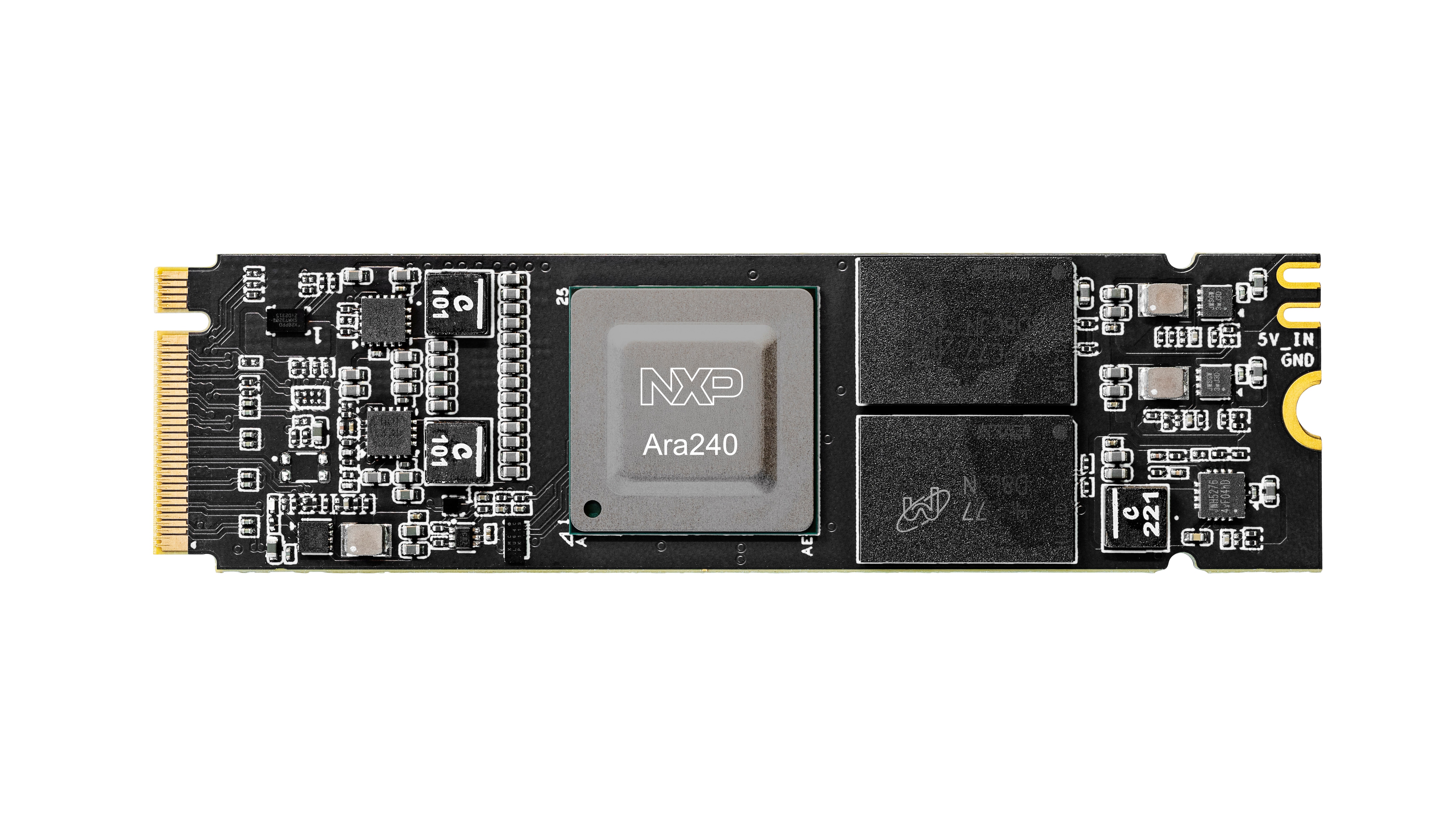

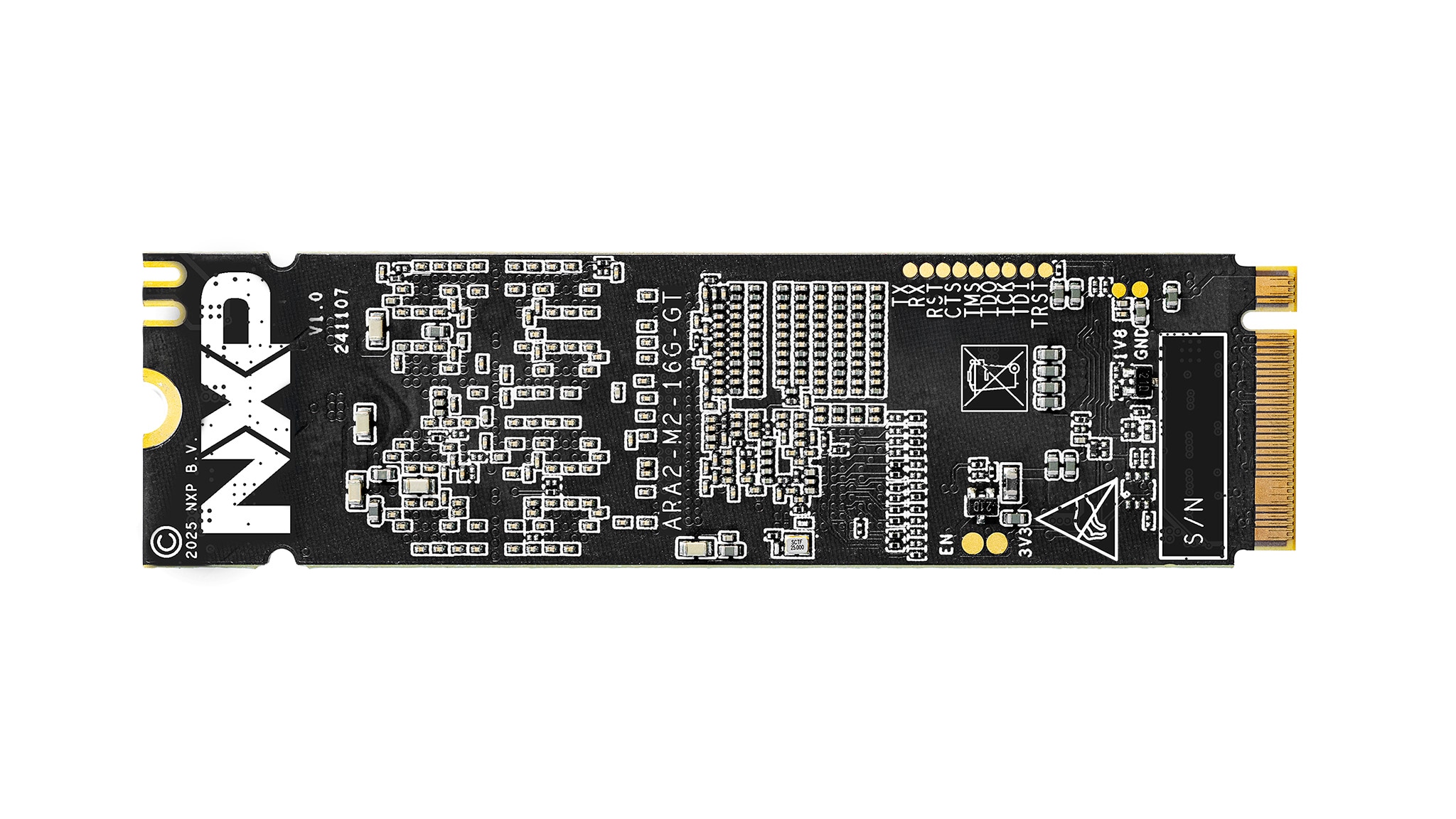

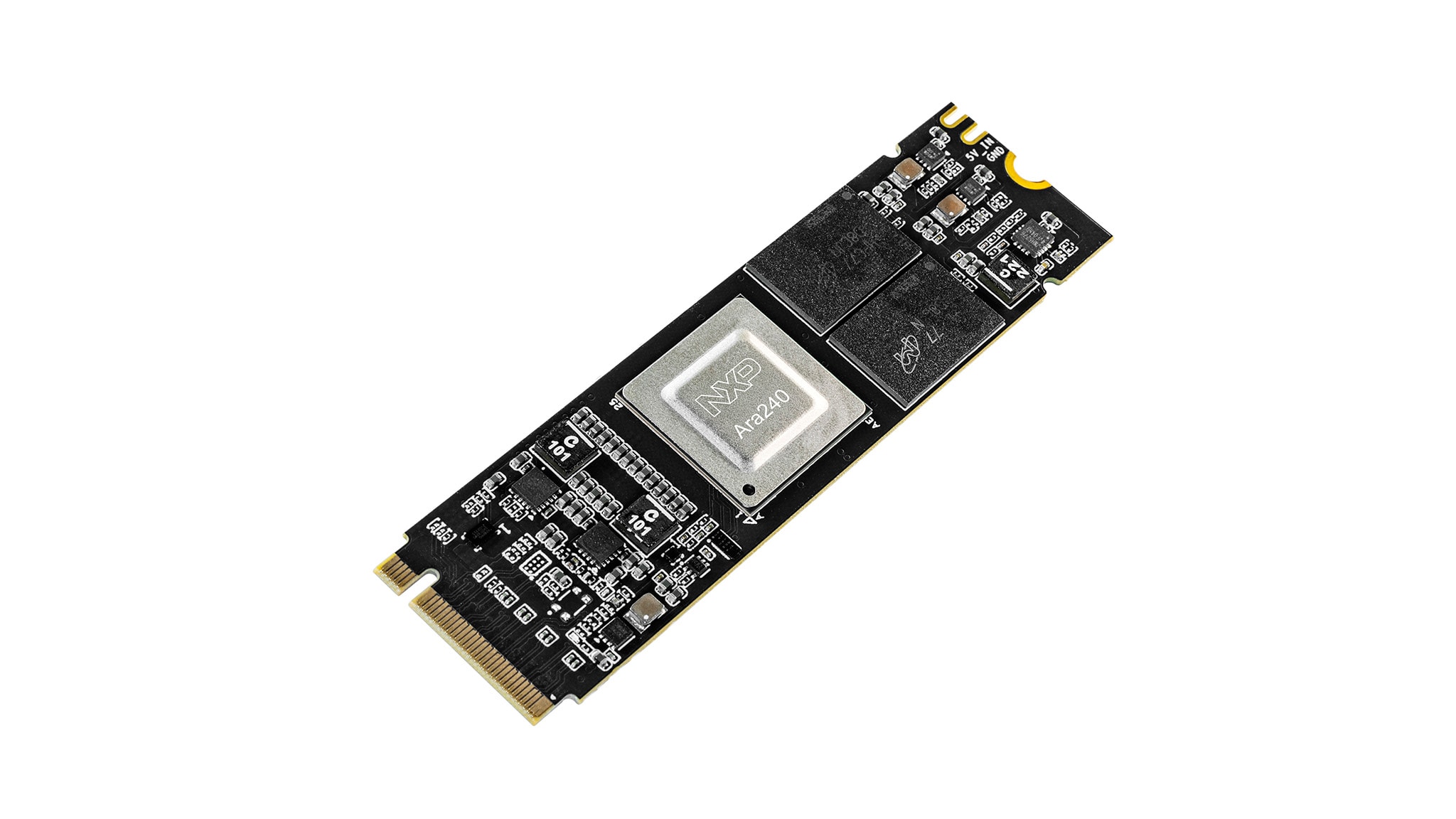

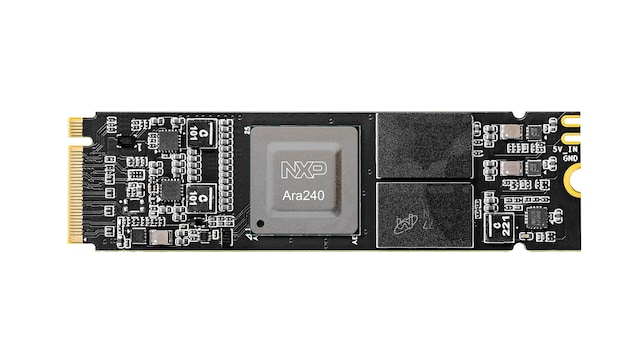

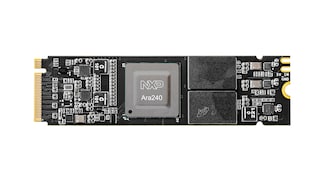

The Ara240 16GB M.2 Module is an AI accelerator module based on the Ara240 discrete NPU. It can provide up to 40 eTOPs with flexible precision. It uses the M.2 M-Key and supports a maximum 4 lanes PCI Express 4.0 in x4 configuration. Designed with the commonly used NGFF 2280 form factor, it can be easily used as a companion processing unit with the FRDM i.MX 8M Plus and FRDM i.MX 95 development boards with M.2 M-Key PCI Express capability.
| Partner | Product | On-board Memory | Power | Module Type | Unique Features |
|---|---|---|---|---|---|
| F&S | FS-M2-AI | 16 GB | ~12 W typical | M.2 | Made in Germany. F&S engineering support and AI workshops |
| Forlinx | FAI-ARA240-M | 8 / 16 GB | ~12 W typical | M.2 | China based manufacturing. High-bandwidth architecture for large models |
| Gateworks | GW16168 | 16 GB | ~12 W typical | M.2 | Made in USA; secure boot and root of trust |
| Geniatech | AIM-M-K | 8 / 16 GB | ~12 W typical | M.2 | China based manufacturing. Seamless integration into edge servers |
| RBZ | M.2 Ara240 DNPU | 8 GB | ~12 W typical | M.2 | Made in Spain. Drop-in neutral accelerator for industrial controllers. |
